| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000005902_43723cztM0_level2.fits | modeM0/AS1A13_003T01_9000005902_43723cztM0_level2_quad_clean.evt |
| Size (bytes) | 665,913,600 | 110,508,480 |
| Size | 635.1 MB | 105.4 MB |
| Events in quadrant A | 7,972,558 | 750,179 |
| Events in quadrant B | 4,657,297 | 787,711 |
| Events in quadrant C | 6,117,613 | 640,664 |
| Events in quadrant D | 5,362,852 | 681,601 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28582 | 1 |
| B | 0 | 18580 | 1 |
| C | 0 | 22862 | 1 |
| D | 0 | 20666 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6972 | 578 | 8.290304% |
| B | 6972 | 344 | 4.934022% |
| C | 6972 | 1304 | 18.703385% |
| D | 6972 | 408 | 5.851979% |

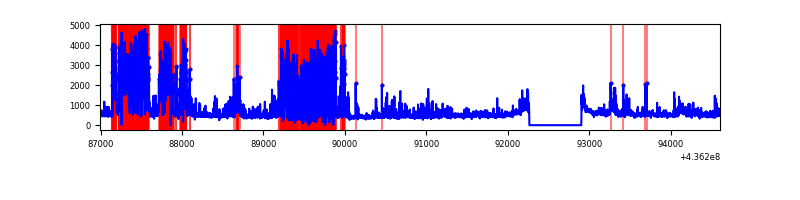

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7612 | 6973 | 235 | 235 | 3.09% | 3.37% |  |
| B | 7612 | 6973 | 146 | 146 | 1.92% | 2.09% |  |
| C | 7612 | 6973 | 743 | 743 | 9.76% | 10.66% |  |
| D | 7612 | 6973 | 252 | 252 | 3.31% | 3.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 3121747 | 19097.04 | 794 | 779 | 163.4 |
| A | 10 | 83 | 861649 | 5267.62 | 794 | 779 | 163.4 |
| A | 14 | 63 | 571839 | 3494.29 | 794 | 779 | 163.4 |
| B | 4 | 171 | 616697 | 3932.23 | 796 | 772 | 156.6 |
| B | 5 | 235 | 546061 | 3481.27 | 796 | 772 | 156.6 |
| B | 0 | 199 | 169397 | 1076.55 | 796 | 772 | 156.6 |
| C | 15 | 157 | 2793195 | 16394.03 | 718 | 721 | 170.3 |
| C | 3 | 233 | 195040 | 1140.81 | 718 | 721 | 170.3 |
| C | 15 | 158 | 149518 | 873.56 | 718 | 721 | 170.3 |
| D | 13 | 171 | 475986 | 2383.06 | 785 | 760 | 199.4 |
| D | 5 | 235 | 450581 | 2255.67 | 785 | 760 | 199.4 |
| D | 1 | 52 | 224454 | 1121.73 | 785 | 760 | 199.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

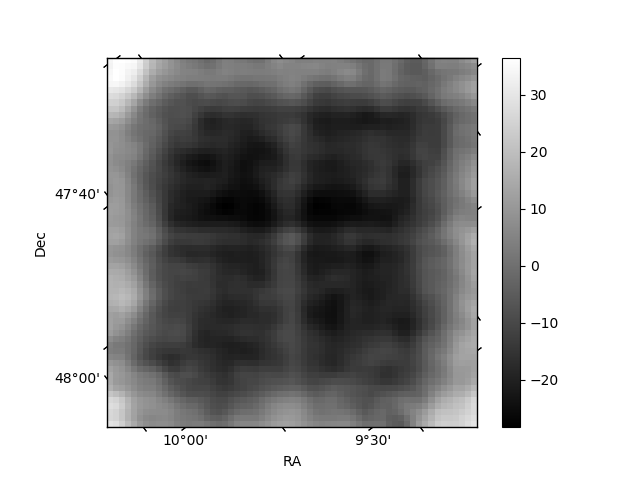

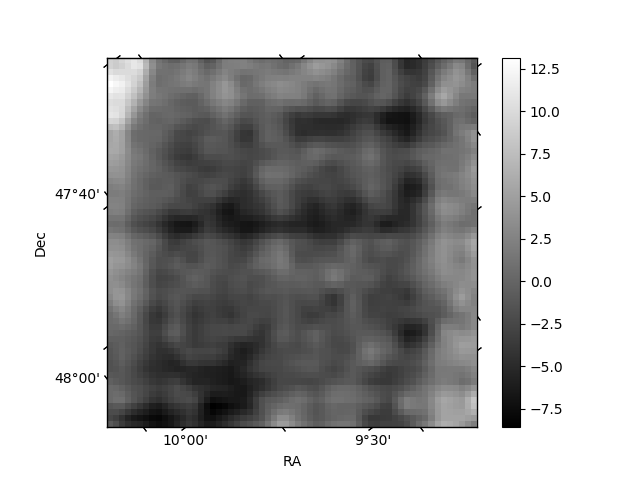

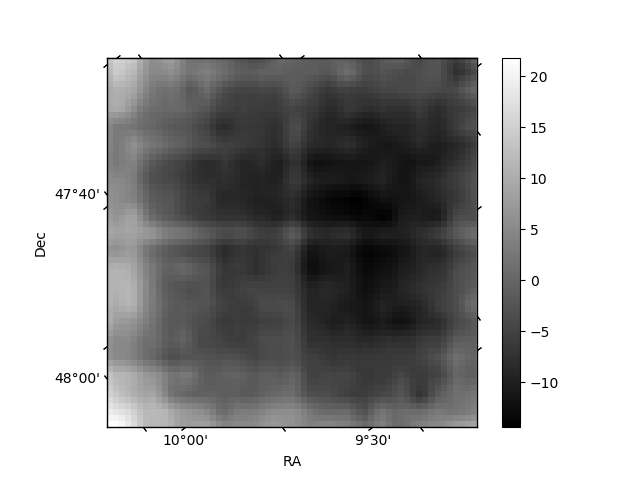

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

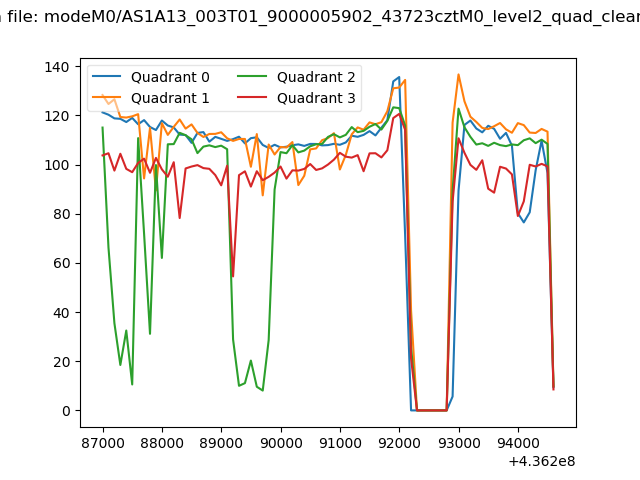

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

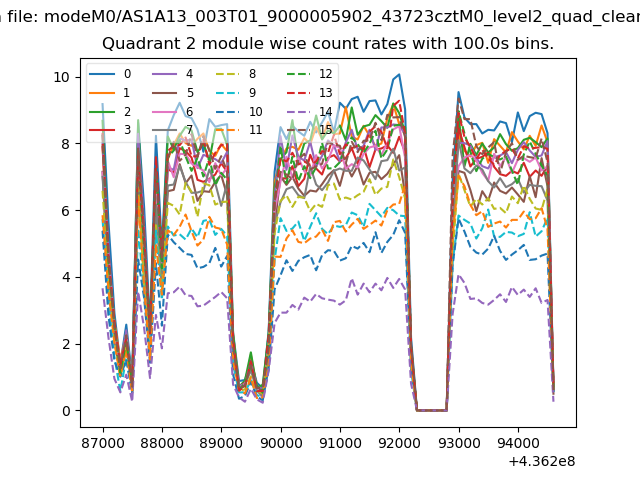

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

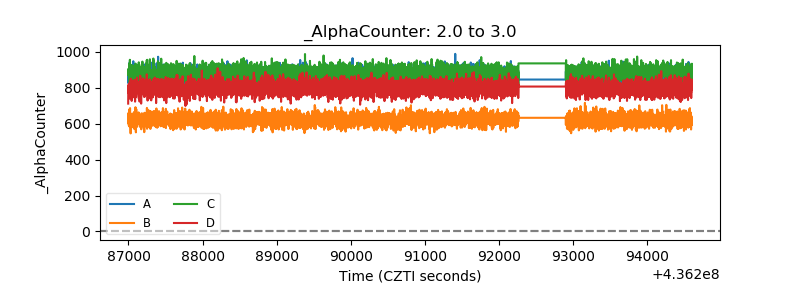

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

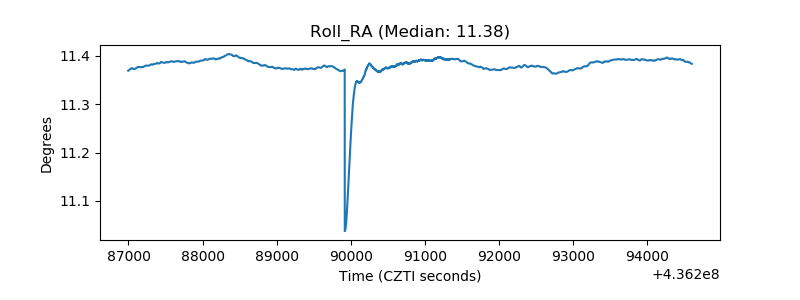

| _Roll_RA |  |
| Veto Counter |  |
