| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000005902_43734cztM0_level2.fits | modeM0/AS1A13_003T01_9000005902_43734cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,712,640 | 110,318,400 |
| Size | 591.0 MB | 105.2 MB |
| Events in quadrant A | 4,392,365 | 800,997 |
| Events in quadrant B | 3,778,740 | 829,468 |
| Events in quadrant C | 4,505,265 | 761,522 |
| Events in quadrant D | 9,770,112 | 504,204 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17247 | 2 |
| B | 0 | 15214 | 2 |
| C | 0 | 17379 | 2 |
| D | 0 | 33438 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6364 | 219 | 3.441232% |
| B | 6364 | 222 | 3.488372% |
| C | 6364 | 366 | 5.751100% |
| D | 6364 | 2279 | 35.810811% |

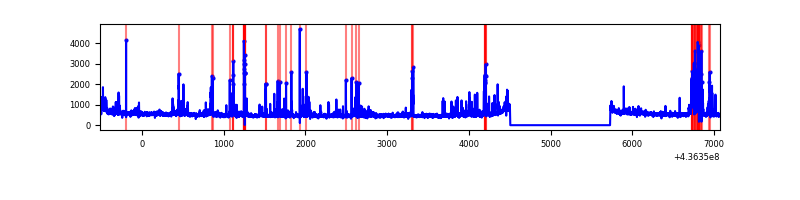

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7589 | 6365 | 73 | 73 | 0.96% | 1.15% |  |
| B | 7589 | 6365 | 68 | 68 | 0.90% | 1.07% |  |
| C | 7589 | 6365 | 296 | 296 | 3.90% | 4.65% |  |
| D | 7589 | 6365 | 1870 | 1870 | 24.64% | 29.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 909432 | 5565.71 | 799 | 785 | 163.3 |
| A | 15 | 223 | 282463 | 1725.36 | 799 | 785 | 163.3 |
| A | 15 | 174 | 31739 | 189.6 | 799 | 785 | 163.3 |
| B | 5 | 235 | 297548 | 1940.57 | 794 | 771 | 152.9 |
| B | 0 | 200 | 160369 | 1043.58 | 794 | 771 | 152.9 |
| B | 5 | 172 | 88629 | 574.49 | 794 | 771 | 152.9 |
| C | 15 | 174 | 859798 | 4812.39 | 764 | 769 | 178.5 |
| C | 15 | 157 | 243153 | 1357.87 | 764 | 769 | 178.5 |
| C | 15 | 158 | 241311 | 1347.55 | 764 | 769 | 178.5 |
| D | 7 | 80 | 3516622 | 20944.03 | 662 | 640 | 167.9 |
| D | 3 | 13 | 892074 | 5310.1 | 662 | 640 | 167.9 |
| D | 13 | 171 | 713613 | 4247.04 | 662 | 640 | 167.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

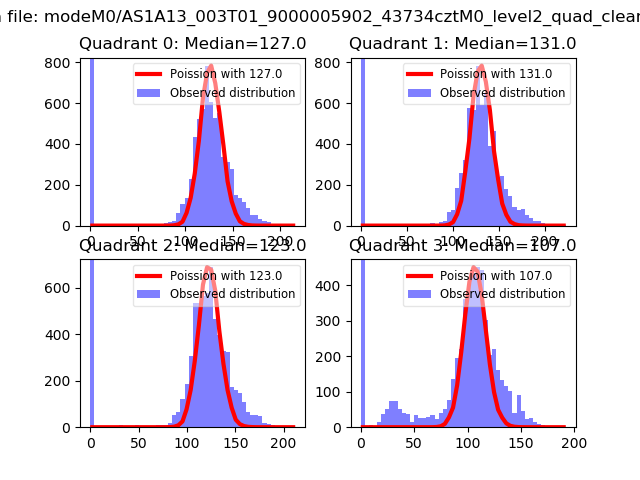

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

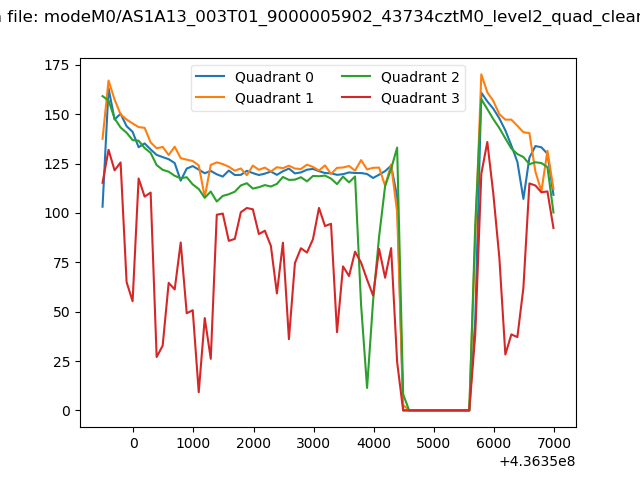

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

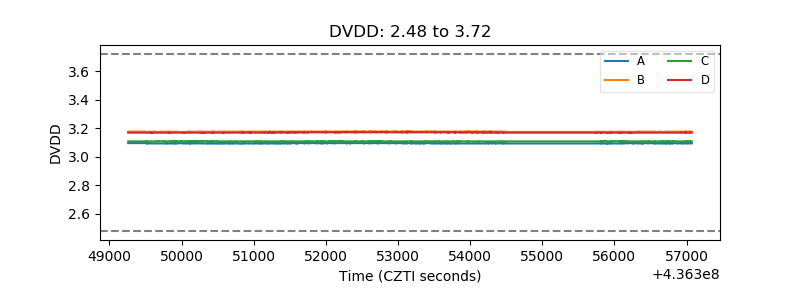

| D_VDD |  |

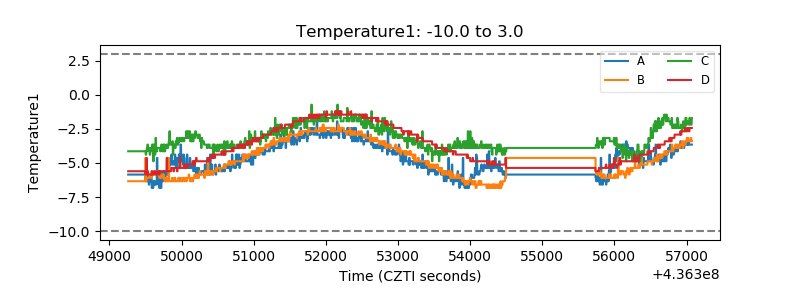

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

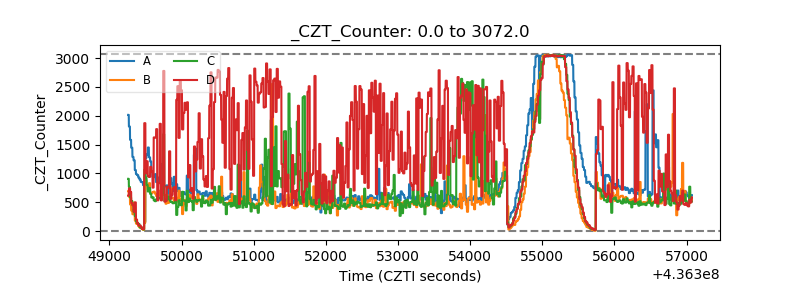

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

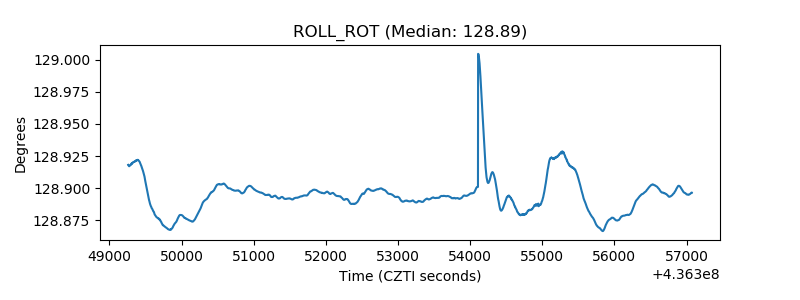

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
