| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000005902_43735cztM0_level2.fits | modeM0/AS1A13_003T01_9000005902_43735cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,816,960 | 118,759,680 |
| Size | 555.8 MB | 113.3 MB |
| Events in quadrant A | 4,705,130 | 834,396 |
| Events in quadrant B | 4,621,085 | 842,289 |
| Events in quadrant C | 3,898,921 | 823,410 |
| Events in quadrant D | 7,830,951 | 630,709 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18592 | 2 |
| B | 0 | 18011 | 4 |
| C | 0 | 15633 | 2 |
| D | 0 | 27850 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6683 | 258 | 3.860542% |
| B | 6682 | 415 | 6.210715% |
| C | 6682 | 96 | 1.436696% |
| D | 6682 | 1253 | 18.751871% |

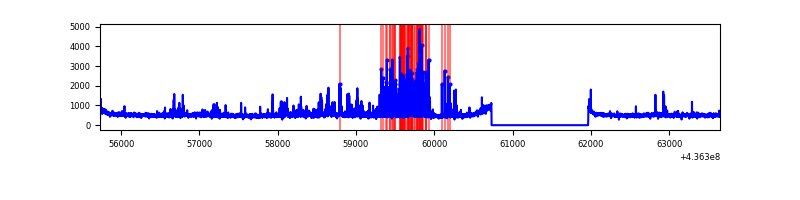

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7918 | 6684 | 111 | 111 | 1.40% | 1.66% |  |
| B | 7917 | 6683 | 230 | 230 | 2.91% | 3.44% |  |
| C | 7917 | 6683 | 63 | 63 | 0.80% | 0.94% |  |
| D | 7917 | 6682 | 977 | 977 | 12.34% | 14.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 985320 | 5770.05 | 836 | 821 | 170.6 |
| A | 15 | 223 | 311655 | 1821.77 | 836 | 821 | 170.6 |
| A | 13 | 248 | 96426 | 560.33 | 836 | 821 | 170.6 |
| B | 0 | 200 | 673118 | 4315.78 | 809 | 787 | 155.8 |
| B | 5 | 235 | 567770 | 3639.53 | 809 | 787 | 155.8 |
| B | 15 | 85 | 52339 | 330.92 | 809 | 787 | 155.8 |
| C | 15 | 158 | 414762 | 2189.56 | 810 | 818 | 189.1 |
| C | 3 | 233 | 126613 | 665.39 | 810 | 818 | 189.1 |
| C | 14 | 254 | 78464 | 410.71 | 810 | 818 | 189.1 |
| D | 7 | 80 | 1061132 | 5608.01 | 755 | 734 | 189.1 |
| D | 3 | 13 | 952728 | 5034.7 | 755 | 734 | 189.1 |
| D | 5 | 222 | 812517 | 4293.18 | 755 | 734 | 189.1 |

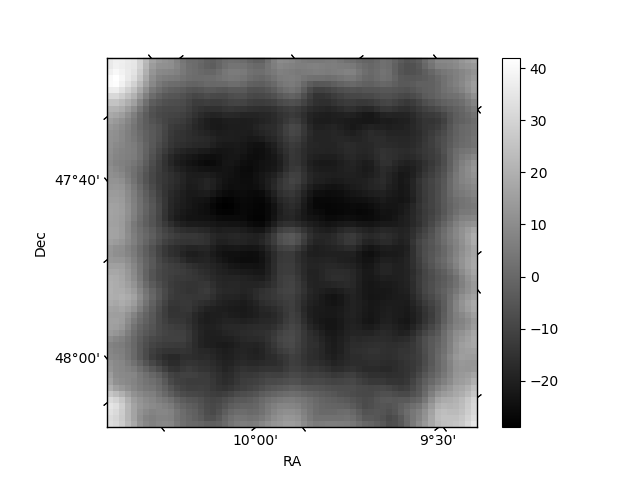

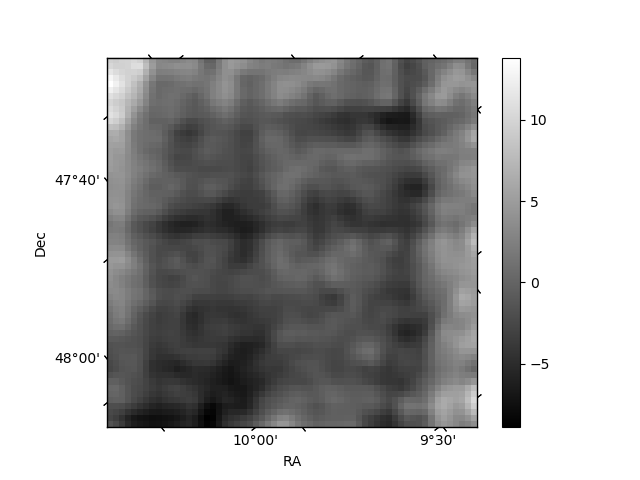

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

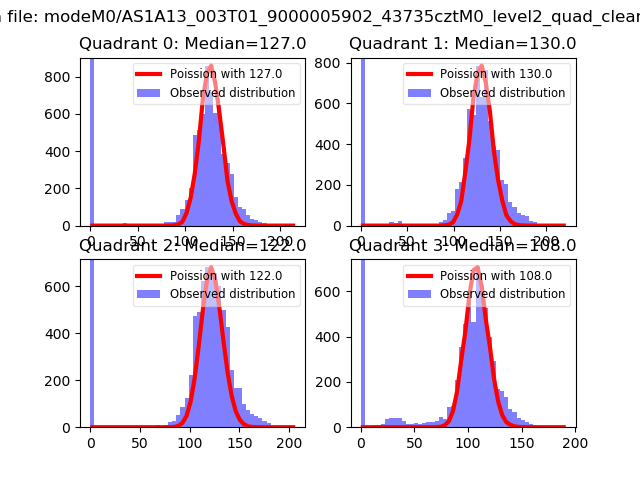

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

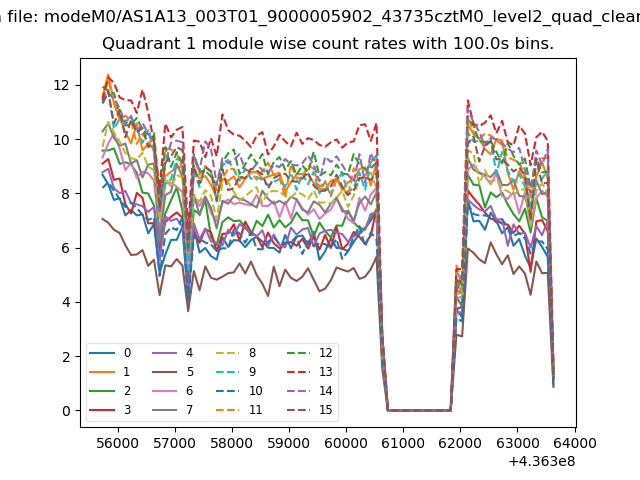

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

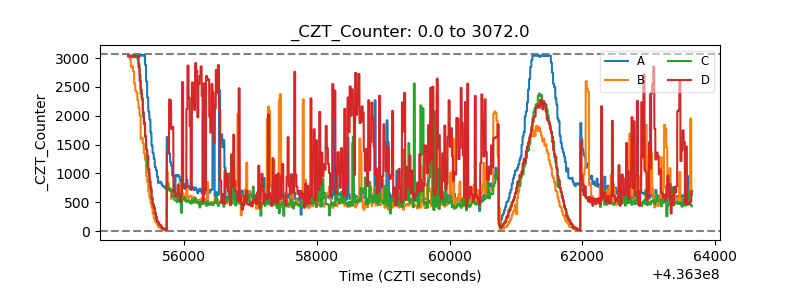

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

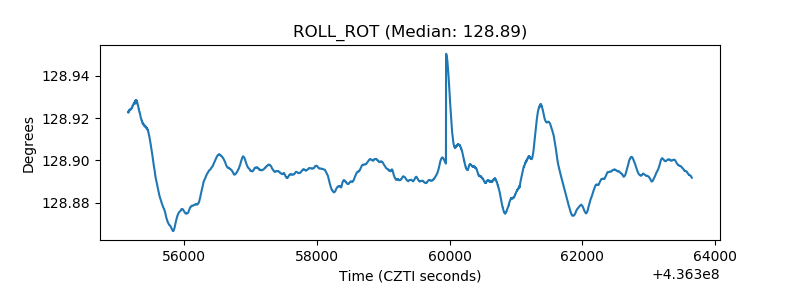

| _ROLL_ROT |  |
| _Roll_DEC |  |

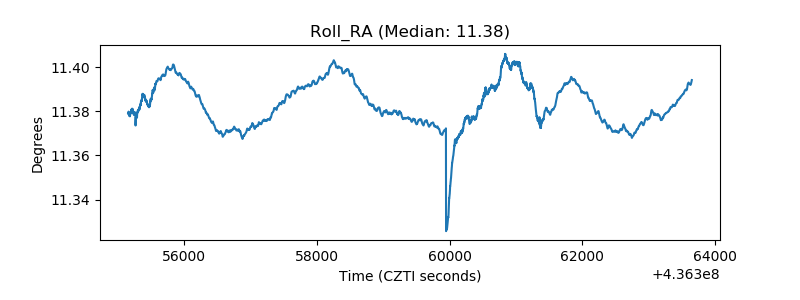

| _Roll_RA |  |
| Veto Counter |  |
