| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000005902_43738cztM0_level2.fits | modeM0/AS1A13_003T01_9000005902_43738cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,134,720 | 108,380,160 |
| Size | 524.6 MB | 103.4 MB |
| Events in quadrant A | 4,298,161 | 739,850 |
| Events in quadrant B | 5,085,424 | 716,197 |
| Events in quadrant C | 4,188,574 | 721,054 |
| Events in quadrant D | 6,266,013 | 631,209 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17084 | 1 |
| B | 0 | 19755 | 1 |
| C | 0 | 17218 | 1 |
| D | 0 | 23319 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6779 | 249 | 3.673108% |
| B | 6780 | 702 | 10.353982% |
| C | 6780 | 355 | 5.235988% |
| D | 6780 | 641 | 9.454277% |

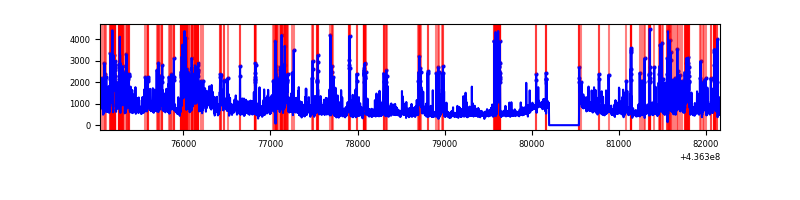

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7124 | 6780 | 51 | 51 | 0.72% | 0.75% |  |
| B | 7125 | 6781 | 390 | 390 | 5.47% | 5.75% |  |
| C | 7125 | 6781 | 183 | 183 | 2.57% | 2.70% |  |
| D | 7125 | 6781 | 409 | 409 | 5.74% | 6.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 792371 | 4883.81 | 786 | 770 | 162.1 |
| A | 15 | 174 | 196691 | 1208.74 | 786 | 770 | 162.1 |
| A | 15 | 223 | 96081 | 588.02 | 786 | 770 | 162.1 |
| B | 0 | 200 | 1136902 | 7556.77 | 762 | 740 | 150.4 |
| B | 5 | 235 | 803834 | 5341.49 | 762 | 740 | 150.4 |
| B | 5 | 172 | 49587 | 324.89 | 762 | 740 | 150.4 |
| C | 15 | 158 | 535623 | 2946.85 | 765 | 769 | 181.5 |
| C | 15 | 174 | 294703 | 1619.47 | 765 | 769 | 181.5 |
| C | 14 | 254 | 127959 | 700.77 | 765 | 769 | 181.5 |
| D | 5 | 222 | 580455 | 3031.97 | 756 | 733 | 191.2 |
| D | 7 | 80 | 434690 | 2269.61 | 756 | 733 | 191.2 |
| D | 1 | 52 | 317508 | 1656.75 | 756 | 733 | 191.2 |

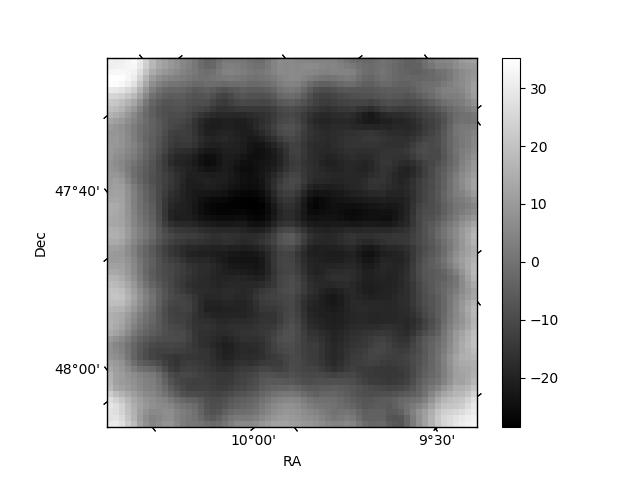

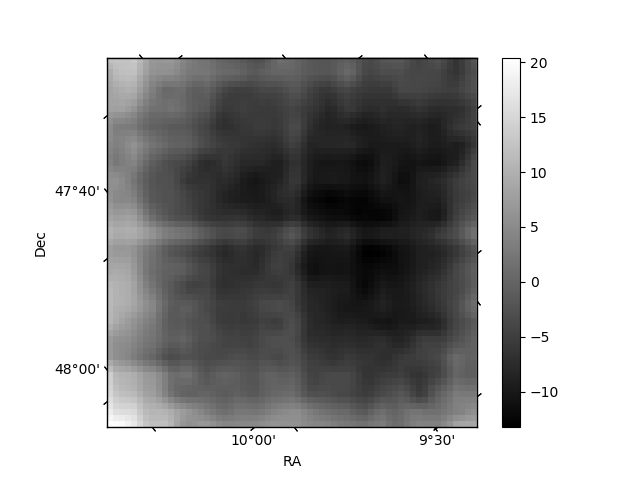

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

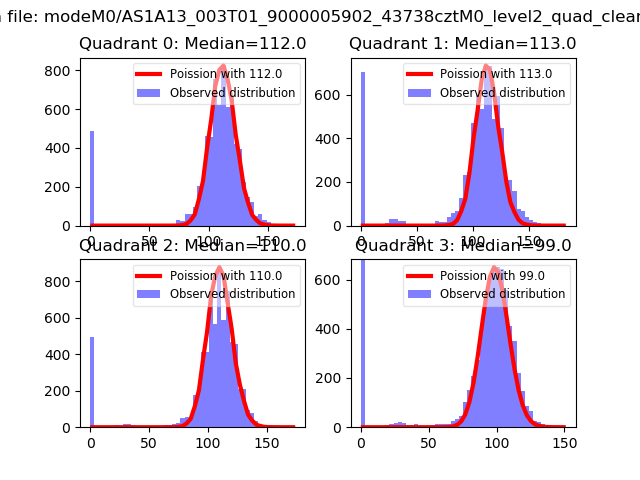

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

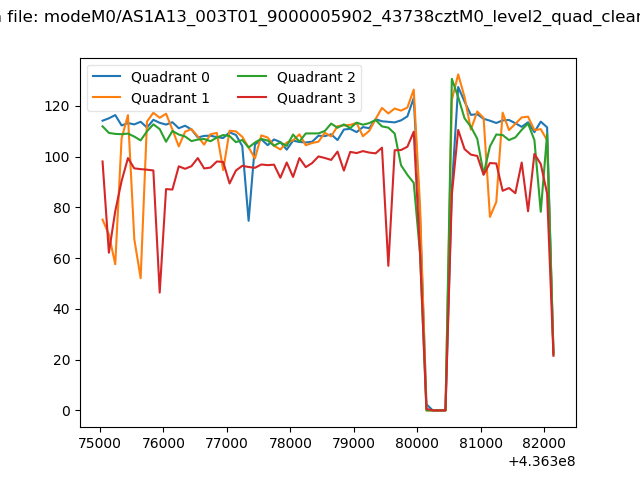

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

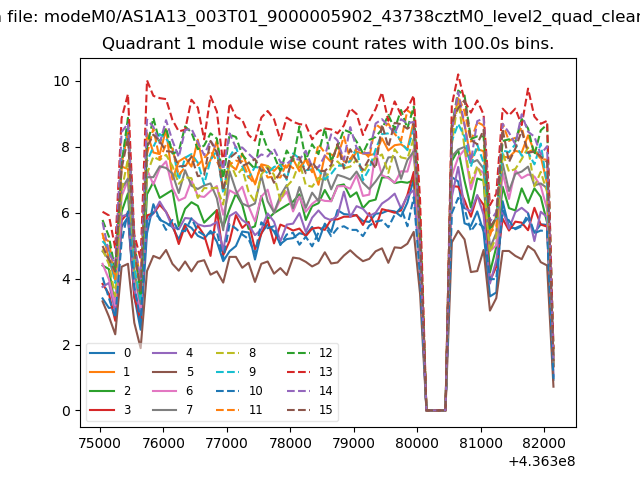

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

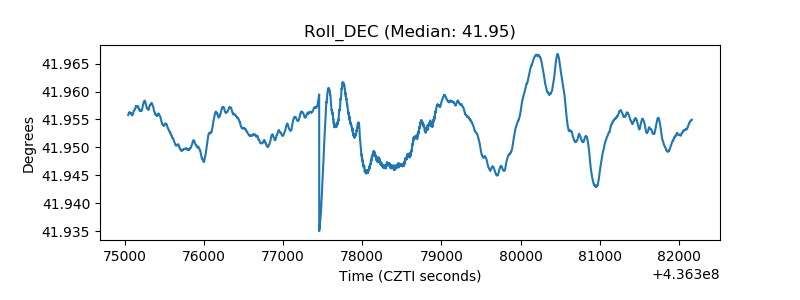

| _Roll_DEC |  |

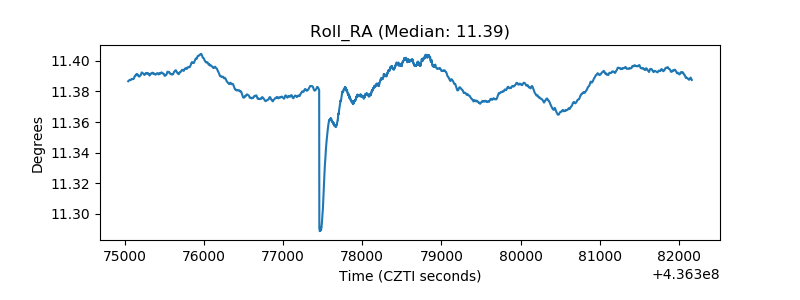

| _Roll_RA |  |
| Veto Counter |  |
