| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000005902_43739cztM0_level2.fits | modeM0/AS1A13_003T01_9000005902_43739cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,295,040 | 126,838,080 |
| Size | 590.6 MB | 121.0 MB |
| Events in quadrant A | 4,826,170 | 866,992 |
| Events in quadrant B | 5,326,144 | 853,915 |
| Events in quadrant C | 4,924,564 | 850,284 |
| Events in quadrant D | 7,241,161 | 724,927 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19478 | 1 |
| B | 0 | 21238 | 1 |
| C | 0 | 20028 | 1 |
| D | 0 | 26987 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7823 | 118 | 1.508373% |
| B | 7823 | 523 | 6.685415% |
| C | 7823 | 198 | 2.530998% |
| D | 7823 | 731 | 9.344241% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7823 | 7823 | 16 | 16 | 0.20% | 0.20% |  |
| B | 7823 | 7823 | 283 | 283 | 3.62% | 3.62% |  |
| C | 7823 | 7823 | 155 | 155 | 1.98% | 1.98% |  |
| D | 7823 | 7823 | 488 | 488 | 6.24% | 6.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 941572 | 4943.8 | 917 | 898 | 190.3 |
| A | 13 | 248 | 140354 | 732.92 | 917 | 898 | 190.3 |
| A | 15 | 223 | 115369 | 601.61 | 917 | 898 | 190.3 |
| B | 5 | 235 | 1095453 | 6222.9 | 890 | 863 | 175.9 |
| B | 0 | 200 | 569190 | 3231.02 | 890 | 863 | 175.9 |
| B | 5 | 255 | 34652 | 192.1 | 890 | 863 | 175.9 |
| C | 15 | 158 | 503805 | 2380.4 | 893 | 897 | 211.3 |
| C | 15 | 174 | 421590 | 1991.25 | 893 | 897 | 211.3 |
| C | 14 | 254 | 198062 | 933.23 | 893 | 897 | 211.3 |
| D | 1 | 52 | 584987 | 2676.57 | 866 | 843 | 218.2 |
| D | 5 | 235 | 457037 | 2090.3 | 866 | 843 | 218.2 |
| D | 8 | 48 | 437314 | 1999.93 | 866 | 843 | 218.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

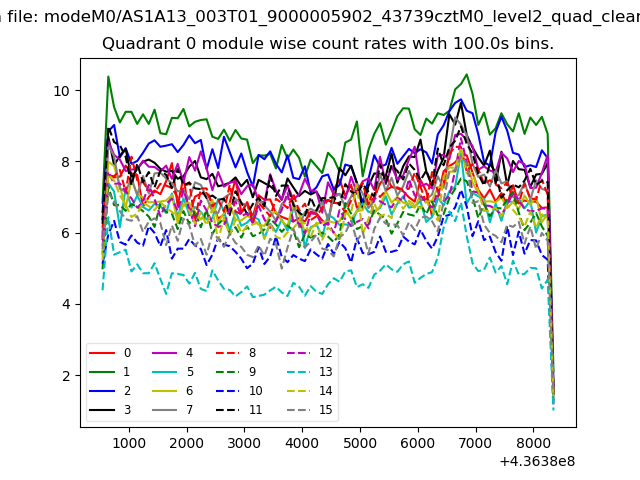

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

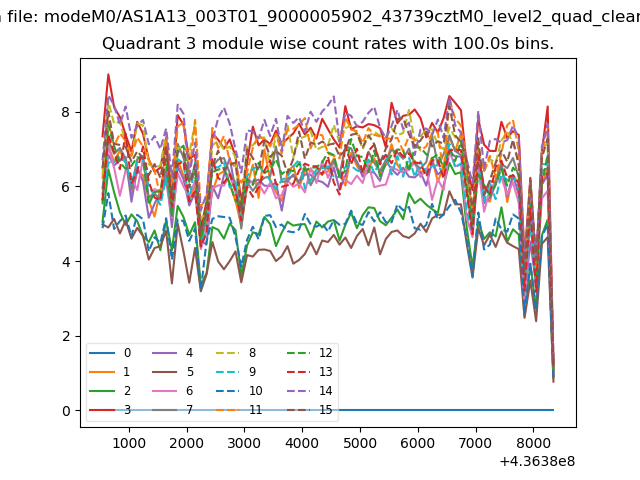

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

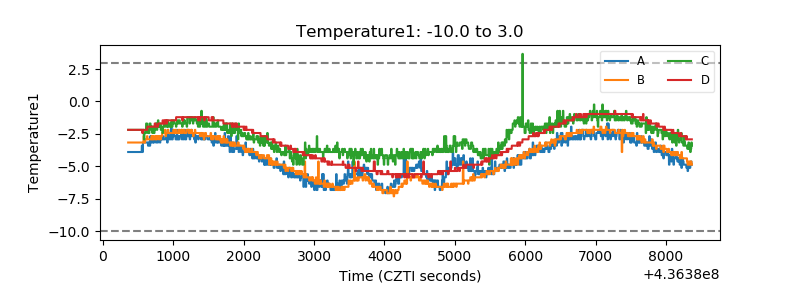

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

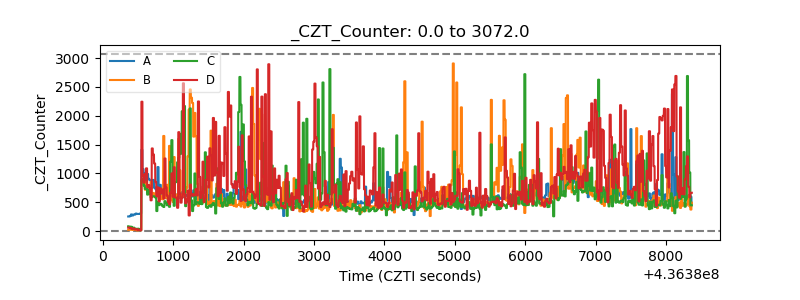

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

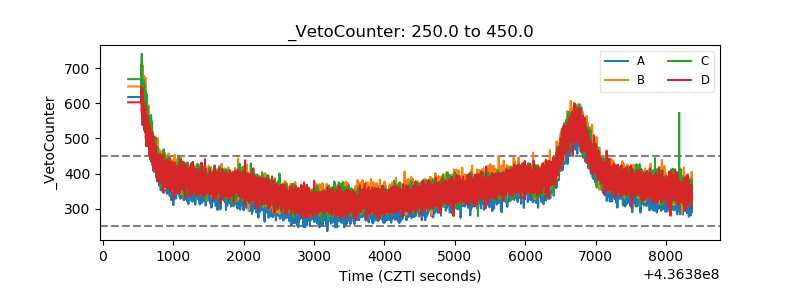

| Veto Counter |  |
