| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000005902_43740cztM0_level2.fits | modeM0/AS1A13_003T01_9000005902_43740cztM0_level2_quad_clean.evt |
| Size (bytes) | 702,843,840 | 132,727,680 |
| Size | 670.3 MB | 126.6 MB |
| Events in quadrant A | 5,605,788 | 900,832 |
| Events in quadrant B | 5,174,818 | 930,366 |
| Events in quadrant C | 5,450,167 | 898,217 |
| Events in quadrant D | 9,142,455 | 711,130 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22113 | 0 |
| B | 0 | 21144 | 0 |
| C | 0 | 21890 | 0 |
| D | 0 | 33097 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8312 | 280 | 3.368624% |
| B | 8312 | 281 | 3.380654% |
| C | 8312 | 238 | 2.863330% |
| D | 8312 | 1435 | 17.264196% |

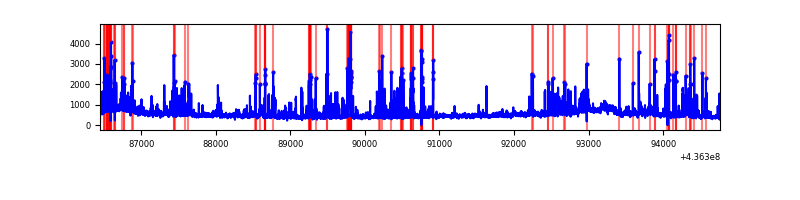

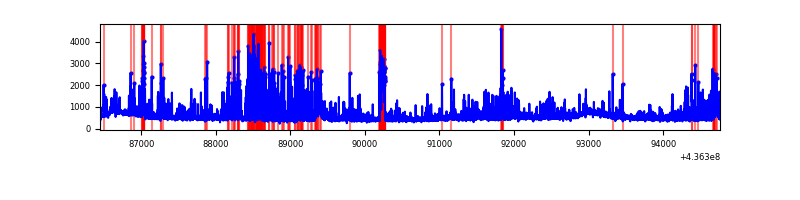

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8312 | 8312 | 138 | 138 | 1.66% | 1.66% |  |
| B | 8312 | 8311 | 129 | 129 | 1.55% | 1.55% |  |
| C | 8312 | 8312 | 206 | 206 | 2.48% | 2.48% |  |
| D | 8312 | 8312 | 872 | 872 | 10.49% | 10.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 967449 | 4750.46 | 969 | 948 | 203.5 |
| A | 15 | 174 | 410713 | 2014.04 | 969 | 948 | 203.5 |
| A | 15 | 223 | 274154 | 1342.84 | 969 | 948 | 203.5 |
| B | 5 | 235 | 814469 | 4305.0 | 960 | 931 | 189.0 |
| B | 0 | 200 | 160340 | 843.54 | 960 | 931 | 189.0 |
| B | 12 | 3 | 134538 | 707.01 | 960 | 931 | 189.0 |
| C | 15 | 158 | 927351 | 4091.82 | 954 | 957 | 226.4 |
| C | 3 | 233 | 247148 | 1087.41 | 954 | 957 | 226.4 |
| C | 15 | 157 | 200105 | 879.62 | 954 | 957 | 226.4 |
| D | 4 | 212 | 1882502 | 8055.88 | 894 | 864 | 233.6 |
| D | 8 | 48 | 818571 | 3500.86 | 894 | 864 | 233.6 |
| D | 5 | 235 | 579669 | 2478.04 | 894 | 864 | 233.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

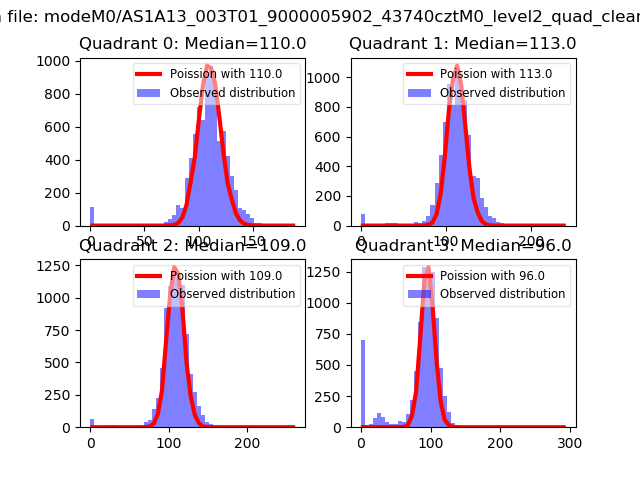

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

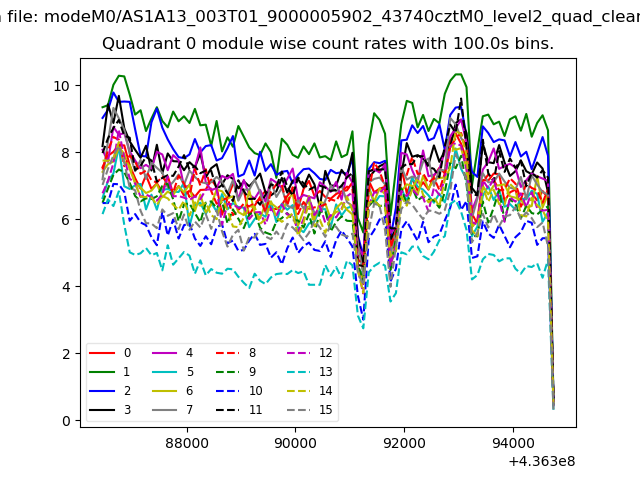

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

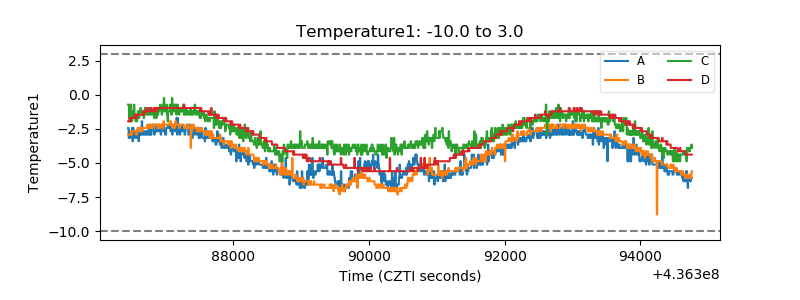

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

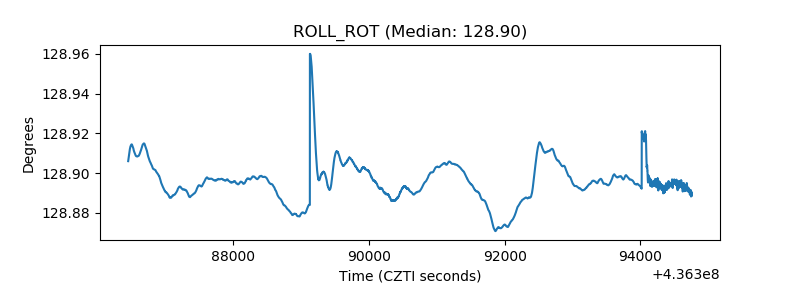

| _ROLL_ROT |  |
| _Roll_DEC |  |

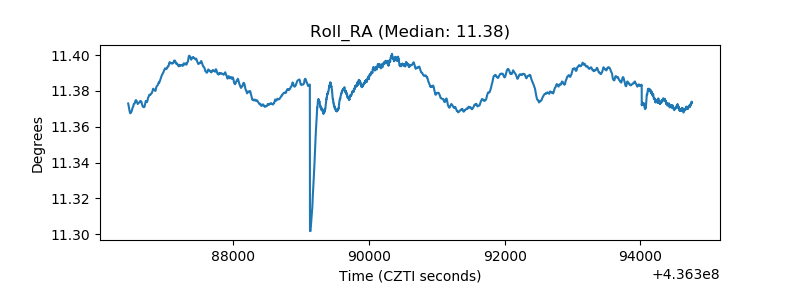

| _Roll_RA |  |

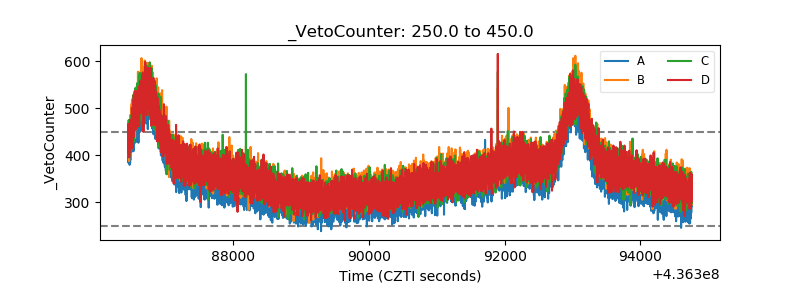

| Veto Counter |  |
