| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000005902_43747cztM0_level2.fits | modeM0/AS1A13_003T01_9000005902_43747cztM0_level2_quad_clean.evt |
| Size (bytes) | 360,184,320 | 70,542,720 |
| Size | 343.5 MB | 67.3 MB |
| Events in quadrant A | 2,715,364 | 488,031 |
| Events in quadrant B | 2,446,386 | 497,770 |
| Events in quadrant C | 3,925,429 | 447,506 |
| Events in quadrant D | 3,907,049 | 396,371 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 88 | 0 |
| B | 0 | 88 | 0 |
| C | 0 | 88 | 0 |
| D | 0 | 88 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10989 | 1 |
| B | 0 | 10153 | 1 |
| C | 0 | 14570 | 1 |
| D | 0 | 14579 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4350 | 62 | 1.425287% |
| B | 4350 | 156 | 3.586207% |
| C | 4350 | 449 | 10.321839% |
| D | 4350 | 477 | 10.965517% |

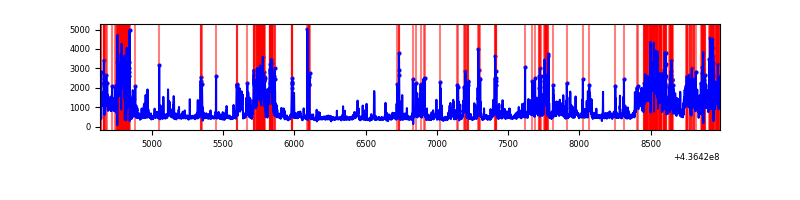

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4350 | 4350 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4350 | 4350 | 75 | 75 | 1.72% | 1.72% |  |
| C | 4350 | 4350 | 425 | 425 | 9.77% | 9.77% |  |
| D | 4350 | 4350 | 395 | 395 | 9.08% | 9.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 571903 | 5507.23 | 498 | 487 | 103.8 |
| A | 14 | 63 | 148302 | 1424.62 | 498 | 487 | 103.8 |
| A | 8 | 4 | 58411 | 558.26 | 498 | 487 | 103.8 |
| B | 5 | 235 | 277962 | 2847.43 | 491 | 477 | 97.5 |
| B | 4 | 80 | 130600 | 1335.27 | 491 | 477 | 97.5 |
| B | 4 | 171 | 47842 | 486.04 | 491 | 477 | 97.5 |
| C | 14 | 254 | 1142770 | 10235.89 | 470 | 471 | 111.6 |
| C | 15 | 158 | 703069 | 6295.83 | 470 | 471 | 111.6 |
| C | 3 | 233 | 90749 | 808.96 | 470 | 471 | 111.6 |
| D | 15 | 0 | 291382 | 2494.12 | 459 | 445 | 116.6 |
| D | 8 | 129 | 272760 | 2334.48 | 459 | 445 | 116.6 |
| D | 1 | 47 | 208386 | 1782.62 | 459 | 445 | 116.6 |

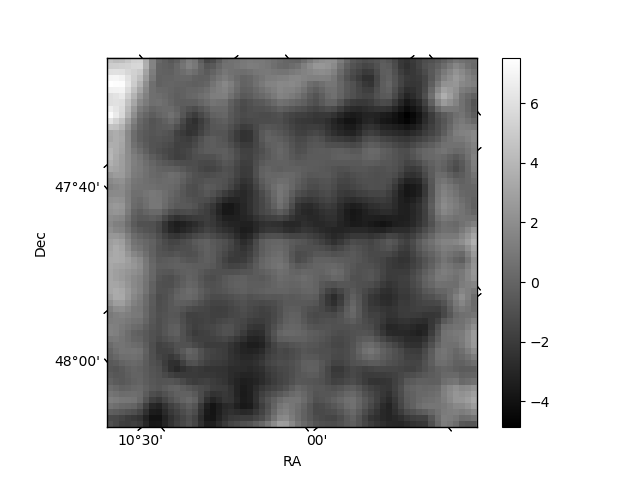

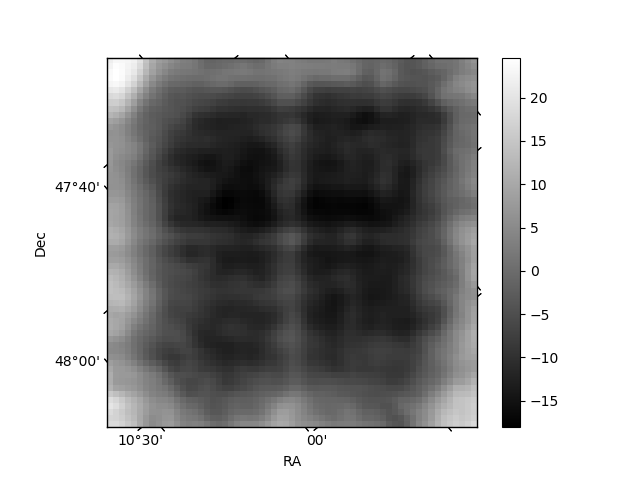

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

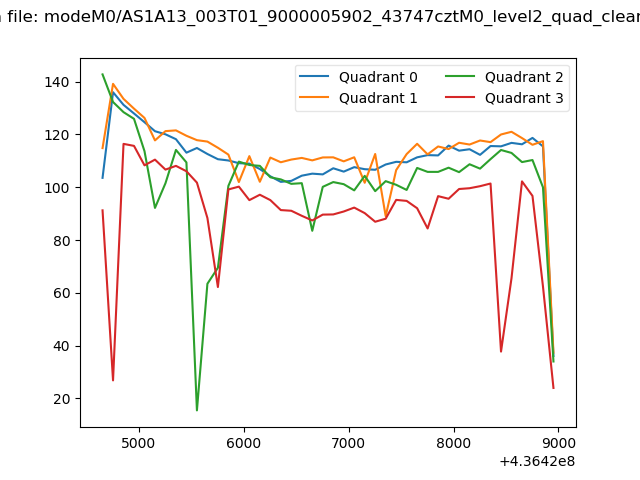

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

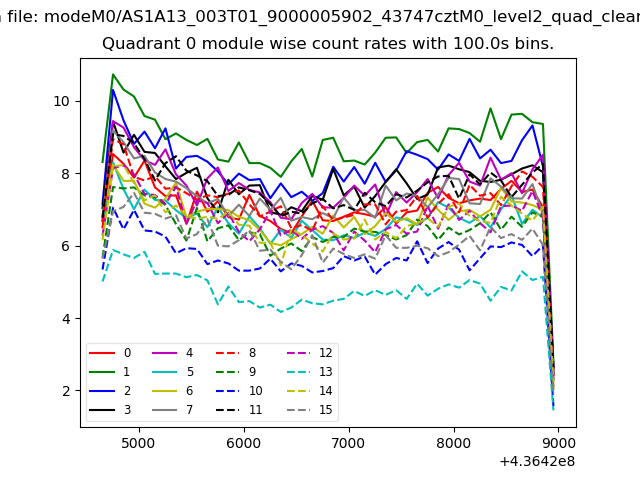

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

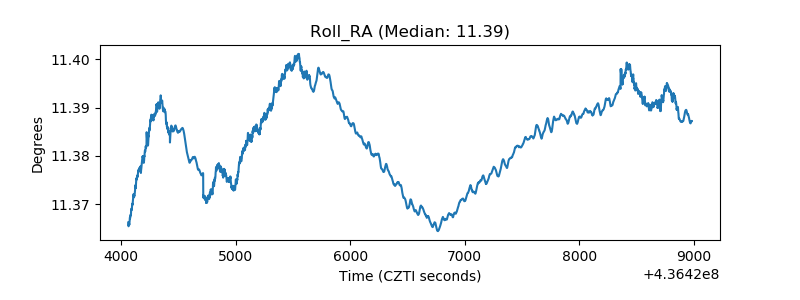

| _Roll_RA |  |
| Veto Counter |  |
