| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_018T01_9000005906_43795cztM0_level2.fits | modeM0/AS1A13_018T01_9000005906_43795cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,822,720 | 95,961,600 |
| Size | 573.0 MB | 91.5 MB |
| Events in quadrant A | 4,110,906 | 690,124 |
| Events in quadrant B | 3,336,925 | 716,759 |
| Events in quadrant C | 7,915,804 | 522,967 |
| Events in quadrant D | 6,404,842 | 550,709 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16414 | 3 |
| B | 0 | 13791 | 1 |
| C | 0 | 27535 | 1 |
| D | 0 | 23171 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6084 | 235 | 3.862590% |
| B | 6085 | 142 | 2.333607% |
| C | 6085 | 1759 | 28.907149% |
| D | 6085 | 1006 | 16.532457% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6949 | 6085 | 39 | 39 | 0.56% | 0.64% |  |
| B | 6950 | 6086 | 12 | 12 | 0.17% | 0.20% |  |
| C | 6950 | 6085 | 1507 | 1507 | 21.68% | 24.77% |  |
| D | 6949 | 6085 | 869 | 869 | 12.51% | 14.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 889140 | 5939.12 | 721 | 704 | 149.6 |
| A | 15 | 223 | 352780 | 2353.6 | 721 | 704 | 149.6 |
| A | 13 | 248 | 20822 | 134.49 | 721 | 704 | 149.6 |
| B | 0 | 200 | 211567 | 1484.79 | 720 | 701 | 142.0 |
| B | 5 | 235 | 69057 | 481.32 | 720 | 701 | 142.0 |
| B | 0 | 183 | 55748 | 387.61 | 720 | 701 | 142.0 |
| C | 15 | 174 | 3113223 | 21024.67 | 626 | 630 | 148.0 |
| C | 15 | 157 | 1202290 | 8116.87 | 626 | 630 | 148.0 |
| C | 15 | 158 | 327408 | 2207.29 | 626 | 630 | 148.0 |
| D | 12 | 33 | 2727935 | 16058.63 | 665 | 644 | 169.8 |
| D | 5 | 235 | 407487 | 2395.54 | 665 | 644 | 169.8 |
| D | 1 | 52 | 124880 | 731.52 | 665 | 644 | 169.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

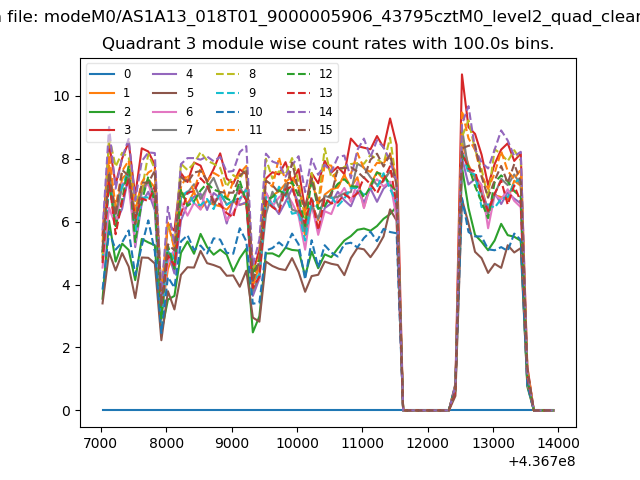

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

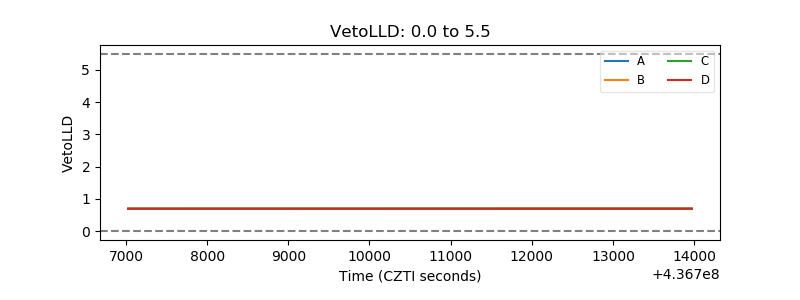

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

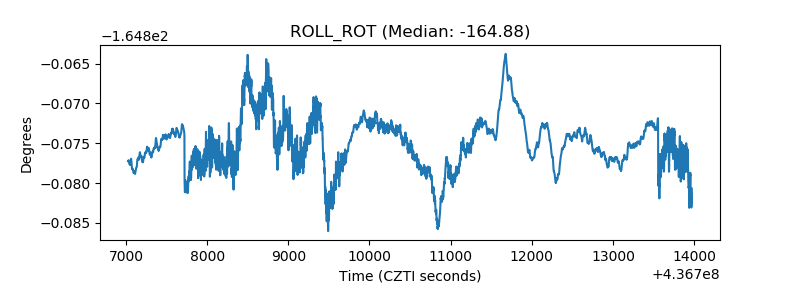

| _ROLL_ROT |  |

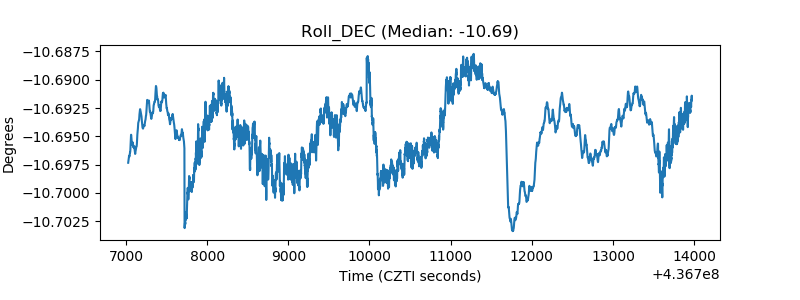

| _Roll_DEC |  |
| _Roll_RA |  |

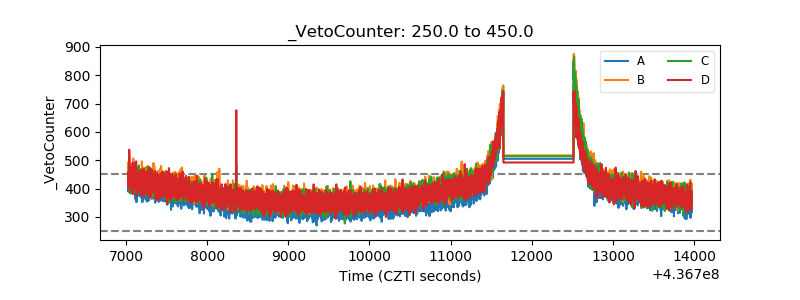

| Veto Counter |  |
