| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_018T01_9000005906_43808cztM0_level2.fits | modeM0/AS1A13_018T01_9000005906_43808cztM0_level2_quad_clean.evt |
| Size (bytes) | 687,507,840 | 106,966,080 |
| Size | 655.7 MB | 102.0 MB |
| Events in quadrant A | 5,875,608 | 721,343 |
| Events in quadrant B | 3,556,492 | 830,484 |
| Events in quadrant C | 9,143,621 | 604,041 |
| Events in quadrant D | 6,381,064 | 639,362 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22341 | 1 |
| B | 0 | 14417 | 1 |
| C | 0 | 31432 | 3 |
| D | 0 | 23259 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6361 | 870 | 13.677095% |
| B | 6362 | 158 | 2.483496% |
| C | 6361 | 1880 | 29.555101% |
| D | 6361 | 967 | 15.202012% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7517 | 6361 | 493 | 493 | 6.56% | 7.75% |  |
| B | 7518 | 6362 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7517 | 6361 | 1924 | 1924 | 25.60% | 30.25% |  |
| D | 7517 | 6361 | 787 | 787 | 10.47% | 12.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1744759 | 10877.99 | 779 | 764 | 160.3 |
| A | 10 | 83 | 916743 | 5713.32 | 779 | 764 | 160.3 |
| A | 13 | 248 | 89130 | 551.17 | 779 | 764 | 160.3 |
| B | 0 | 200 | 130215 | 827.5 | 806 | 783 | 156.4 |
| B | 5 | 235 | 81757 | 517.7 | 806 | 783 | 156.4 |
| B | 0 | 183 | 43482 | 272.99 | 806 | 783 | 156.4 |
| C | 15 | 174 | 5799845 | 35925.7 | 697 | 704 | 161.4 |
| C | 3 | 233 | 186788 | 1152.79 | 697 | 704 | 161.4 |
| C | 15 | 158 | 154658 | 953.75 | 697 | 704 | 161.4 |
| D | 12 | 33 | 1272344 | 6644.05 | 753 | 732 | 191.4 |
| D | 3 | 13 | 630493 | 3290.44 | 753 | 732 | 191.4 |
| D | 5 | 235 | 627069 | 3272.55 | 753 | 732 | 191.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

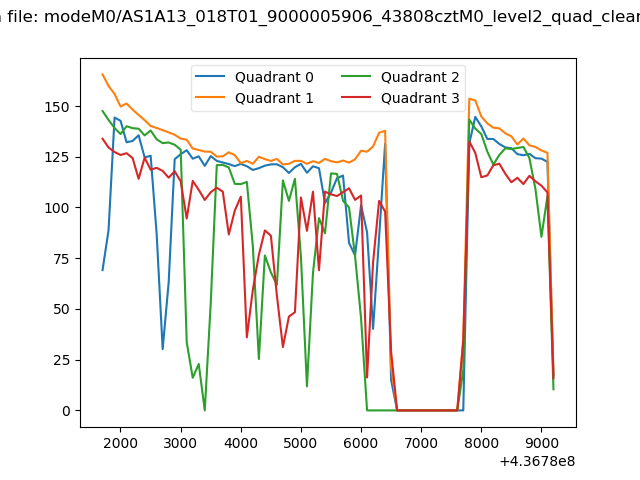

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

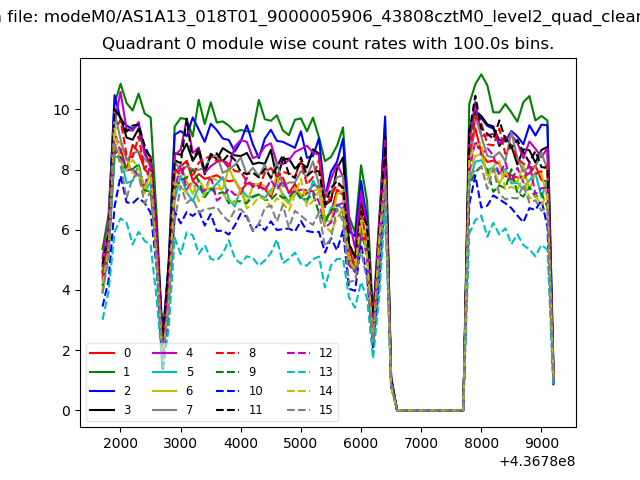

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

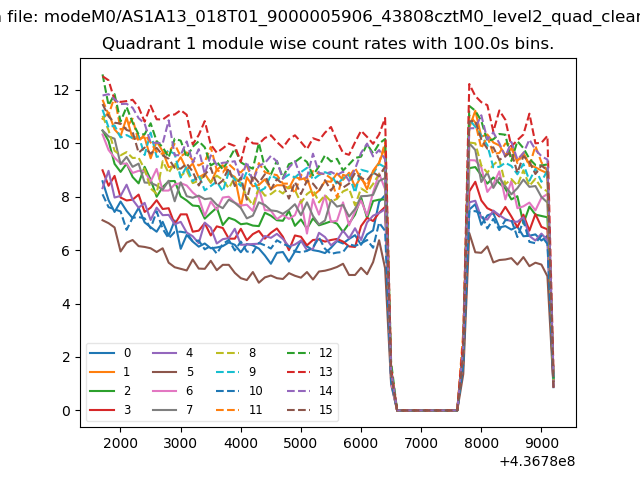

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

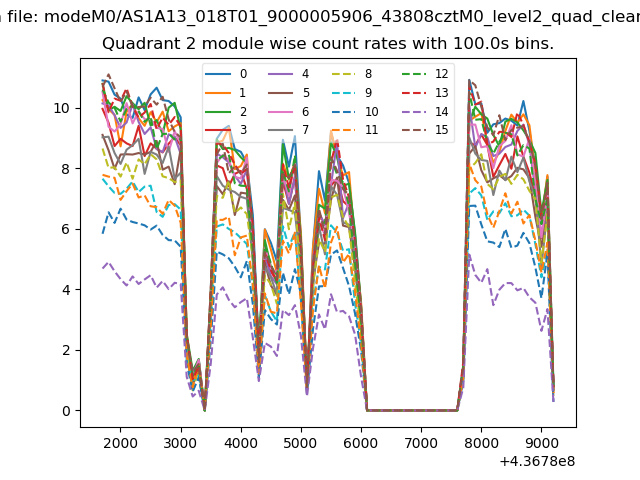

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

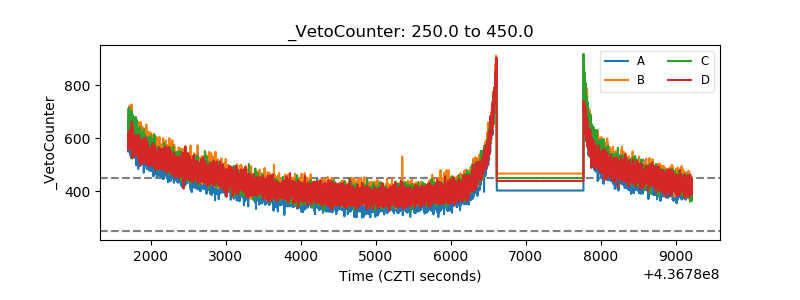

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

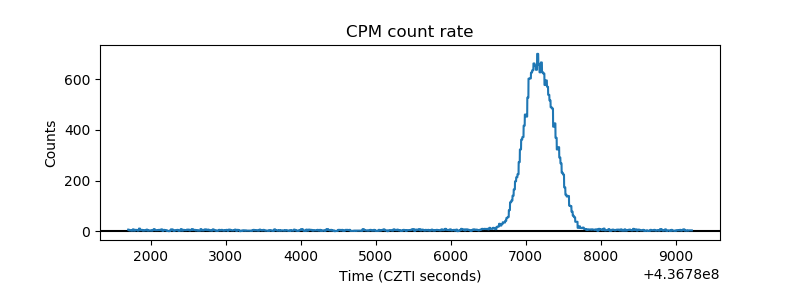

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

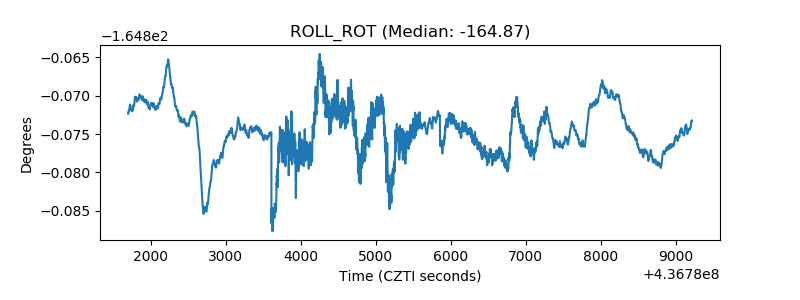

| _ROLL_ROT |  |

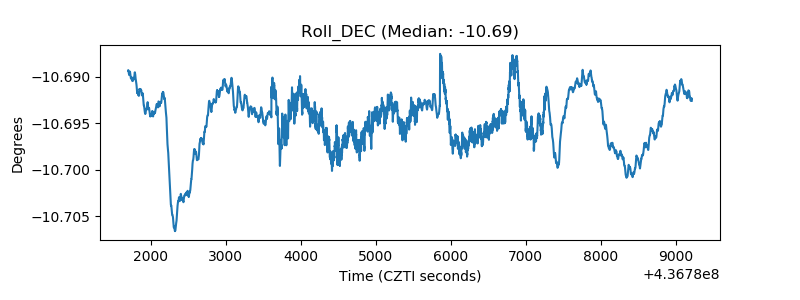

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
