| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_018T01_9000005906_43817cztM0_level2.fits | modeM0/AS1A13_018T01_9000005906_43817cztM0_level2_quad_clean.evt |
| Size (bytes) | 707,250,240 | 105,001,920 |
| Size | 674.5 MB | 100.1 MB |
| Events in quadrant A | 6,919,516 | 674,838 |
| Events in quadrant B | 5,109,397 | 757,963 |
| Events in quadrant C | 5,317,692 | 683,681 |
| Events in quadrant D | 8,286,499 | 569,771 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25655 | 2 |
| B | 0 | 19815 | 2 |
| C | 0 | 20589 | 2 |
| D | 0 | 29561 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7066 | 970 | 13.727710% |
| B | 7066 | 464 | 6.566657% |
| C | 7065 | 769 | 10.884643% |
| D | 7065 | 1423 | 20.141543% |

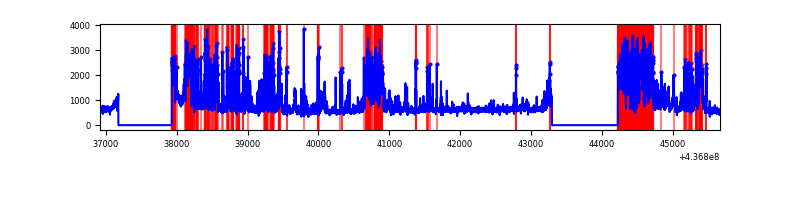

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

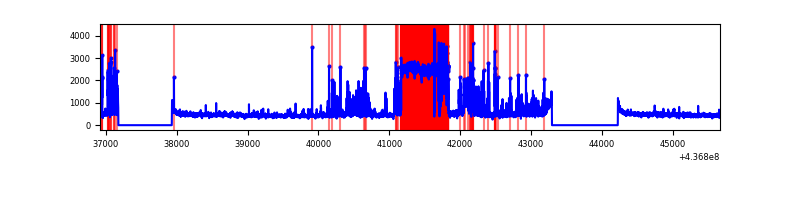

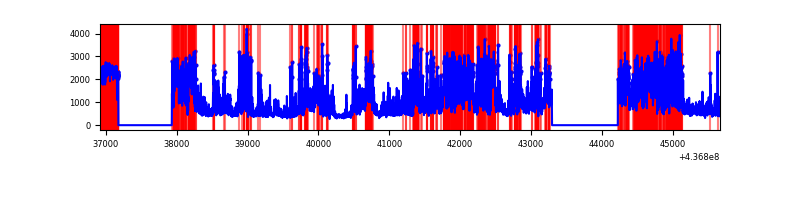

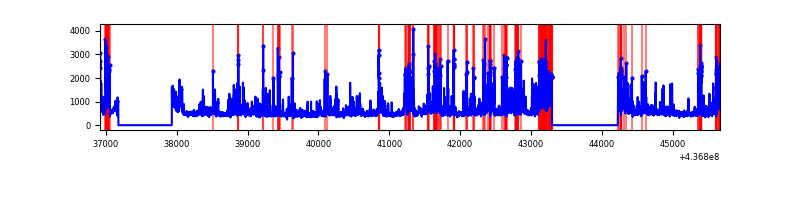

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8751 | 7066 | 761 | 761 | 8.70% | 10.77% |  |
| B | 8750 | 7065 | 260 | 260 | 2.97% | 3.68% |  |
| C | 8750 | 7066 | 688 | 688 | 7.86% | 9.74% |  |
| D | 8750 | 7065 | 1201 | 1201 | 13.73% | 17.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 2609009 | 16325.74 | 766 | 749 | 159.8 |
| A | 10 | 83 | 999885 | 6253.84 | 766 | 749 | 159.8 |
| A | 14 | 254 | 230515 | 1438.16 | 766 | 749 | 159.8 |
| B | 5 | 235 | 1126658 | 7070.78 | 802 | 778 | 159.2 |
| B | 0 | 200 | 245133 | 1534.6 | 802 | 778 | 159.2 |
| B | 0 | 183 | 179875 | 1124.77 | 802 | 778 | 159.2 |
| C | 15 | 174 | 1771387 | 9961.06 | 751 | 755 | 177.8 |
| C | 15 | 158 | 362383 | 2034.41 | 751 | 755 | 177.8 |
| C | 3 | 233 | 115267 | 644.21 | 751 | 755 | 177.8 |
| D | 12 | 33 | 2550640 | 13634.72 | 724 | 702 | 187.0 |
| D | 10 | 102 | 1353163 | 7231.72 | 724 | 702 | 187.0 |
| D | 5 | 235 | 525324 | 2805.2 | 724 | 702 | 187.0 |

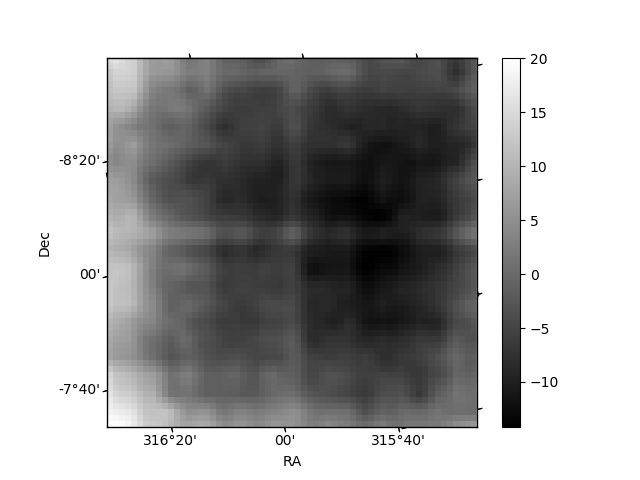

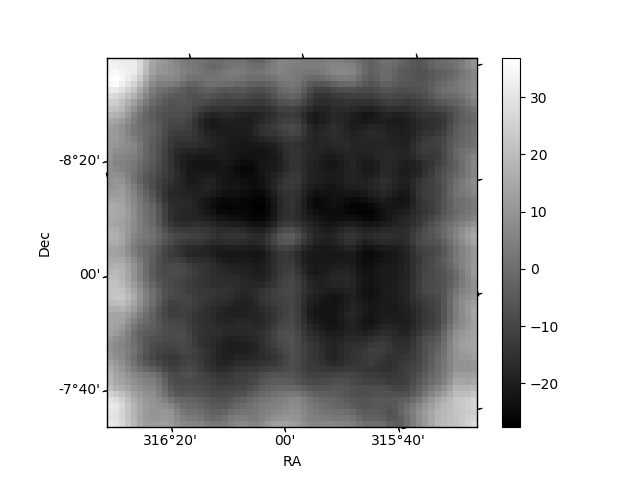

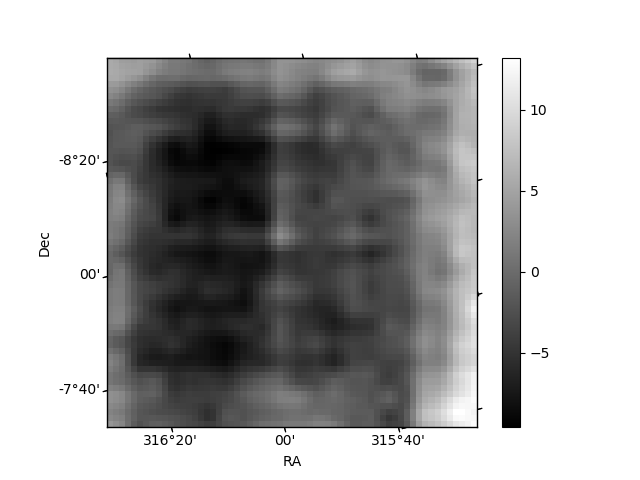

Histogram calculated using DETX and DETY for each event in the final _common_clean file

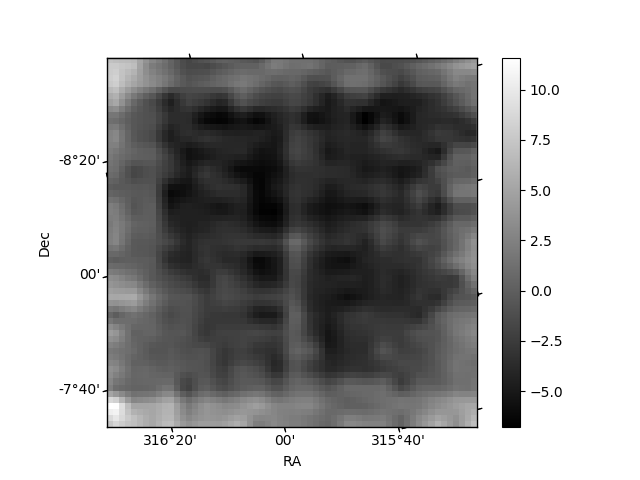

| Quadrant A |  |
 |
Quadrant B |

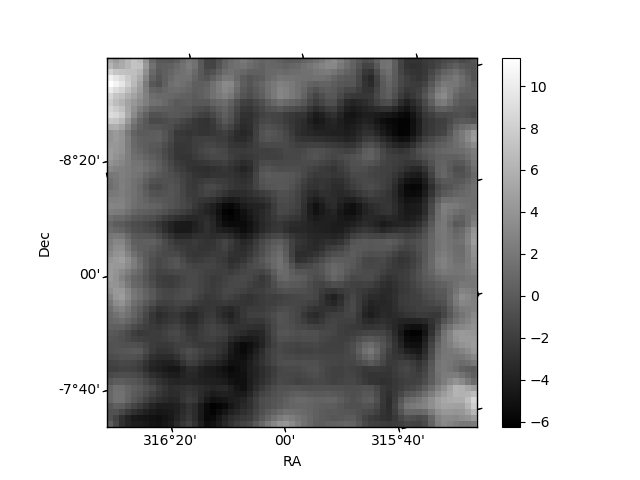

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

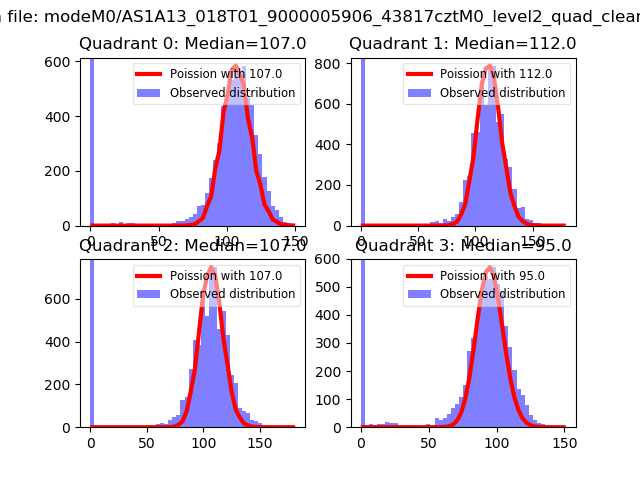

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

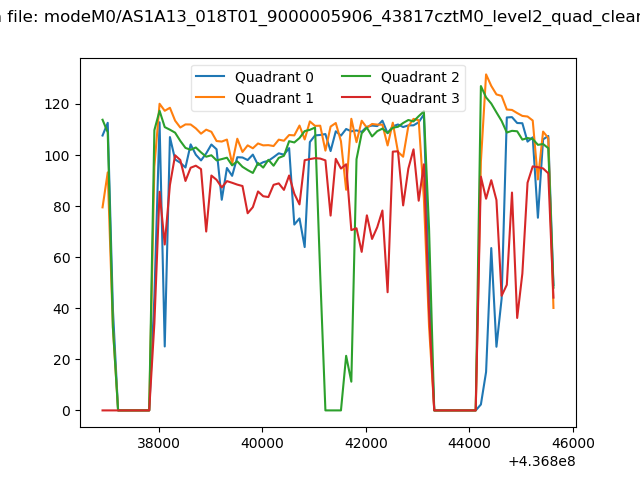

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

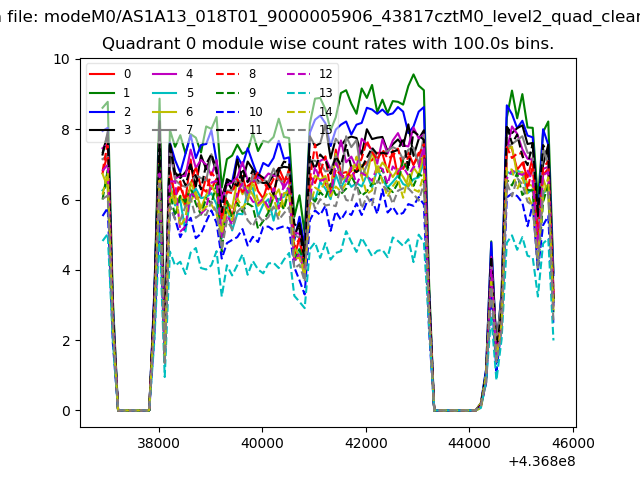

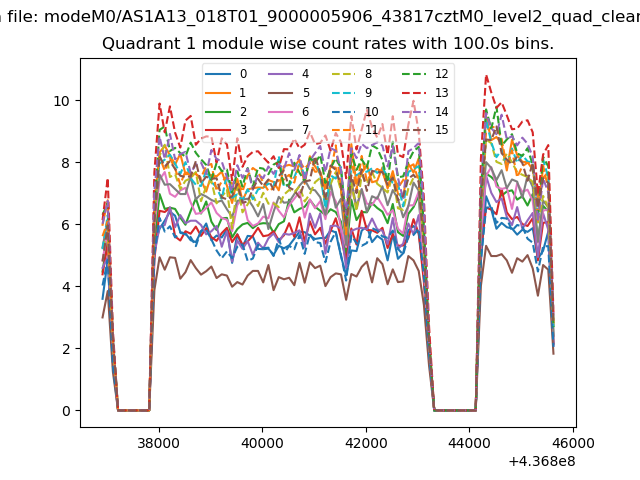

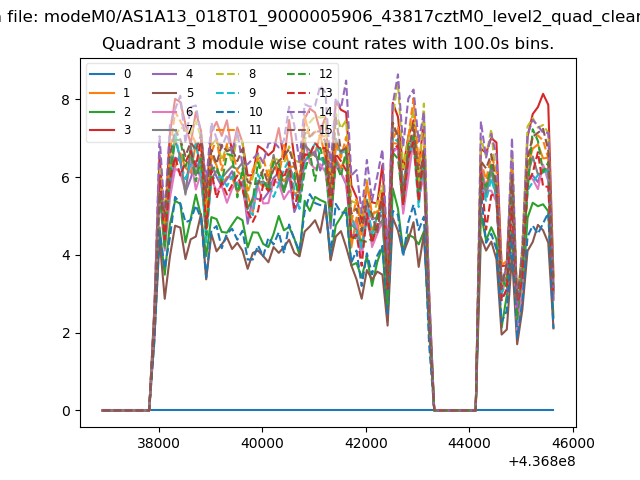

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

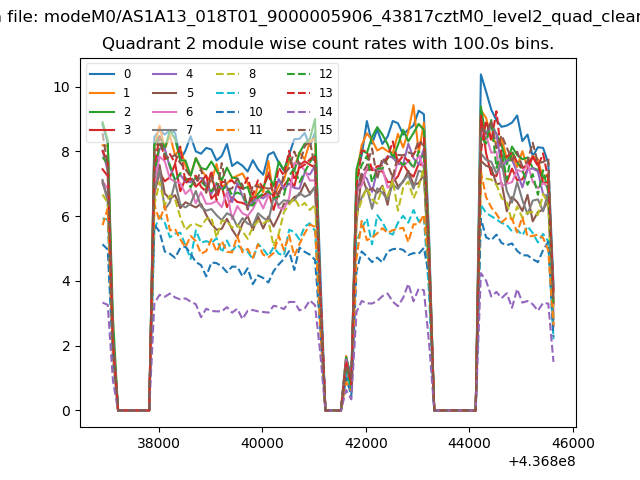

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

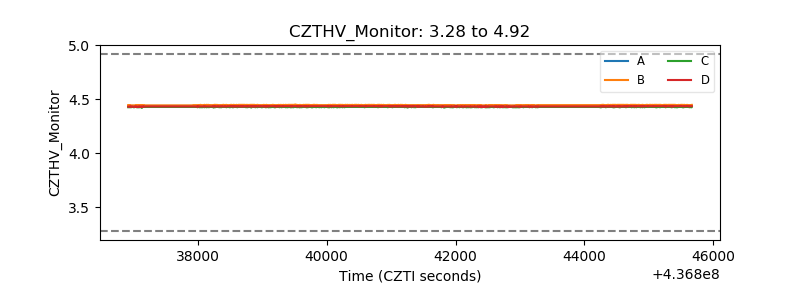

| CZT HV Monitor |  |
| D_VDD |  |

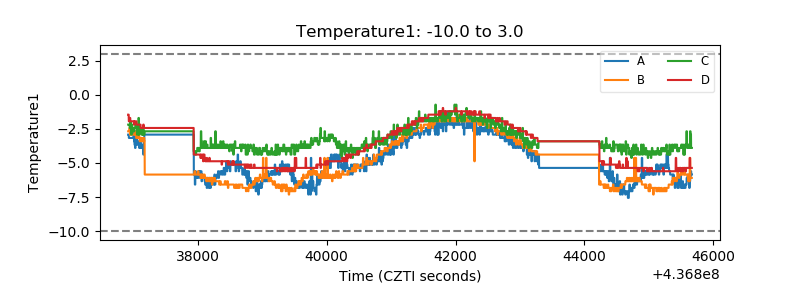

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

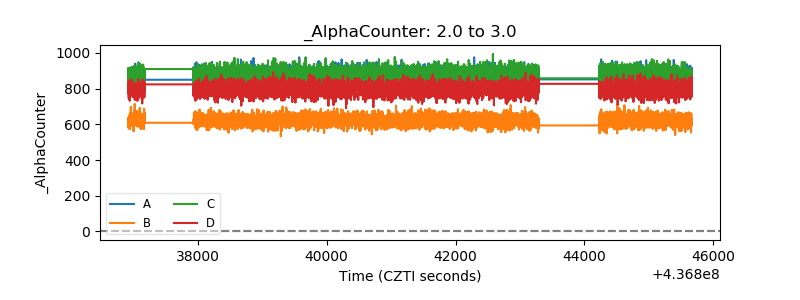

| Alpha Counter |  |

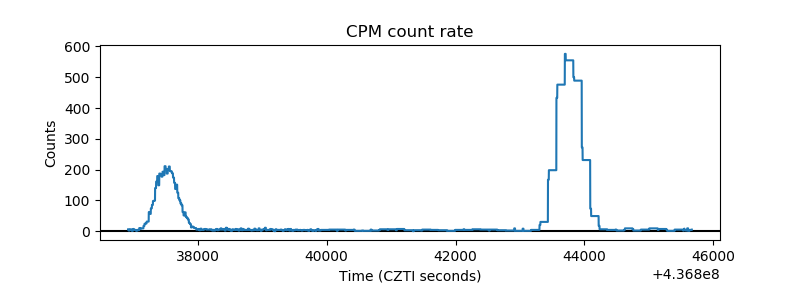

| _CPM_Rate |  |

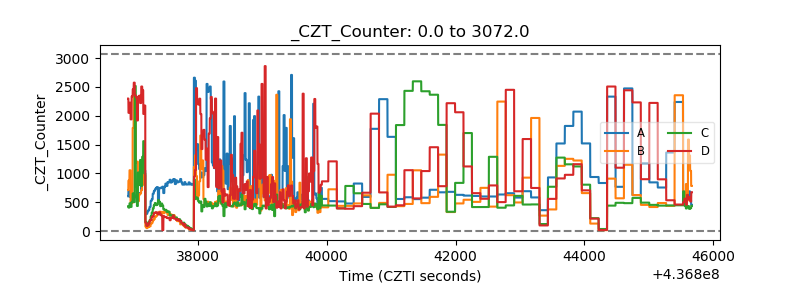

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

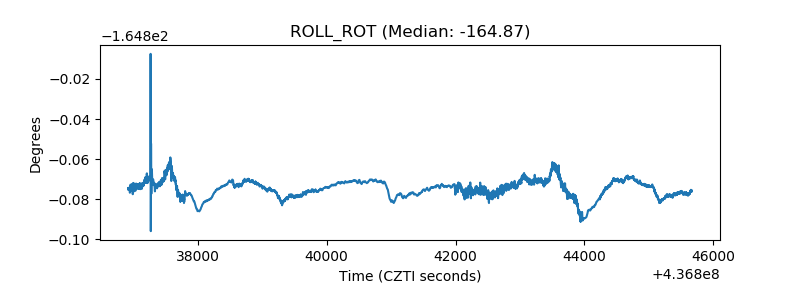

| _ROLL_ROT |  |

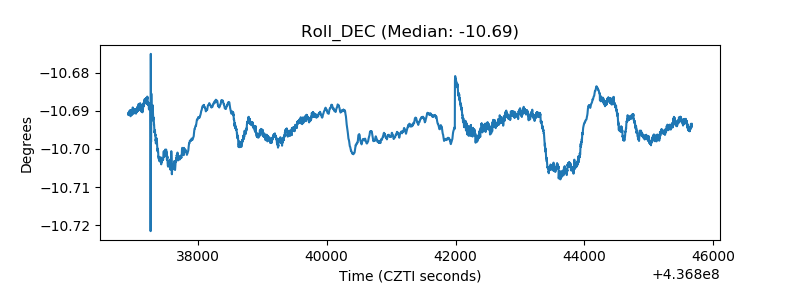

| _Roll_DEC |  |

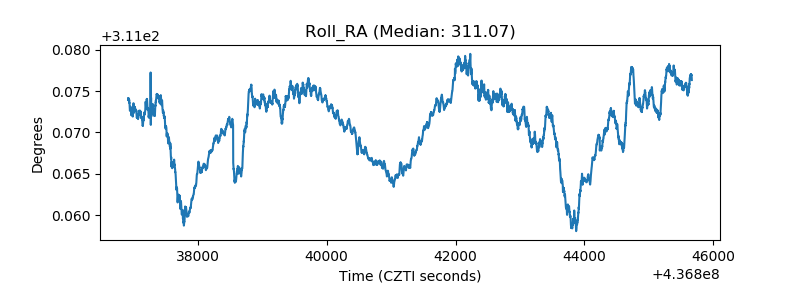

| _Roll_RA |  |

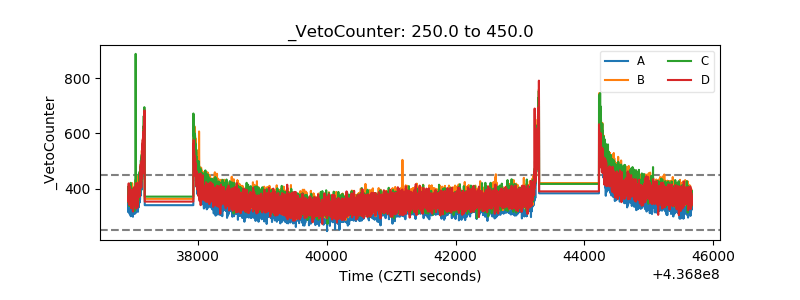

| Veto Counter |  |
