| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_018T01_9000005906_43820cztM0_level2.fits | modeM0/AS1A13_018T01_9000005906_43820cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,254,400 | 106,459,200 |
| Size | 595.3 MB | 101.5 MB |
| Events in quadrant A | 4,606,888 | 767,767 |
| Events in quadrant B | 4,881,742 | 778,262 |
| Events in quadrant C | 4,095,072 | 732,799 |
| Events in quadrant D | 9,028,976 | 498,900 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18329 | 2 |
| B | 0 | 18650 | 2 |
| C | 0 | 16303 | 2 |
| D | 0 | 31149 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6389 | 150 | 2.347785% |
| B | 6389 | 429 | 6.714666% |
| C | 6389 | 415 | 6.495539% |
| D | 6388 | 2116 | 33.124609% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7539 | 6389 | 27 | 27 | 0.36% | 0.42% |  |
| B | 7539 | 6390 | 242 | 242 | 3.21% | 3.79% |  |
| C | 7539 | 6389 | 331 | 331 | 4.39% | 5.18% |  |
| D | 7538 | 6388 | 1866 | 1866 | 24.75% | 29.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1045381 | 6405.08 | 789 | 775 | 163.1 |
| A | 15 | 223 | 357172 | 2185.27 | 789 | 775 | 163.1 |
| A | 14 | 254 | 64927 | 393.35 | 789 | 775 | 163.1 |
| B | 0 | 200 | 924770 | 6096.39 | 782 | 759 | 151.6 |
| B | 5 | 235 | 467225 | 3077.63 | 782 | 759 | 151.6 |
| B | 5 | 172 | 91762 | 600.42 | 782 | 759 | 151.6 |
| C | 15 | 174 | 603572 | 3447.48 | 748 | 755 | 174.9 |
| C | 15 | 158 | 237413 | 1353.43 | 748 | 755 | 174.9 |
| C | 14 | 96 | 171078 | 974.07 | 748 | 755 | 174.9 |
| D | 12 | 2 | 2392698 | 14066.46 | 657 | 637 | 170.1 |
| D | 12 | 33 | 1815673 | 10673.27 | 657 | 637 | 170.1 |
| D | 10 | 102 | 1310967 | 7705.36 | 657 | 637 | 170.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

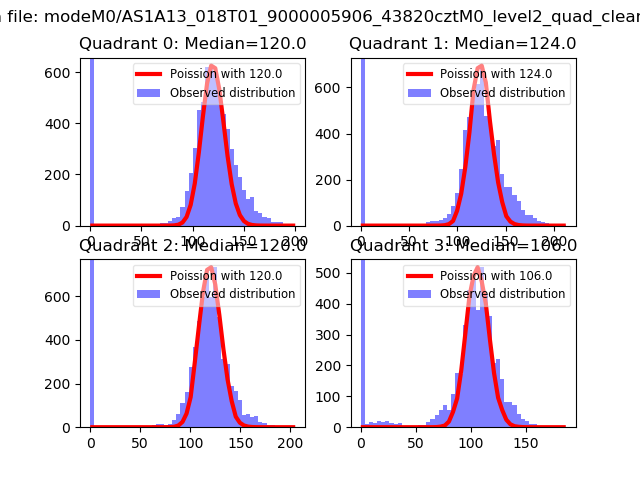

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

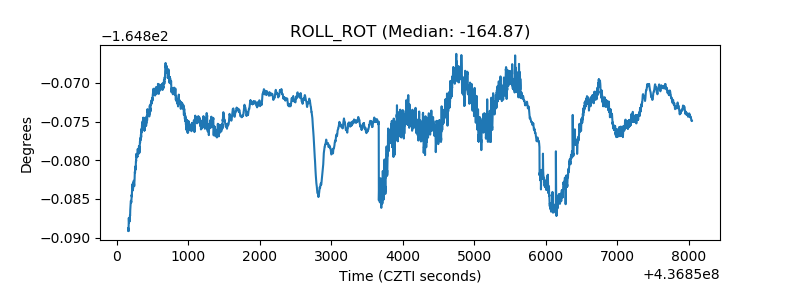

| _ROLL_ROT |  |

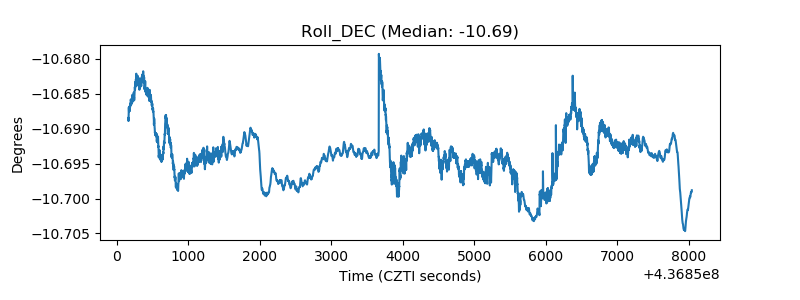

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
