| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_023T01_9000005916_43927cztM0_level2.fits | modeM0/AS1A13_023T01_9000005916_43927cztM0_level2_quad_clean.evt |
| Size (bytes) | 617,843,520 | 134,435,520 |
| Size | 589.2 MB | 128.2 MB |
| Events in quadrant A | 7,573,604 | 858,335 |
| Events in quadrant B | 5,080,687 | 906,316 |
| Events in quadrant C | 4,242,748 | 908,367 |
| Events in quadrant D | 5,315,867 | 808,772 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28982 | 1 |
| B | 0 | 20664 | 1 |
| C | 0 | 18451 | 1 |
| D | 0 | 21699 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8479 | 677 | 7.984432% |
| B | 8479 | 574 | 6.769666% |
| C | 8479 | 241 | 2.842316% |
| D | 8479 | 420 | 4.953414% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9174 | 8480 | 101 | 101 | 1.10% | 1.19% |  |
| B | 9174 | 8480 | 97 | 97 | 1.06% | 1.14% |  |
| C | 9174 | 8480 | 19 | 19 | 0.21% | 0.22% |  |
| D | 9174 | 8480 | 201 | 201 | 2.19% | 2.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 2142079 | 10282.78 | 998 | 974 | 208.2 |
| A | 10 | 83 | 1259646 | 6044.85 | 998 | 974 | 208.2 |
| A | 7 | 191 | 120917 | 576.03 | 998 | 974 | 208.2 |
| B | 0 | 213 | 258406 | 1287.21 | 995 | 961 | 200.0 |
| B | 5 | 235 | 257817 | 1284.26 | 995 | 961 | 200.0 |
| B | 5 | 172 | 235528 | 1172.82 | 995 | 961 | 200.0 |
| C | 10 | 22 | 136207 | 574.3 | 996 | 998 | 235.4 |
| C | 14 | 254 | 106607 | 448.58 | 996 | 998 | 235.4 |
| C | 15 | 158 | 50441 | 210.01 | 996 | 998 | 235.4 |
| D | 1 | 52 | 576246 | 2286.64 | 993 | 962 | 251.6 |
| D | 6 | 239 | 213852 | 846.19 | 993 | 962 | 251.6 |
| D | 5 | 235 | 169808 | 671.13 | 993 | 962 | 251.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

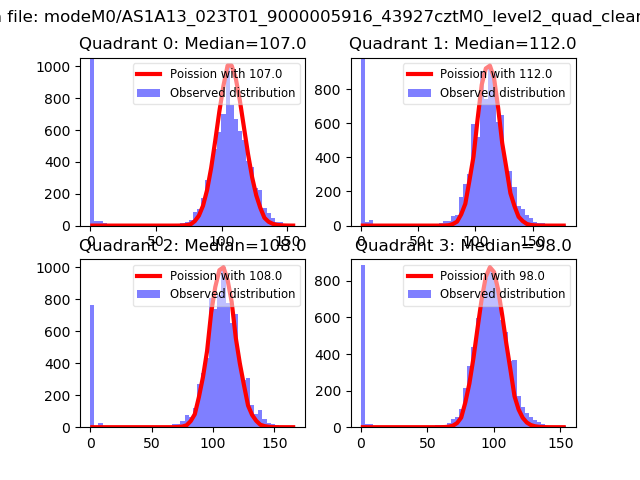

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

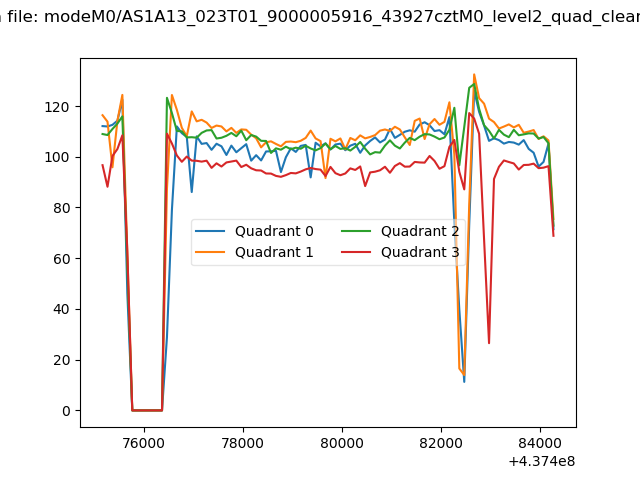

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
