| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_024T02_9000005918_43941cztM0_level2.fits | modeM0/AS1A13_024T02_9000005918_43941cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,692,160 | 110,462,400 |
| Size | 509.9 MB | 105.3 MB |
| Events in quadrant A | 5,541,024 | 737,165 |
| Events in quadrant B | 3,665,121 | 767,927 |
| Events in quadrant C | 4,585,867 | 695,730 |
| Events in quadrant D | 5,446,519 | 647,581 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21755 | 1 |
| B | 0 | 15847 | 1 |
| C | 0 | 18784 | 1 |
| D | 0 | 21215 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7134 | 407 | 5.705074% |
| B | 7134 | 235 | 3.294085% |
| C | 7135 | 621 | 8.703574% |
| D | 7135 | 559 | 7.834618% |

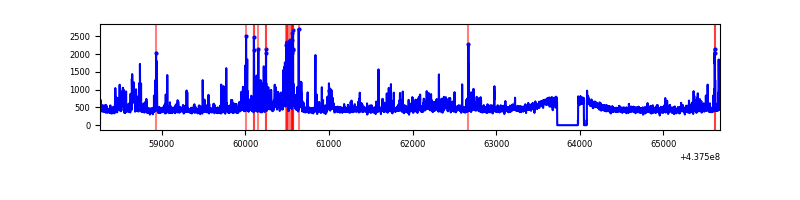

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7419 | 7136 | 128 | 128 | 1.73% | 1.79% |  |
| B | 7419 | 7136 | 22 | 22 | 0.30% | 0.31% |  |
| C | 7420 | 7137 | 444 | 444 | 5.98% | 6.22% |  |
| D | 7420 | 7137 | 377 | 377 | 5.08% | 5.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 1136178 | 7039.7 | 779 | 762 | 161.3 |
| A | 10 | 83 | 1046354 | 6482.78 | 779 | 762 | 161.3 |
| A | 7 | 3 | 150686 | 929.54 | 779 | 762 | 161.3 |
| B | 5 | 235 | 179423 | 1177.58 | 779 | 755 | 151.7 |
| B | 0 | 200 | 168972 | 1108.7 | 779 | 755 | 151.7 |
| B | 0 | 213 | 61461 | 400.1 | 779 | 755 | 151.7 |
| C | 14 | 254 | 924063 | 5431.67 | 723 | 726 | 170.0 |
| C | 1 | 241 | 703448 | 4133.87 | 723 | 726 | 170.0 |
| C | 3 | 233 | 108118 | 631.75 | 723 | 726 | 170.0 |
| D | 5 | 235 | 791387 | 4124.61 | 753 | 724 | 191.7 |
| D | 13 | 249 | 537670 | 2801.06 | 753 | 724 | 191.7 |
| D | 1 | 52 | 335216 | 1744.93 | 753 | 724 | 191.7 |

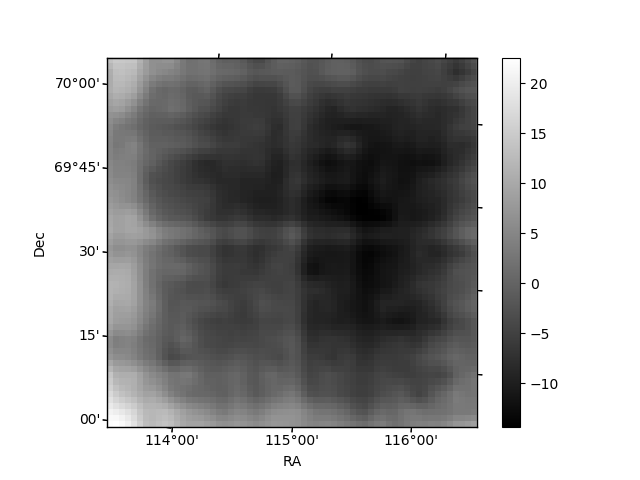

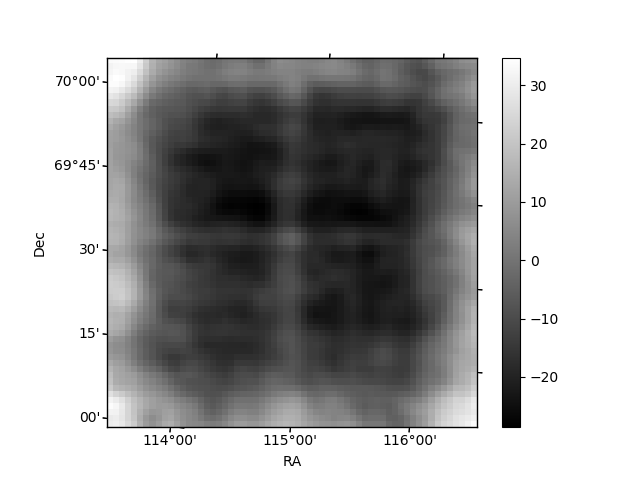

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

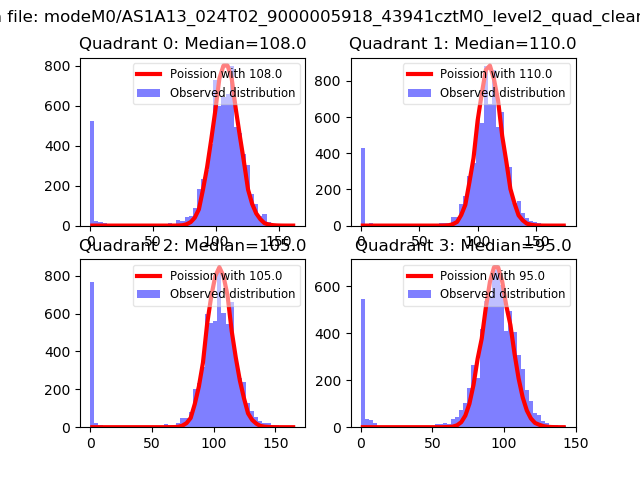

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

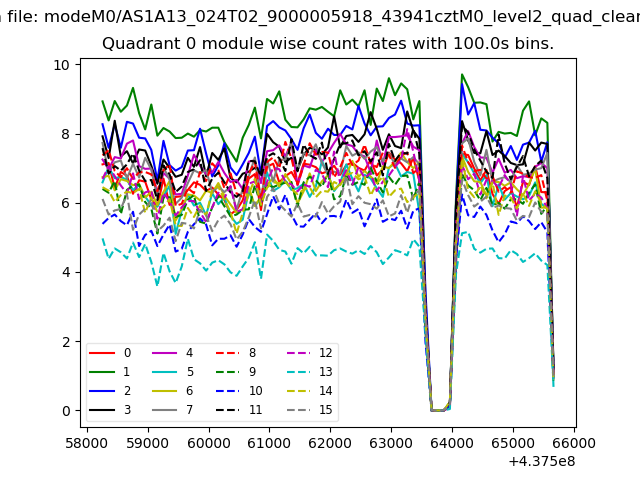

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

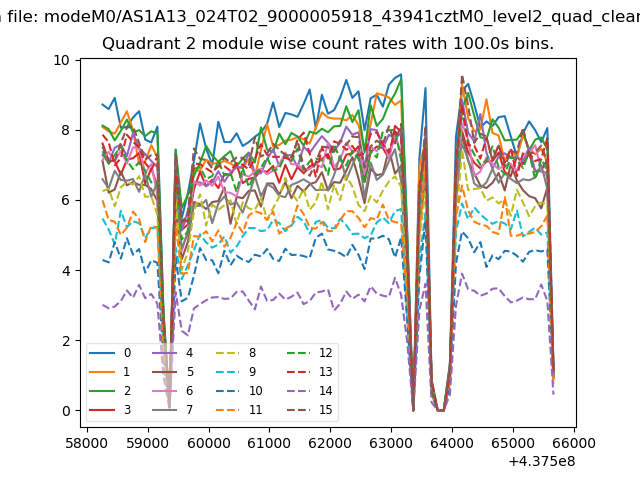

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

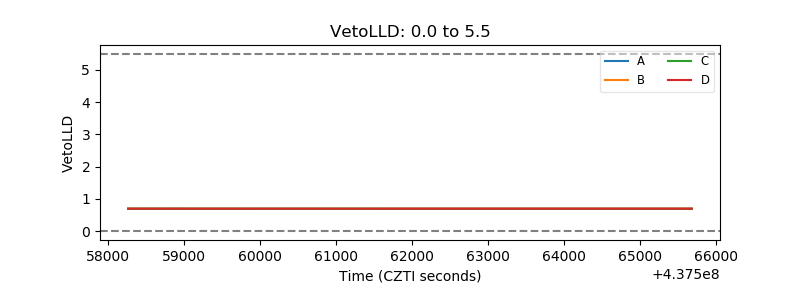

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

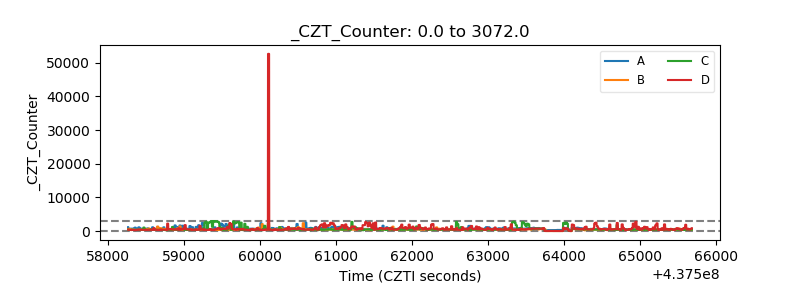

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
