| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_065T06_9000005924_43967cztM0_level2.fits | modeM0/AS1A13_065T06_9000005924_43967cztM0_level2_quad_clean.evt |
| Size (bytes) | 577,494,720 | 97,519,680 |
| Size | 550.7 MB | 93.0 MB |
| Events in quadrant A | 9,937,405 | 470,648 |
| Events in quadrant B | 3,272,797 | 736,337 |
| Events in quadrant C | 2,908,451 | 701,654 |
| Events in quadrant D | 4,786,645 | 620,147 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33770 | 1 |
| B | 0 | 13877 | 1 |
| C | 0 | 12855 | 1 |
| D | 0 | 18522 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6078 | 2328 | 38.302073% |
| B | 6079 | 79 | 1.299556% |
| C | 6079 | 16 | 0.263201% |
| D | 6079 | 266 | 4.375720% |

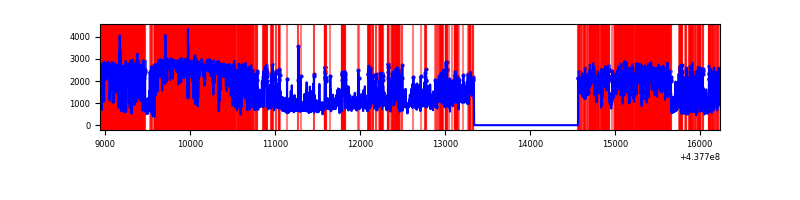

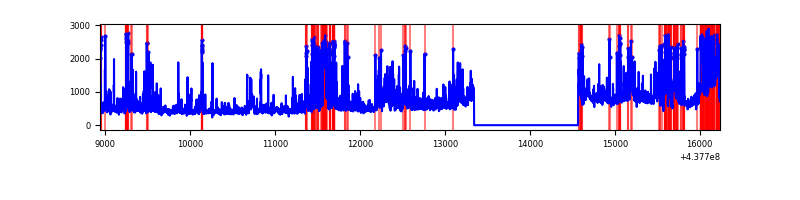

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7302 | 6078 | 2226 | 2226 | 30.48% | 36.62% |  |
| B | 7303 | 6079 | 43 | 43 | 0.59% | 0.71% |  |
| C | 7303 | 6078 | 15 | 15 | 0.21% | 0.25% |  |
| D | 7303 | 6078 | 272 | 272 | 3.72% | 4.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 5294260 | 43053.13 | 589 | 578 | 123.0 |
| A | 14 | 238 | 1468331 | 11937.13 | 589 | 578 | 123.0 |
| A | 10 | 83 | 874025 | 7103.68 | 589 | 578 | 123.0 |
| B | 0 | 213 | 285293 | 2081.89 | 702 | 681 | 136.7 |
| B | 5 | 172 | 112346 | 816.81 | 702 | 681 | 136.7 |
| B | 0 | 183 | 37278 | 267.7 | 702 | 681 | 136.7 |
| C | 14 | 254 | 130210 | 792.9 | 693 | 698 | 163.3 |
| C | 3 | 233 | 37600 | 225.92 | 693 | 698 | 163.3 |
| C | 12 | 16 | 18916 | 111.53 | 693 | 698 | 163.3 |
| D | 12 | 17 | 694319 | 3950.33 | 681 | 658 | 175.6 |
| D | 5 | 184 | 532464 | 3028.58 | 681 | 658 | 175.6 |
| D | 5 | 222 | 175677 | 996.72 | 681 | 658 | 175.6 |

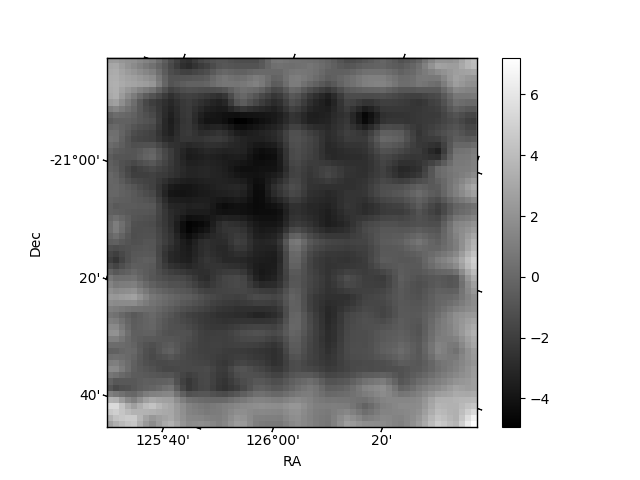

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

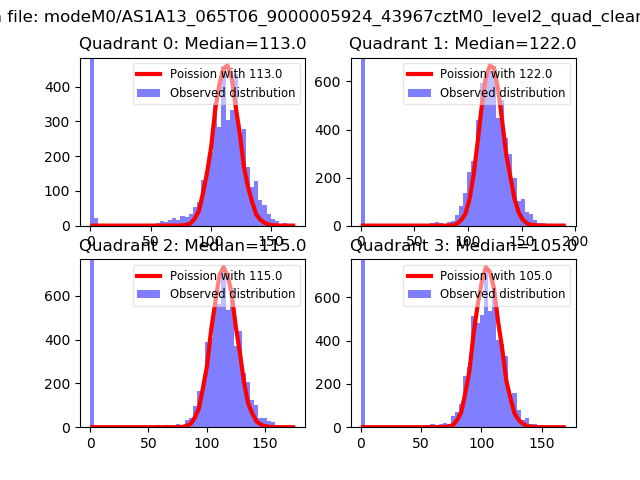

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

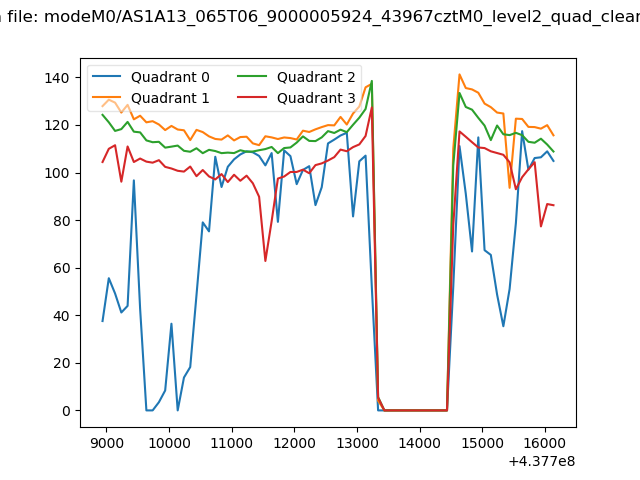

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

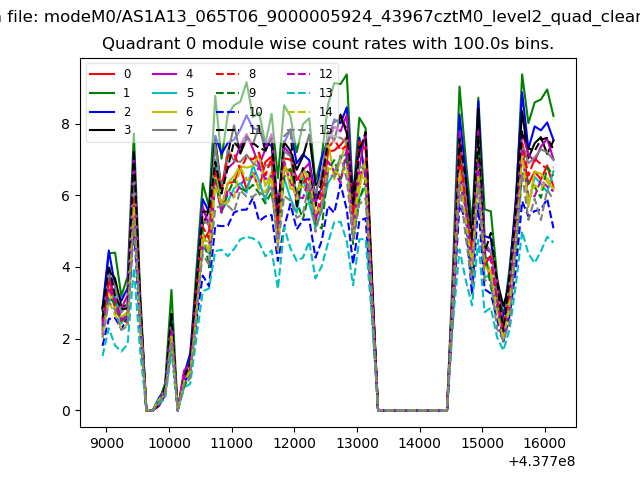

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

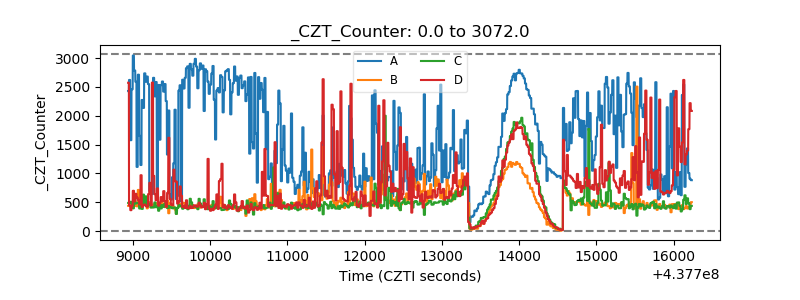

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

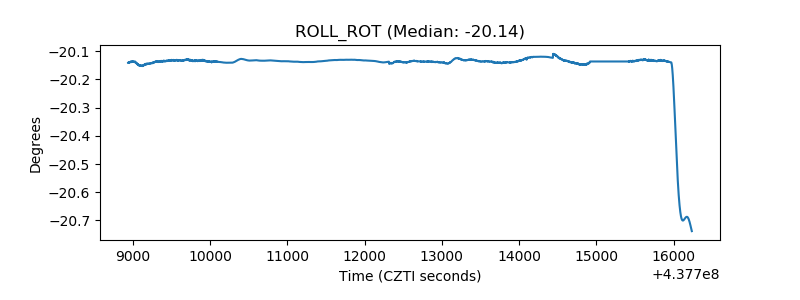

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
