| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_065T06_9000005924_43991cztM0_level2.fits | modeM0/AS1A13_065T06_9000005924_43991cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,608,000 | 108,475,200 |
| Size | 519.4 MB | 103.5 MB |
| Events in quadrant A | 8,107,766 | 656,796 |
| Events in quadrant B | 4,740,230 | 719,163 |
| Events in quadrant C | 3,149,239 | 744,046 |
| Events in quadrant D | 3,624,438 | 681,975 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29228 | 2 |
| B | 0 | 18701 | 2 |
| C | 0 | 14327 | 2 |
| D | 0 | 15540 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6923 | 1298 | 18.749097% |
| B | 6923 | 659 | 9.518995% |
| C | 6923 | 66 | 0.953344% |
| D | 6923 | 140 | 2.022245% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8653 | 6925 | 840 | 840 | 9.71% | 12.13% |  |
| B | 8653 | 6925 | 309 | 309 | 3.57% | 4.46% |  |
| C | 8653 | 6925 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8653 | 6925 | 40 | 40 | 0.46% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 2664744 | 17010.74 | 752 | 736 | 156.6 |
| A | 14 | 238 | 1227965 | 7836.34 | 752 | 736 | 156.6 |
| A | 10 | 83 | 1194970 | 7625.65 | 752 | 736 | 156.6 |
| B | 5 | 172 | 1179732 | 7687.65 | 771 | 748 | 153.4 |
| B | 15 | 36 | 212807 | 1382.75 | 771 | 748 | 153.4 |
| B | 0 | 213 | 128235 | 831.29 | 771 | 748 | 153.4 |
| C | 3 | 233 | 58830 | 308.74 | 790 | 792 | 188.0 |
| C | 15 | 157 | 5365 | 24.33 | 790 | 792 | 188.0 |
| C | 13 | 61 | 5344 | 24.21 | 790 | 792 | 188.0 |
| D | 1 | 52 | 168515 | 823.4 | 787 | 760 | 203.7 |
| D | 4 | 222 | 92845 | 451.98 | 787 | 760 | 203.7 |
| D | 13 | 171 | 91758 | 446.65 | 787 | 760 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

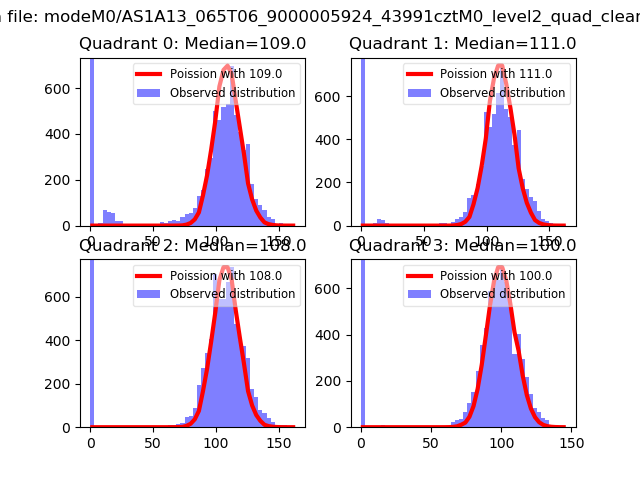

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

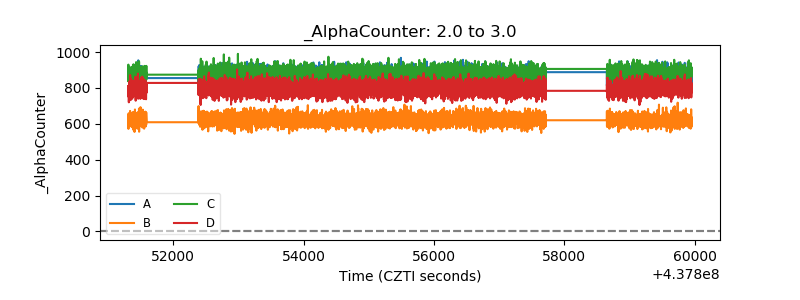

| Alpha Counter |  |

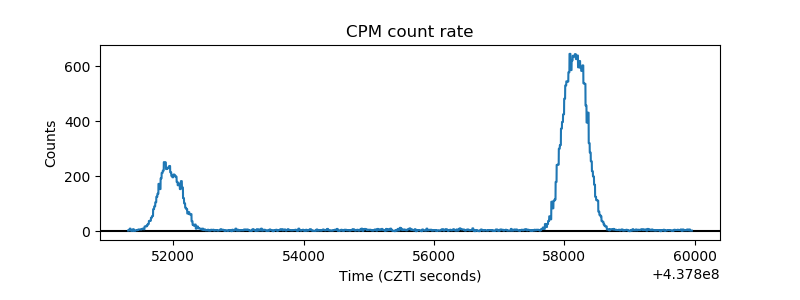

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
