| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_023T01_9000005932_44022cztM0_level2.fits | modeM0/AS1A13_023T01_9000005932_44022cztM0_level2_quad_clean.evt |
| Size (bytes) | 421,914,240 | 108,711,360 |
| Size | 402.4 MB | 103.7 MB |
| Events in quadrant A | 4,582,750 | 722,637 |
| Events in quadrant B | 3,305,442 | 760,893 |
| Events in quadrant C | 3,235,412 | 715,091 |
| Events in quadrant D | 3,986,697 | 637,875 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18409 | 3 |
| B | 0 | 14160 | 2 |
| C | 0 | 14182 | 2 |
| D | 0 | 16377 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6530 | 153 | 2.343032% |
| B | 6530 | 48 | 0.735069% |
| C | 6530 | 30 | 0.459418% |
| D | 6530 | 211 | 3.231240% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 6531 | 37 | 37 | 0.49% | 0.57% |  |
| B | 7610 | 6531 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7610 | 6531 | 12 | 12 | 0.16% | 0.18% |  |
| D | 7610 | 6531 | 120 | 120 | 1.58% | 1.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1288129 | 8389.63 | 739 | 723 | 153.5 |
| A | 14 | 238 | 276566 | 1797.58 | 739 | 723 | 153.5 |
| A | 15 | 222 | 127857 | 828.49 | 739 | 723 | 153.5 |
| B | 2 | 2 | 119314 | 801.15 | 747 | 724 | 148.0 |
| B | 4 | 171 | 76596 | 512.56 | 747 | 724 | 148.0 |
| B | 0 | 213 | 61903 | 413.3 | 747 | 724 | 148.0 |
| C | 3 | 233 | 251449 | 1461.16 | 724 | 730 | 171.6 |
| C | 1 | 241 | 88816 | 513.36 | 724 | 730 | 171.6 |
| C | 14 | 254 | 64789 | 373.33 | 724 | 730 | 171.6 |
| D | 5 | 222 | 328037 | 1818.7 | 712 | 690 | 180.0 |
| D | 1 | 52 | 285092 | 1580.1 | 712 | 690 | 180.0 |
| D | 7 | 80 | 103357 | 570.41 | 712 | 690 | 180.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

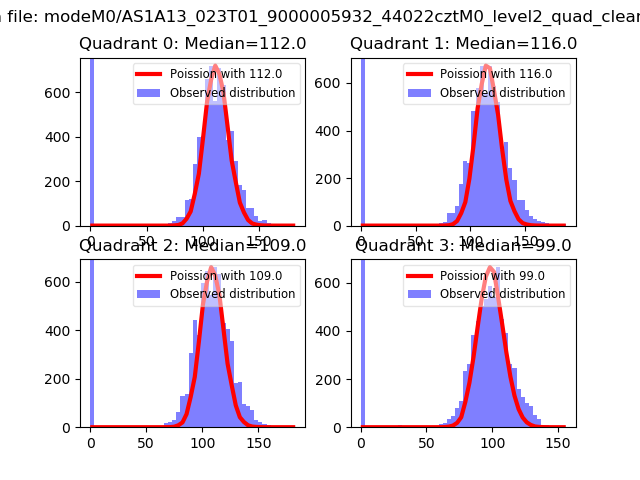

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

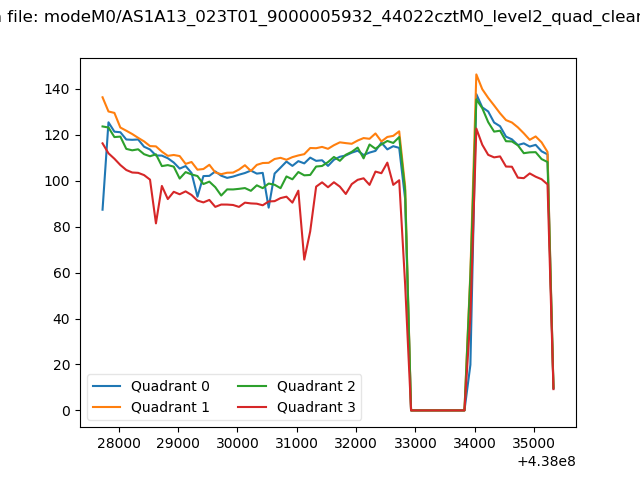

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

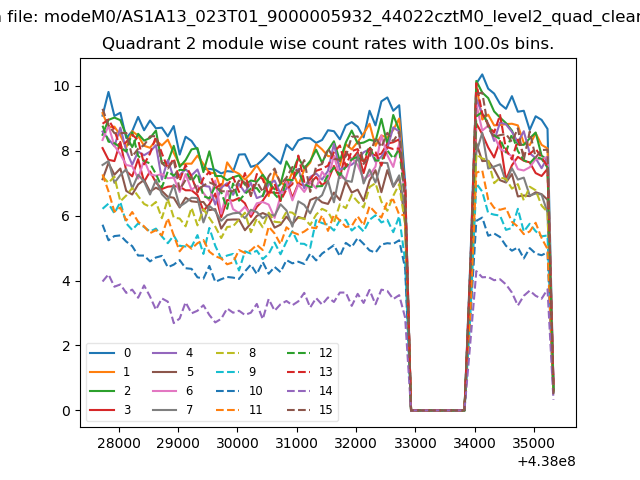

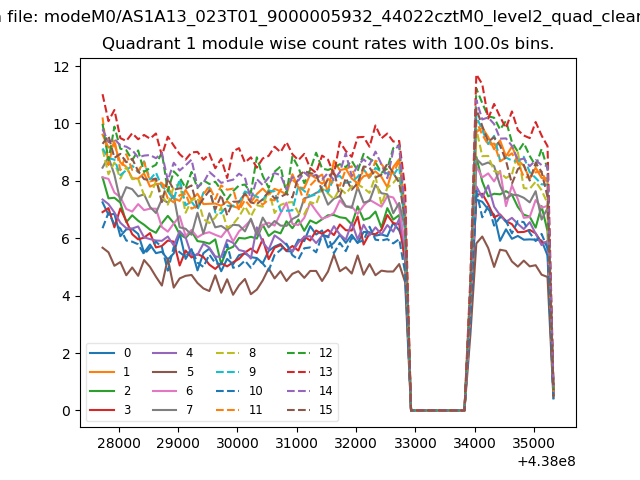

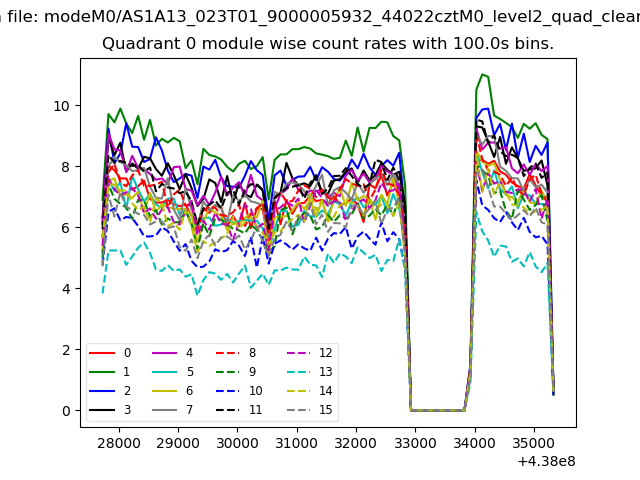

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

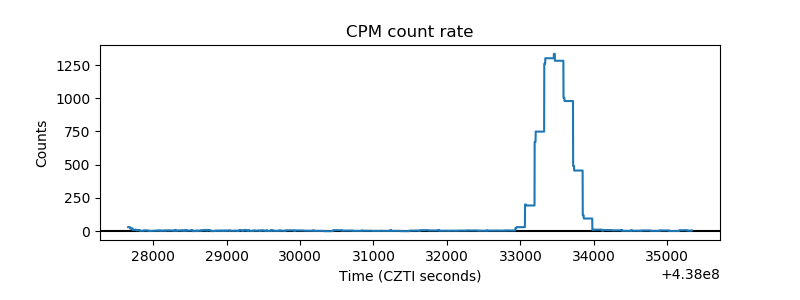

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

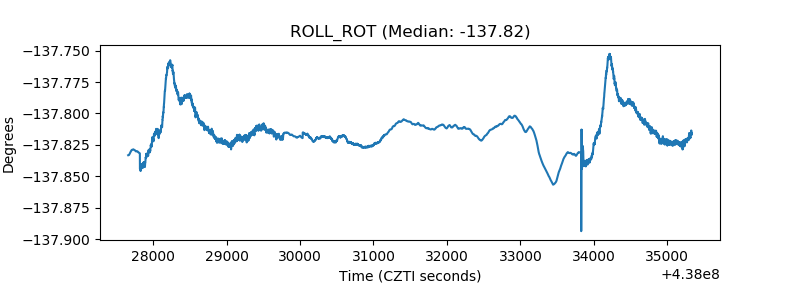

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

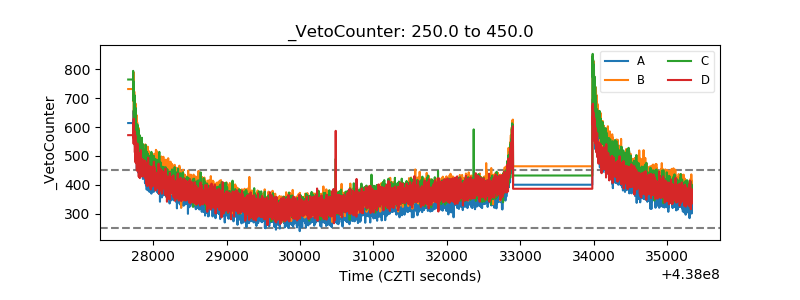

| Veto Counter |  |
