| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000005940_44057cztM0_level2.fits | modeM0/AS1A13_029T01_9000005940_44057cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,918,400 | 130,593,600 |
| Size | 503.5 MB | 124.5 MB |
| Events in quadrant A | 5,208,307 | 874,707 |
| Events in quadrant B | 3,870,037 | 908,792 |
| Events in quadrant C | 4,573,594 | 847,843 |
| Events in quadrant D | 5,253,350 | 755,275 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20821 | 2 |
| B | 0 | 17190 | 2 |
| C | 0 | 19217 | 2 |
| D | 0 | 21232 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8188 | 370 | 4.518808% |
| B | 8188 | 366 | 4.469956% |
| C | 8188 | 416 | 5.080606% |
| D | 8187 | 668 | 8.159277% |

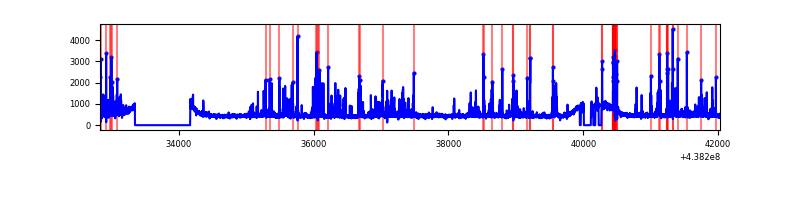

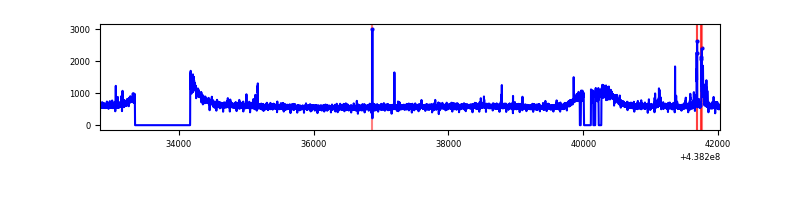

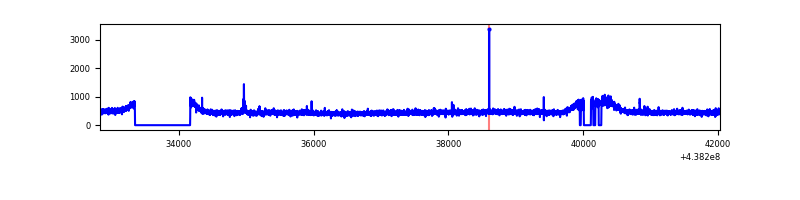

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9198 | 8193 | 6 | 6 | 0.07% | 0.07% |  |
| B | 9198 | 8193 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9198 | 8193 | 74 | 74 | 0.80% | 0.90% |  |
| D | 9197 | 8192 | 342 | 342 | 3.72% | 4.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1315284 | 6509.0 | 974 | 953 | 201.9 |
| A | 14 | 238 | 94116 | 461.37 | 974 | 953 | 201.9 |
| A | 7 | 3 | 13358 | 61.43 | 974 | 953 | 201.9 |
| B | 12 | 111 | 25805 | 127.42 | 973 | 942 | 195.1 |
| B | 11 | 111 | 23620 | 116.22 | 973 | 942 | 195.1 |
| B | 14 | 111 | 23152 | 113.82 | 973 | 942 | 195.1 |
| C | 14 | 254 | 741140 | 3220.76 | 962 | 966 | 229.8 |
| C | 3 | 233 | 48575 | 207.16 | 962 | 966 | 229.8 |
| C | 4 | 254 | 15044 | 61.26 | 962 | 966 | 229.8 |
| D | 13 | 249 | 715899 | 3071.47 | 930 | 901 | 232.8 |
| D | 1 | 52 | 597703 | 2563.73 | 930 | 901 | 232.8 |
| D | 2 | 249 | 139717 | 596.32 | 930 | 901 | 232.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

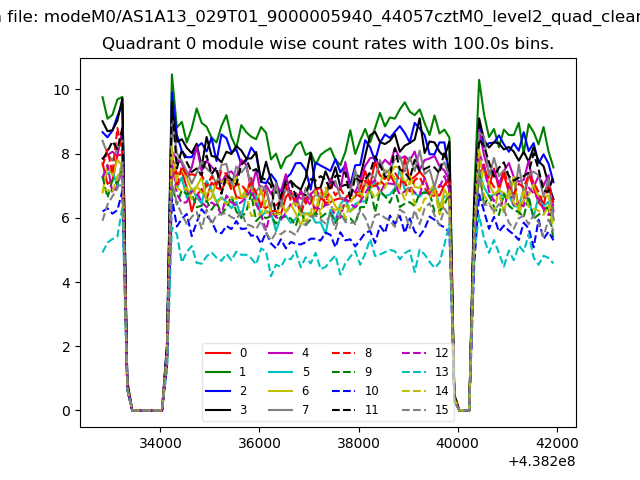

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

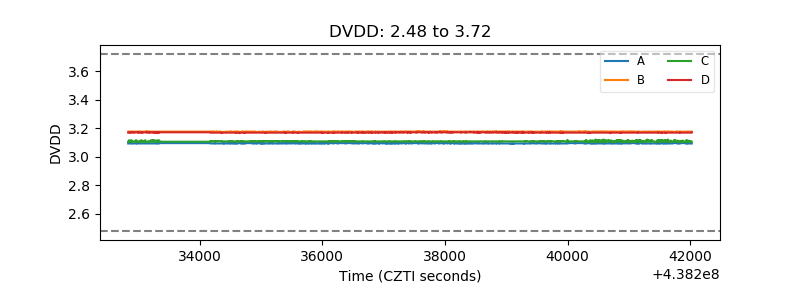

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

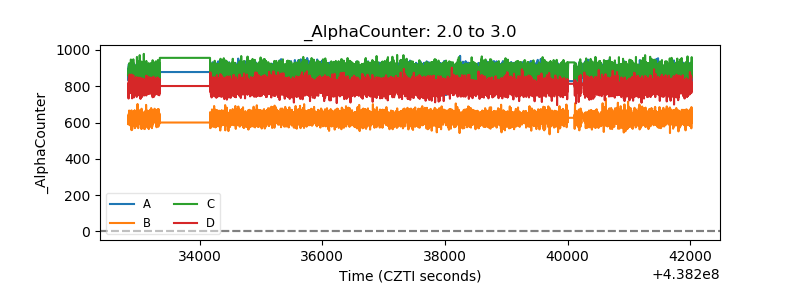

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

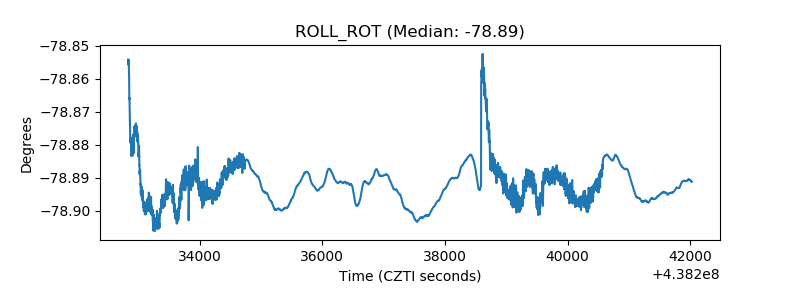

| _ROLL_ROT |  |
| _Roll_DEC |  |

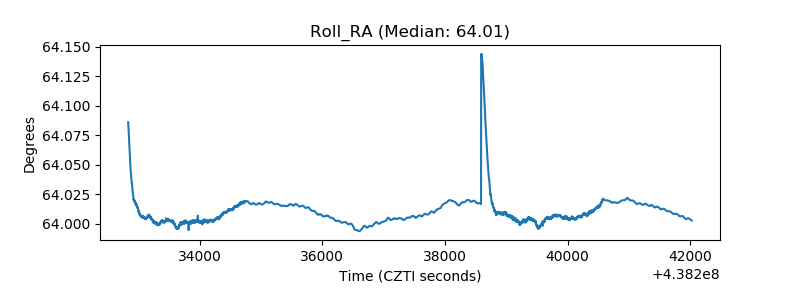

| _Roll_RA |  |
| Veto Counter |  |
