| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000005940_44077cztM0_level2.fits | modeM0/AS1A13_029T01_9000005940_44077cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,199,157,120 | 276,886,080 |
| Size | 1.1 GB | 264.1 MB |
| Events in quadrant A | 12,224,200 | 1,863,507 |
| Events in quadrant B | 8,070,900 | 1,910,260 |
| Events in quadrant C | 8,348,424 | 1,827,170 |
| Events in quadrant D | 14,379,128 | 1,565,658 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 360 | 0 |
| B | 0 | 360 | 0 |
| C | 0 | 360 | 0 |
| D | 0 | 360 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48275 | 2 |
| B | 0 | 36554 | 2 |
| C | 0 | 37803 | 2 |
| D | 0 | 55074 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17649 | 590 | 3.342966% |
| B | 17650 | 490 | 2.776204% |
| C | 17650 | 348 | 1.971671% |
| D | 17650 | 1795 | 10.169972% |

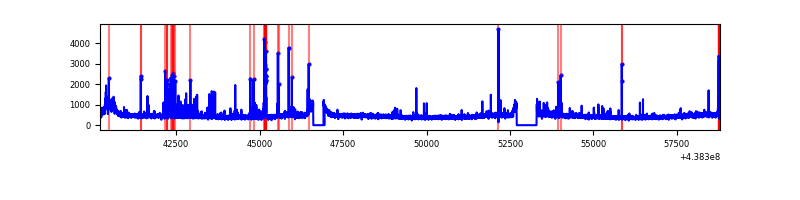

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18569 | 17652 | 85 | 85 | 0.46% | 0.48% |  |
| B | 18570 | 17653 | 0 | 0 | 0.00% | 0.00% |  |
| C | 18569 | 17652 | 58 | 58 | 0.31% | 0.33% |  |
| D | 18570 | 17652 | 1275 | 1275 | 6.87% | 7.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2696192 | 6425.57 | 2033 | 1993 | 419.3 |
| A | 15 | 222 | 1442420 | 3435.36 | 2033 | 1993 | 419.3 |
| A | 12 | 227 | 189320 | 446.77 | 2033 | 1993 | 419.3 |
| B | 12 | 111 | 53857 | 127.9 | 2033 | 1964 | 405.7 |
| B | 11 | 111 | 49873 | 118.08 | 2033 | 1964 | 405.7 |
| B | 14 | 111 | 48969 | 115.85 | 2033 | 1964 | 405.7 |
| C | 14 | 254 | 226569 | 472.12 | 2008 | 2024 | 475.6 |
| C | 15 | 158 | 139292 | 288.62 | 2008 | 2024 | 475.6 |
| C | 4 | 254 | 39538 | 78.88 | 2008 | 2024 | 475.6 |
| D | 13 | 249 | 4044074 | 8373.57 | 1913 | 1856 | 482.7 |
| D | 1 | 52 | 2040146 | 4222.38 | 1913 | 1856 | 482.7 |
| D | 5 | 235 | 572820 | 1182.77 | 1913 | 1856 | 482.7 |

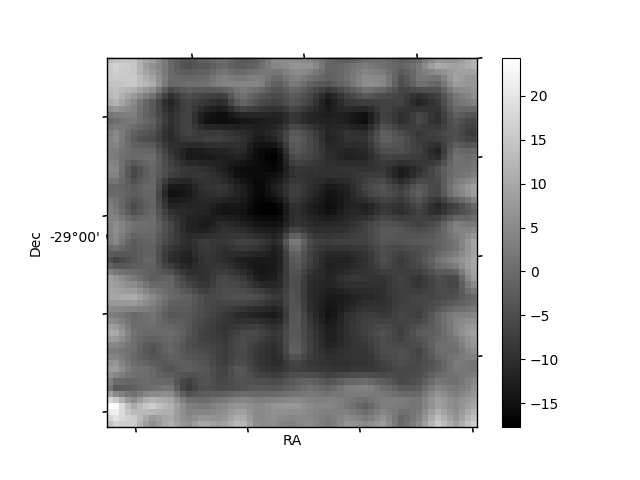

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

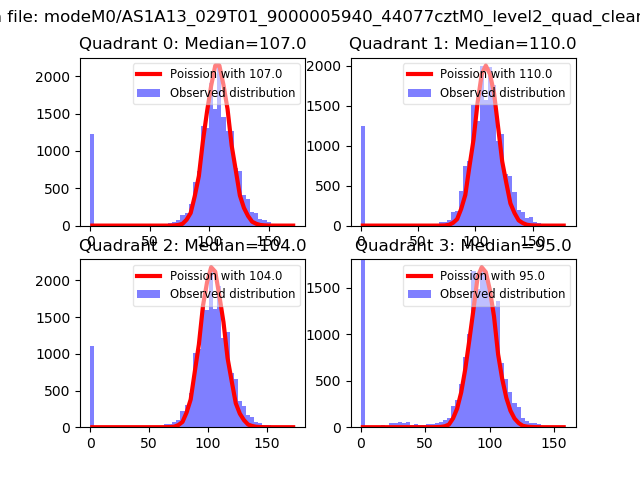

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

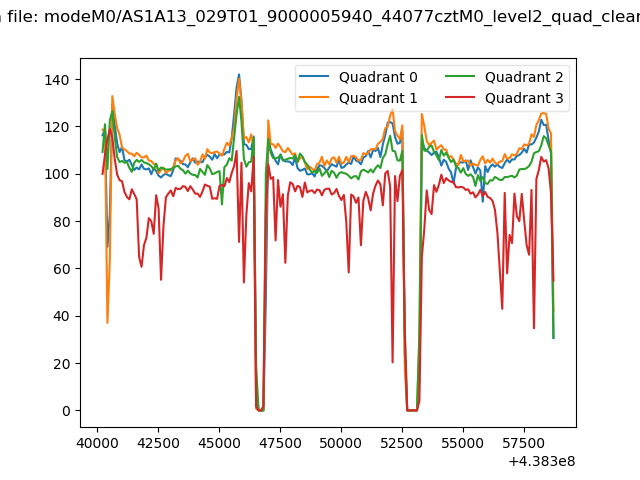

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

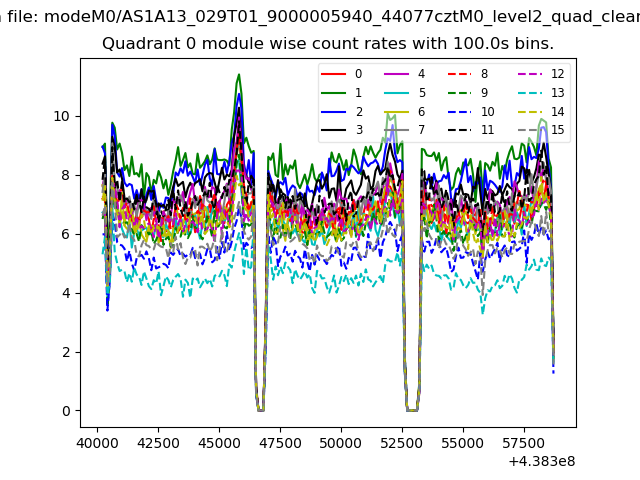

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

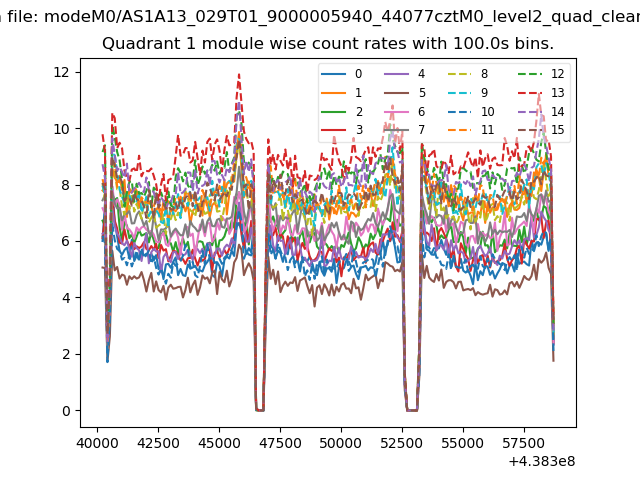

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

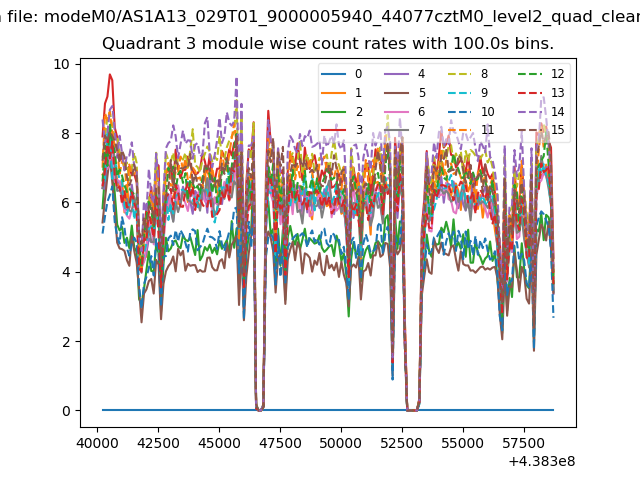

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
