| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_012T01_9000005942_44091cztM0_level2.fits | modeM0/AS1A13_012T01_9000005942_44091cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,137,401,280 | 266,644,800 |
| Size | 1.1 GB | 254.3 MB |
| Events in quadrant A | 10,689,058 | 1,773,439 |
| Events in quadrant B | 7,889,791 | 1,833,732 |
| Events in quadrant C | 8,300,422 | 1,748,256 |
| Events in quadrant D | 13,905,372 | 1,543,221 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43035 | 2 |
| B | 0 | 35578 | 2 |
| C | 0 | 36781 | 2 |
| D | 0 | 53064 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 344 | 0 |
| B | 0 | 344 | 0 |
| C | 0 | 344 | 0 |
| D | 0 | 344 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17030 | 539 | 3.165003% |
| B | 17031 | 539 | 3.164817% |
| C | 17031 | 450 | 2.642241% |
| D | 17031 | 1340 | 7.868005% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17480 | 17032 | 4 | 4 | 0.02% | 0.02% |  |
| B | 17481 | 17033 | 11 | 11 | 0.06% | 0.06% |  |
| C | 17481 | 17033 | 60 | 60 | 0.34% | 0.35% |  |
| D | 17481 | 17033 | 729 | 729 | 4.17% | 4.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2604071 | 6357.31 | 1974 | 1929 | 409.3 |
| A | 15 | 222 | 345448 | 839.25 | 1974 | 1929 | 409.3 |
| A | 7 | 3 | 95593 | 228.83 | 1974 | 1929 | 409.3 |
| B | 12 | 111 | 52462 | 129.11 | 1962 | 1895 | 391.7 |
| B | 11 | 111 | 48370 | 118.66 | 1962 | 1895 | 391.7 |
| B | 14 | 111 | 47756 | 117.09 | 1962 | 1895 | 391.7 |
| C | 3 | 233 | 348929 | 754.39 | 1941 | 1953 | 459.9 |
| C | 4 | 254 | 200502 | 431.68 | 1941 | 1953 | 459.9 |
| C | 14 | 254 | 50369 | 105.26 | 1941 | 1953 | 459.9 |
| D | 1 | 52 | 2164514 | 4570.3 | 1890 | 1833 | 473.2 |
| D | 5 | 235 | 1456007 | 3073.04 | 1890 | 1833 | 473.2 |
| D | 13 | 249 | 1206664 | 2546.12 | 1890 | 1833 | 473.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

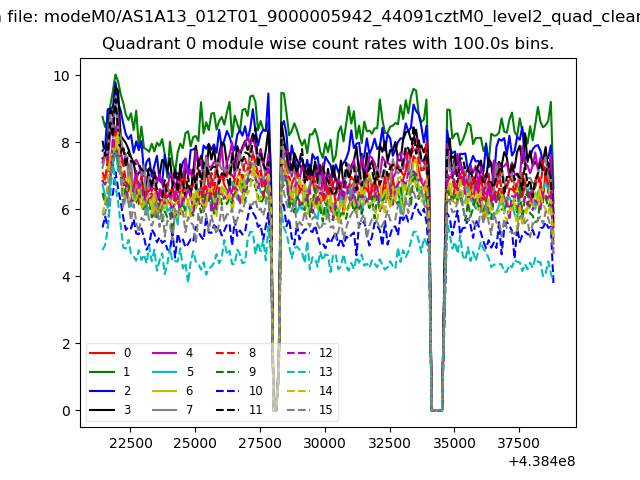

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

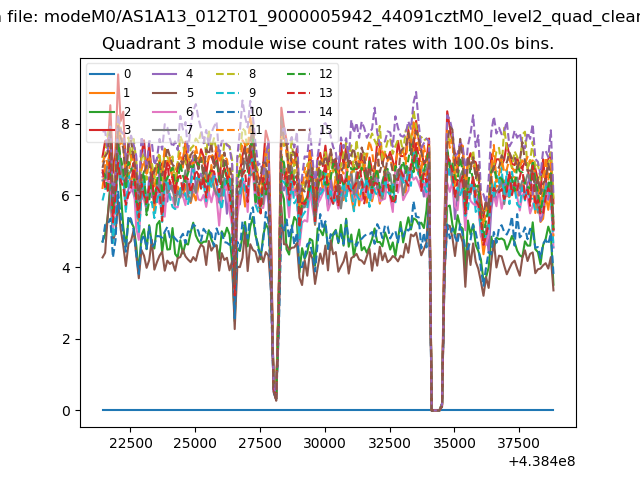

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

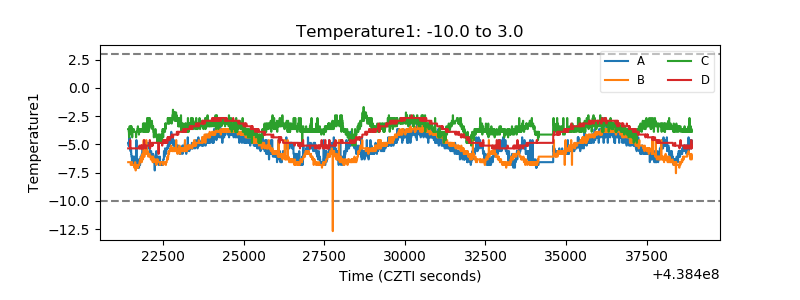

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

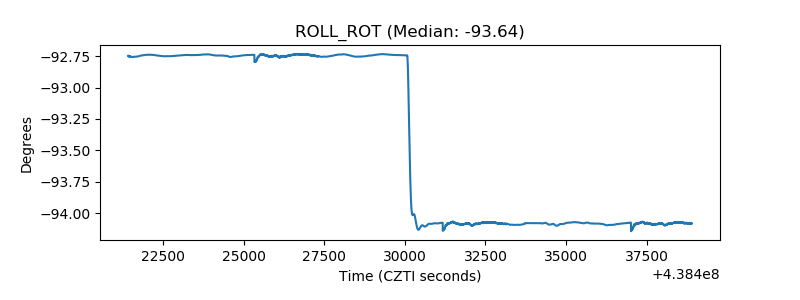

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

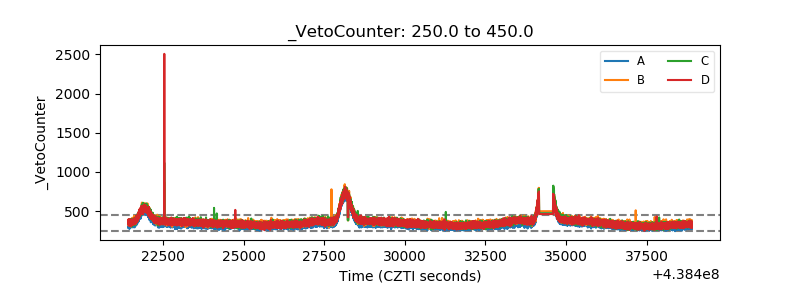

| Veto Counter |  |
