| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_080T05_9000005952_44154cztM0_level2.fits | modeM0/AS1A13_080T05_9000005952_44154cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,303,040 | 108,653,760 |
| Size | 471.4 MB | 103.6 MB |
| Events in quadrant A | 5,243,352 | 730,594 |
| Events in quadrant B | 4,495,846 | 750,925 |
| Events in quadrant C | 3,111,586 | 723,002 |
| Events in quadrant D | 4,954,970 | 642,521 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20307 | 3 |
| B | 0 | 17712 | 2 |
| C | 0 | 13709 | 2 |
| D | 0 | 19140 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6341 | 278 | 4.384167% |
| B | 6341 | 319 | 5.030752% |
| C | 6341 | 49 | 0.772749% |
| D | 6341 | 273 | 4.305315% |

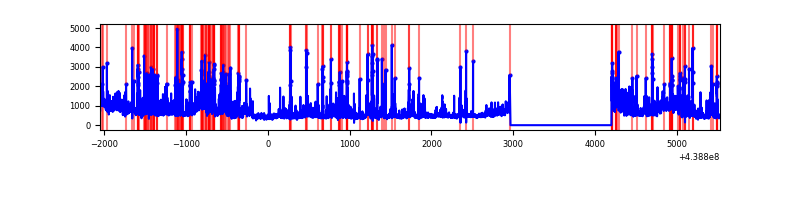

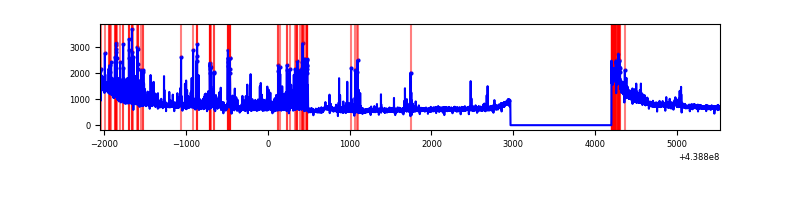

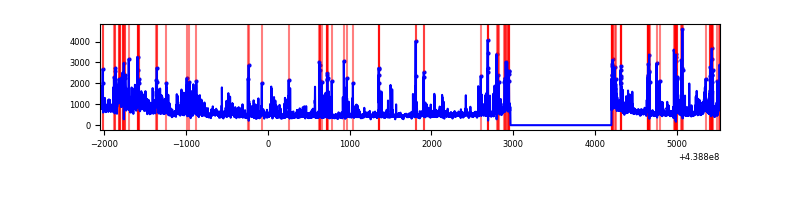

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6342 | 121 | 121 | 1.60% | 1.91% |  |
| B | 7576 | 6342 | 133 | 133 | 1.76% | 2.10% |  |
| C | 7576 | 6342 | 18 | 18 | 0.24% | 0.28% |  |
| D | 7576 | 6342 | 206 | 206 | 2.72% | 3.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1648100 | 10991.63 | 720 | 706 | 149.9 |
| A | 15 | 223 | 395909 | 2636.85 | 720 | 706 | 149.9 |
| A | 14 | 238 | 237378 | 1579.11 | 720 | 706 | 149.9 |
| B | 5 | 255 | 217930 | 1561.82 | 721 | 703 | 139.1 |
| B | 0 | 189 | 199128 | 1426.64 | 721 | 703 | 139.1 |
| B | 5 | 172 | 196720 | 1409.32 | 721 | 703 | 139.1 |
| C | 14 | 254 | 178259 | 1093.9 | 696 | 700 | 162.3 |
| C | 15 | 208 | 47170 | 286.29 | 696 | 700 | 162.3 |
| C | 3 | 233 | 38150 | 230.72 | 696 | 700 | 162.3 |
| D | 13 | 171 | 495508 | 2836.64 | 686 | 662 | 174.4 |
| D | 13 | 187 | 368803 | 2110.32 | 686 | 662 | 174.4 |
| D | 1 | 52 | 344388 | 1970.37 | 686 | 662 | 174.4 |

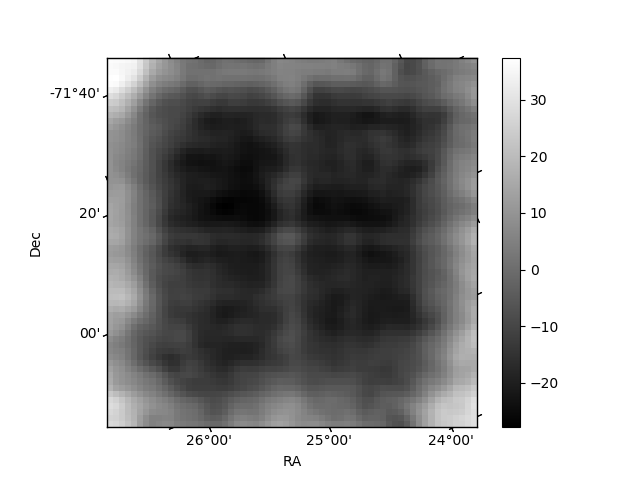

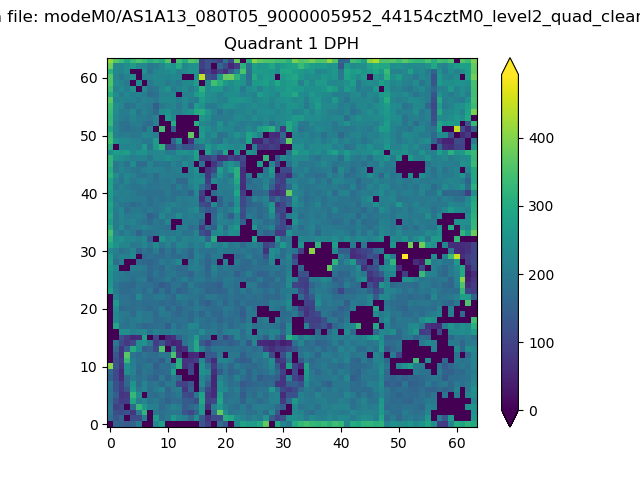

Histogram calculated using DETX and DETY for each event in the final _common_clean file

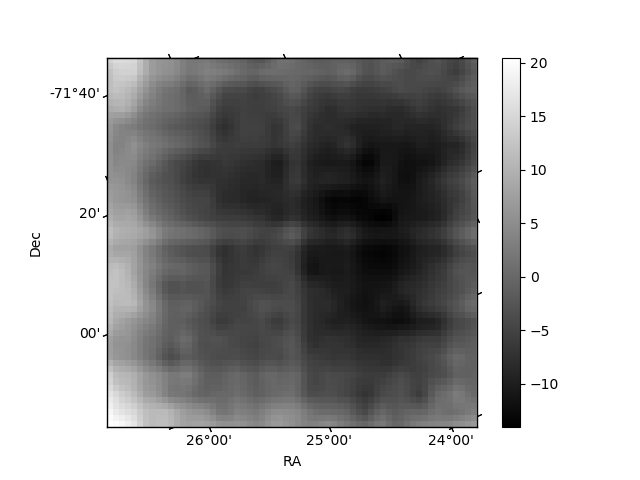

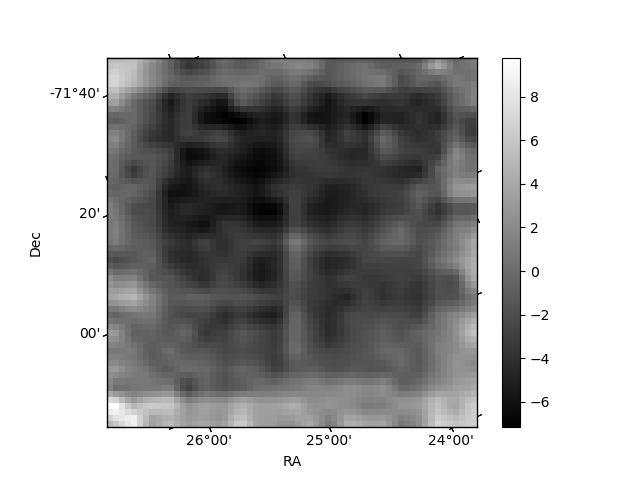

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

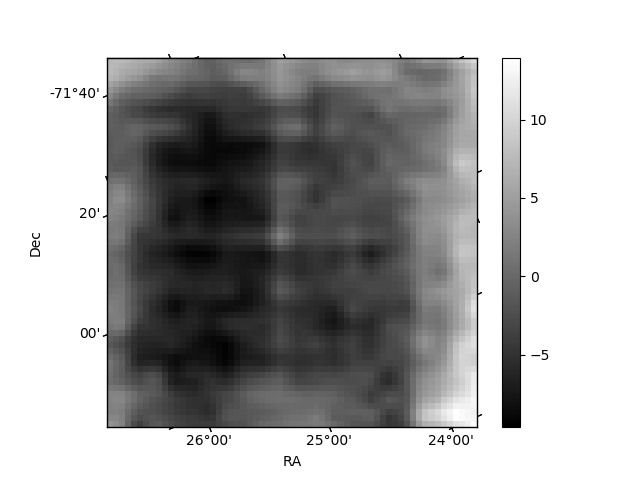

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

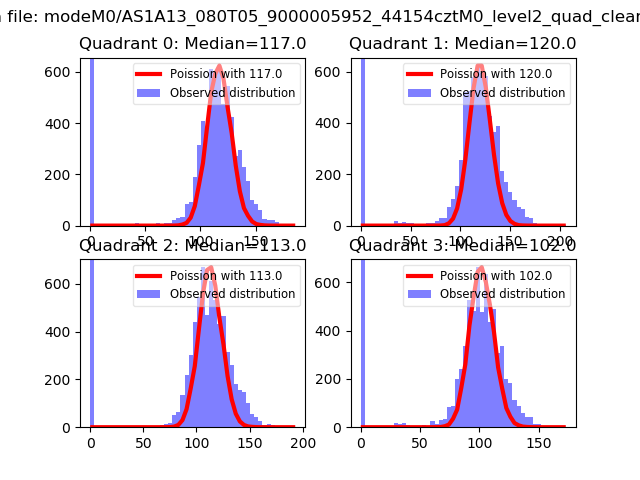

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

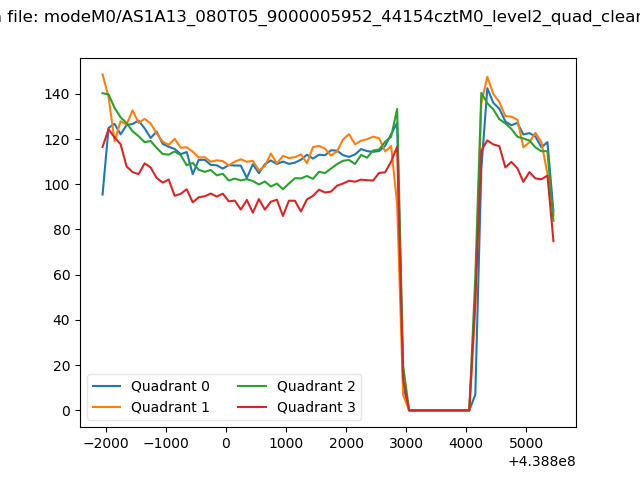

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

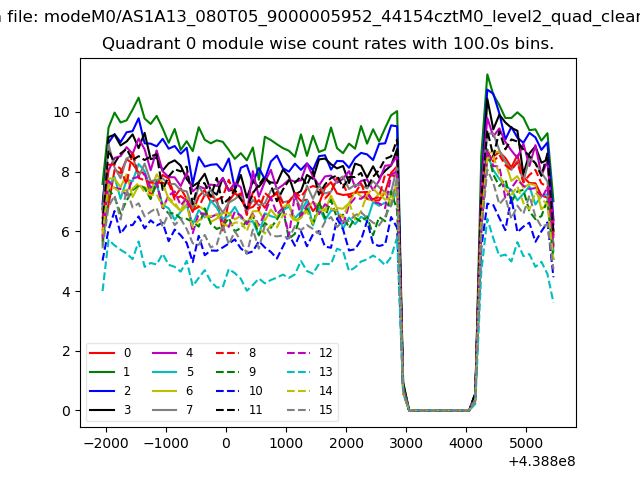

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

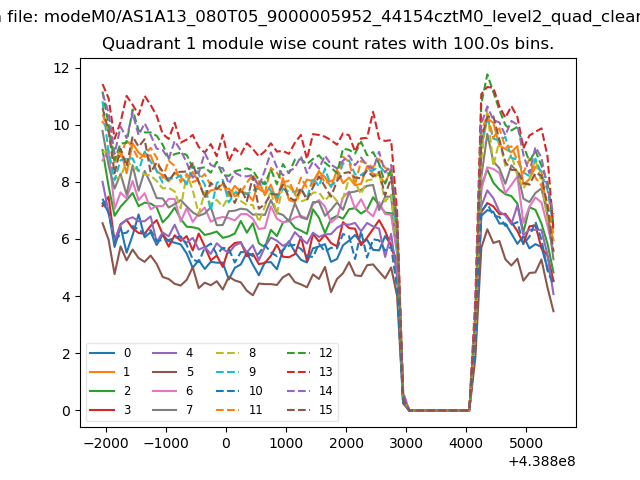

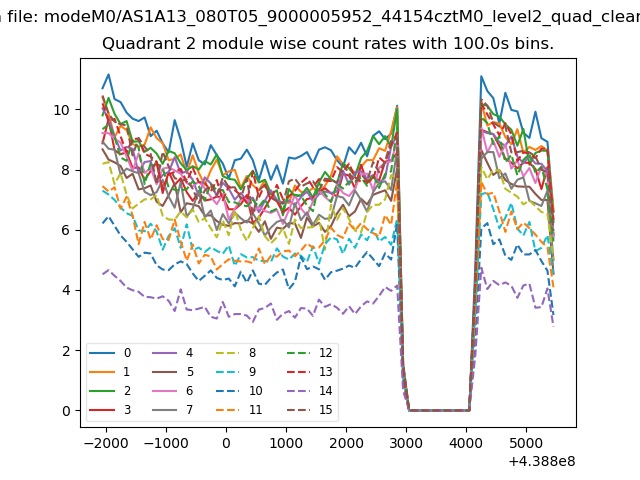

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

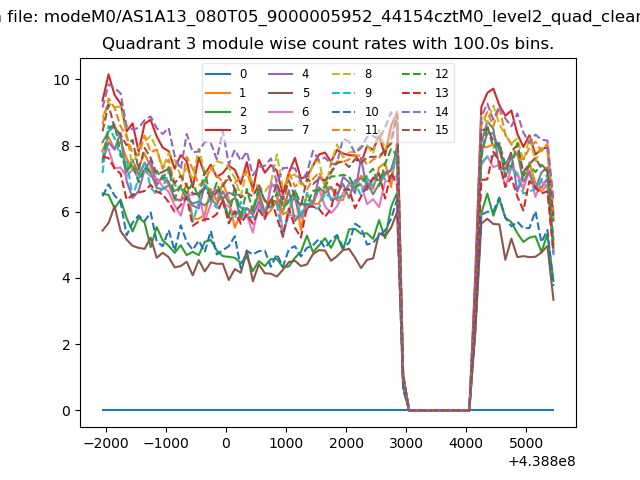

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

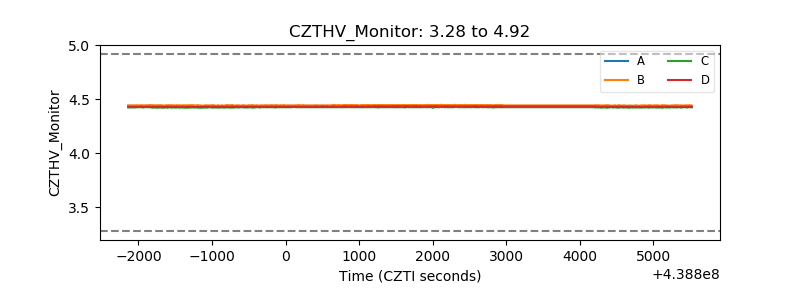

| CZT HV Monitor |  |

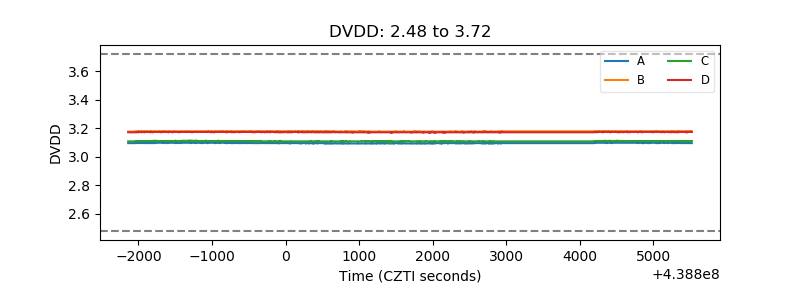

| D_VDD |  |

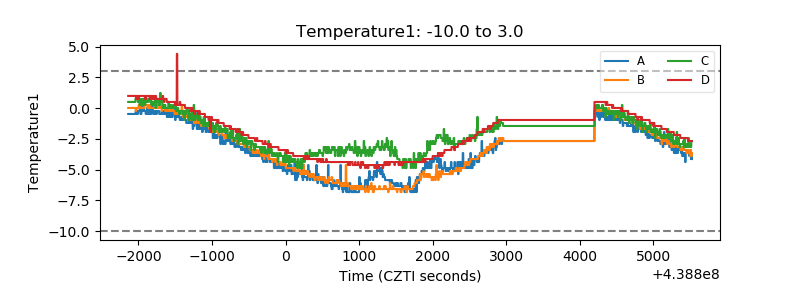

| Temperature 1 |  |

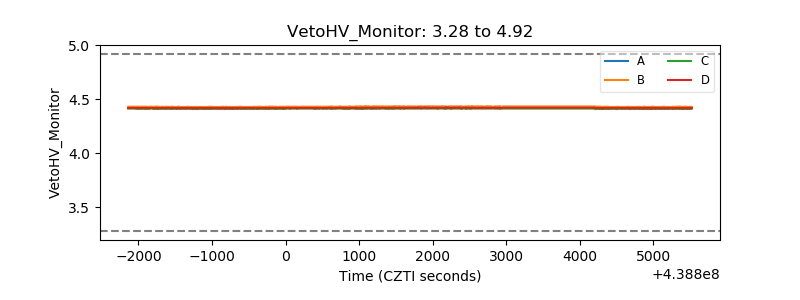

| Veto HV Monitor |  |

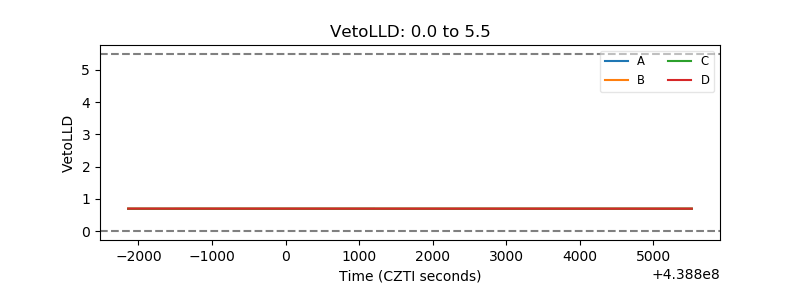

| Veto LLD |  |
| Alpha Counter |  |

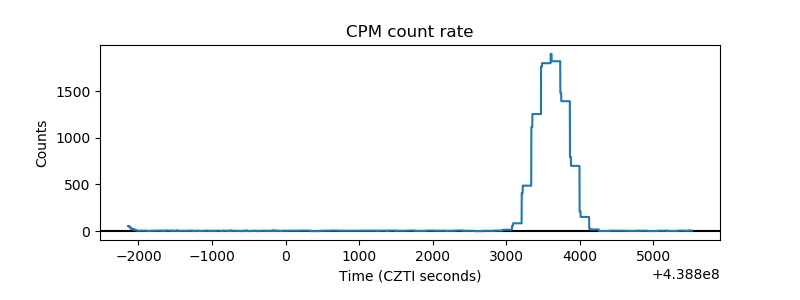

| _CPM_Rate |  |

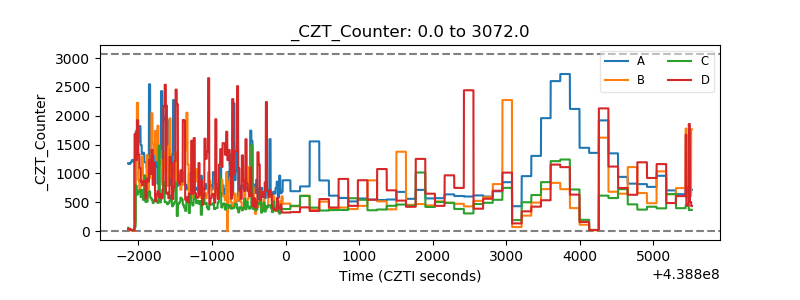

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

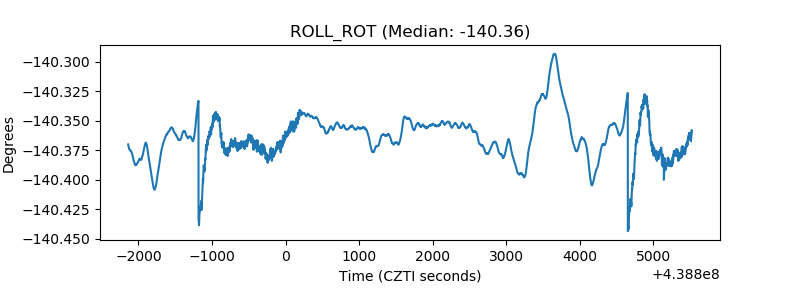

| _ROLL_ROT |  |

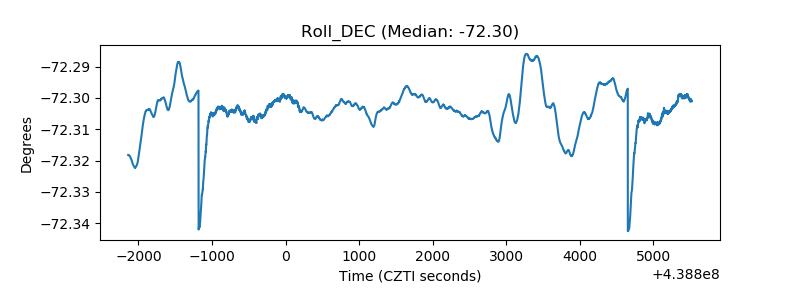

| _Roll_DEC |  |

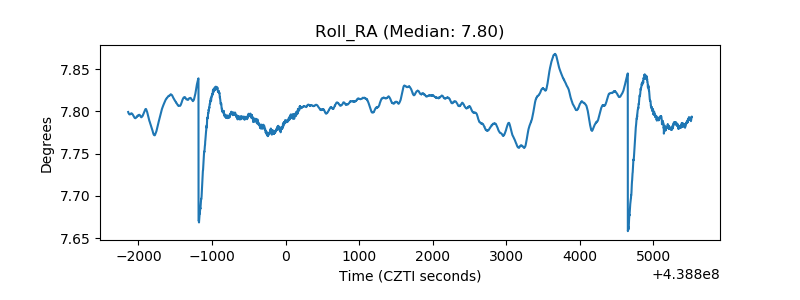

| _Roll_RA |  |

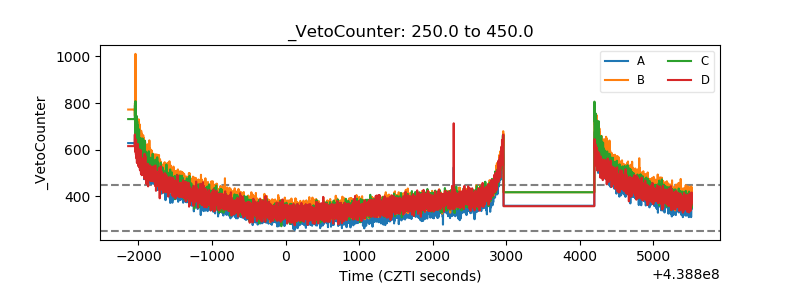

| Veto Counter |  |
