| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_080T05_9000005952_44155cztM0_level2.fits | modeM0/AS1A13_080T05_9000005952_44155cztM0_level2_quad_clean.evt |
| Size (bytes) | 143,061,120 | 32,330,880 |
| Size | 136.4 MB | 30.8 MB |
| Events in quadrant A | 1,457,816 | 221,094 |
| Events in quadrant B | 1,466,005 | 220,413 |
| Events in quadrant C | 843,702 | 212,345 |
| Events in quadrant D | 1,382,470 | 190,117 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5830 | 0 |
| B | 0 | 5604 | 0 |
| C | 0 | 3839 | 0 |
| D | 0 | 5421 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1844 | 19 | 1.030369% |
| B | 1845 | 85 | 4.607046% |
| C | 1845 | 2 | 0.108401% |
| D | 1845 | 53 | 2.872629% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1844 | 1844 | 18 | 18 | 0.98% | 0.98% |  |
| B | 1845 | 1845 | 65 | 65 | 3.52% | 3.52% |  |
| C | 1845 | 1845 | 1 | 1 | 0.05% | 0.05% |  |
| D | 1845 | 1845 | 52 | 52 | 2.82% | 2.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 476764 | 10813.42 | 202 | 199 | 44.1 |
| A | 13 | 31 | 82625 | 1870.27 | 202 | 199 | 44.1 |
| A | 15 | 223 | 46430 | 1049.0 | 202 | 199 | 44.1 |
| B | 5 | 255 | 241698 | 5906.52 | 202 | 198 | 40.9 |
| B | 0 | 219 | 129799 | 3169.74 | 202 | 198 | 40.9 |
| B | 15 | 35 | 60537 | 1475.75 | 202 | 198 | 40.9 |
| C | 14 | 254 | 52703 | 1136.04 | 191 | 193 | 46.2 |
| C | 3 | 233 | 15004 | 320.43 | 191 | 193 | 46.2 |
| C | 15 | 208 | 12368 | 263.4 | 191 | 193 | 46.2 |
| D | 13 | 171 | 221391 | 4441.55 | 187 | 181 | 49.8 |
| D | 1 | 20 | 106872 | 2142.19 | 187 | 181 | 49.8 |
| D | 1 | 52 | 95779 | 1919.46 | 187 | 181 | 49.8 |

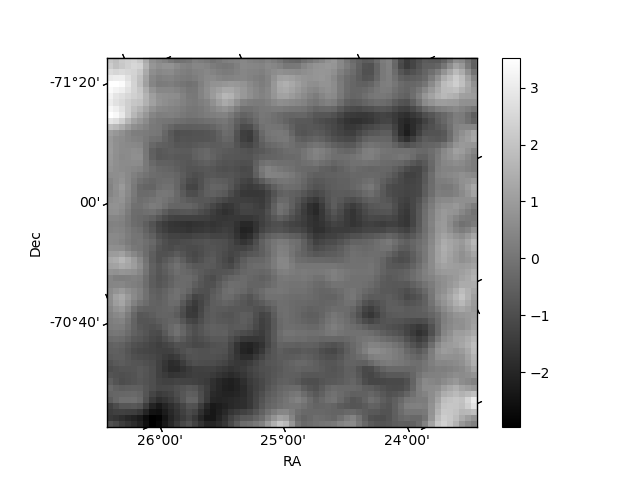

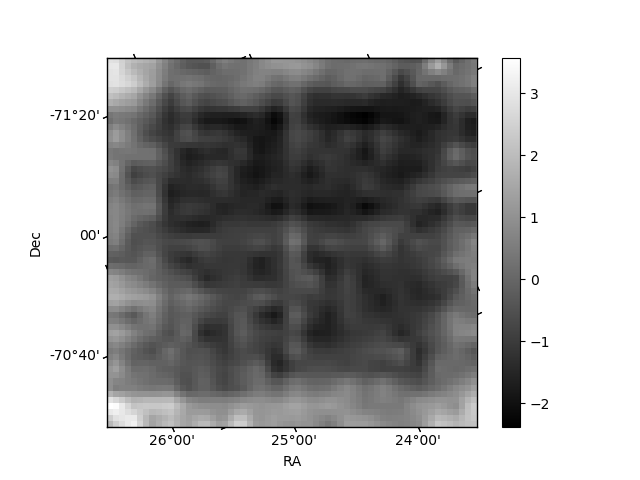

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

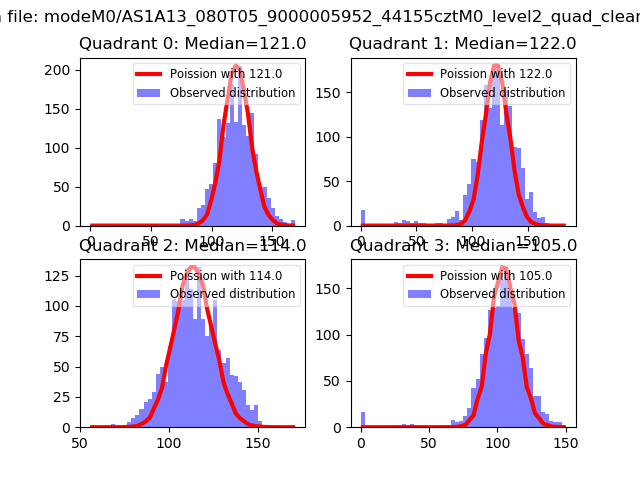

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

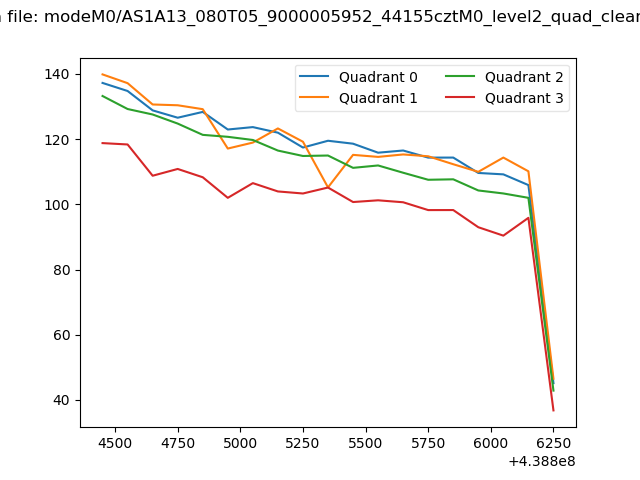

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

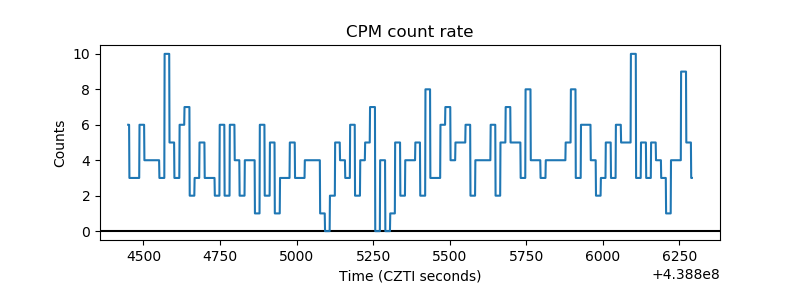

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

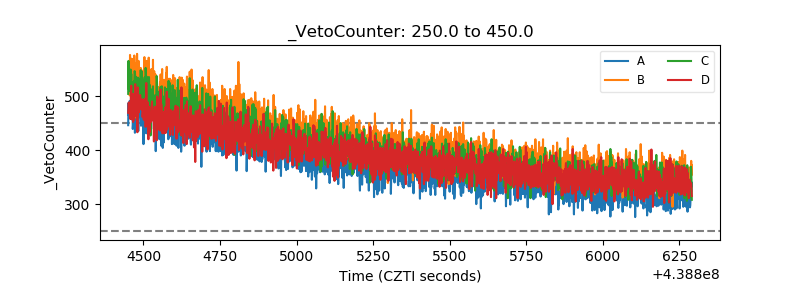

| Veto Counter |  |
