| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_080T06_9000005954_44158cztM0_level2.fits | modeM0/AS1A13_080T06_9000005954_44158cztM0_level2_quad_clean.evt |
| Size (bytes) | 655,208,640 | 111,104,640 |
| Size | 624.9 MB | 106.0 MB |
| Events in quadrant A | 6,821,326 | 749,425 |
| Events in quadrant B | 6,488,278 | 736,980 |
| Events in quadrant C | 4,070,600 | 720,929 |
| Events in quadrant D | 6,306,863 | 647,104 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25364 | 2 |
| B | 0 | 24395 | 2 |
| C | 0 | 17694 | 2 |
| D | 0 | 23877 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7318 | 489 | 6.682154% |
| B | 7318 | 896 | 12.243782% |
| C | 7318 | 453 | 6.190216% |
| D | 7318 | 645 | 8.813884% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7913 | 7319 | 199 | 199 | 2.51% | 2.72% |  |
| B | 7913 | 7319 | 480 | 480 | 6.07% | 6.56% |  |
| C | 7913 | 7319 | 343 | 343 | 4.33% | 4.69% |  |
| D | 7913 | 7319 | 494 | 494 | 6.24% | 6.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1686018 | 10395.05 | 777 | 760 | 162.1 |
| A | 10 | 83 | 1668206 | 10285.18 | 777 | 760 | 162.1 |
| A | 14 | 238 | 197725 | 1214.92 | 777 | 760 | 162.1 |
| B | 5 | 172 | 1154953 | 7808.15 | 765 | 743 | 147.8 |
| B | 0 | 219 | 1011312 | 6836.43 | 765 | 743 | 147.8 |
| B | 5 | 235 | 416517 | 2812.68 | 765 | 743 | 147.8 |
| C | 15 | 158 | 932071 | 5410.59 | 742 | 744 | 172.1 |
| C | 14 | 254 | 201852 | 1168.35 | 742 | 744 | 172.1 |
| C | 3 | 233 | 22762 | 127.91 | 742 | 744 | 172.1 |
| D | 13 | 187 | 999056 | 5327.92 | 744 | 718 | 187.4 |
| D | 8 | 48 | 512706 | 2732.37 | 744 | 718 | 187.4 |
| D | 1 | 47 | 401318 | 2137.92 | 744 | 718 | 187.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

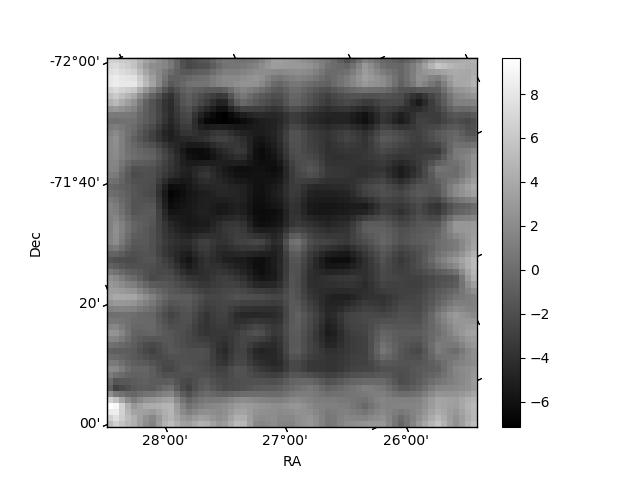

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

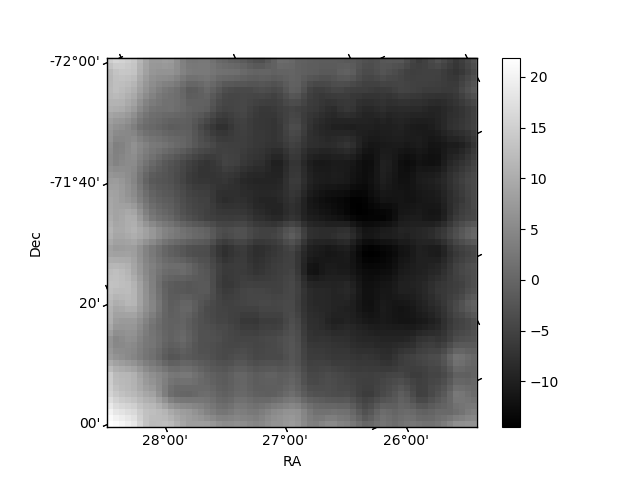

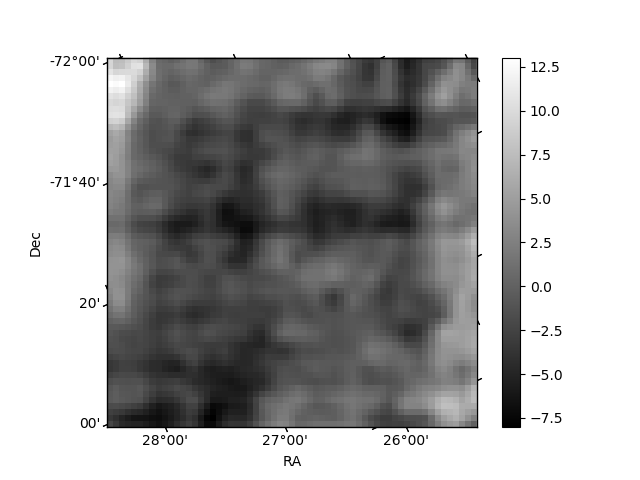

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

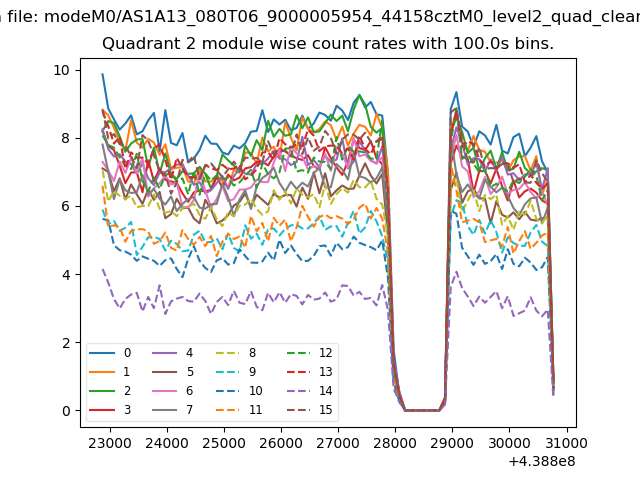

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

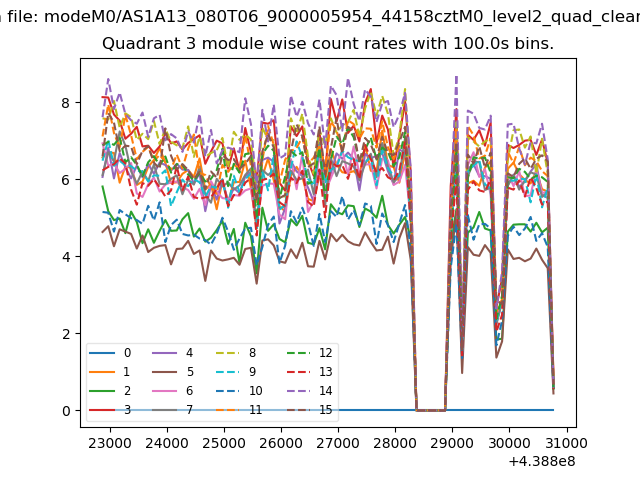

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

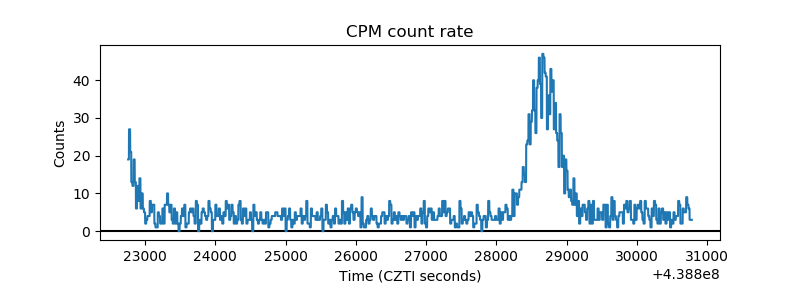

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

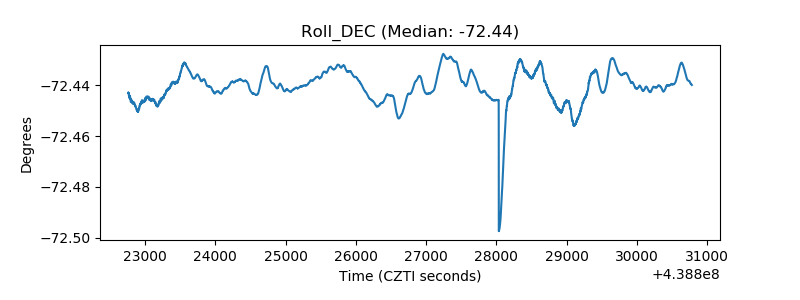

| _Roll_DEC |  |
| _Roll_RA |  |

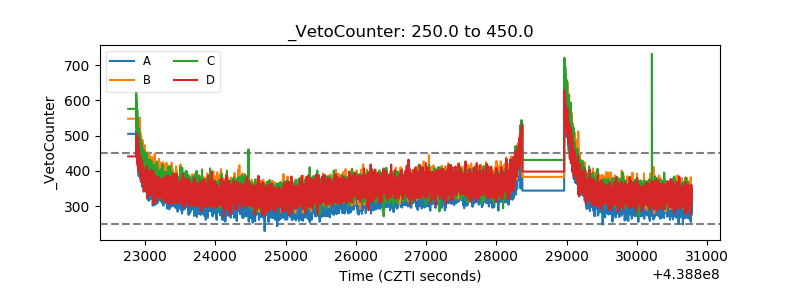

| Veto Counter |  |
