| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_080T06_9000005954_44159cztM0_level2.fits | modeM0/AS1A13_080T06_9000005954_44159cztM0_level2_quad_clean.evt |
| Size (bytes) | 669,628,800 | 115,539,840 |
| Size | 638.6 MB | 110.2 MB |
| Events in quadrant A | 7,712,734 | 718,132 |
| Events in quadrant B | 6,023,525 | 805,140 |
| Events in quadrant C | 4,876,750 | 730,855 |
| Events in quadrant D | 5,572,600 | 704,092 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28507 | 1 |
| B | 0 | 23384 | 0 |
| C | 0 | 20408 | 0 |
| D | 0 | 22026 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7759 | 1201 | 15.478799% |
| B | 7760 | 616 | 7.938144% |
| C | 7760 | 736 | 9.484536% |
| D | 7760 | 368 | 4.742268% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7759 | 7759 | 811 | 811 | 10.45% | 10.45% |  |
| B | 7760 | 7760 | 318 | 318 | 4.10% | 4.10% |  |
| C | 7760 | 7760 | 384 | 384 | 4.95% | 4.95% |  |
| D | 7760 | 7760 | 328 | 328 | 4.23% | 4.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 2673522 | 16071.33 | 798 | 780 | 166.3 |
| A | 10 | 83 | 1414578 | 8501.24 | 798 | 780 | 166.3 |
| A | 14 | 238 | 426851 | 2561.99 | 798 | 780 | 166.3 |
| B | 0 | 219 | 1109438 | 6816.77 | 833 | 806 | 162.6 |
| B | 5 | 172 | 797972 | 4901.63 | 833 | 806 | 162.6 |
| B | 5 | 235 | 188830 | 1156.12 | 833 | 806 | 162.6 |
| C | 15 | 158 | 1467122 | 7907.89 | 795 | 795 | 185.4 |
| C | 14 | 254 | 278459 | 1497.44 | 795 | 795 | 185.4 |
| C | 4 | 254 | 15785 | 80.84 | 795 | 795 | 185.4 |
| D | 12 | 233 | 432241 | 2102.04 | 815 | 787 | 205.3 |
| D | 8 | 48 | 363239 | 1765.86 | 815 | 787 | 205.3 |
| D | 13 | 187 | 337764 | 1641.75 | 815 | 787 | 205.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

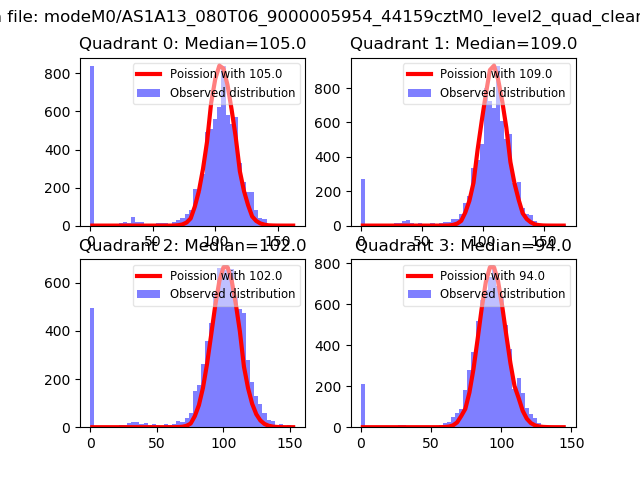

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

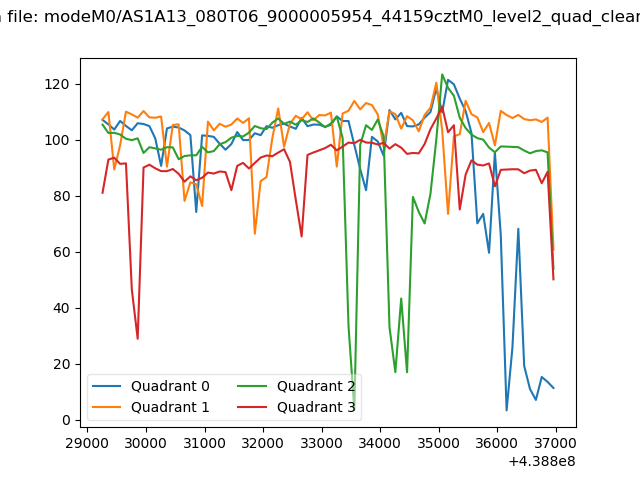

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

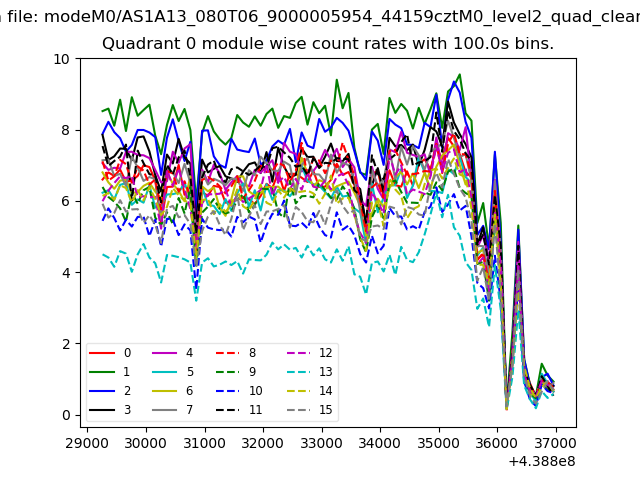

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

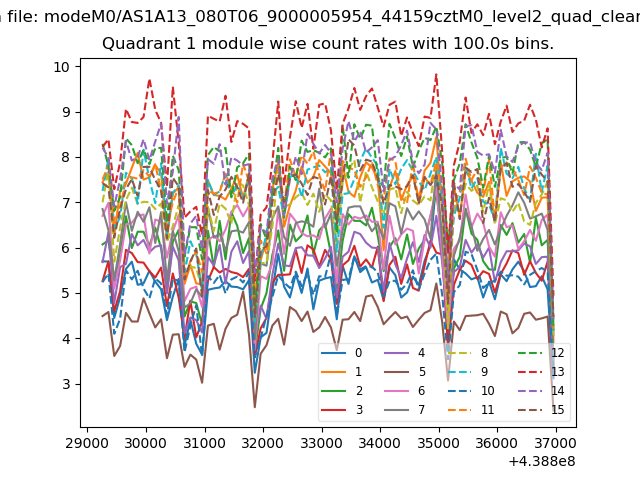

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

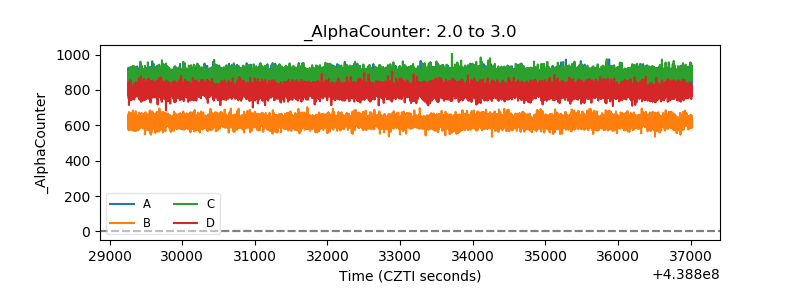

| Alpha Counter |  |

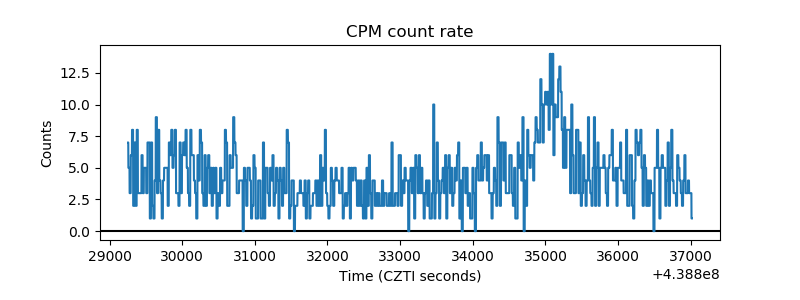

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

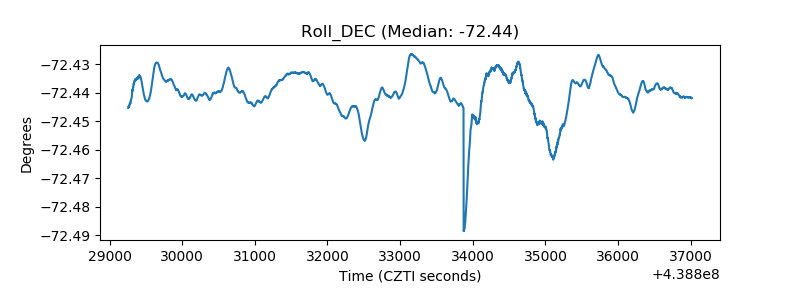

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
