| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T04_9000005962_44186cztM0_level2.fits | modeM0/AS1A13_074T04_9000005962_44186cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,849,280 | 111,182,400 |
| Size | 426.1 MB | 106.0 MB |
| Events in quadrant A | 5,132,353 | 742,826 |
| Events in quadrant B | 3,498,203 | 772,600 |
| Events in quadrant C | 3,327,832 | 730,402 |
| Events in quadrant D | 4,070,621 | 661,199 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20242 | 2 |
| B | 0 | 14818 | 2 |
| C | 0 | 14430 | 2 |
| D | 0 | 16819 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6590 | 230 | 3.490137% |
| B | 6590 | 116 | 1.760243% |
| C | 6590 | 42 | 0.637329% |
| D | 6589 | 199 | 3.020185% |

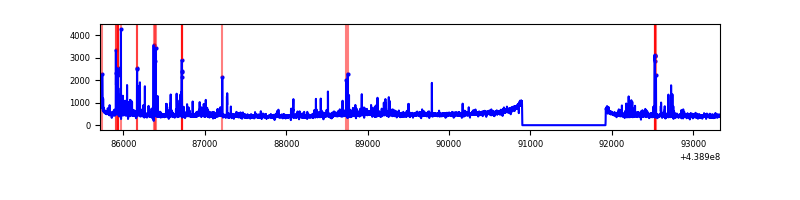

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7615 | 6591 | 82 | 82 | 1.08% | 1.24% |  |
| B | 7615 | 6591 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7615 | 6591 | 25 | 25 | 0.33% | 0.38% |  |
| D | 7614 | 6590 | 134 | 134 | 1.76% | 2.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1412864 | 8960.08 | 755 | 739 | 157.6 |
| A | 15 | 223 | 742914 | 4709.18 | 755 | 739 | 157.6 |
| A | 7 | 3 | 40214 | 250.47 | 755 | 739 | 157.6 |
| B | 0 | 200 | 171728 | 1139.02 | 758 | 736 | 150.1 |
| B | 5 | 172 | 110665 | 732.26 | 758 | 736 | 150.1 |
| B | 0 | 189 | 85762 | 566.38 | 758 | 736 | 150.1 |
| C | 14 | 254 | 205130 | 1165.13 | 740 | 745 | 175.4 |
| C | 3 | 233 | 87936 | 497.04 | 740 | 745 | 175.4 |
| C | 15 | 208 | 56456 | 317.59 | 740 | 745 | 175.4 |
| D | 2 | 249 | 580810 | 3163.43 | 729 | 706 | 183.4 |
| D | 13 | 249 | 218375 | 1186.99 | 729 | 706 | 183.4 |
| D | 12 | 222 | 116767 | 632.9 | 729 | 706 | 183.4 |

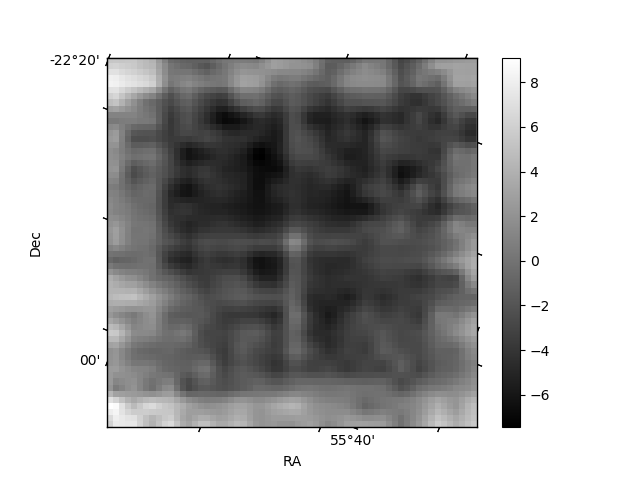

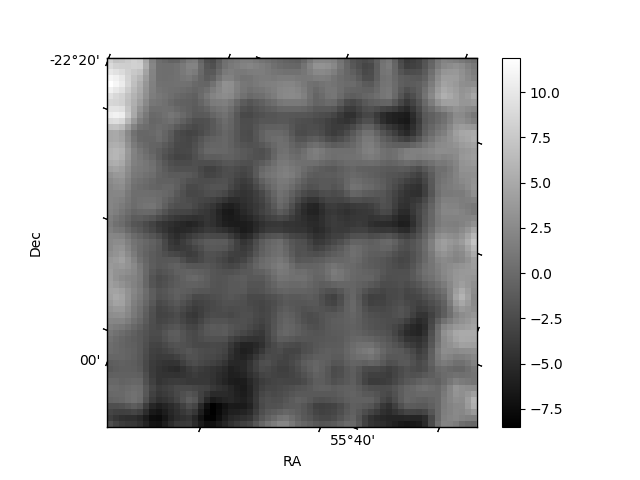

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

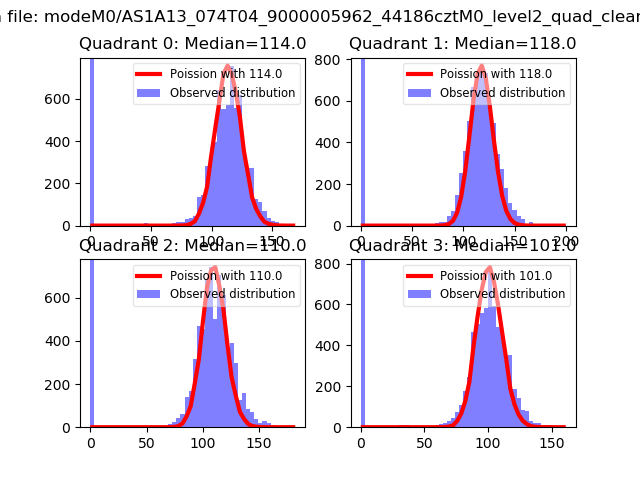

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

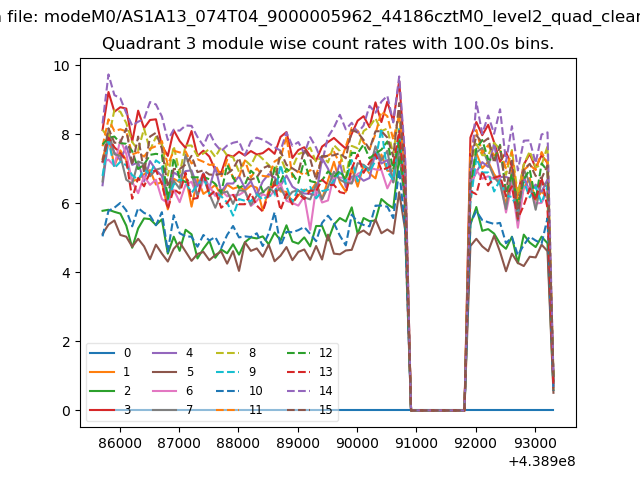

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
