| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T05_9000005958_44178cztM0_level2.fits | modeM0/AS1A13_074T05_9000005958_44178cztM0_level2_quad_clean.evt |
| Size (bytes) | 226,339,200 | 51,416,640 |
| Size | 215.9 MB | 49.0 MB |
| Events in quadrant A | 2,629,161 | 333,613 |
| Events in quadrant B | 1,619,332 | 352,288 |
| Events in quadrant C | 1,808,973 | 338,218 |
| Events in quadrant D | 2,067,137 | 302,333 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10136 | 3 |
| B | 0 | 6909 | 8 |
| C | 0 | 7567 | 2 |
| D | 0 | 8395 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3238 | 211 | 6.516368% |
| B | 3237 | 114 | 3.521779% |
| C | 3239 | 107 | 3.303489% |
| D | 3239 | 197 | 6.082124% |

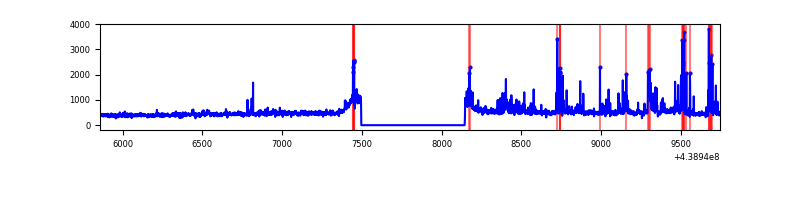

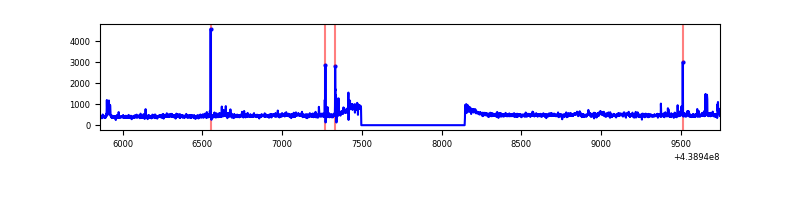

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3889 | 3240 | 43 | 43 | 1.11% | 1.33% |  |
| B | 3889 | 3240 | 4 | 4 | 0.10% | 0.12% |  |
| C | 3889 | 3240 | 29 | 29 | 0.75% | 0.90% |  |
| D | 3889 | 3240 | 72 | 72 | 1.85% | 2.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 627132 | 7912.28 | 372 | 362 | 79.2 |
| A | 15 | 223 | 543781 | 6860.06 | 372 | 362 | 79.2 |
| A | 7 | 3 | 10076 | 122.63 | 372 | 362 | 79.2 |
| B | 0 | 219 | 53132 | 696.01 | 376 | 363 | 75.8 |
| B | 5 | 172 | 29533 | 384.75 | 376 | 363 | 75.8 |
| B | 5 | 235 | 12306 | 157.53 | 376 | 363 | 75.8 |
| C | 4 | 254 | 153367 | 1720.36 | 374 | 375 | 88.9 |
| C | 9 | 54 | 94959 | 1063.57 | 374 | 375 | 88.9 |
| C | 14 | 254 | 75415 | 843.81 | 374 | 375 | 88.9 |
| D | 13 | 249 | 223715 | 2370.18 | 370 | 358 | 94.2 |
| D | 8 | 240 | 157163 | 1663.95 | 370 | 358 | 94.2 |
| D | 1 | 47 | 81658 | 862.72 | 370 | 358 | 94.2 |

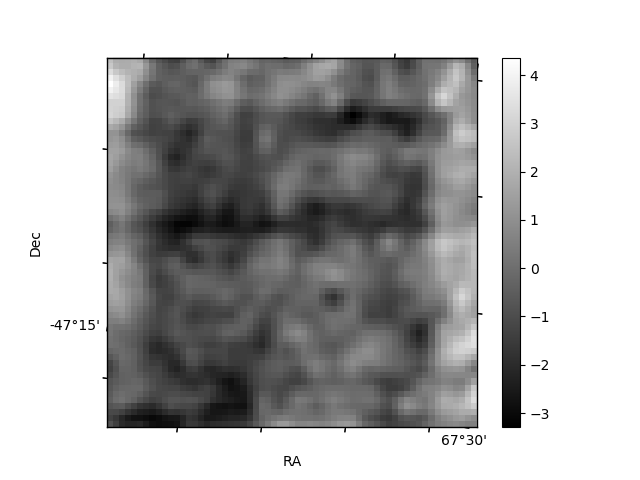

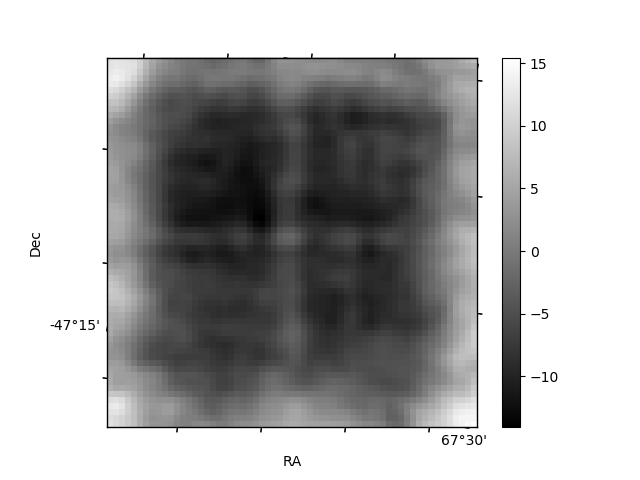

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

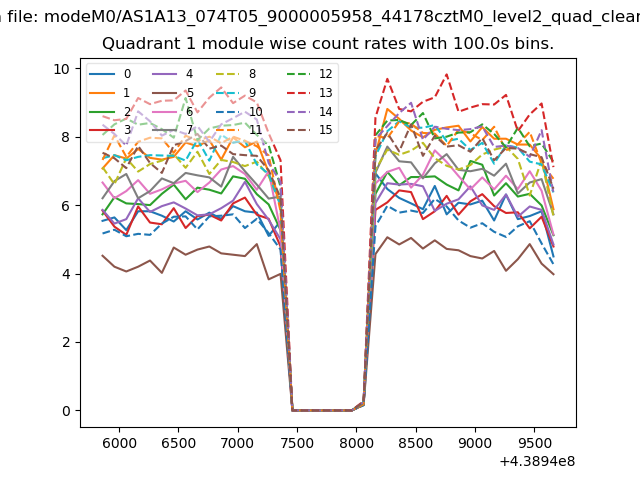

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

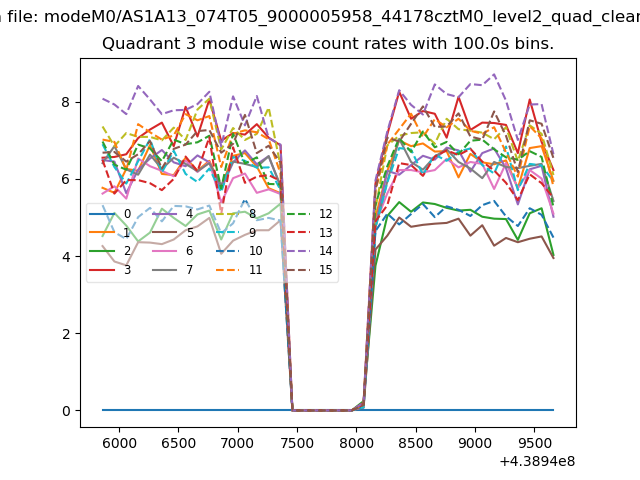

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

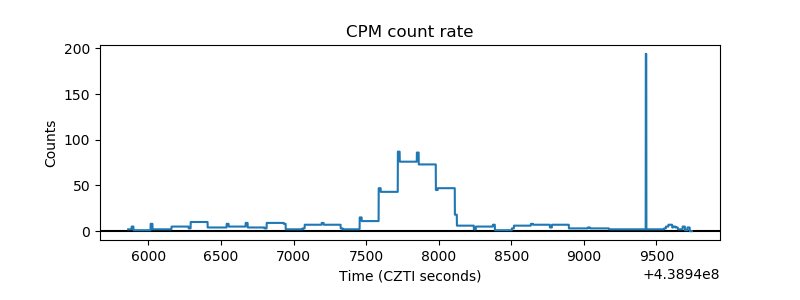

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

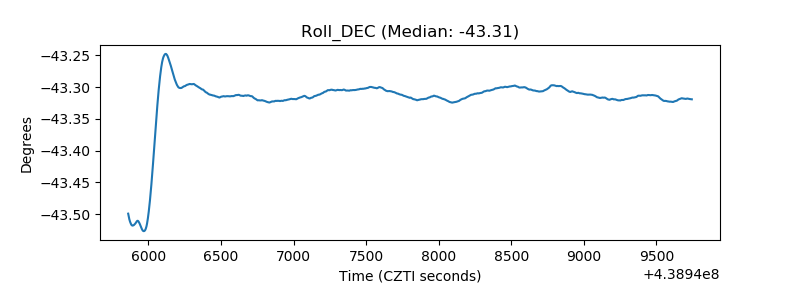

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
