| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T05_9000005958_44179cztM0_level2.fits | modeM0/AS1A13_074T05_9000005958_44179cztM0_level2_quad_clean.evt |
| Size (bytes) | 226,376,640 | 46,391,040 |
| Size | 215.9 MB | 44.2 MB |
| Events in quadrant A | 2,946,450 | 293,121 |
| Events in quadrant B | 1,671,127 | 325,311 |
| Events in quadrant C | 1,490,008 | 309,993 |
| Events in quadrant D | 2,048,151 | 271,765 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 63 | 5 |
| B | 0 | 63 | 3 |
| C | 0 | 64 | 4 |
| D | 0 | 64 | 4 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12013 | 1165 |
| B | 0 | 7577 | 640 |
| C | 0 | 6896 | 709 |
| D | 0 | 8754 | 634 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 1 |
| C | 0 | 9 | 0 |
| D | 0 | 8 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2850 | 288 | 10.105263% |
| B | 2869 | 22 | 0.766818% |
| C | 2861 | 9 | 0.314575% |
| D | 2869 | 185 | 6.448240% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4192 | 2885 | 184 | 184 | 4.39% | 6.38% |  |
| B | 4200 | 2900 | 4 | 4 | 0.10% | 0.14% |  |
| C | 4202 | 2888 | 9 | 9 | 0.21% | 0.31% |  |
| D | 4191 | 2899 | 120 | 120 | 2.86% | 4.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1141637 | 17243.6 | 310 | 302 | 66.2 |
| A | 10 | 83 | 596845 | 9012.73 | 310 | 302 | 66.2 |
| A | 2 | 79 | 6572 | 94.73 | 310 | 302 | 66.2 |
| B | 0 | 200 | 238769 | 3673.02 | 322 | 312 | 64.9 |
| B | 0 | 219 | 91067 | 1397.92 | 322 | 312 | 64.9 |
| B | 0 | 230 | 27736 | 422.42 | 322 | 312 | 64.9 |
| C | 9 | 54 | 147648 | 1949.03 | 317 | 319 | 75.6 |
| C | 14 | 254 | 74681 | 983.74 | 317 | 319 | 75.6 |
| C | 3 | 233 | 19624 | 255.39 | 317 | 319 | 75.6 |
| D | 13 | 249 | 454960 | 5650.29 | 310 | 300 | 80.5 |
| D | 1 | 47 | 127946 | 1586.32 | 310 | 300 | 80.5 |
| D | 1 | 52 | 105616 | 1308.82 | 310 | 300 | 80.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

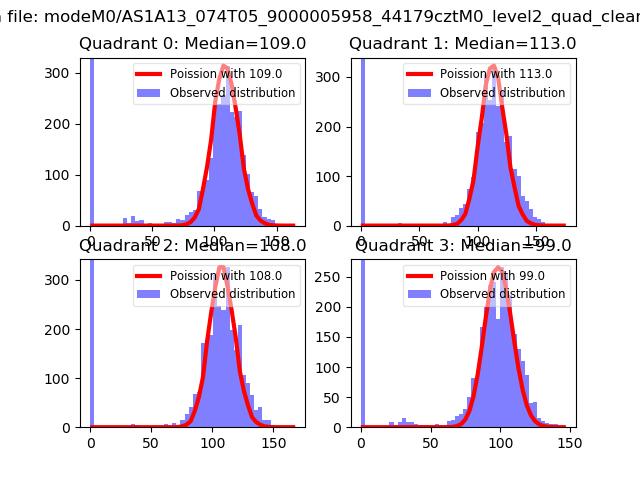

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

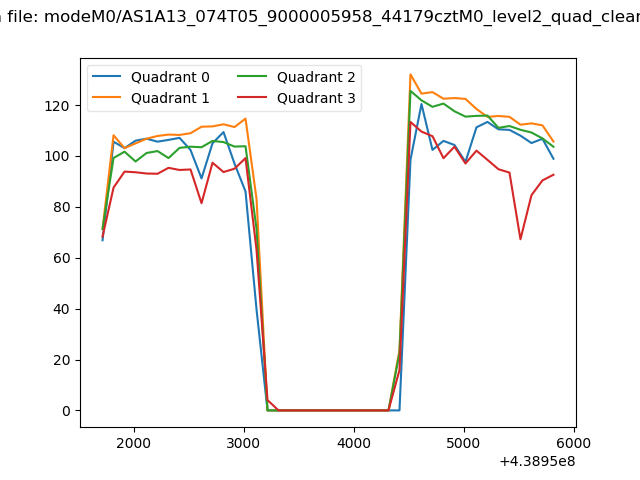

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

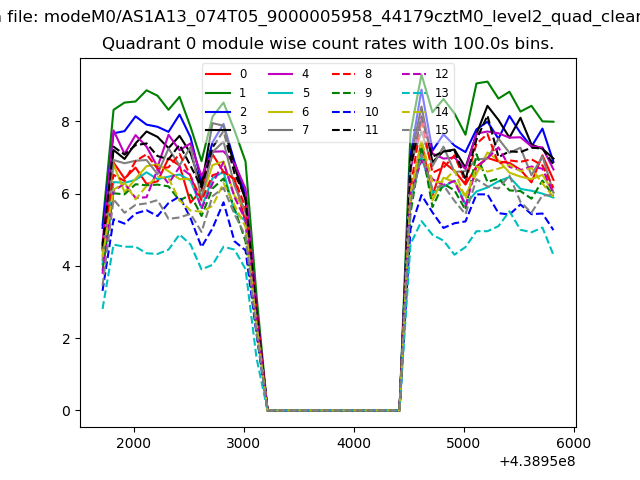

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

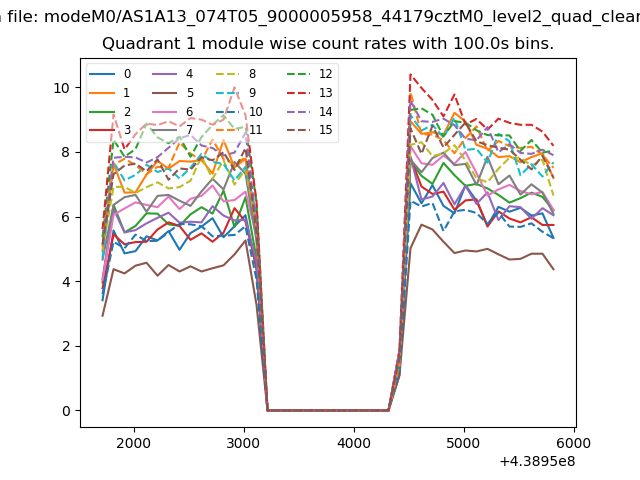

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

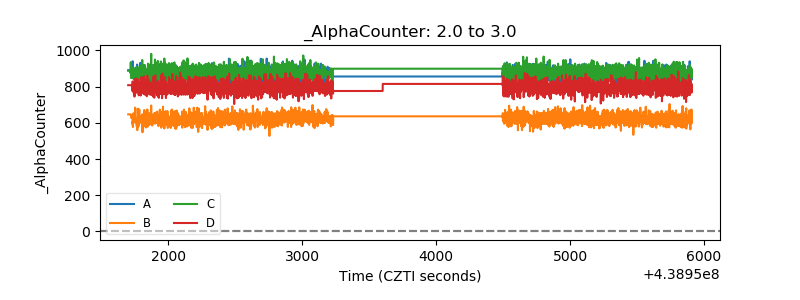

| Alpha Counter |  |

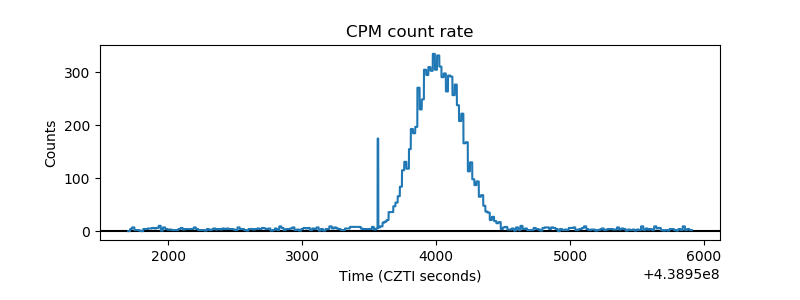

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
