| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T05_9000005958_44182cztM0_level2.fits | modeM0/AS1A13_074T05_9000005958_44182cztM0_level2_quad_clean.evt |
| Size (bytes) | 196,657,920 | 36,558,720 |
| Size | 187.5 MB | 34.9 MB |
| Events in quadrant A | 2,877,412 | 208,979 |
| Events in quadrant B | 1,427,669 | 264,477 |
| Events in quadrant C | 1,039,857 | 253,336 |
| Events in quadrant D | 1,764,811 | 223,888 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10076 | 1 |
| B | 0 | 5776 | 1 |
| C | 0 | 4544 | 1 |
| D | 0 | 6675 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2160 | 517 | 23.935185% |
| B | 2161 | 44 | 2.036094% |
| C | 2161 | 16 | 0.740398% |
| D | 2161 | 123 | 5.691809% |

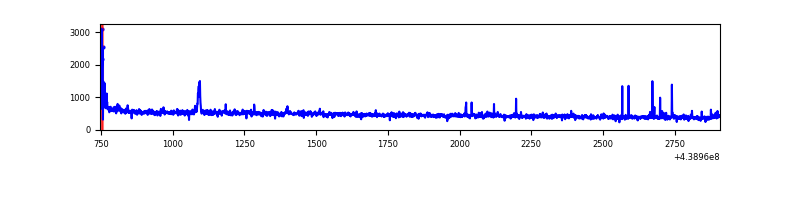

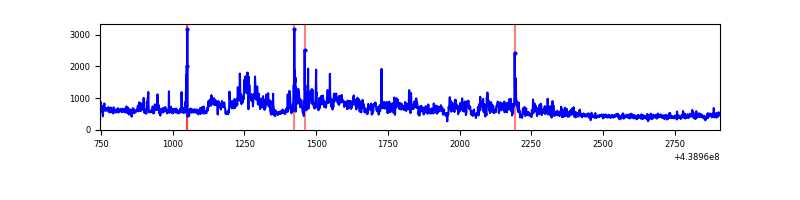

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2160 | 2160 | 313 | 313 | 14.49% | 14.49% |  |
| B | 2161 | 2161 | 5 | 5 | 0.23% | 0.23% |  |
| C | 2161 | 2161 | 4 | 4 | 0.19% | 0.19% |  |
| D | 2161 | 2161 | 117 | 117 | 5.41% | 5.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1356007 | 25660.17 | 247 | 242 | 52.8 |
| A | 10 | 83 | 534457 | 10110.93 | 247 | 242 | 52.8 |
| A | 7 | 3 | 30424 | 571.25 | 247 | 242 | 52.8 |
| B | 0 | 219 | 238208 | 4622.63 | 257 | 249 | 51.5 |
| B | 0 | 230 | 102023 | 1977.08 | 257 | 249 | 51.5 |
| B | 5 | 172 | 13496 | 257.34 | 257 | 249 | 51.5 |
| C | 14 | 254 | 29172 | 485.42 | 249 | 251 | 59.6 |
| C | 14 | 96 | 16859 | 278.75 | 249 | 251 | 59.6 |
| C | 9 | 54 | 16572 | 273.93 | 249 | 251 | 59.6 |
| D | 13 | 249 | 508749 | 8046.0 | 245 | 237 | 63.2 |
| D | 1 | 52 | 186586 | 2948.53 | 245 | 237 | 63.2 |
| D | 2 | 153 | 55123 | 868.44 | 245 | 237 | 63.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

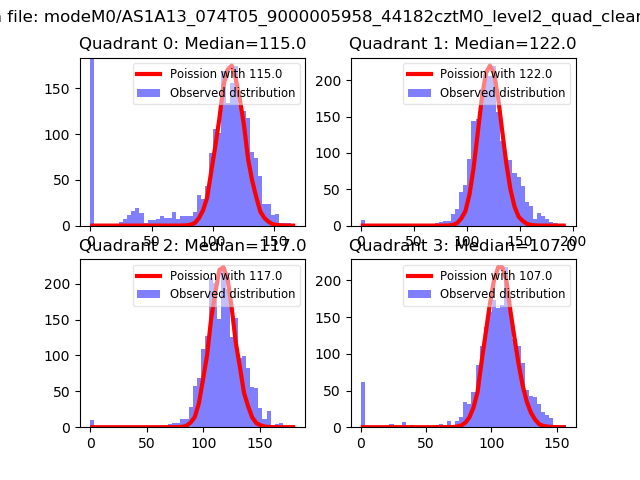

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

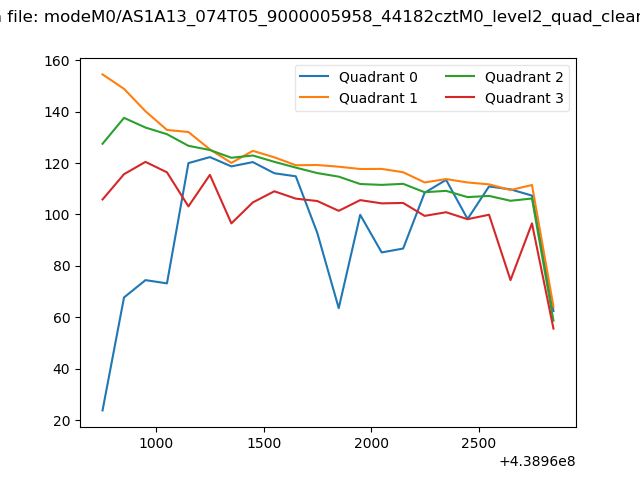

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

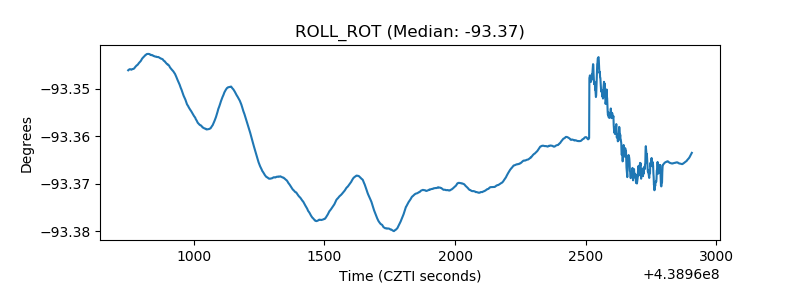

| _ROLL_ROT |  |

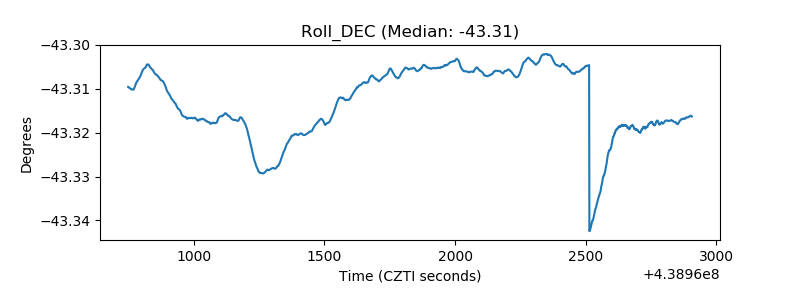

| _Roll_DEC |  |

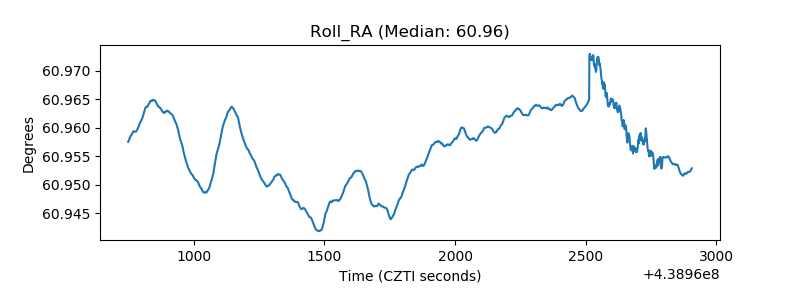

| _Roll_RA |  |
| Veto Counter |  |
