| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T08_9000005966_44196cztM0_level2.fits | modeM0/AS1A13_074T08_9000005966_44196cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,595,840 | 104,166,720 |
| Size | 443.1 MB | 99.3 MB |
| Events in quadrant A | 4,383,081 | 700,360 |
| Events in quadrant B | 4,060,457 | 717,098 |
| Events in quadrant C | 3,003,758 | 692,667 |
| Events in quadrant D | 5,270,583 | 612,679 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18199 | 1 |
| B | 0 | 16130 | 1 |
| C | 0 | 13124 | 1 |
| D | 0 | 19917 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6185 | 100 | 1.616815% |
| B | 6186 | 164 | 2.651148% |
| C | 6186 | 38 | 0.614290% |
| D | 6186 | 324 | 5.237633% |

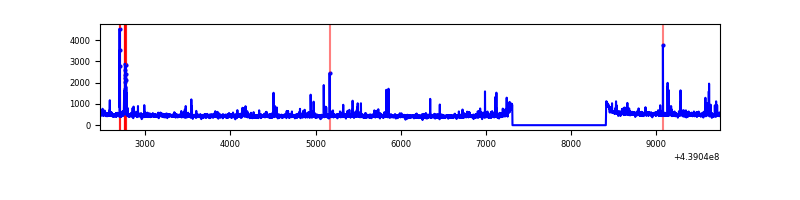

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7285 | 6186 | 10 | 10 | 0.14% | 0.16% |  |
| B | 7286 | 6187 | 60 | 60 | 0.82% | 0.97% |  |
| C | 7286 | 6187 | 13 | 13 | 0.18% | 0.21% |  |
| D | 7286 | 6187 | 282 | 282 | 3.87% | 4.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1440841 | 9549.51 | 727 | 711 | 150.8 |
| A | 15 | 174 | 104030 | 685.11 | 727 | 711 | 150.8 |
| A | 15 | 223 | 15035 | 94.98 | 727 | 711 | 150.8 |
| B | 0 | 219 | 432209 | 3069.69 | 717 | 695 | 140.6 |
| B | 0 | 230 | 178518 | 1264.99 | 717 | 695 | 140.6 |
| B | 4 | 158 | 156136 | 1105.77 | 717 | 695 | 140.6 |
| C | 14 | 254 | 141834 | 840.63 | 713 | 718 | 167.9 |
| C | 4 | 254 | 42059 | 246.27 | 713 | 718 | 167.9 |
| C | 1 | 16 | 17521 | 100.1 | 713 | 718 | 167.9 |
| D | 1 | 52 | 1360248 | 7645.28 | 704 | 683 | 177.8 |
| D | 12 | 17 | 329185 | 1847.28 | 704 | 683 | 177.8 |
| D | 5 | 222 | 239663 | 1343.86 | 704 | 683 | 177.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

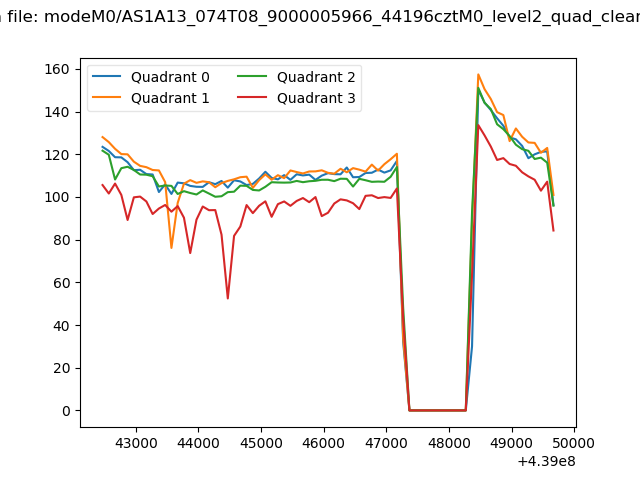

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

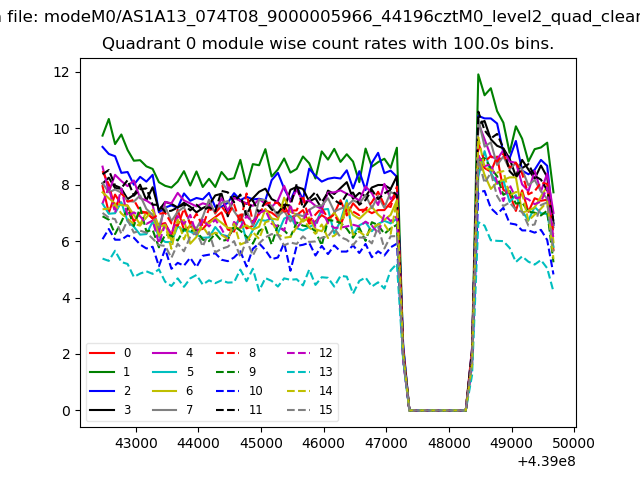

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

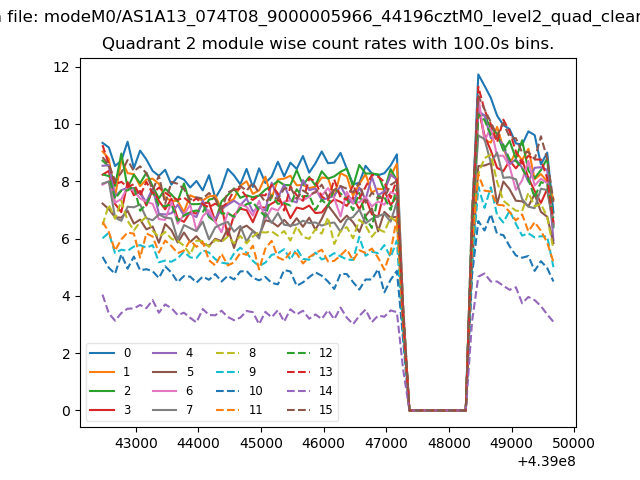

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

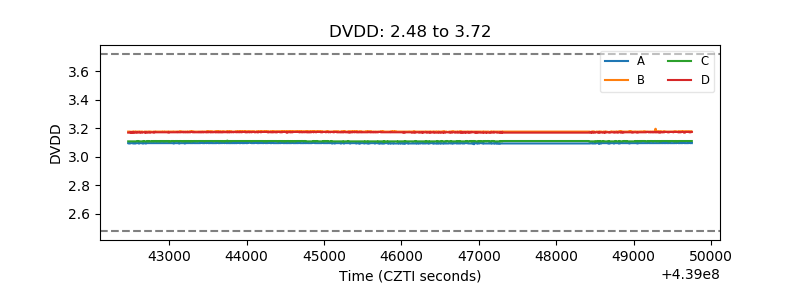

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

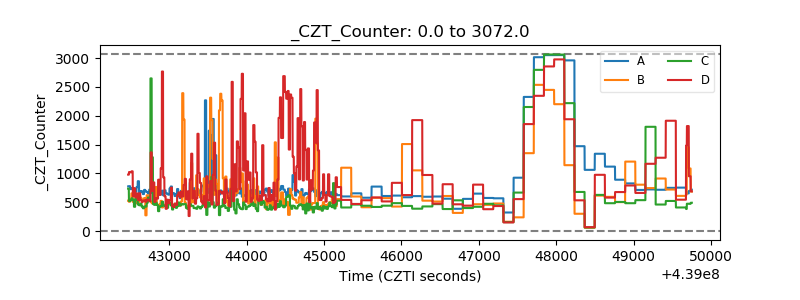

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

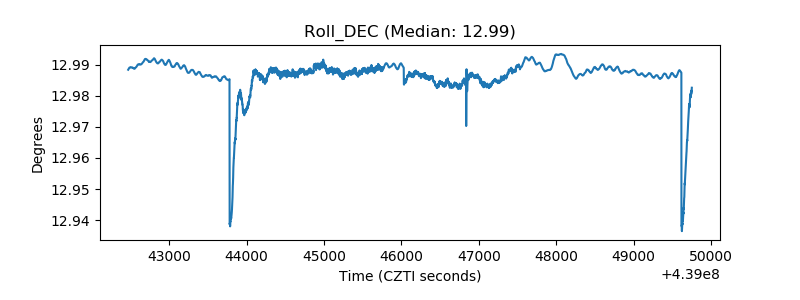

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

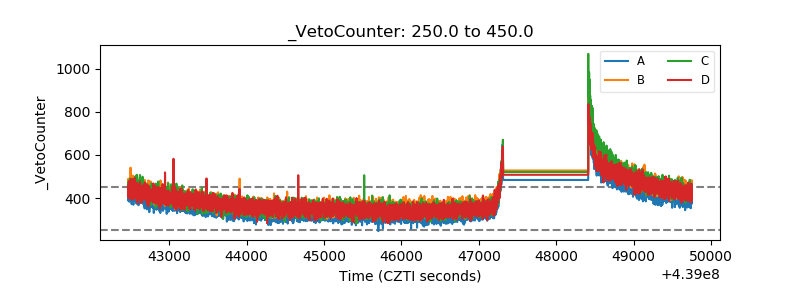

| Veto Counter |  |
