| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T09_9000005968_44201cztM0_level2.fits | modeM0/AS1A13_074T09_9000005968_44201cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,252,800 | 109,385,280 |
| Size | 499.0 MB | 104.3 MB |
| Events in quadrant A | 6,456,700 | 658,851 |
| Events in quadrant B | 3,929,547 | 770,183 |
| Events in quadrant C | 3,433,319 | 755,013 |
| Events in quadrant D | 5,026,717 | 658,789 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23920 | 2 |
| B | 0 | 16172 | 2 |
| C | 0 | 14830 | 2 |
| D | 0 | 19704 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6733 | 1078 | 16.010694% |
| B | 6733 | 257 | 3.817021% |
| C | 6733 | 93 | 1.381256% |
| D | 6733 | 442 | 6.564681% |

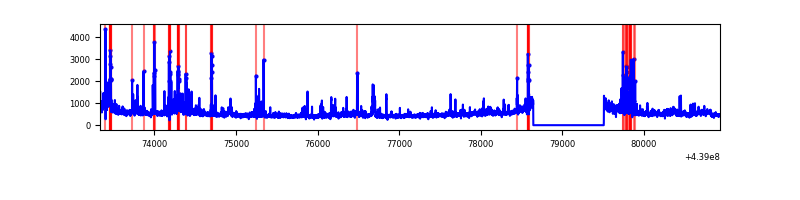

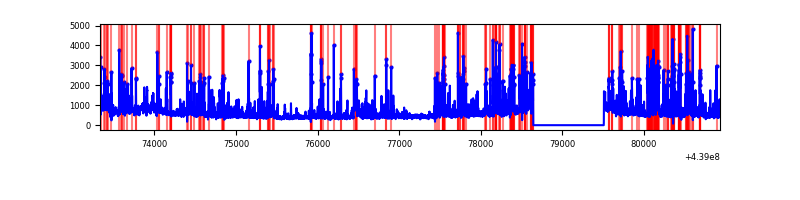

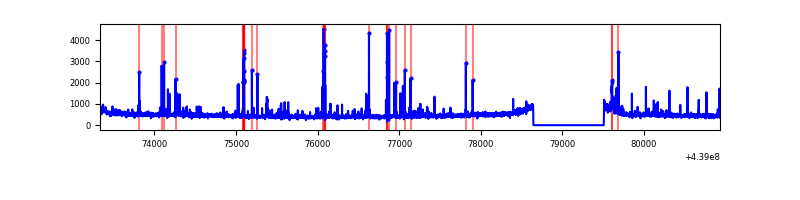

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

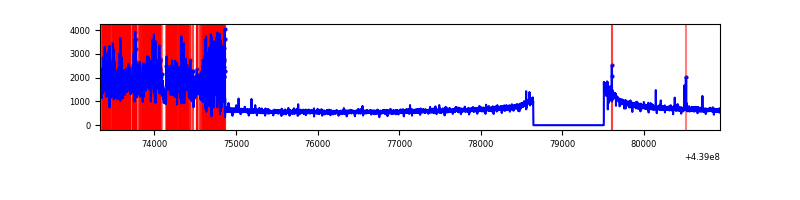

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7598 | 6734 | 633 | 633 | 8.33% | 9.40% |  |
| B | 7598 | 6734 | 65 | 65 | 0.86% | 0.97% |  |
| C | 7598 | 6734 | 33 | 33 | 0.43% | 0.49% |  |
| D | 7598 | 6734 | 266 | 266 | 3.50% | 3.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1872577 | 11855.58 | 759 | 744 | 157.9 |
| A | 10 | 83 | 1572189 | 9953.02 | 759 | 744 | 157.9 |
| A | 0 | 243 | 36669 | 227.54 | 759 | 744 | 157.9 |
| B | 5 | 172 | 142444 | 916.58 | 788 | 763 | 154.6 |
| B | 0 | 190 | 91774 | 588.78 | 788 | 763 | 154.6 |
| B | 5 | 235 | 78253 | 501.31 | 788 | 763 | 154.6 |
| C | 14 | 254 | 240513 | 1297.71 | 782 | 785 | 184.7 |
| C | 12 | 249 | 44736 | 237.92 | 782 | 785 | 184.7 |
| C | 3 | 233 | 41181 | 218.67 | 782 | 785 | 184.7 |
| D | 2 | 249 | 450609 | 2327.2 | 762 | 740 | 193.3 |
| D | 12 | 16 | 313662 | 1618.77 | 762 | 740 | 193.3 |
| D | 1 | 52 | 286297 | 1477.21 | 762 | 740 | 193.3 |

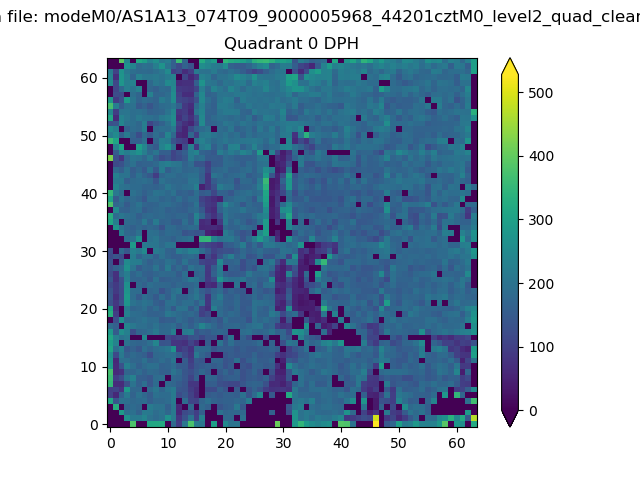

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

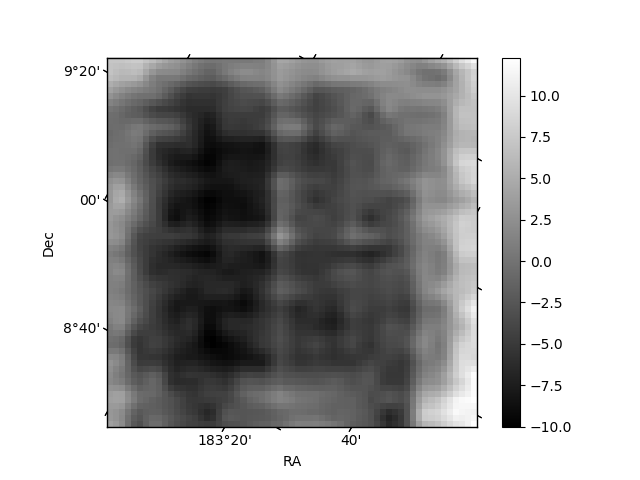

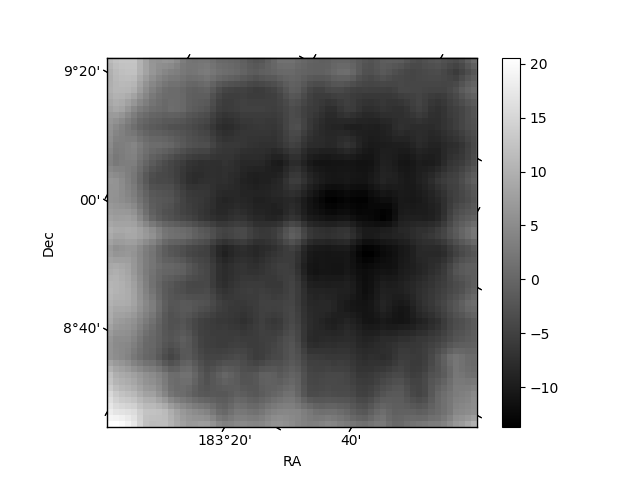

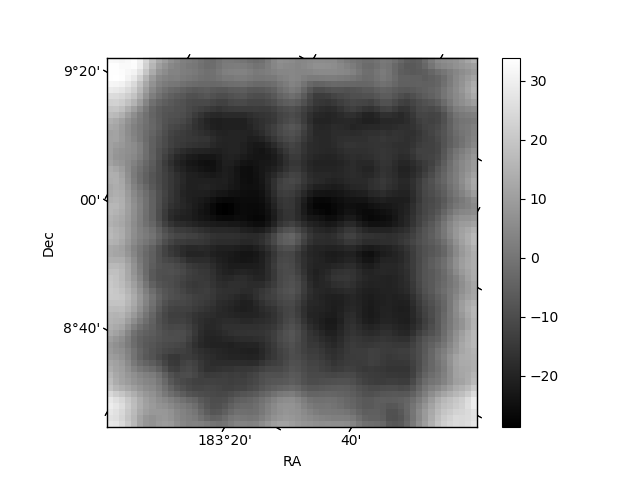

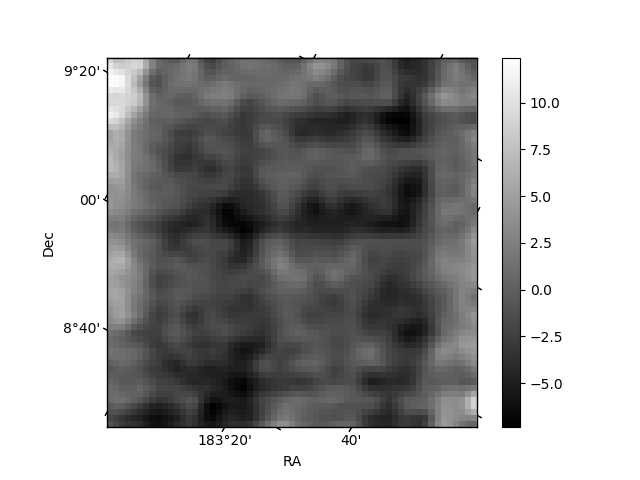

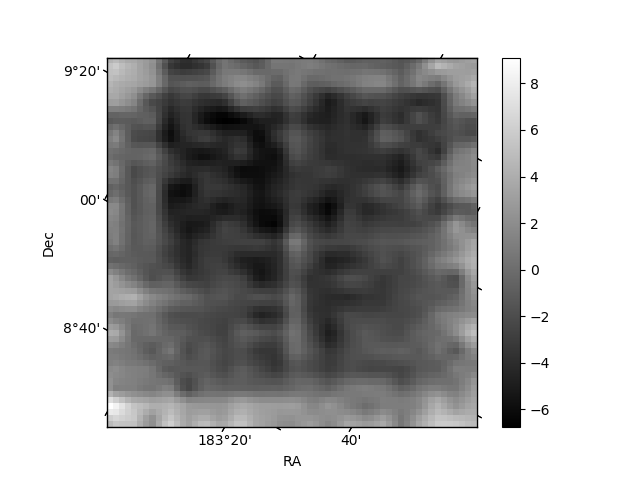

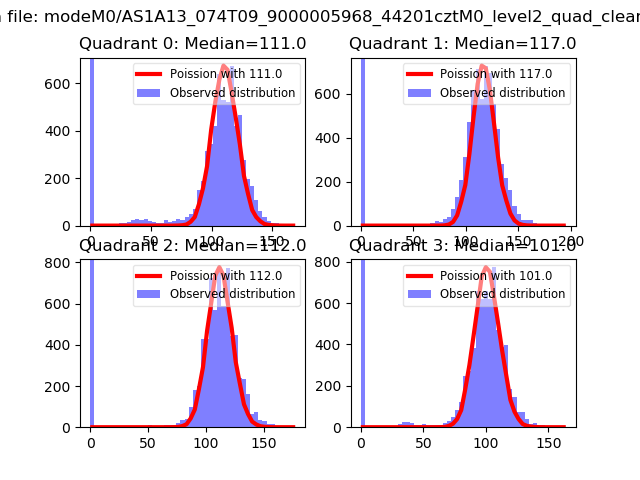

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

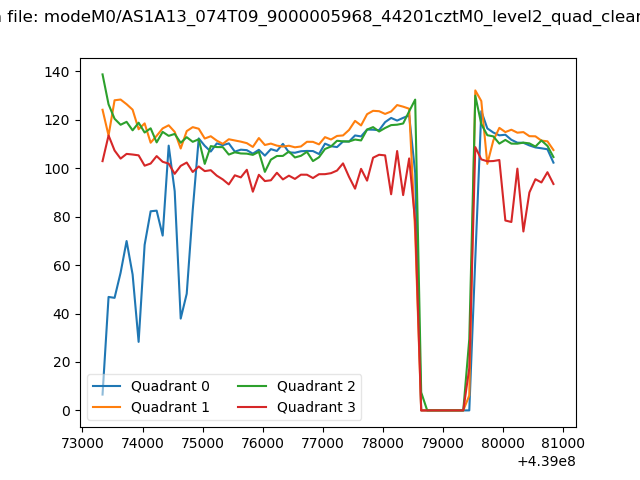

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

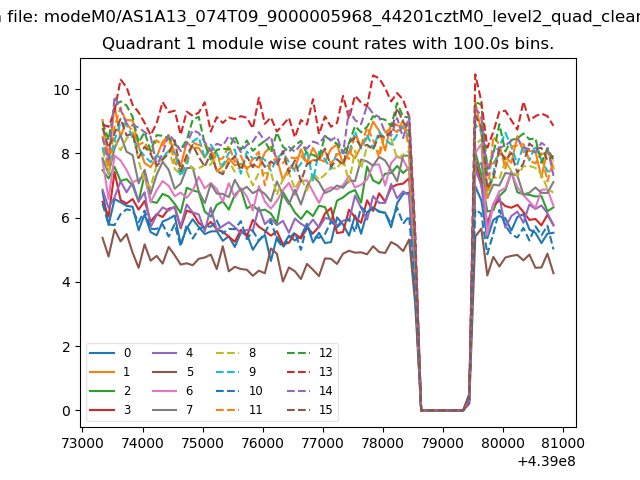

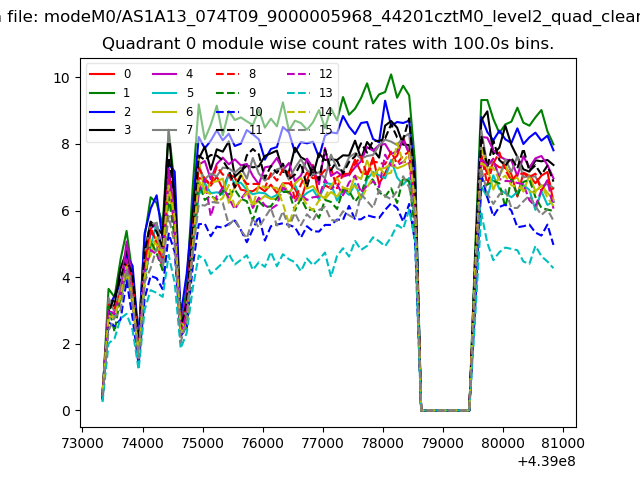

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

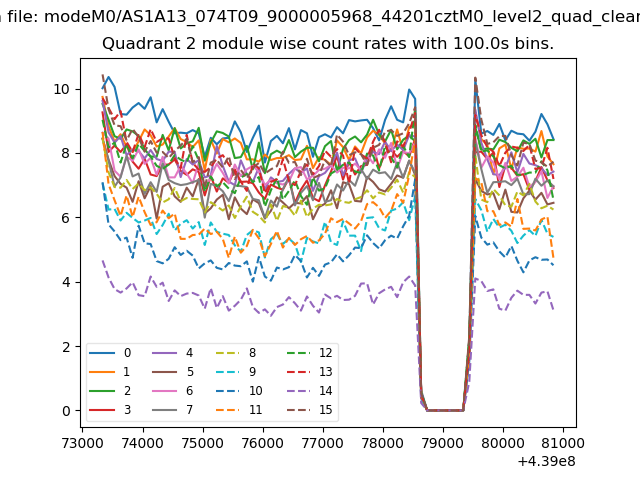

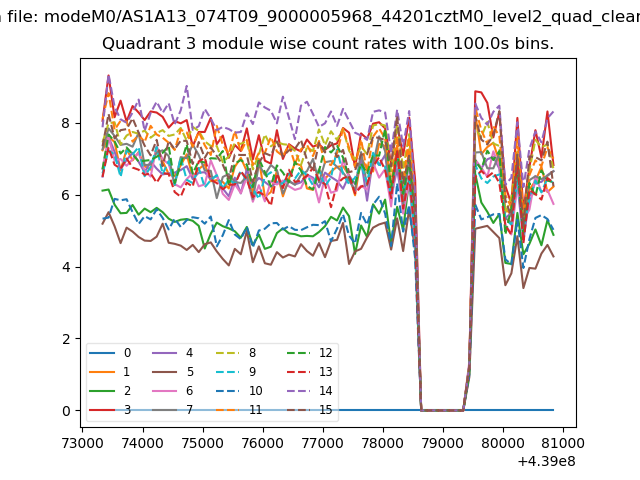

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

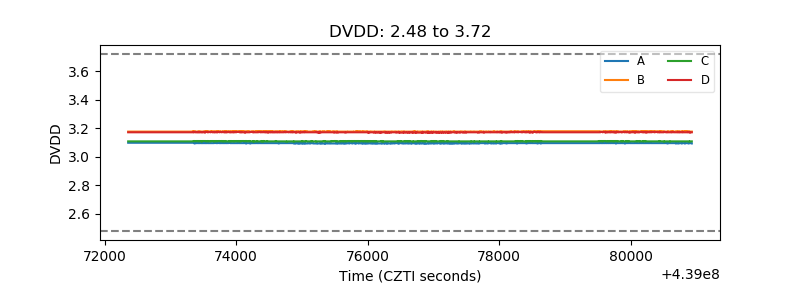

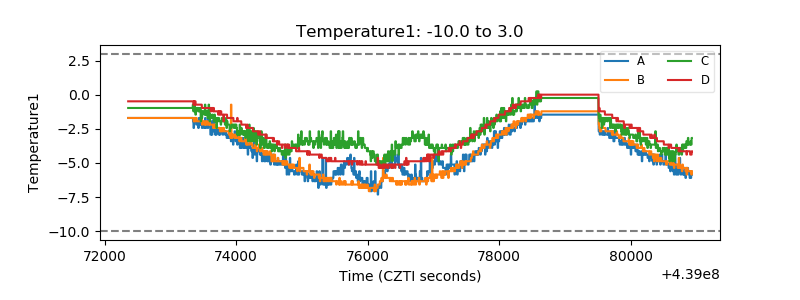

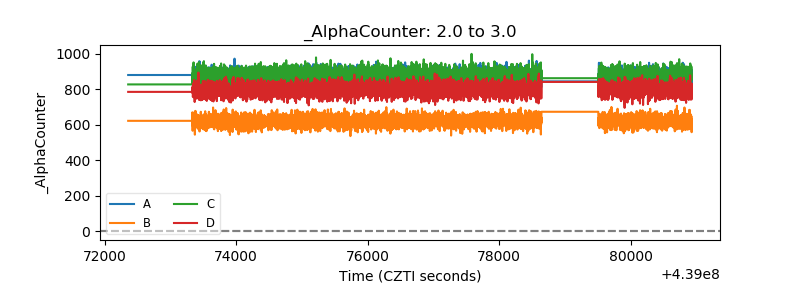

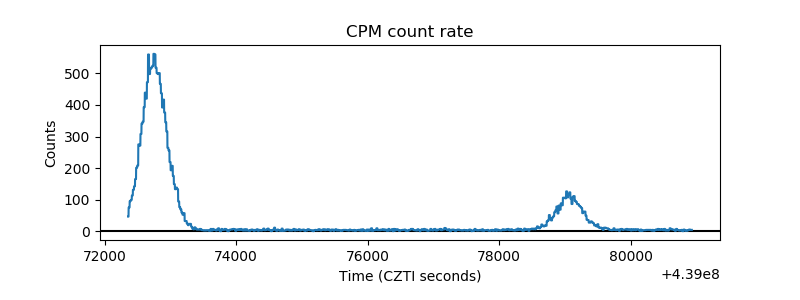

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

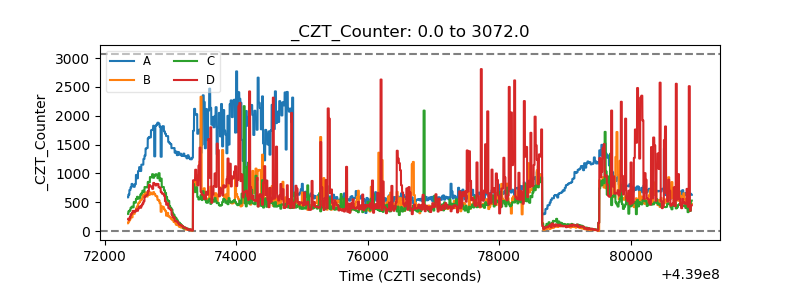

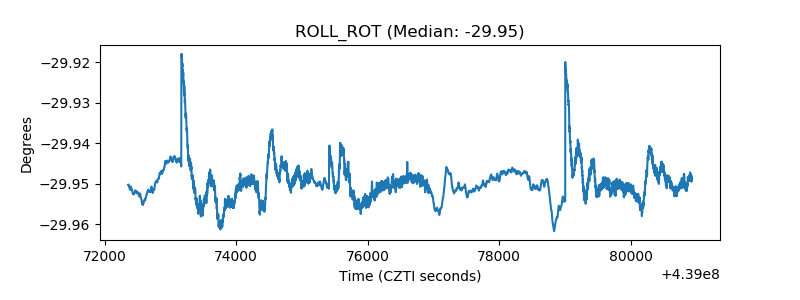

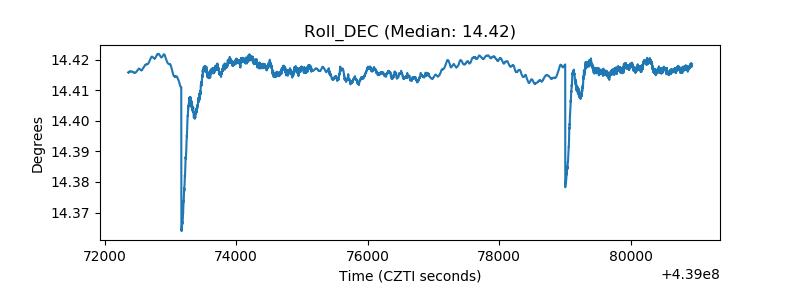

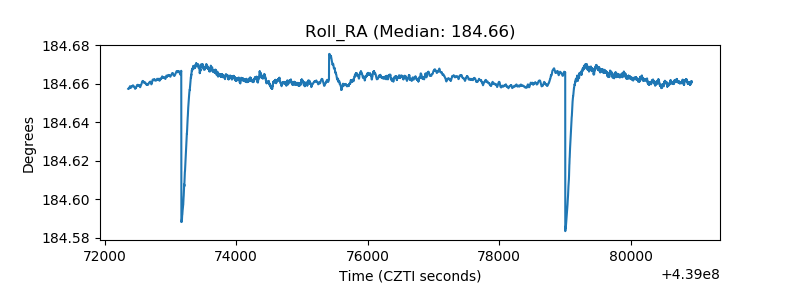

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

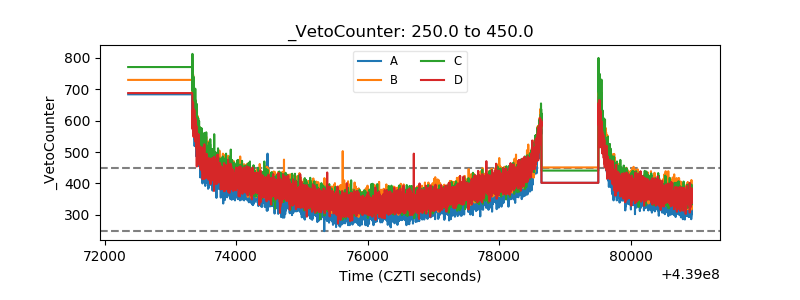

| Veto Counter |  |
