| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T09_9000005968_44207cztM0_level2.fits | modeM0/AS1A13_074T09_9000005968_44207cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,373,901,120 | 253,045,440 |
| Size | 1.3 GB | 241.3 MB |
| Events in quadrant A | 16,076,348 | 1,619,793 |
| Events in quadrant B | 11,877,669 | 1,679,871 |
| Events in quadrant C | 8,139,152 | 1,726,375 |
| Events in quadrant D | 13,470,114 | 1,479,420 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 338 | 0 |
| B | 0 | 338 | 0 |
| C | 0 | 338 | 0 |
| D | 0 | 338 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60284 | 1 |
| B | 0 | 46630 | 1 |
| C | 0 | 36324 | 1 |
| D | 0 | 51812 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16755 | 1628 | 9.716503% |
| B | 16755 | 1203 | 7.179946% |
| C | 16755 | 188 | 1.122053% |
| D | 16755 | 1376 | 8.212474% |

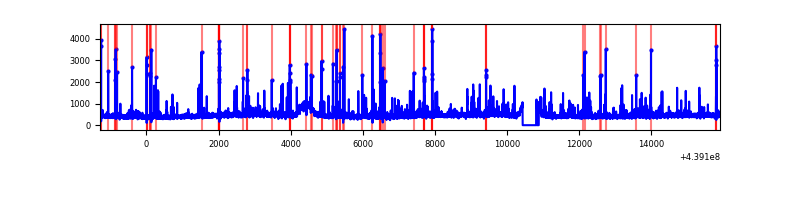

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17190 | 16757 | 1016 | 1016 | 5.91% | 6.06% |  |
| B | 17190 | 16757 | 492 | 492 | 2.86% | 2.94% |  |
| C | 17190 | 16757 | 74 | 74 | 0.43% | 0.44% |  |
| D | 17190 | 16757 | 1008 | 1008 | 5.86% | 6.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 5664088 | 14938.81 | 1807 | 1762 | 379.0 |
| A | 10 | 83 | 3303706 | 8711.46 | 1807 | 1762 | 379.0 |
| A | 10 | 248 | 57101 | 146.0 | 1807 | 1762 | 379.0 |
| B | 0 | 200 | 2127857 | 5893.75 | 1839 | 1783 | 360.7 |
| B | 0 | 219 | 700097 | 1935.82 | 1839 | 1783 | 360.7 |
| B | 5 | 235 | 462814 | 1278.04 | 1839 | 1783 | 360.7 |
| C | 14 | 254 | 436020 | 994.63 | 1843 | 1857 | 436.5 |
| C | 4 | 254 | 251672 | 572.3 | 1843 | 1857 | 436.5 |
| C | 15 | 158 | 119749 | 270.08 | 1843 | 1857 | 436.5 |
| D | 2 | 249 | 2672892 | 5805.37 | 1795 | 1737 | 460.1 |
| D | 1 | 52 | 977951 | 2121.66 | 1795 | 1737 | 460.1 |
| D | 12 | 233 | 879049 | 1906.71 | 1795 | 1737 | 460.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

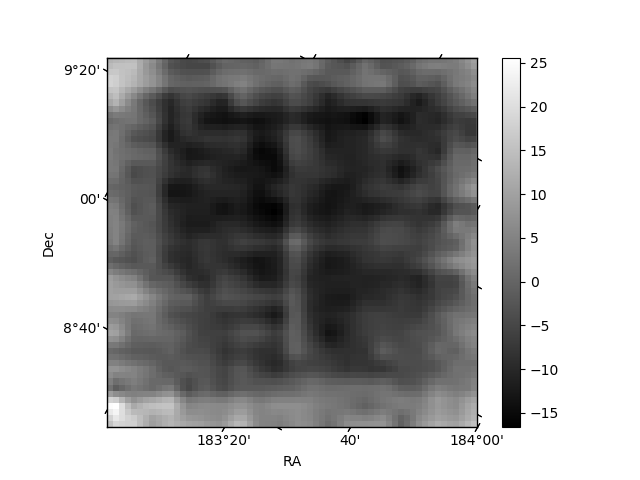

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

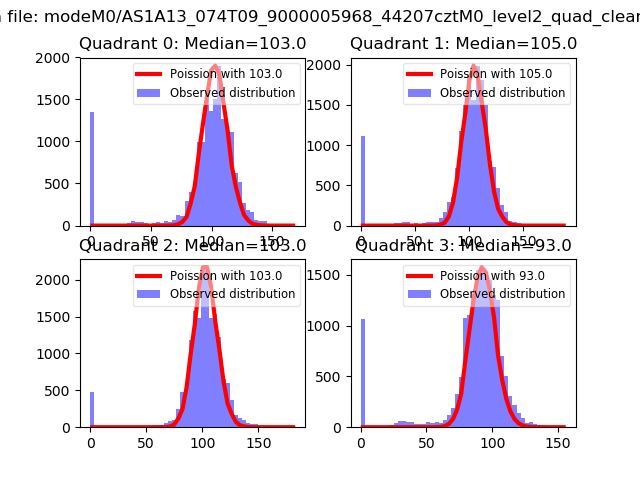

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

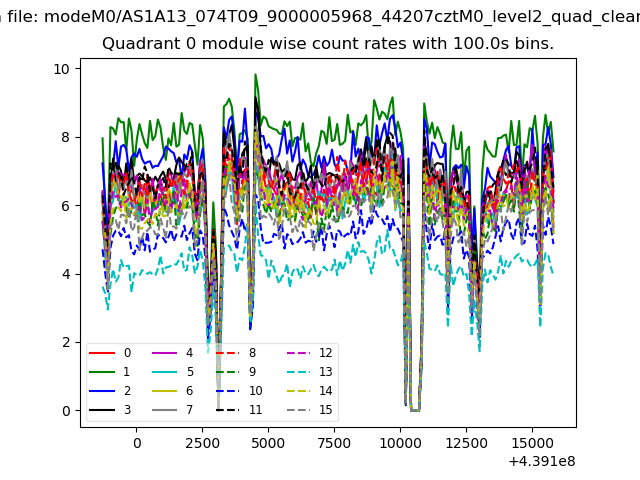

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

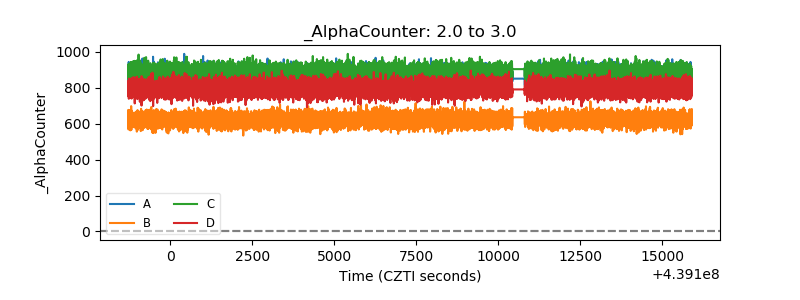

| Alpha Counter |  |

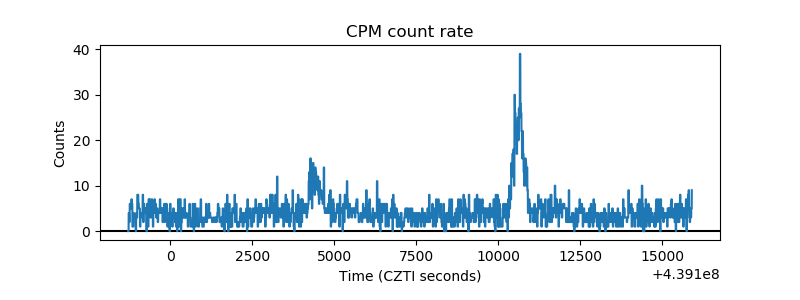

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

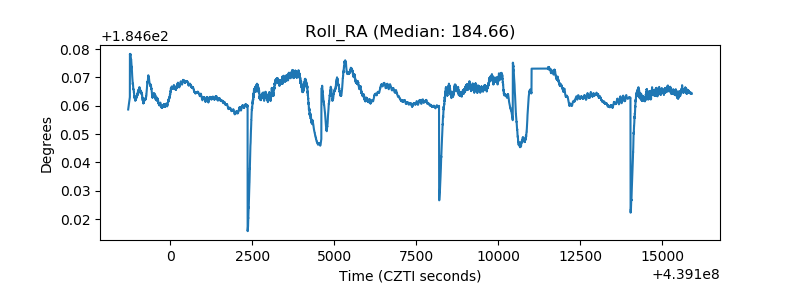

| _Roll_RA |  |

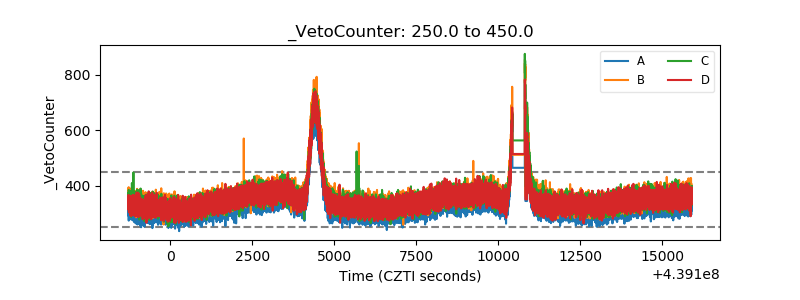

| Veto Counter |  |
