| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_079T01_9000005978_44244cztM0_level2.fits | modeM0/AS1A13_079T01_9000005978_44244cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,543,360 | 107,634,240 |
| Size | 547.0 MB | 102.6 MB |
| Events in quadrant A | 10,176,537 | 563,228 |
| Events in quadrant B | 3,425,396 | 797,212 |
| Events in quadrant C | 3,181,549 | 749,425 |
| Events in quadrant D | 3,919,459 | 675,520 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35119 | 2 |
| B | 0 | 14821 | 2 |
| C | 0 | 14521 | 3 |
| D | 0 | 16761 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6796 | 2283 | 33.593290% |
| B | 6796 | 76 | 1.118305% |
| C | 6795 | 44 | 0.647535% |
| D | 6795 | 185 | 2.722590% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7821 | 6797 | 1703 | 1703 | 21.77% | 25.06% |  |
| B | 7821 | 6797 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7820 | 6796 | 31 | 31 | 0.40% | 0.46% |  |
| D | 7820 | 6796 | 144 | 144 | 1.84% | 2.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 5584447 | 40770.07 | 664 | 651 | 137.0 |
| A | 10 | 83 | 1392962 | 10165.95 | 664 | 651 | 137.0 |
| A | 12 | 227 | 345244 | 2516.04 | 664 | 651 | 137.0 |
| B | 5 | 255 | 101832 | 672.7 | 772 | 750 | 150.3 |
| B | 0 | 155 | 67188 | 442.14 | 772 | 750 | 150.3 |
| B | 4 | 173 | 43279 | 283.03 | 772 | 750 | 150.3 |
| C | 14 | 254 | 209721 | 1190.99 | 748 | 753 | 175.5 |
| C | 3 | 233 | 23129 | 127.53 | 748 | 753 | 175.5 |
| C | 5 | 250 | 15429 | 83.64 | 748 | 753 | 175.5 |
| D | 13 | 249 | 427118 | 2308.86 | 735 | 713 | 184.7 |
| D | 4 | 221 | 309535 | 1672.19 | 735 | 713 | 184.7 |
| D | 5 | 222 | 152366 | 821.16 | 735 | 713 | 184.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

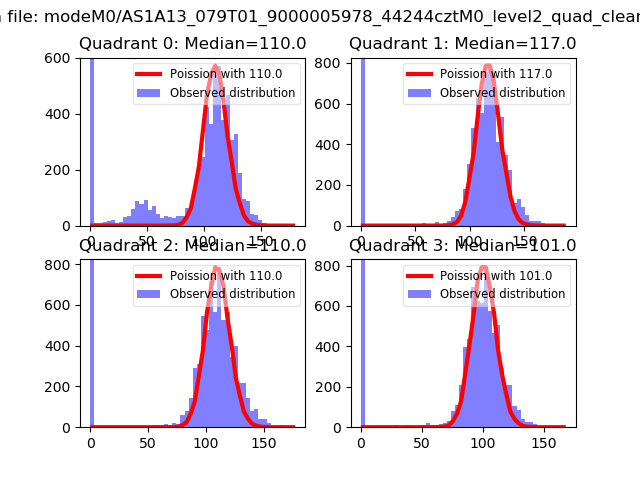

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

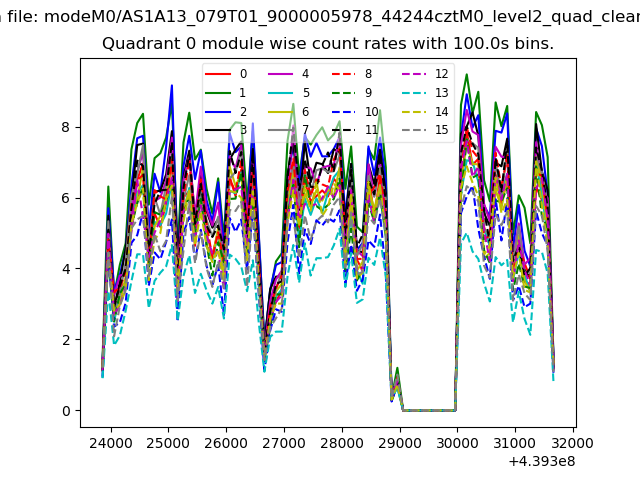

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

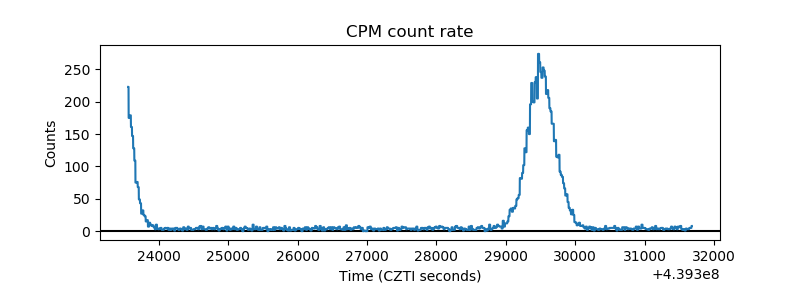

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

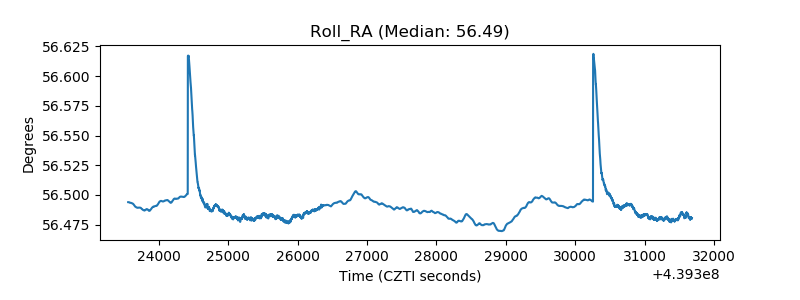

| _Roll_RA |  |
| Veto Counter |  |
