| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_077T01_9000005984_44450cztM0_level2.fits | modeM0/AS1A13_077T01_9000005984_44450cztM0_level2_quad_clean.evt |
| Size (bytes) | 36,034,560 | 4,207,680 |
| Size | 34.4 MB | 4.0 MB |
| Events in quadrant A | 211,165 | 30,353 |
| Events in quadrant B | 143,227 | 30,934 |
| Events in quadrant C | 361,561 | 25,961 |
| Events in quadrant D | 590,954 | 11,207 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 899 | 0 |
| B | 0 | 618 | 0 |
| C | 0 | 1299 | 3 |
| D | 0 | 1953 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 302 | 0 | 0.000000% |
| B | 302 | 0 | 0.000000% |
| C | 301 | 37 | 12.292359% |
| D | 301 | 171 | 56.810631% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 302 | 302 | 0 | 0 | 0.00% | 0.00% |  |
| B | 302 | 302 | 0 | 0 | 0.00% | 0.00% |  |
| C | 301 | 301 | 33 | 33 | 10.96% | 10.96% |  |
| D | 301 | 301 | 133 | 133 | 44.19% | 44.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 79487 | 8775.16 | 33 | 32 | 9.1 |
| A | 0 | 243 | 858 | 91.22 | 33 | 32 | 9.1 |
| A | 3 | 137 | 404 | 41.08 | 33 | 32 | 9.1 |
| B | 0 | 229 | 4597 | 521.83 | 33 | 32 | 8.7 |
| B | 5 | 172 | 2226 | 250.8 | 33 | 32 | 8.7 |
| B | 15 | 36 | 1777 | 199.47 | 33 | 32 | 8.7 |
| C | 15 | 158 | 154349 | 16285.8 | 32 | 32 | 9.5 |
| C | 3 | 233 | 68185 | 7192.51 | 32 | 32 | 9.5 |
| C | 14 | 254 | 9946 | 1046.27 | 32 | 32 | 9.5 |
| D | 2 | 249 | 227586 | 27921.17 | 25 | 24 | 8.2 |
| D | 1 | 52 | 115666 | 14188.92 | 25 | 24 | 8.2 |
| D | 12 | 2 | 92870 | 11391.92 | 25 | 24 | 8.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

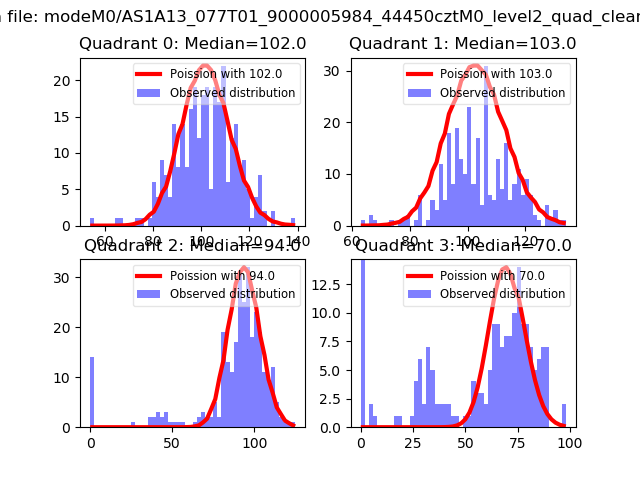

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

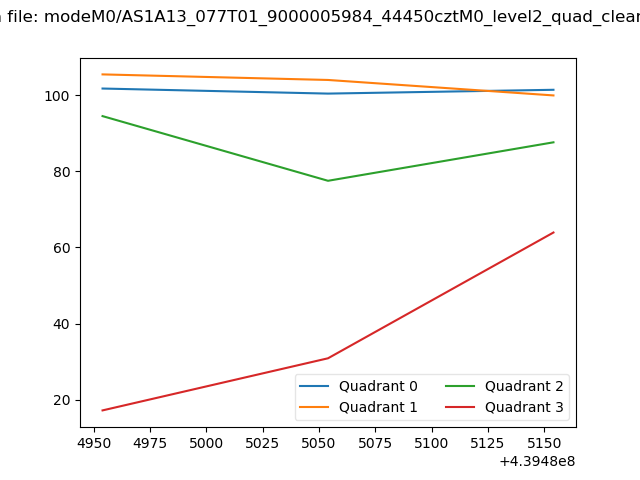

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

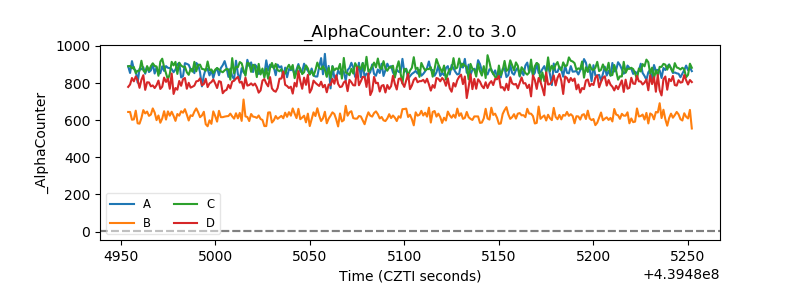

| Alpha Counter |  |

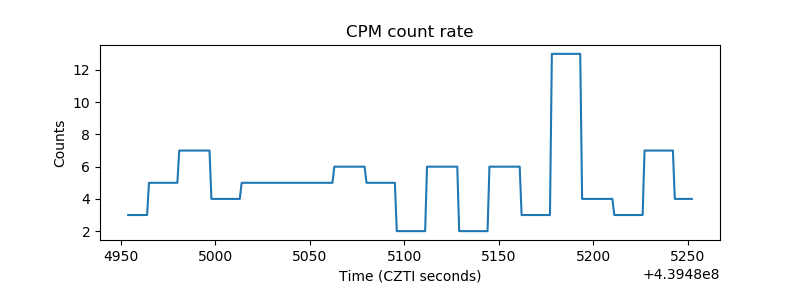

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

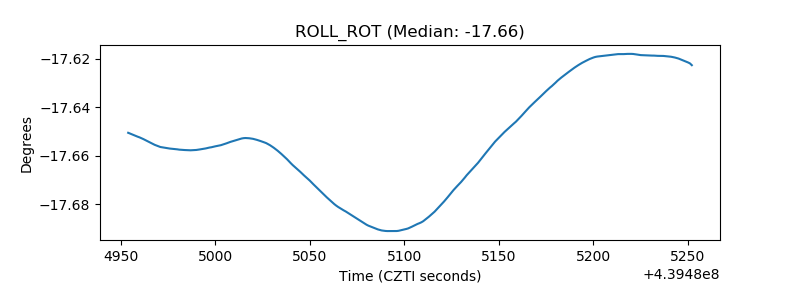

| _ROLL_ROT |  |

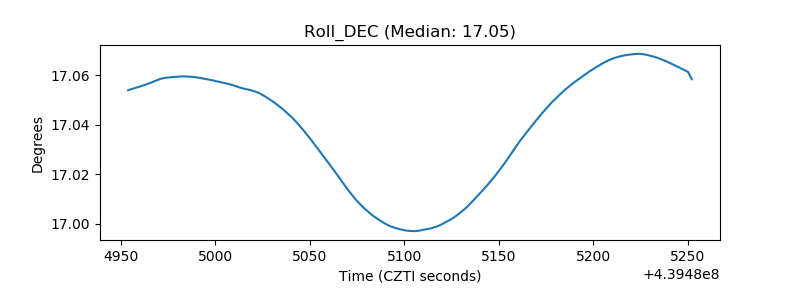

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
