| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_080T06_9000005982_44269cztM0_level2.fits | modeM0/AS1A13_080T06_9000005982_44269cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,416,320 | 94,927,680 |
| Size | 474.4 MB | 90.5 MB |
| Events in quadrant A | 7,107,615 | 498,062 |
| Events in quadrant B | 3,834,925 | 693,856 |
| Events in quadrant C | 2,913,583 | 665,513 |
| Events in quadrant D | 4,090,631 | 597,823 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26081 | 1 |
| B | 0 | 15523 | 1 |
| C | 0 | 13065 | 1 |
| D | 0 | 16288 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5999 | 1566 | 26.104351% |
| B | 5999 | 164 | 2.733789% |
| C | 6000 | 85 | 1.416667% |
| D | 6000 | 268 | 4.466667% |

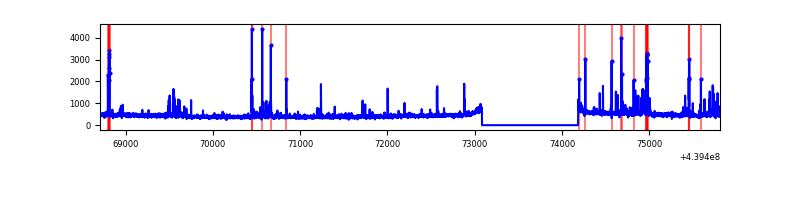

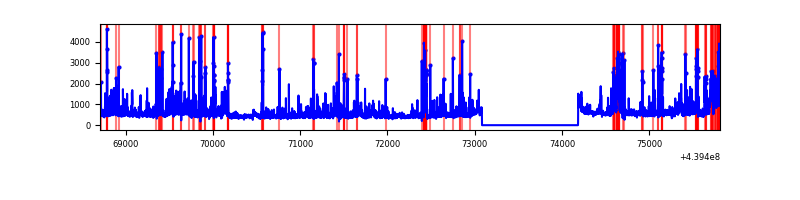

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7100 | 5999 | 1333 | 1333 | 18.77% | 22.22% |  |
| B | 7100 | 6000 | 69 | 69 | 0.97% | 1.15% |  |
| C | 7101 | 6001 | 30 | 30 | 0.42% | 0.50% |  |
| D | 7101 | 6001 | 179 | 179 | 2.52% | 2.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 3622458 | 31698.27 | 550 | 539 | 114.3 |
| A | 10 | 83 | 1224652 | 10713.18 | 550 | 539 | 114.3 |
| A | 10 | 248 | 46629 | 403.37 | 550 | 539 | 114.3 |
| B | 0 | 200 | 410982 | 3190.88 | 671 | 652 | 128.6 |
| B | 5 | 235 | 175775 | 1361.82 | 671 | 652 | 128.6 |
| B | 4 | 173 | 131937 | 1020.92 | 671 | 652 | 128.6 |
| C | 12 | 250 | 92531 | 601.51 | 655 | 659 | 152.7 |
| C | 14 | 254 | 91553 | 595.11 | 655 | 659 | 152.7 |
| C | 5 | 250 | 72248 | 468.71 | 655 | 659 | 152.7 |
| D | 2 | 249 | 270936 | 1644.08 | 651 | 630 | 164.4 |
| D | 13 | 171 | 181165 | 1098.06 | 651 | 630 | 164.4 |
| D | 1 | 52 | 150676 | 912.62 | 651 | 630 | 164.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

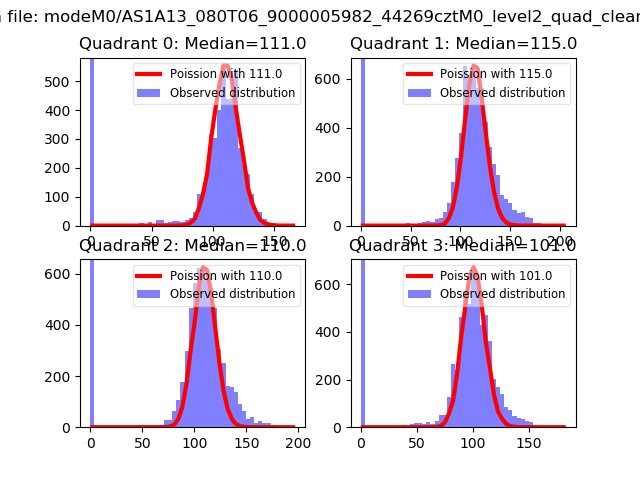

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

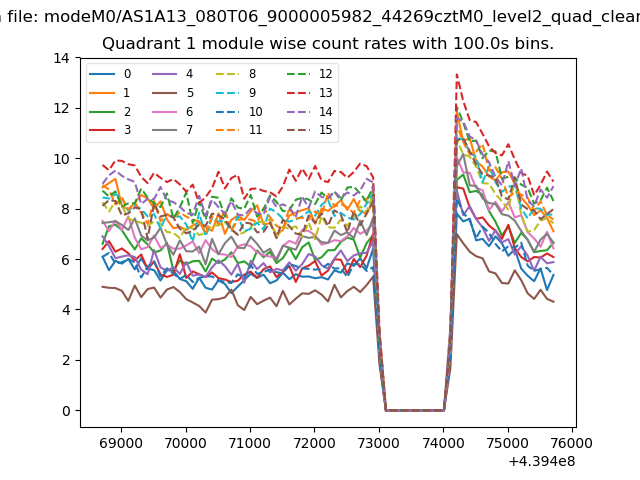

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

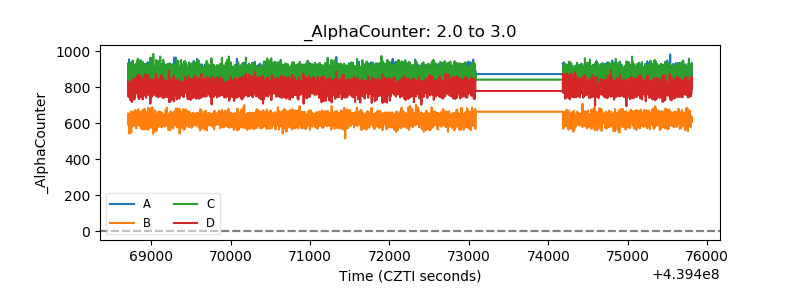

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

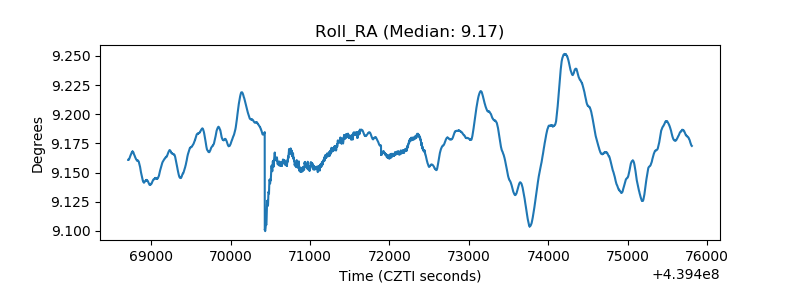

| _ROLL_ROT |  |

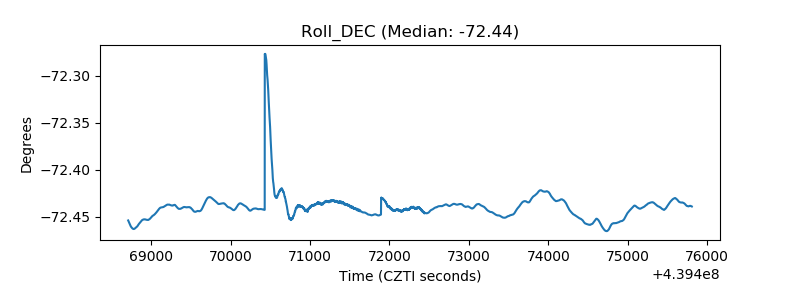

| _Roll_DEC |  |
| _Roll_RA |  |

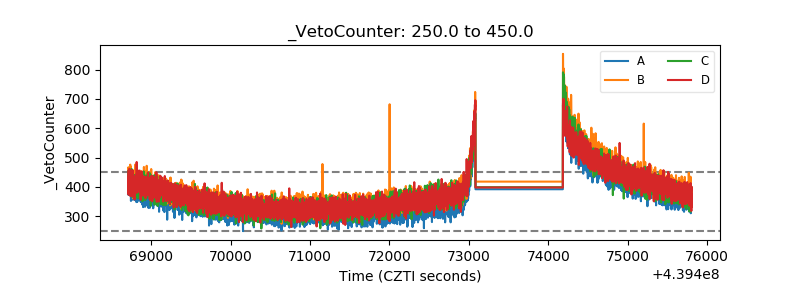

| Veto Counter |  |
