| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_012T08_9000005986_44294cztM0_level2.fits | modeM0/AS1A13_012T08_9000005986_44294cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,049,900,480 | 382,878,720 |
| Size | 1.9 GB | 365.1 MB |
| Events in quadrant A | 25,036,332 | 2,437,452 |
| Events in quadrant B | 12,825,118 | 2,710,033 |
| Events in quadrant C | 11,600,930 | 2,593,125 |
| Events in quadrant D | 24,494,689 | 2,136,289 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 506 | 0 |
| B | 0 | 506 | 0 |
| C | 0 | 506 | 0 |
| D | 0 | 506 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 93137 | 5 |
| B | 0 | 55089 | 5 |
| C | 0 | 53042 | 5 |
| D | 0 | 90658 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 24917 | 3012 | 12.088133% |
| B | 24917 | 509 | 2.042782% |
| C | 24917 | 301 | 1.208011% |
| D | 24917 | 3500 | 14.046635% |

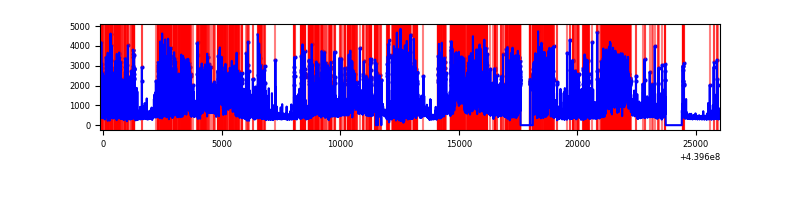

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26162 | 24922 | 1963 | 1963 | 7.50% | 7.88% |  |
| B | 26162 | 24923 | 84 | 84 | 0.32% | 0.34% |  |
| C | 26162 | 24923 | 111 | 111 | 0.42% | 0.45% |  |
| D | 26162 | 24921 | 2805 | 2805 | 10.72% | 11.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 9181380 | 16359.73 | 2713 | 2655 | 561.1 |
| A | 10 | 83 | 5086792 | 9061.73 | 2713 | 2655 | 561.1 |
| A | 13 | 248 | 198725 | 349.47 | 2713 | 2655 | 561.1 |
| B | 0 | 219 | 326616 | 591.63 | 2782 | 2692 | 547.5 |
| B | 0 | 229 | 288682 | 522.35 | 2782 | 2692 | 547.5 |
| B | 0 | 155 | 272157 | 492.17 | 2782 | 2692 | 547.5 |
| C | 14 | 254 | 716534 | 1107.01 | 2732 | 2749 | 644.8 |
| C | 3 | 233 | 101096 | 152.53 | 2732 | 2749 | 644.8 |
| C | 1 | 3 | 76177 | 113.88 | 2732 | 2749 | 644.8 |
| D | 12 | 1 | 6863999 | 10627.78 | 2584 | 2512 | 645.6 |
| D | 13 | 249 | 3381934 | 5234.4 | 2584 | 2512 | 645.6 |
| D | 5 | 235 | 1104313 | 1706.58 | 2584 | 2512 | 645.6 |

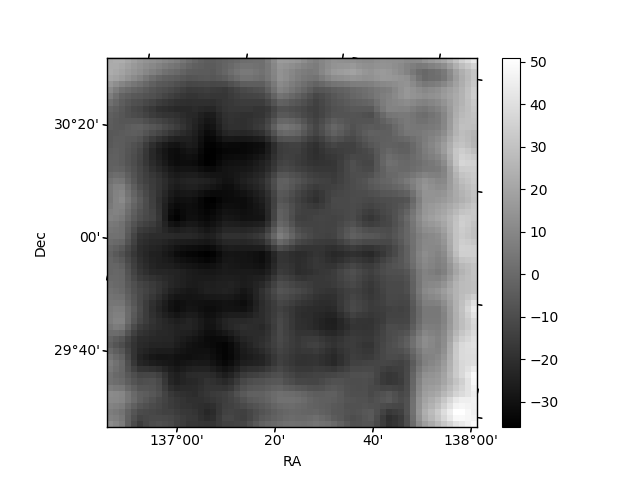

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

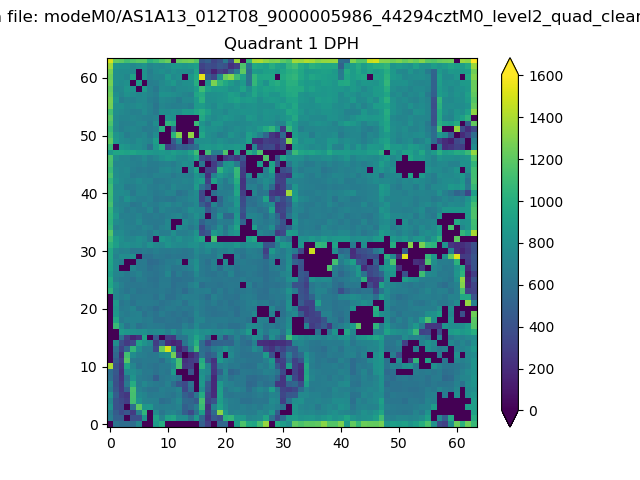

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

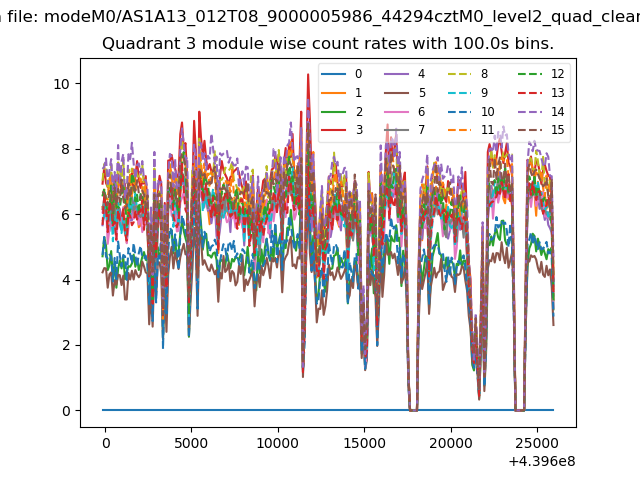

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

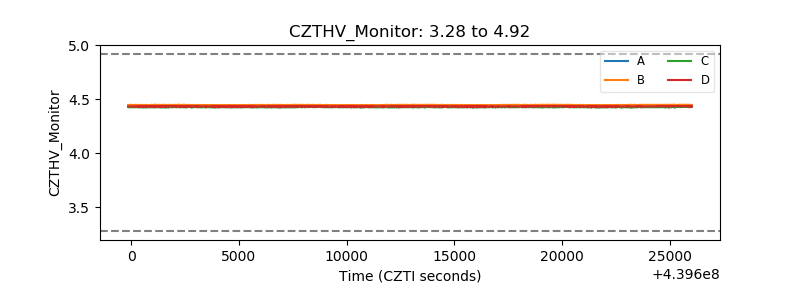

| CZT HV Monitor |  |
| D_VDD |  |

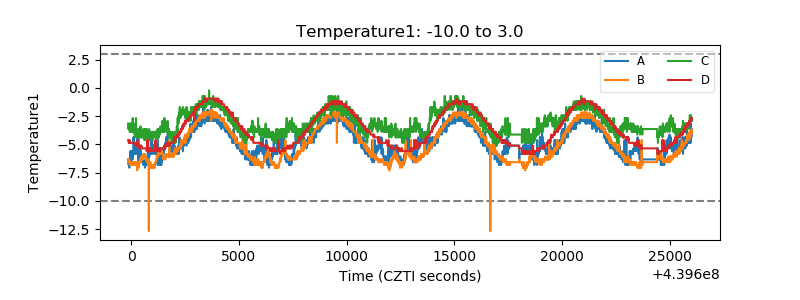

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

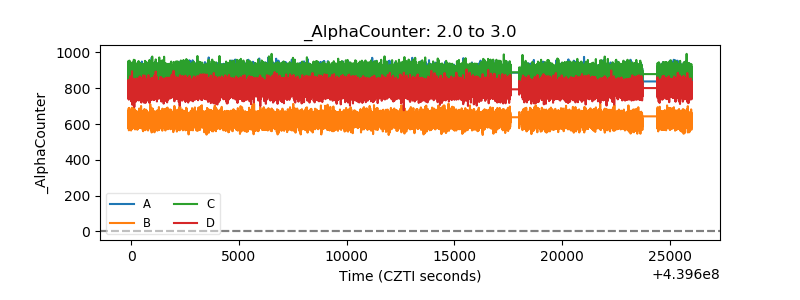

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
