| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_012T08_9000005986_44295cztM0_level2.fits | modeM0/AS1A13_012T08_9000005986_44295cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,512,000 | 91,687,680 |
| Size | 525.0 MB | 87.4 MB |
| Events in quadrant A | 8,301,562 | 513,088 |
| Events in quadrant B | 3,104,239 | 675,017 |
| Events in quadrant C | 2,738,716 | 643,462 |
| Events in quadrant D | 5,753,434 | 512,558 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29254 | 1 |
| B | 0 | 13282 | 1 |
| C | 0 | 12669 | 1 |
| D | 0 | 21456 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6182 | 1716 | 27.758007% |
| B | 6183 | 94 | 1.520298% |
| C | 6183 | 38 | 0.614588% |
| D | 6183 | 993 | 16.060165% |

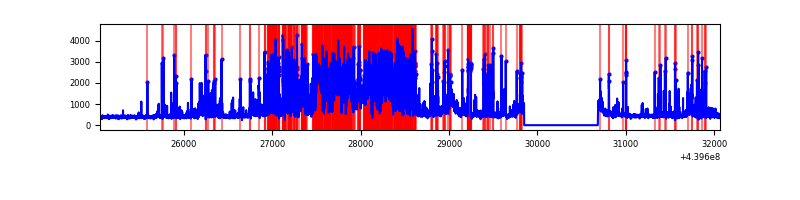

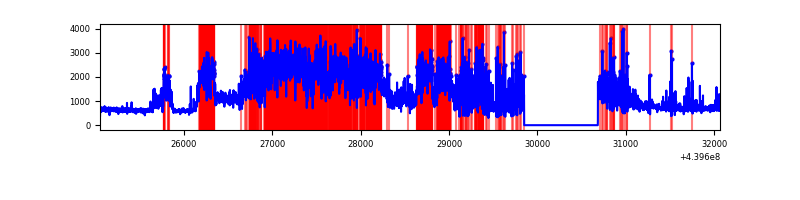

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7017 | 6182 | 1400 | 1400 | 19.95% | 22.65% |  |
| B | 7018 | 6184 | 14 | 14 | 0.20% | 0.23% |  |
| C | 7018 | 6184 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7018 | 6184 | 818 | 818 | 11.66% | 13.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 4529609 | 34725.86 | 633 | 621 | 130.4 |
| A | 10 | 83 | 1265910 | 9701.56 | 633 | 621 | 130.4 |
| A | 13 | 248 | 22788 | 169.96 | 633 | 621 | 130.4 |
| B | 0 | 229 | 117307 | 859.52 | 684 | 663 | 135.7 |
| B | 0 | 190 | 63849 | 465.6 | 684 | 663 | 135.7 |
| B | 4 | 158 | 58212 | 424.07 | 684 | 663 | 135.7 |
| C | 14 | 254 | 84611 | 528.72 | 671 | 673 | 158.8 |
| C | 3 | 233 | 14603 | 87.74 | 671 | 673 | 158.8 |
| C | 1 | 3 | 14075 | 84.42 | 671 | 673 | 158.8 |
| D | 13 | 249 | 1444197 | 9165.78 | 626 | 608 | 157.5 |
| D | 12 | 2 | 694367 | 4404.88 | 626 | 608 | 157.5 |
| D | 12 | 1 | 265059 | 1679.08 | 626 | 608 | 157.5 |

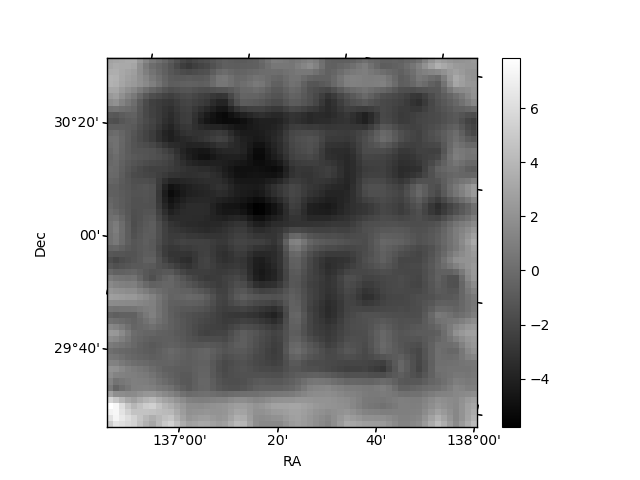

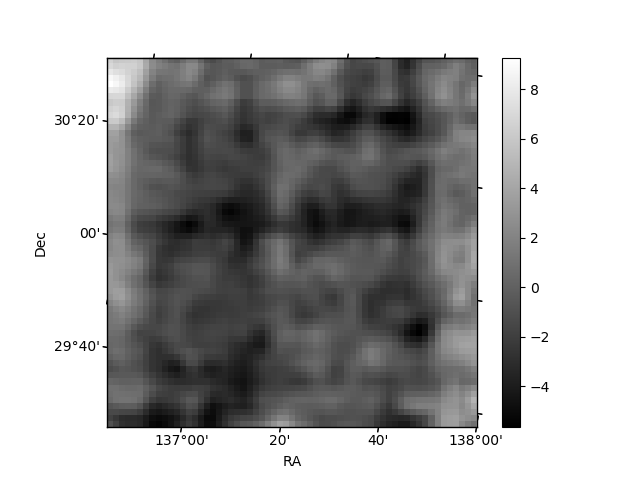

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

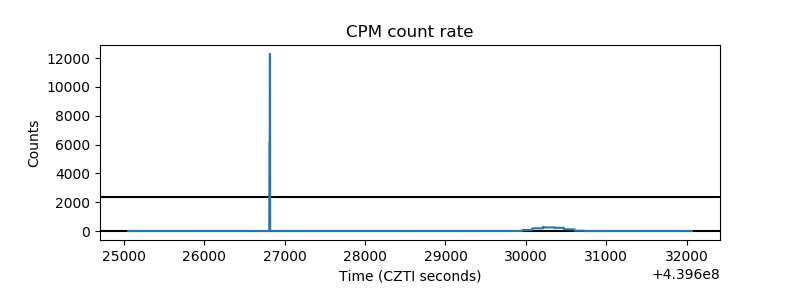

| _CPM_Rate |  |

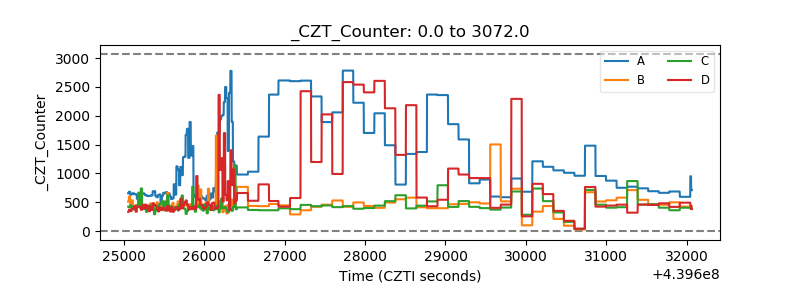

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

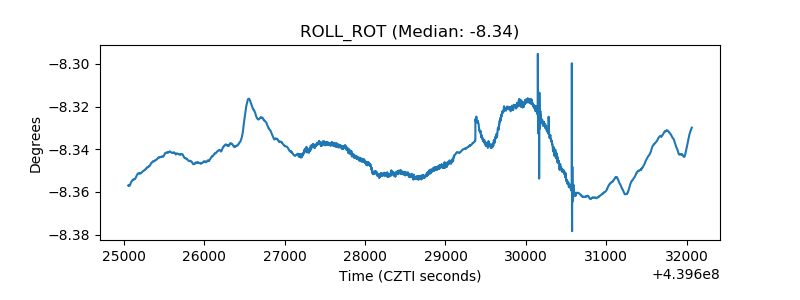

| _ROLL_ROT |  |
| _Roll_DEC |  |

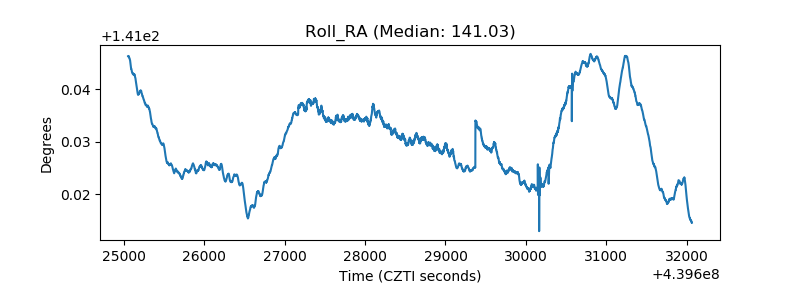

| _Roll_RA |  |
| Veto Counter |  |
