| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_012T08_9000005986_44468cztM0_level2.fits | modeM0/AS1A13_012T08_9000005986_44468cztM0_level2_quad_clean.evt |
| Size (bytes) | 256,017,600 | 64,808,640 |
| Size | 244.2 MB | 61.8 MB |
| Events in quadrant A | 2,822,987 | 408,119 |
| Events in quadrant B | 1,954,965 | 441,537 |
| Events in quadrant C | 2,230,401 | 418,329 |
| Events in quadrant D | 2,128,343 | 386,395 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 44 |
| B | 0 | 140 | 41 |
| C | 0 | 137 | 40 |
| D | 0 | 134 | 33 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 1 |
| B | 0 | 7 | 1 |
| C | 0 | 8 | 2 |
| D | 0 | 8 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19042 | 7489 |
| B | 0 | 14635 | 5563 |
| C | 0 | 15426 | 5654 |
| D | 0 | 15296 | 5755 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4210 | 35 | 0.831354% |
| B | 4403 | 25 | 0.567795% |
| C | 4355 | 24 | 0.551091% |
| D | 4352 | 28 | 0.643382% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7010 | 4945 | 2 | 2 | 0.03% | 0.04% |  |
| B | 6985 | 5110 | 2 | 2 | 0.03% | 0.04% |  |
| C | 6966 | 5043 | 4 | 4 | 0.06% | 0.08% |  |
| D | 7009 | 5037 | 18 | 18 | 0.26% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1057138 | 10890.07 | 456 | 445 | 97.0 |
| A | 3 | 137 | 5332 | 50.36 | 456 | 445 | 97.0 |
| A | 0 | 243 | 4266 | 39.38 | 456 | 445 | 97.0 |
| B | 5 | 172 | 43352 | 445.76 | 476 | 462 | 96.2 |
| B | 0 | 190 | 13018 | 130.49 | 476 | 462 | 96.2 |
| B | 12 | 111 | 12208 | 122.08 | 476 | 462 | 96.2 |
| C | 12 | 16 | 199608 | 1795.24 | 462 | 466 | 110.9 |
| C | 14 | 254 | 176284 | 1584.98 | 462 | 466 | 110.9 |
| C | 3 | 233 | 48734 | 435.13 | 462 | 466 | 110.9 |
| D | 13 | 249 | 106296 | 897.67 | 461 | 445 | 117.9 |
| D | 13 | 174 | 51886 | 436.24 | 461 | 445 | 117.9 |
| D | 1 | 52 | 51581 | 433.66 | 461 | 445 | 117.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

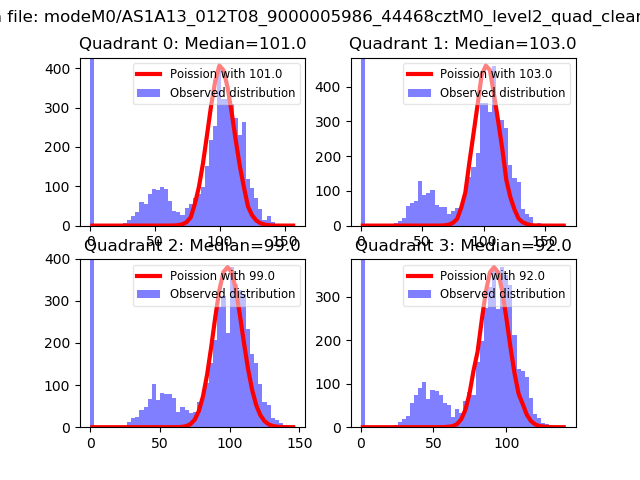

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

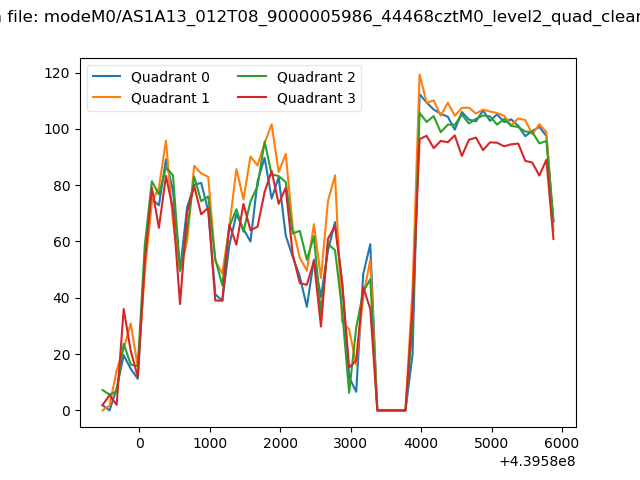

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

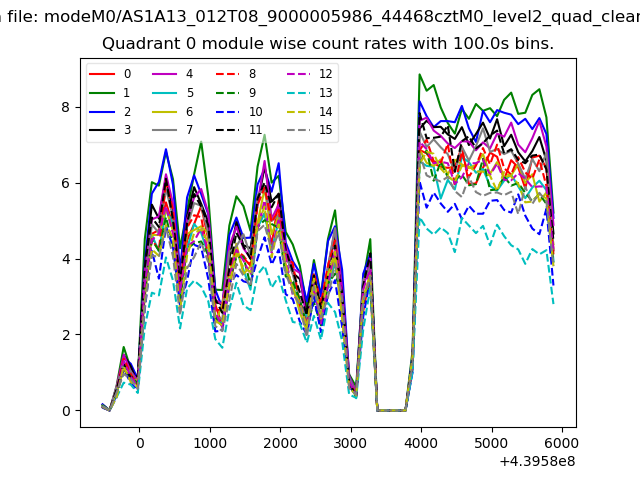

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

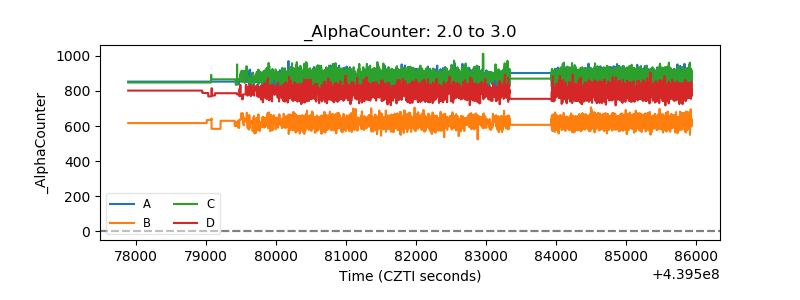

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

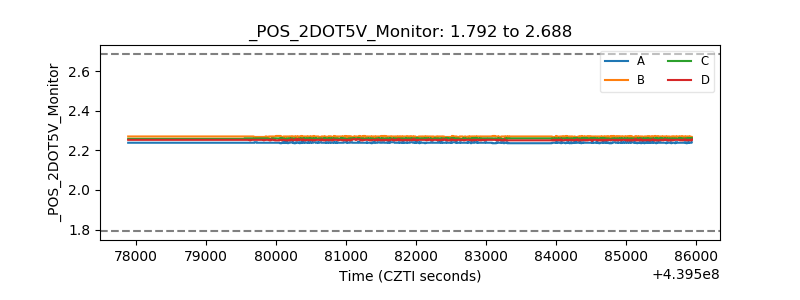

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

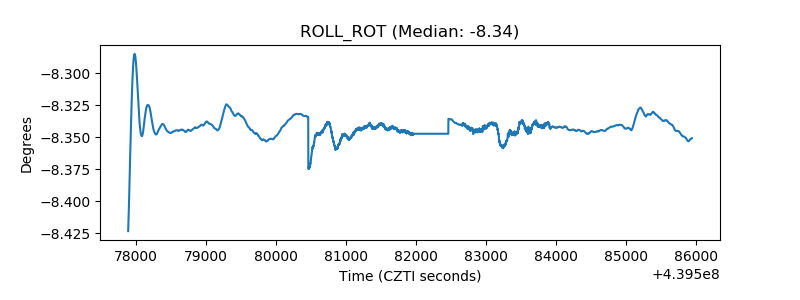

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

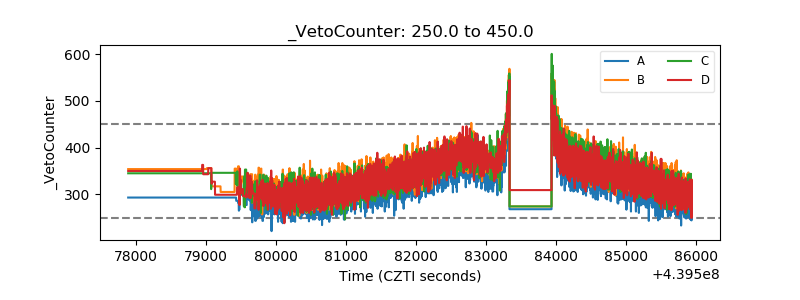

| Veto Counter |  |
