| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_059T01_9000005990_44315cztM0_level2.fits | modeM0/AS1A13_059T01_9000005990_44315cztM0_level2_quad_clean.evt |
| Size (bytes) | 271,837,440 | 62,161,920 |
| Size | 259.2 MB | 59.3 MB |
| Events in quadrant A | 2,783,587 | 426,678 |
| Events in quadrant B | 2,241,624 | 423,191 |
| Events in quadrant C | 1,735,760 | 421,194 |
| Events in quadrant D | 3,019,344 | 355,636 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11204 | 1 |
| B | 0 | 9038 | 1 |
| C | 0 | 7595 | 1 |
| D | 0 | 11369 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3611 | 144 | 3.987815% |
| B | 3611 | 220 | 6.092495% |
| C | 3611 | 42 | 1.163113% |
| D | 3611 | 420 | 11.631127% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4811 | 3611 | 3 | 3 | 0.06% | 0.08% |  |
| B | 4811 | 3612 | 89 | 89 | 1.85% | 2.46% |  |
| C | 4811 | 3612 | 1 | 1 | 0.02% | 0.03% |  |
| D | 4811 | 3611 | 309 | 309 | 6.42% | 8.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 907108 | 10022.34 | 436 | 426 | 90.5 |
| A | 15 | 223 | 168524 | 1858.13 | 436 | 426 | 90.5 |
| A | 0 | 243 | 14590 | 156.57 | 436 | 426 | 90.5 |
| B | 5 | 172 | 296133 | 3488.62 | 427 | 413 | 84.8 |
| B | 5 | 255 | 77333 | 907.43 | 427 | 413 | 84.8 |
| B | 4 | 158 | 73761 | 865.29 | 427 | 413 | 84.8 |
| C | 14 | 254 | 48246 | 471.23 | 428 | 429 | 101.5 |
| C | 1 | 3 | 13079 | 124.67 | 428 | 429 | 101.5 |
| C | 3 | 233 | 3375 | 29.03 | 428 | 429 | 101.5 |
| D | 13 | 249 | 815896 | 7771.63 | 412 | 399 | 104.9 |
| D | 13 | 153 | 220669 | 2099.16 | 412 | 399 | 104.9 |
| D | 1 | 52 | 96177 | 912.76 | 412 | 399 | 104.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

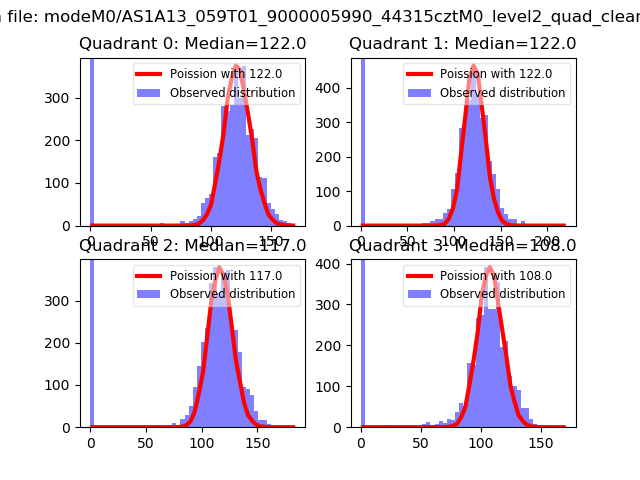

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

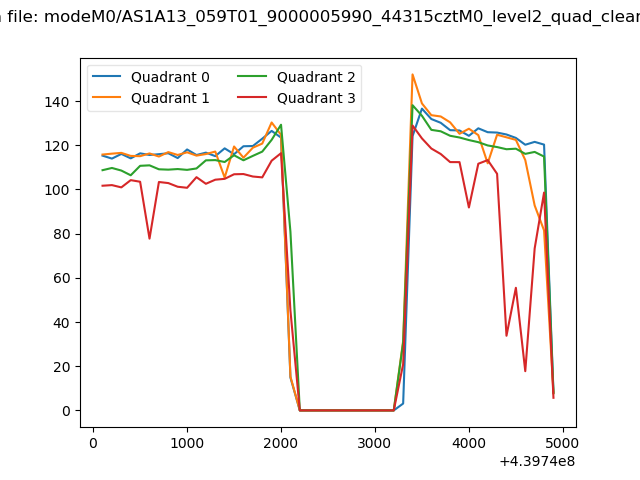

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

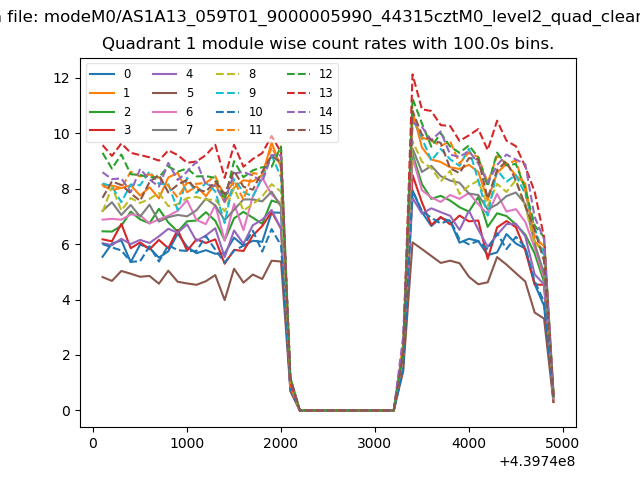

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

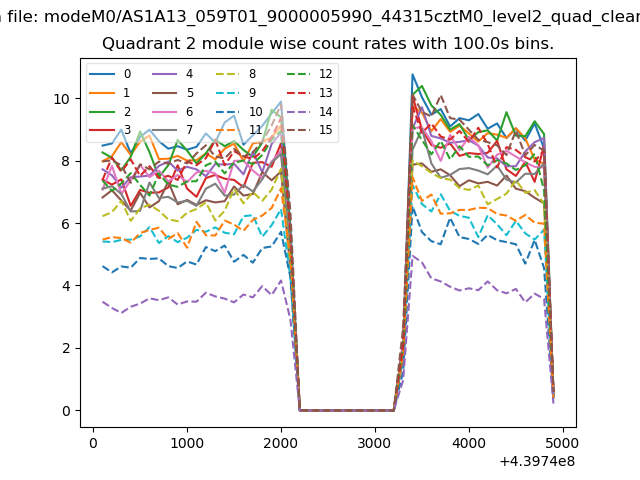

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

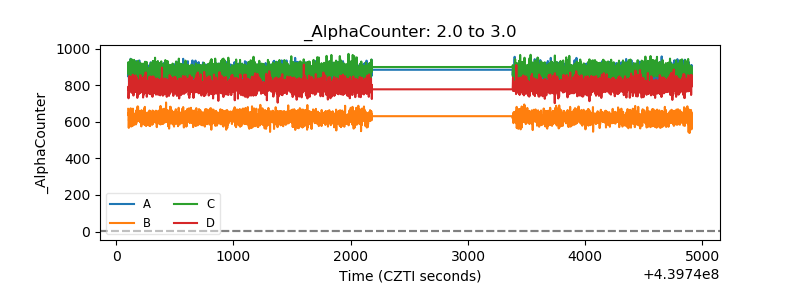

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

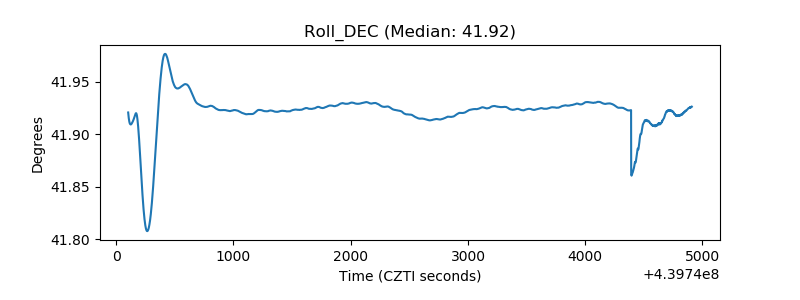

| _Roll_DEC |  |
| _Roll_RA |  |

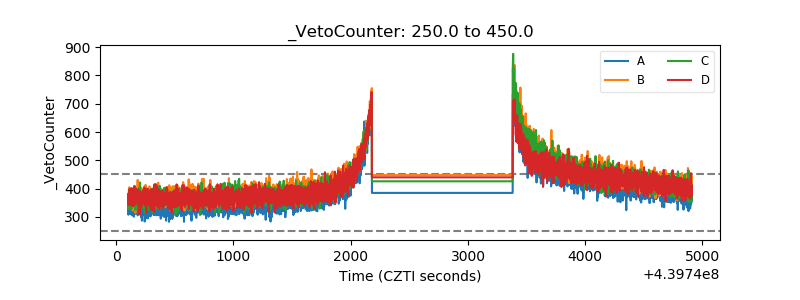

| Veto Counter |  |
