| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_059T01_9000005990_44327cztM0_level2.fits | modeM0/AS1A13_059T01_9000005990_44327cztM0_level2_quad_clean.evt |
| Size (bytes) | 268,090,560 | 64,632,960 |
| Size | 255.7 MB | 61.6 MB |
| Events in quadrant A | 2,702,719 | 439,590 |
| Events in quadrant B | 2,515,435 | 438,615 |
| Events in quadrant C | 1,759,423 | 426,365 |
| Events in quadrant D | 2,645,309 | 380,285 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11420 | 0 |
| B | 0 | 9996 | 0 |
| C | 0 | 7989 | 3 |
| D | 0 | 10462 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3855 | 17 | 0.440986% |
| B | 3855 | 143 | 3.709468% |
| C | 3853 | 4 | 0.103815% |
| D | 3855 | 199 | 5.162127% |

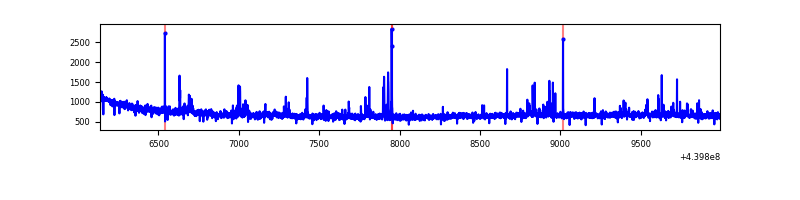

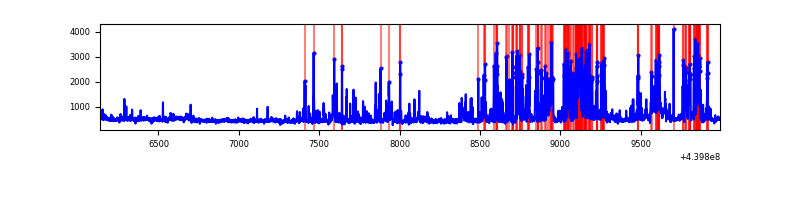

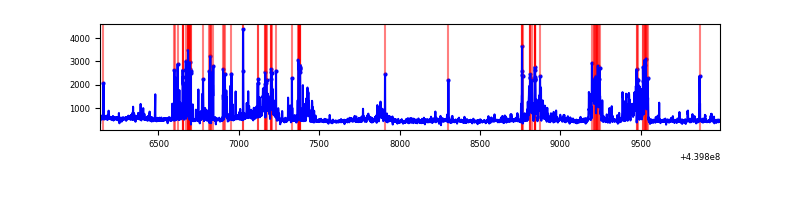

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3855 | 3855 | 4 | 4 | 0.10% | 0.10% |  |
| B | 3855 | 3855 | 100 | 100 | 2.59% | 2.59% |  |
| C | 3855 | 3854 | 8 | 8 | 0.21% | 0.21% |  |
| D | 3856 | 3856 | 183 | 183 | 4.75% | 4.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 893194 | 9852.65 | 437 | 428 | 90.6 |
| A | 7 | 3 | 52618 | 575.97 | 437 | 428 | 90.6 |
| A | 0 | 243 | 20001 | 216.0 | 437 | 428 | 90.6 |
| B | 5 | 172 | 300021 | 3555.62 | 426 | 415 | 84.3 |
| B | 5 | 255 | 288218 | 3415.55 | 426 | 415 | 84.3 |
| B | 0 | 219 | 113764 | 1345.19 | 426 | 415 | 84.3 |
| C | 14 | 254 | 110414 | 1107.2 | 420 | 424 | 99.3 |
| C | 1 | 3 | 5528 | 51.38 | 420 | 424 | 99.3 |
| C | 13 | 61 | 2851 | 24.43 | 420 | 424 | 99.3 |
| D | 13 | 249 | 593734 | 5601.55 | 418 | 406 | 105.9 |
| D | 2 | 153 | 86254 | 810.48 | 418 | 406 | 105.9 |
| D | 9 | 1 | 74707 | 701.47 | 418 | 406 | 105.9 |

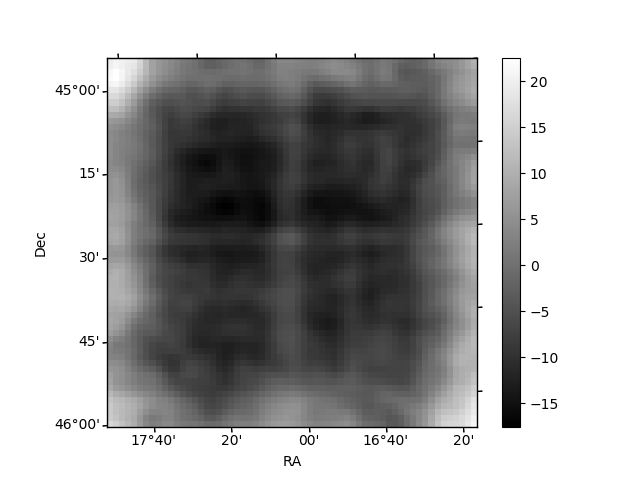

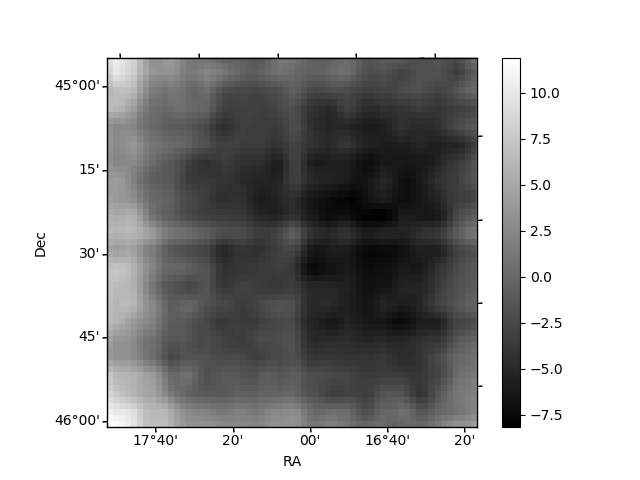

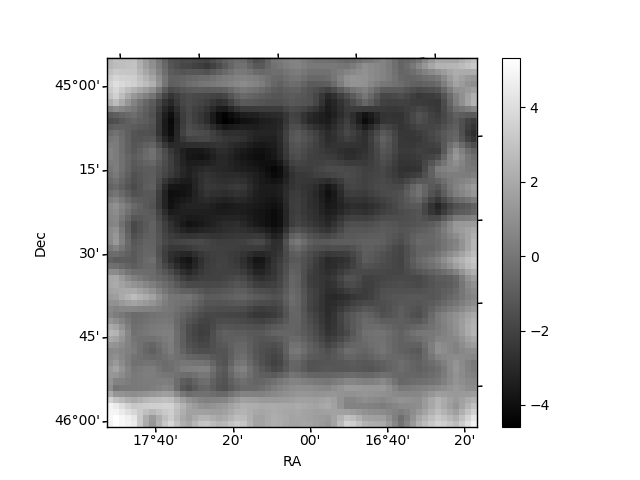

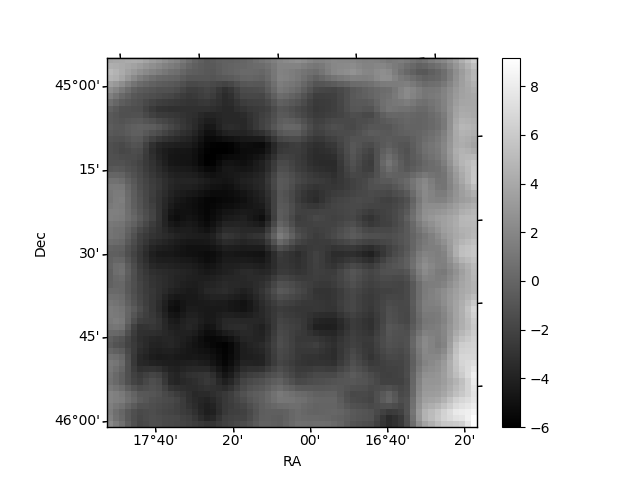

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

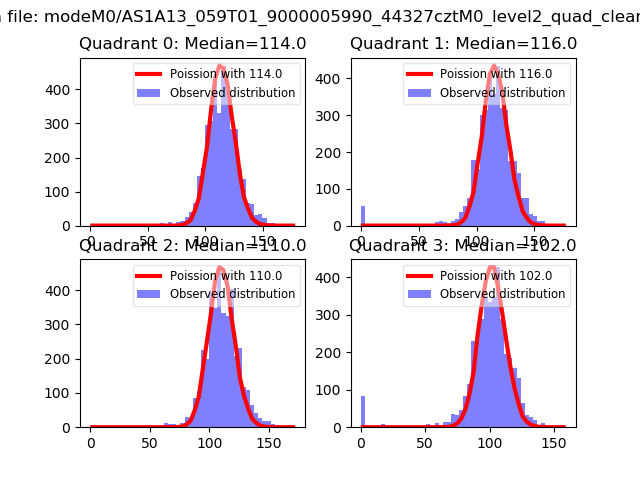

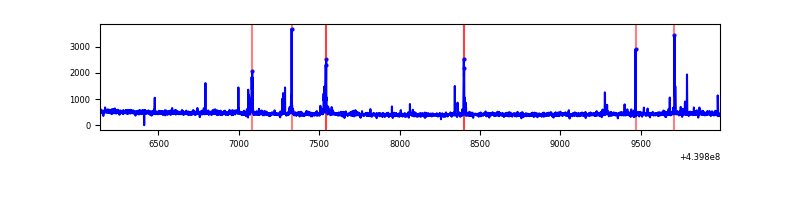

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

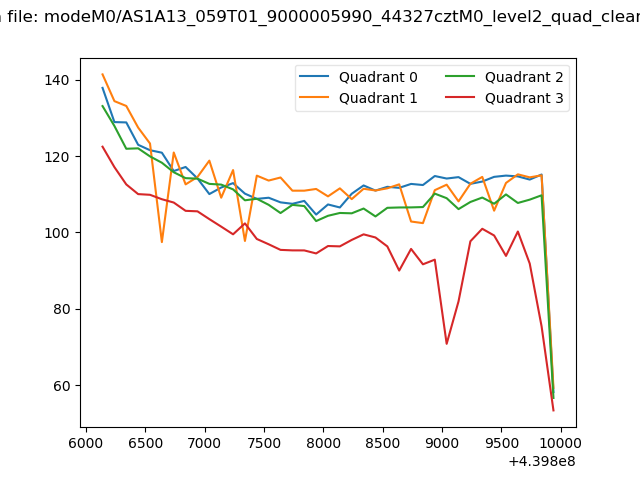

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

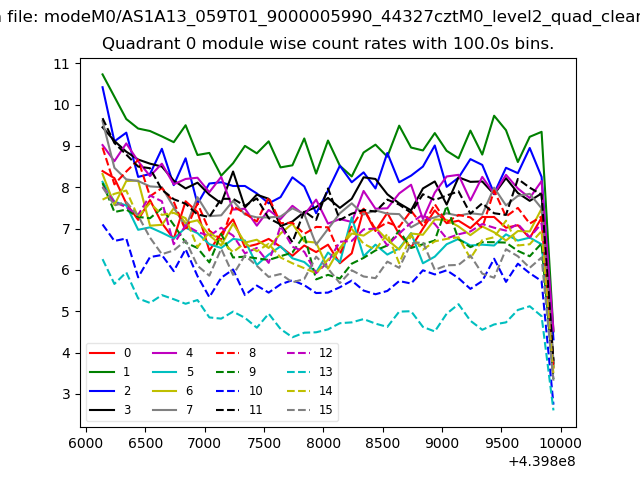

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

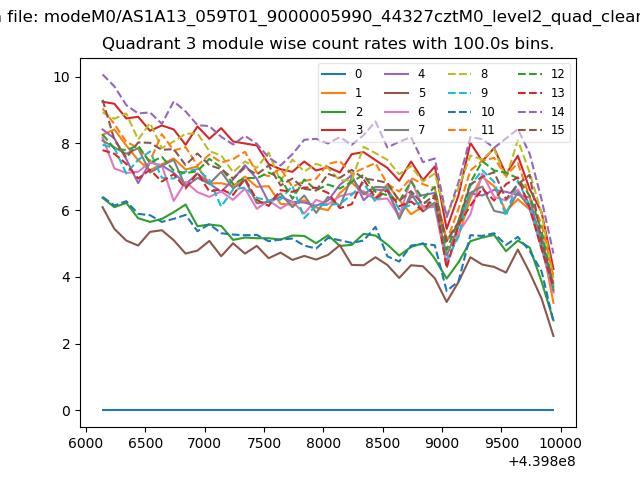

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

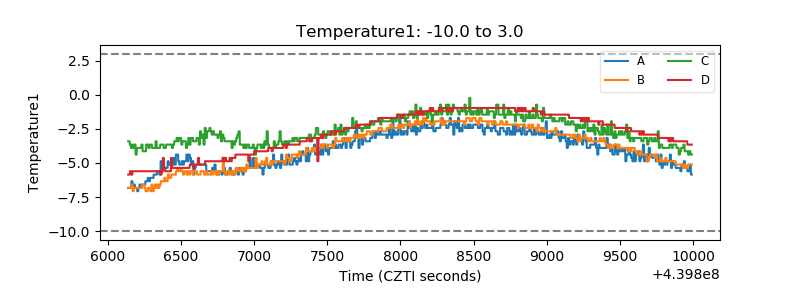

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

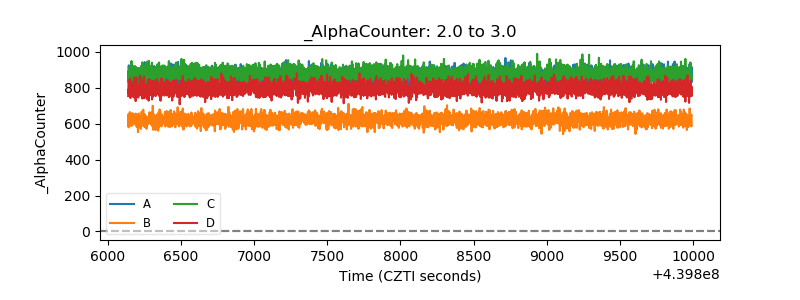

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

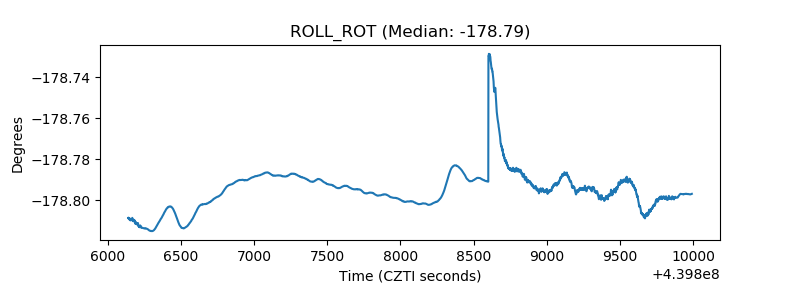

| _ROLL_ROT |  |

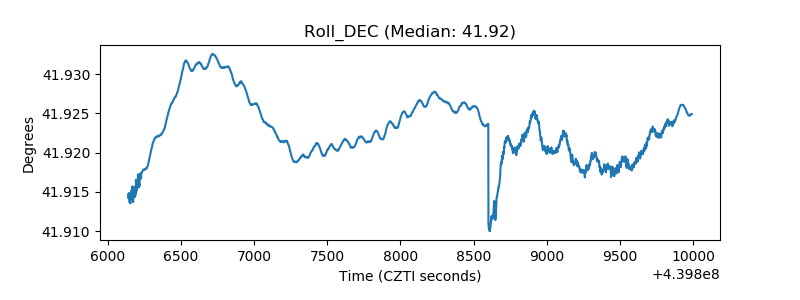

| _Roll_DEC |  |

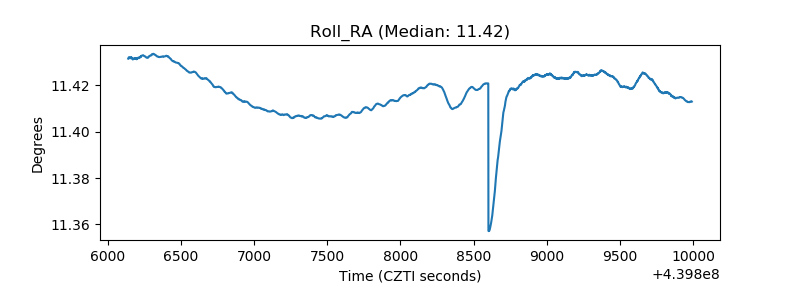

| _Roll_RA |  |

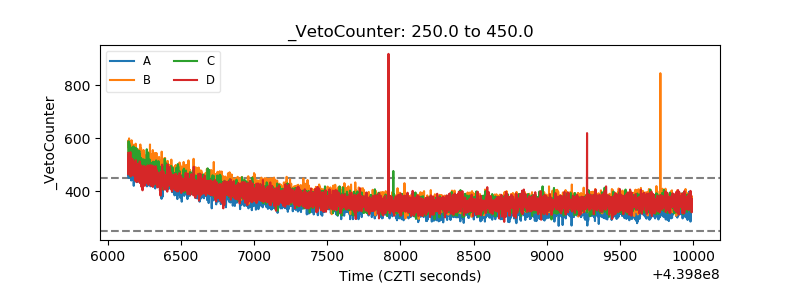

| Veto Counter |  |
