| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_004T09_9000005992_44337cztM0_level2.fits | modeM0/AS1A13_004T09_9000005992_44337cztM0_level2_quad_clean.evt |
| Size (bytes) | 824,515,200 | 205,087,680 |
| Size | 786.3 MB | 195.6 MB |
| Events in quadrant A | 8,546,332 | 1,353,301 |
| Events in quadrant B | 6,813,826 | 1,374,333 |
| Events in quadrant C | 6,006,839 | 1,356,113 |
| Events in quadrant D | 8,146,009 | 1,226,635 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 264 | 0 |
| B | 0 | 264 | 0 |
| C | 0 | 264 | 0 |
| D | 0 | 264 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35770 | 2 |
| B | 0 | 29060 | 5 |
| C | 0 | 27289 | 2 |
| D | 0 | 33391 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13010 | 127 | 0.976172% |
| B | 13008 | 316 | 2.429274% |
| C | 13011 | 68 | 0.522635% |
| D | 13010 | 394 | 3.028440% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14100 | 13011 | 5 | 5 | 0.04% | 0.04% |  |
| B | 14100 | 13011 | 187 | 187 | 1.33% | 1.44% |  |
| C | 14101 | 13013 | 32 | 32 | 0.23% | 0.25% |  |
| D | 14100 | 13011 | 329 | 329 | 2.33% | 2.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2845877 | 9462.58 | 1446 | 1413 | 300.6 |
| A | 10 | 248 | 25220 | 79.2 | 1446 | 1413 | 300.6 |
| A | 0 | 243 | 24027 | 75.23 | 1446 | 1413 | 300.6 |
| B | 0 | 219 | 728624 | 2578.78 | 1430 | 1385 | 282.0 |
| B | 5 | 255 | 124458 | 436.41 | 1430 | 1385 | 282.0 |
| B | 4 | 173 | 74489 | 259.23 | 1430 | 1385 | 282.0 |
| C | 14 | 254 | 277661 | 822.52 | 1425 | 1434 | 335.8 |
| C | 14 | 96 | 62726 | 182.51 | 1425 | 1434 | 335.8 |
| C | 15 | 208 | 36833 | 105.41 | 1425 | 1434 | 335.8 |
| D | 13 | 249 | 910637 | 2567.08 | 1409 | 1369 | 354.2 |
| D | 12 | 1 | 462802 | 1302.74 | 1409 | 1369 | 354.2 |
| D | 2 | 153 | 225094 | 631.63 | 1409 | 1369 | 354.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

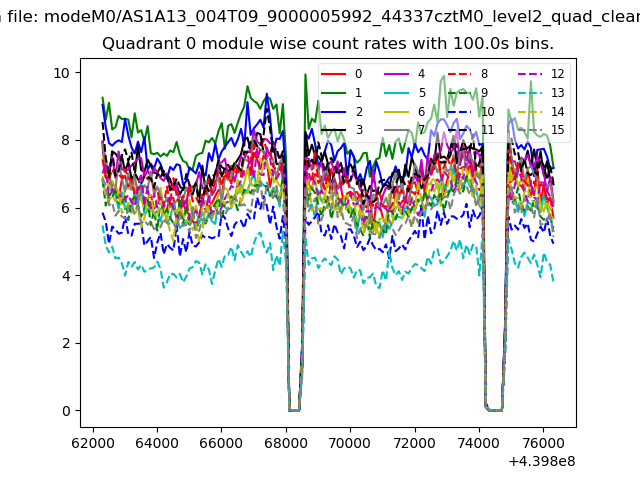

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

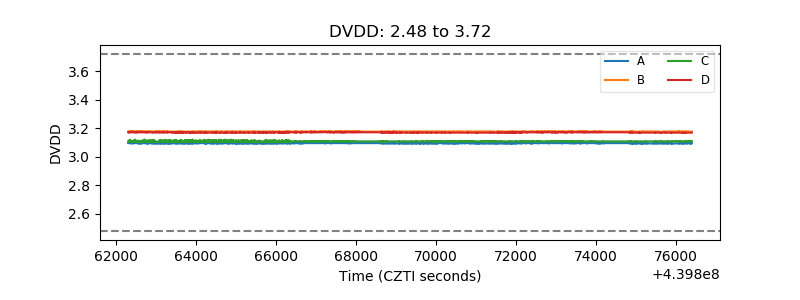

| D_VDD |  |

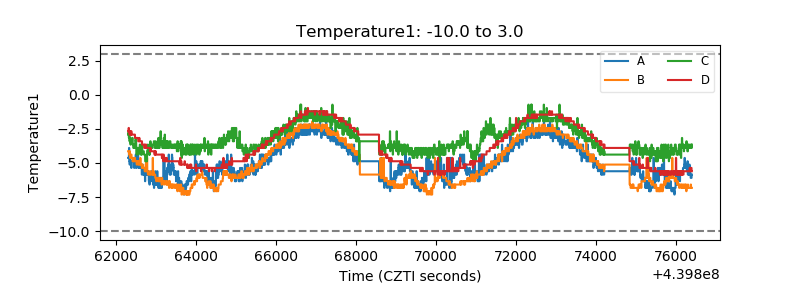

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

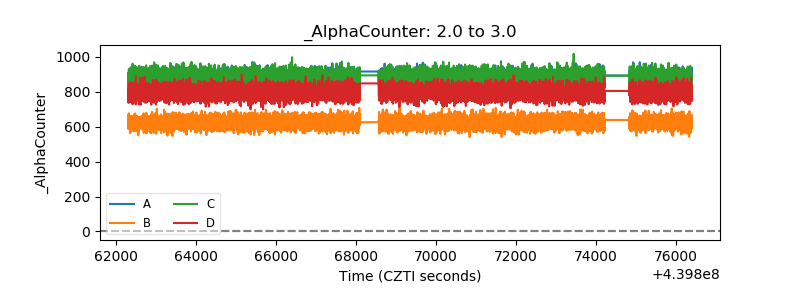

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

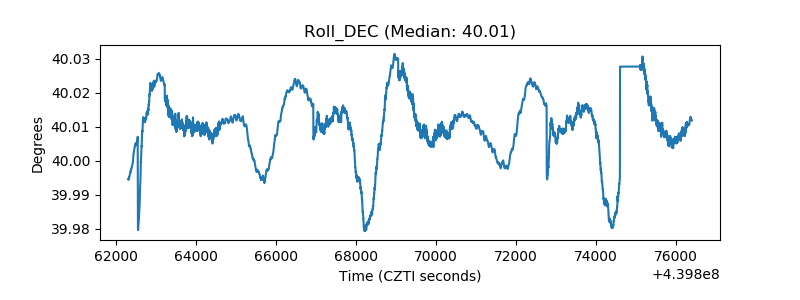

| _Roll_DEC |  |

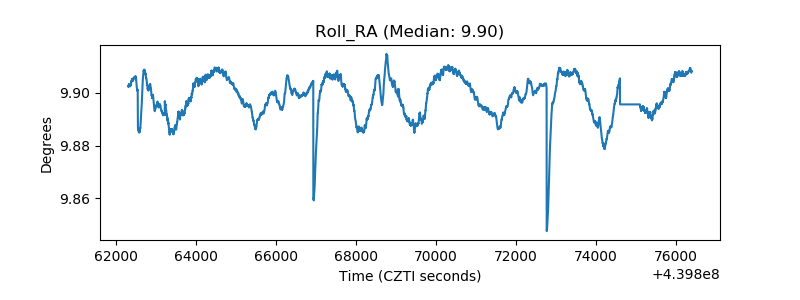

| _Roll_RA |  |
| Veto Counter |  |
