| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_008T06_9000005994_44356cztM0_level2.fits | modeM0/AS1A13_008T06_9000005994_44356cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,376,960 | 105,174,720 |
| Size | 485.8 MB | 100.3 MB |
| Events in quadrant A | 5,505,614 | 687,835 |
| Events in quadrant B | 3,686,888 | 748,321 |
| Events in quadrant C | 3,071,199 | 720,746 |
| Events in quadrant D | 6,102,179 | 587,661 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21613 | 1 |
| B | 0 | 15154 | 1 |
| C | 0 | 13436 | 1 |
| D | 0 | 22379 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6307 | 482 | 7.642302% |
| B | 6306 | 217 | 3.441167% |
| C | 6307 | 80 | 1.268432% |
| D | 6307 | 912 | 14.460124% |

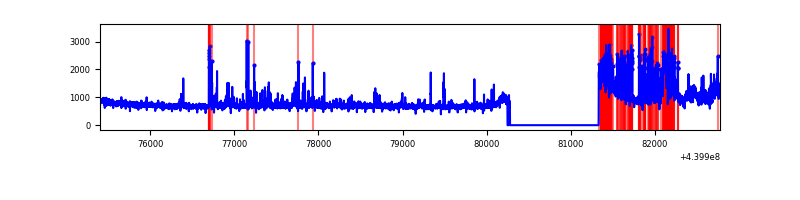

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7377 | 6307 | 244 | 244 | 3.31% | 3.87% |  |
| B | 7376 | 6306 | 86 | 86 | 1.17% | 1.36% |  |
| C | 7377 | 6307 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7377 | 6307 | 779 | 779 | 10.56% | 12.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1535348 | 10023.5 | 739 | 724 | 153.1 |
| A | 13 | 248 | 761715 | 4970.46 | 739 | 724 | 153.1 |
| A | 15 | 223 | 273232 | 1779.9 | 739 | 724 | 153.1 |
| B | 5 | 172 | 241174 | 1614.91 | 749 | 726 | 148.9 |
| B | 5 | 255 | 144183 | 963.49 | 749 | 726 | 148.9 |
| B | 0 | 219 | 81831 | 544.72 | 749 | 726 | 148.9 |
| C | 14 | 254 | 124180 | 714.48 | 734 | 739 | 172.8 |
| C | 2 | 14 | 24150 | 135.5 | 734 | 739 | 172.8 |
| C | 14 | 96 | 22346 | 125.06 | 734 | 739 | 172.8 |
| D | 5 | 235 | 1281682 | 7341.15 | 698 | 679 | 174.5 |
| D | 13 | 249 | 1067243 | 6112.25 | 698 | 679 | 174.5 |
| D | 1 | 52 | 201877 | 1153.02 | 698 | 679 | 174.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

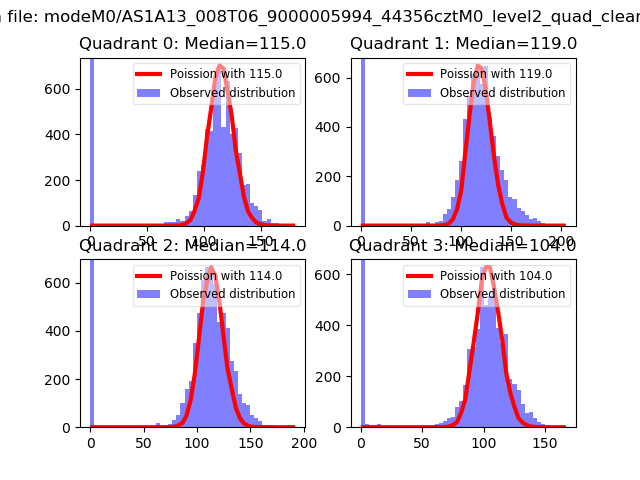

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

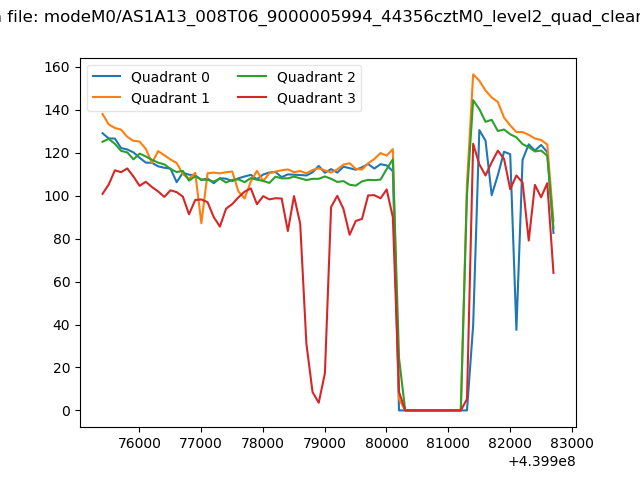

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
