| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_008T05_9000005996_44389cztM0_level2.fits | modeM0/AS1A13_008T05_9000005996_44389cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,122,240 | 105,805,440 |
| Size | 478.9 MB | 100.9 MB |
| Events in quadrant A | 5,091,513 | 723,256 |
| Events in quadrant B | 3,573,449 | 734,966 |
| Events in quadrant C | 3,062,790 | 716,294 |
| Events in quadrant D | 6,350,252 | 571,814 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20092 | 1 |
| B | 0 | 14988 | 1 |
| C | 0 | 13843 | 1 |
| D | 0 | 23393 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6552 | 194 | 2.960928% |
| B | 6553 | 229 | 3.494583% |
| C | 6553 | 38 | 0.579887% |
| D | 6552 | 1032 | 15.750916% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7472 | 6552 | 24 | 24 | 0.32% | 0.37% |  |
| B | 7473 | 6553 | 121 | 121 | 1.62% | 1.85% |  |
| C | 7473 | 6554 | 10 | 10 | 0.13% | 0.15% |  |
| D | 7472 | 6552 | 988 | 988 | 13.22% | 15.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1827383 | 11654.82 | 754 | 739 | 156.7 |
| A | 15 | 223 | 172881 | 1098.34 | 754 | 739 | 156.7 |
| A | 13 | 248 | 104599 | 662.67 | 754 | 739 | 156.7 |
| B | 10 | 245 | 193188 | 1294.89 | 748 | 726 | 148.6 |
| B | 0 | 219 | 141197 | 945.09 | 748 | 726 | 148.6 |
| B | 0 | 168 | 84607 | 564.35 | 748 | 726 | 148.6 |
| C | 14 | 254 | 109286 | 621.24 | 733 | 739 | 174.7 |
| C | 12 | 250 | 31471 | 175.89 | 733 | 739 | 174.7 |
| C | 3 | 233 | 28529 | 159.05 | 733 | 739 | 174.7 |
| D | 4 | 221 | 916033 | 5213.4 | 691 | 668 | 175.6 |
| D | 12 | 233 | 652124 | 3710.32 | 691 | 668 | 175.6 |
| D | 13 | 249 | 456123 | 2594.01 | 691 | 668 | 175.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

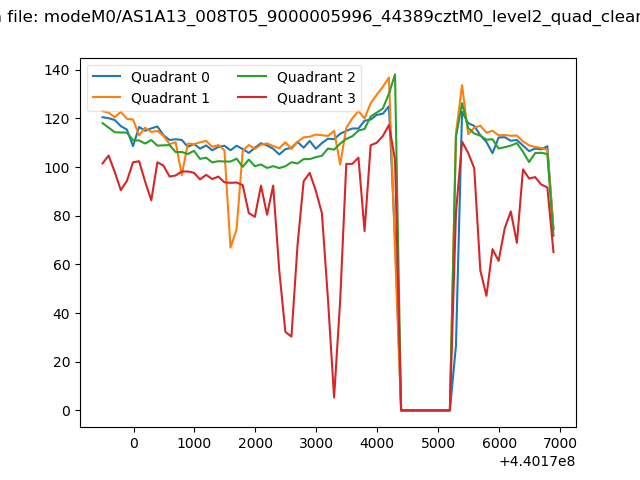

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

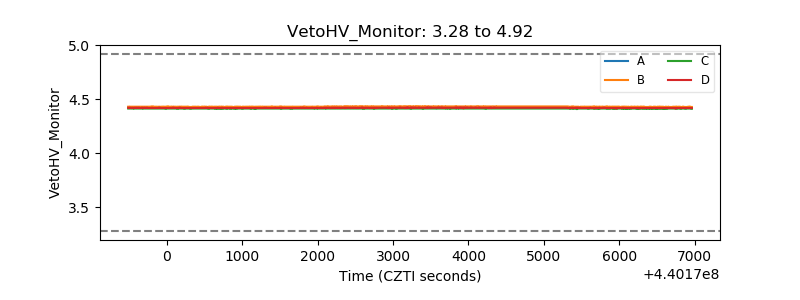

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

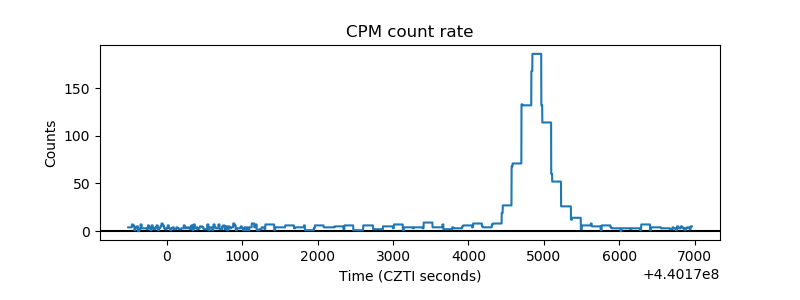

| _CPM_Rate |  |

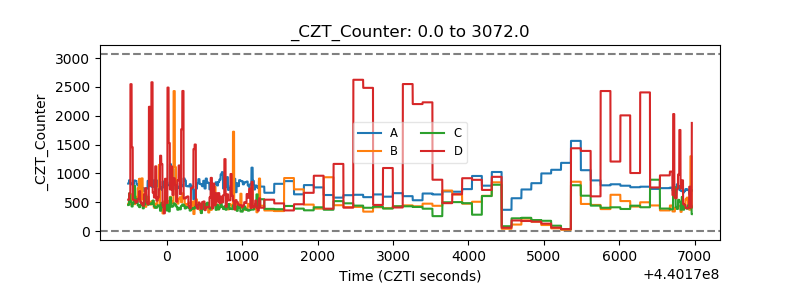

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

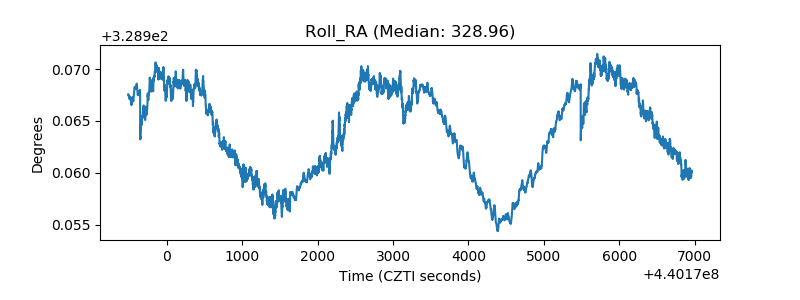

| _Roll_RA |  |
| Veto Counter |  |
