| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_008T08_9000005998_44393cztM0_level2.fits | modeM0/AS1A13_008T08_9000005998_44393cztM0_level2_quad_clean.evt |
| Size (bytes) | 592,332,480 | 117,394,560 |
| Size | 564.9 MB | 112.0 MB |
| Events in quadrant A | 5,254,823 | 809,373 |
| Events in quadrant B | 3,929,949 | 820,044 |
| Events in quadrant C | 4,687,796 | 759,968 |
| Events in quadrant D | 7,457,006 | 630,402 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22084 | 1 |
| B | 0 | 16860 | 1 |
| C | 0 | 19537 | 1 |
| D | 0 | 27519 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7689 | 147 | 1.911822% |
| B | 7690 | 150 | 1.950585% |
| C | 7690 | 438 | 5.695709% |
| D | 7690 | 1216 | 15.812744% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7839 | 7689 | 9 | 9 | 0.11% | 0.12% |  |
| B | 7840 | 7690 | 9 | 9 | 0.11% | 0.12% |  |
| C | 7840 | 7690 | 340 | 340 | 4.34% | 4.42% |  |
| D | 7840 | 7690 | 1085 | 1085 | 13.84% | 14.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1747443 | 9591.0 | 870 | 851 | 182.1 |
| A | 13 | 248 | 43881 | 236.29 | 870 | 851 | 182.1 |
| A | 8 | 4 | 38408 | 206.24 | 870 | 851 | 182.1 |
| B | 4 | 173 | 149128 | 861.75 | 868 | 843 | 172.1 |
| B | 0 | 155 | 96820 | 557.77 | 868 | 843 | 172.1 |
| B | 5 | 235 | 68911 | 395.57 | 868 | 843 | 172.1 |
| C | 15 | 158 | 1157056 | 5845.94 | 833 | 837 | 197.8 |
| C | 14 | 254 | 156815 | 788.64 | 833 | 837 | 197.8 |
| C | 3 | 233 | 63492 | 316.79 | 833 | 837 | 197.8 |
| D | 4 | 221 | 1245544 | 6231.16 | 784 | 759 | 199.8 |
| D | 2 | 249 | 926192 | 4632.54 | 784 | 759 | 199.8 |
| D | 12 | 17 | 656168 | 3280.85 | 784 | 759 | 199.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

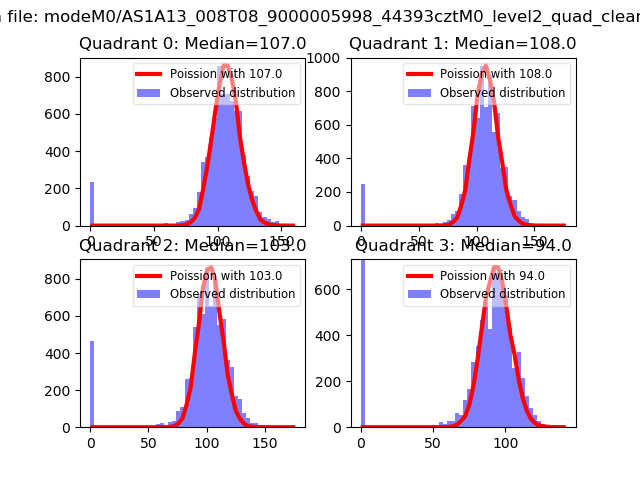

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

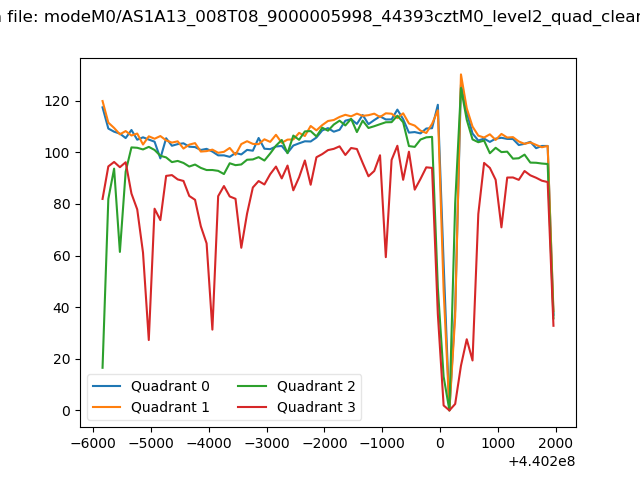

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

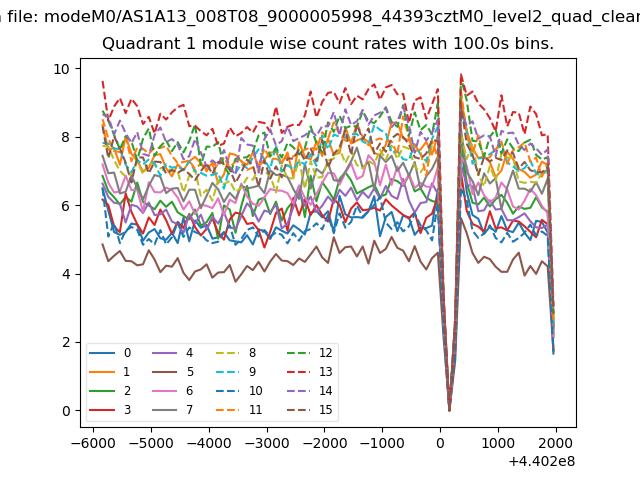

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

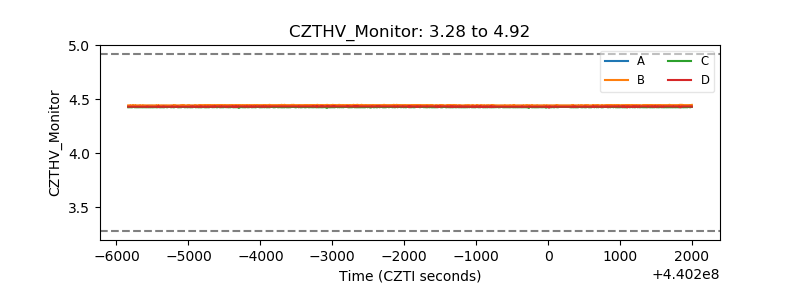

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

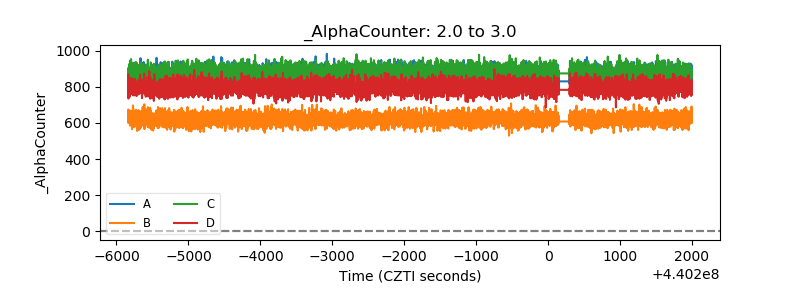

| Alpha Counter |  |

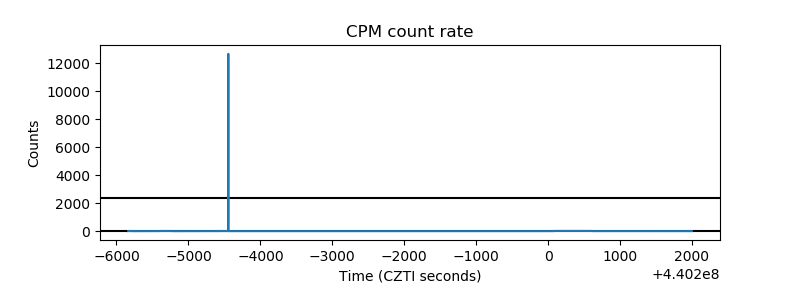

| _CPM_Rate |  |
| CZT Counter |  |

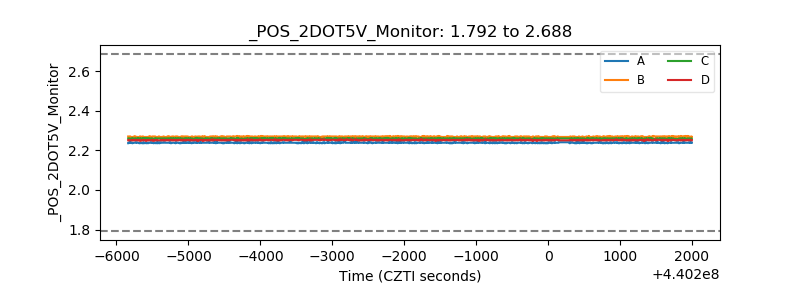

| +2.5 Volts monitor |  |

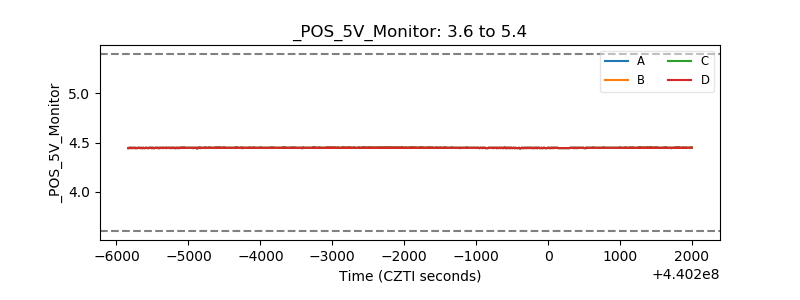

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
