| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T03_9000006000_44449cztM0_level2.fits | modeM0/AS1A13_072T03_9000006000_44449cztM0_level2_quad_clean.evt |
| Size (bytes) | 584,493,120 | 124,038,720 |
| Size | 557.4 MB | 118.3 MB |
| Events in quadrant A | 5,619,195 | 840,514 |
| Events in quadrant B | 4,142,049 | 860,114 |
| Events in quadrant C | 3,846,544 | 831,090 |
| Events in quadrant D | 7,420,424 | 679,204 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23369 | 1 |
| B | 0 | 17640 | 2 |
| C | 0 | 16869 | 1 |
| D | 0 | 27533 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7837 | 265 | 3.381396% |
| B | 7836 | 270 | 3.445636% |
| C | 7836 | 96 | 1.225115% |
| D | 7836 | 1106 | 14.114344% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7837 | 7837 | 8 | 8 | 0.10% | 0.10% |  |
| B | 7836 | 7836 | 51 | 51 | 0.65% | 0.65% |  |
| C | 7836 | 7836 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7836 | 7836 | 704 | 704 | 8.98% | 8.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1902611 | 9741.1 | 932 | 910 | 195.2 |
| A | 10 | 248 | 86321 | 437.5 | 932 | 910 | 195.2 |
| A | 7 | 3 | 16113 | 77.87 | 932 | 910 | 195.2 |
| B | 5 | 172 | 313177 | 1694.97 | 919 | 889 | 184.2 |
| B | 0 | 155 | 65821 | 352.42 | 919 | 889 | 184.2 |
| B | 0 | 229 | 51641 | 275.46 | 919 | 889 | 184.2 |
| C | 14 | 254 | 106928 | 488.24 | 917 | 919 | 217.1 |
| C | 3 | 233 | 85019 | 387.34 | 917 | 919 | 217.1 |
| C | 12 | 16 | 73120 | 332.53 | 917 | 919 | 217.1 |
| D | 1 | 52 | 1230508 | 5638.13 | 869 | 843 | 218.1 |
| D | 2 | 249 | 1179539 | 5404.43 | 869 | 843 | 218.1 |
| D | 12 | 2 | 482874 | 2210.16 | 869 | 843 | 218.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

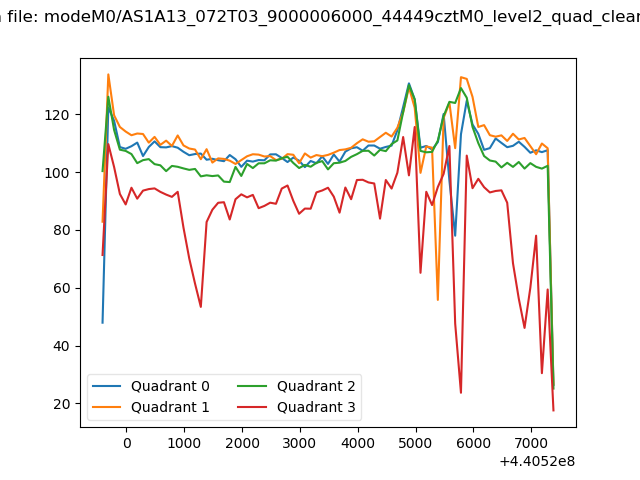

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

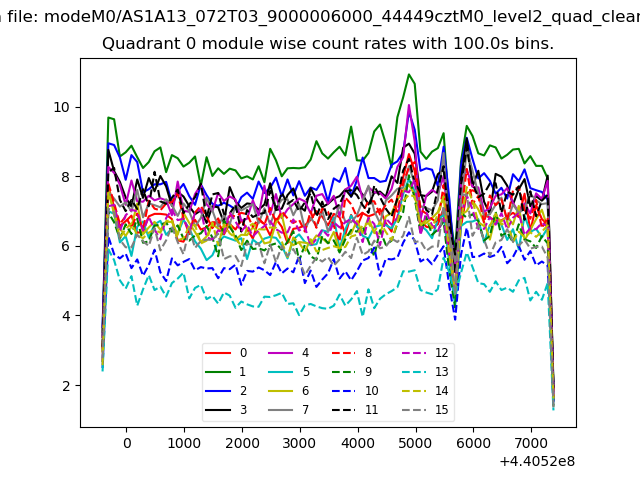

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

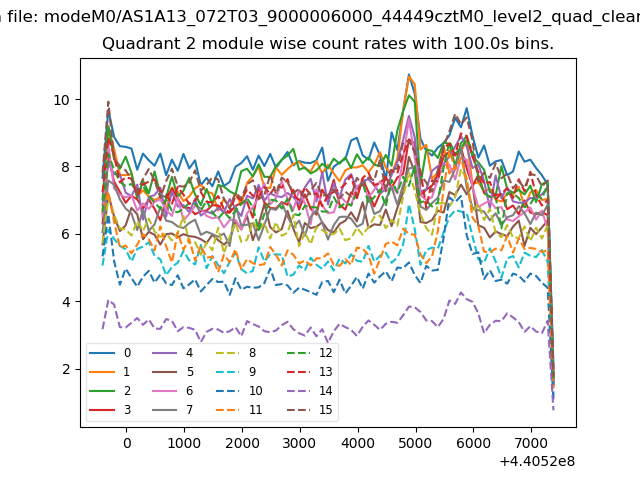

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

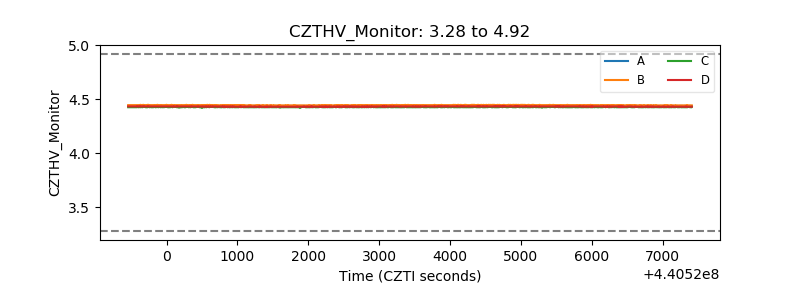

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

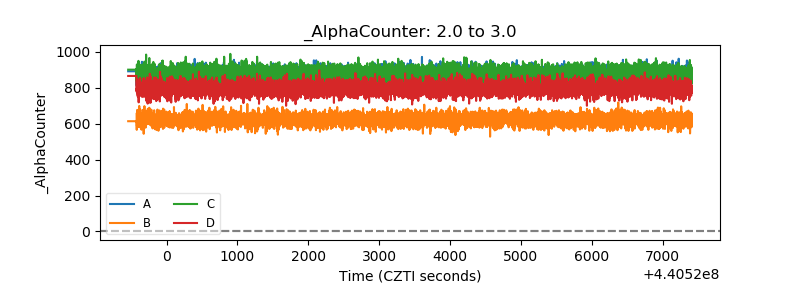

| Alpha Counter |  |

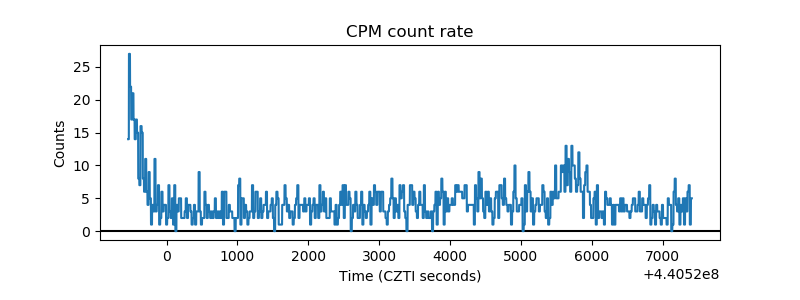

| _CPM_Rate |  |
| CZT Counter |  |

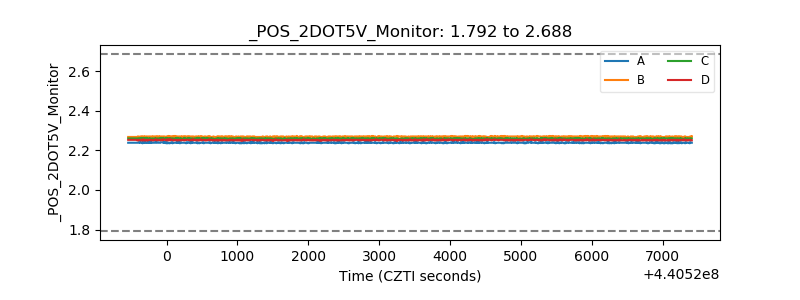

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

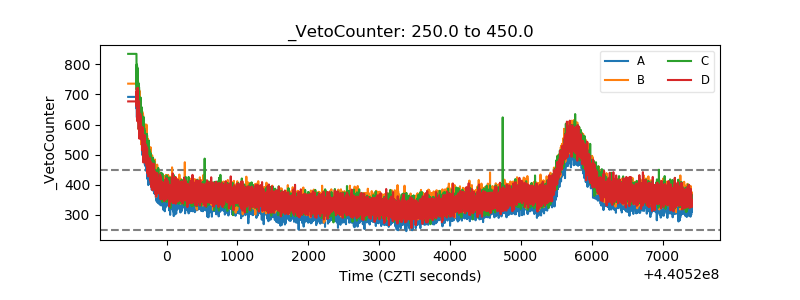

| Veto Counter |  |
