| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000006002_44535cztM0_level2.fits | modeM0/AS1A13_003T01_9000006002_44535cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,210,880 | 111,159,360 |
| Size | 462.7 MB | 106.0 MB |
| Events in quadrant A | 5,534,938 | 727,124 |
| Events in quadrant B | 3,967,059 | 749,279 |
| Events in quadrant C | 3,549,244 | 741,521 |
| Events in quadrant D | 4,372,259 | 666,099 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22503 | 1 |
| B | 0 | 16572 | 1 |
| C | 0 | 15242 | 1 |
| D | 0 | 17718 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6914 | 447 | 6.465143% |
| B | 6914 | 389 | 5.626266% |
| C | 6914 | 115 | 1.663292% |
| D | 6915 | 322 | 4.656544% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7344 | 6915 | 145 | 145 | 1.97% | 2.10% |  |
| B | 7344 | 6916 | 135 | 135 | 1.84% | 1.95% |  |
| C | 7344 | 6915 | 25 | 25 | 0.34% | 0.36% |  |
| D | 7345 | 6916 | 176 | 176 | 2.40% | 2.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1715850 | 10549.49 | 778 | 760 | 162.6 |
| A | 13 | 248 | 706364 | 4340.16 | 778 | 760 | 162.6 |
| A | 10 | 248 | 66154 | 402.24 | 778 | 760 | 162.6 |
| B | 5 | 235 | 679290 | 4369.9 | 779 | 755 | 155.3 |
| B | 5 | 172 | 56312 | 357.8 | 779 | 755 | 155.3 |
| B | 0 | 168 | 55806 | 354.54 | 779 | 755 | 155.3 |
| C | 14 | 254 | 306890 | 1672.87 | 772 | 776 | 183.0 |
| C | 3 | 233 | 103181 | 559.63 | 772 | 776 | 183.0 |
| C | 2 | 14 | 69475 | 375.43 | 772 | 776 | 183.0 |
| D | 1 | 52 | 799193 | 4153.25 | 770 | 744 | 192.2 |
| D | 2 | 249 | 400168 | 2077.66 | 770 | 744 | 192.2 |
| D | 13 | 153 | 62226 | 319.81 | 770 | 744 | 192.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

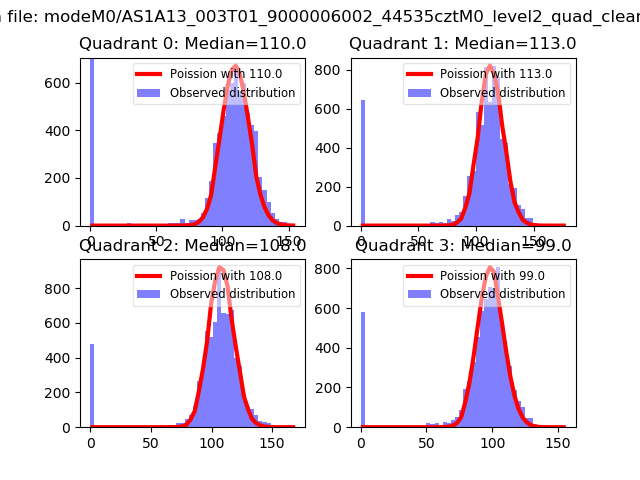

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

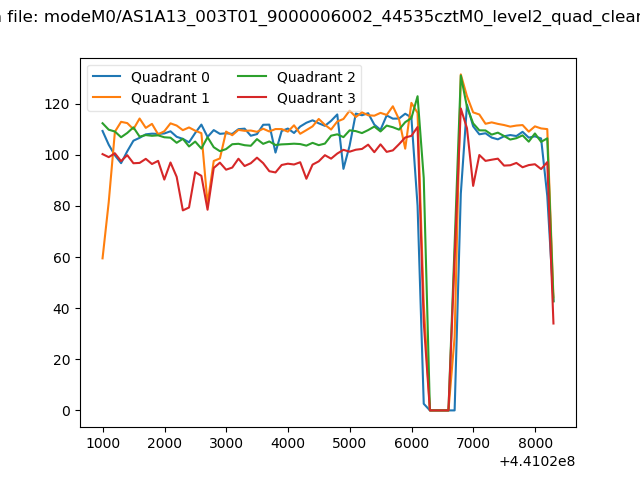

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

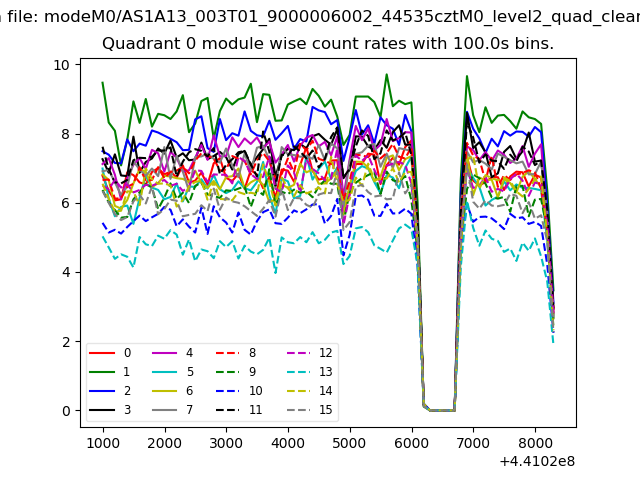

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

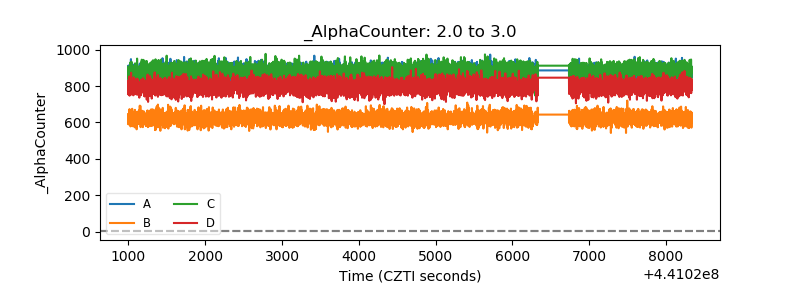

| Alpha Counter |  |

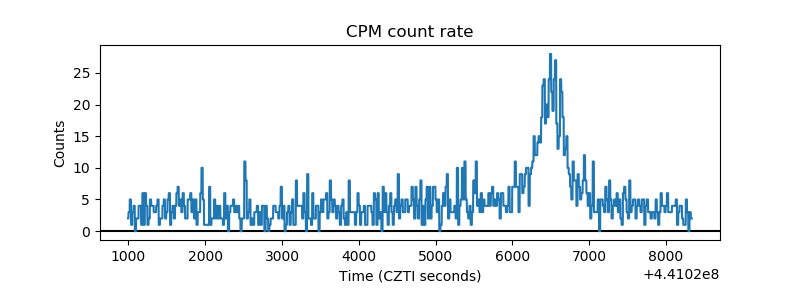

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

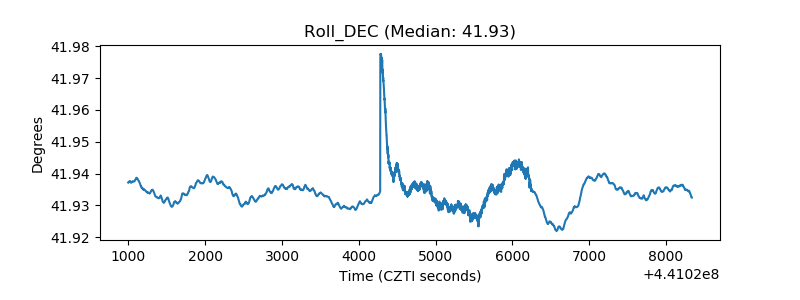

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
