| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000006002_44538cztM0_level2.fits | modeM0/AS1A13_003T01_9000006002_44538cztM0_level2_quad_clean.evt |
| Size (bytes) | 603,907,200 | 121,466,880 |
| Size | 575.9 MB | 115.8 MB |
| Events in quadrant A | 5,850,895 | 817,631 |
| Events in quadrant B | 5,256,206 | 787,018 |
| Events in quadrant C | 4,037,223 | 820,647 |
| Events in quadrant D | 6,607,853 | 712,032 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24283 | 2 |
| B | 0 | 20944 | 3 |
| C | 0 | 17413 | 2 |
| D | 0 | 24976 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7769 | 342 | 4.402111% |
| B | 7769 | 735 | 9.460677% |
| C | 7770 | 83 | 1.068211% |
| D | 7770 | 653 | 8.404118% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7799 | 7771 | 146 | 146 | 1.87% | 1.88% |  |
| B | 7800 | 7772 | 396 | 396 | 5.08% | 5.10% |  |
| C | 7800 | 7772 | 52 | 52 | 0.67% | 0.67% |  |
| D | 7800 | 7772 | 596 | 596 | 7.64% | 7.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1933672 | 10423.27 | 877 | 855 | 185.4 |
| A | 13 | 248 | 496389 | 2672.31 | 877 | 855 | 185.4 |
| A | 10 | 248 | 24778 | 129.01 | 877 | 855 | 185.4 |
| B | 5 | 235 | 1467451 | 8766.46 | 846 | 821 | 167.3 |
| B | 5 | 172 | 195068 | 1161.07 | 846 | 821 | 167.3 |
| B | 0 | 186 | 55634 | 327.63 | 846 | 821 | 167.3 |
| C | 14 | 254 | 370982 | 1806.27 | 867 | 871 | 204.9 |
| C | 3 | 233 | 166672 | 809.17 | 867 | 871 | 204.9 |
| C | 2 | 14 | 95049 | 459.62 | 867 | 871 | 204.9 |
| D | 4 | 232 | 959038 | 4495.71 | 850 | 823 | 213.1 |
| D | 1 | 52 | 790561 | 3705.26 | 850 | 823 | 213.1 |
| D | 2 | 249 | 496218 | 2324.27 | 850 | 823 | 213.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

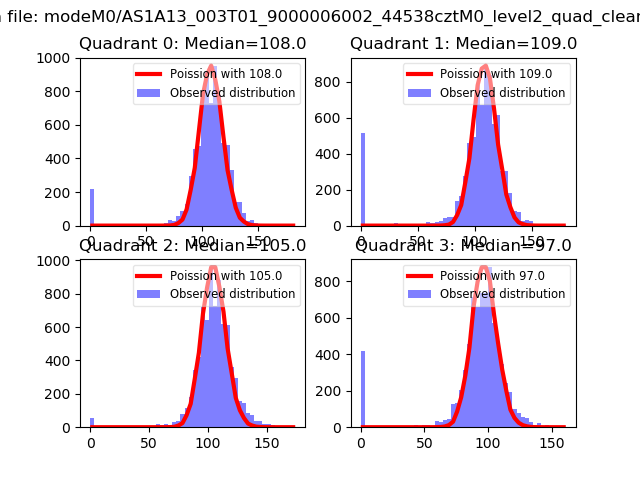

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

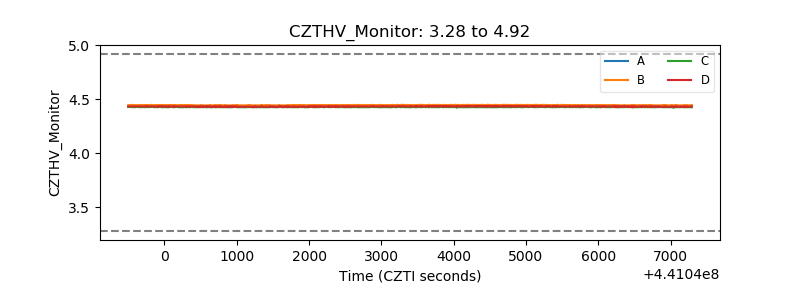

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

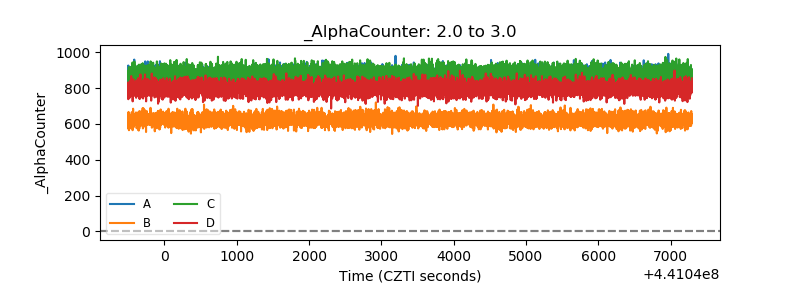

| Alpha Counter |  |

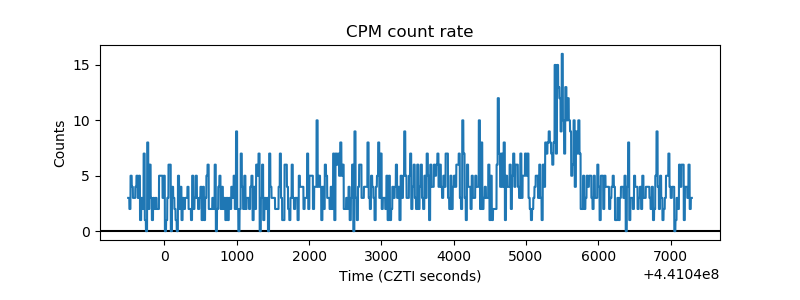

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

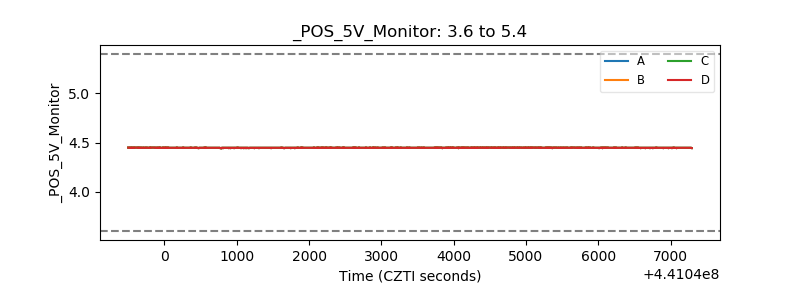

| +5 Volts monitor |  |

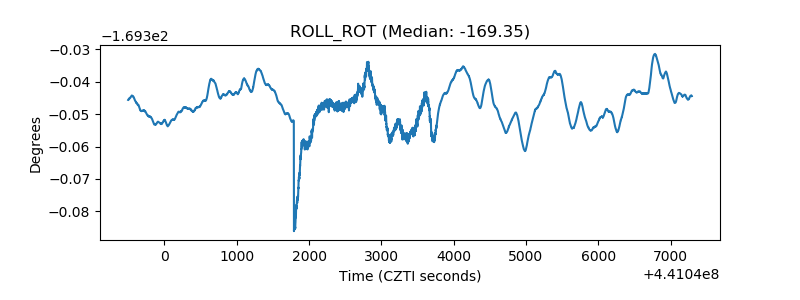

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

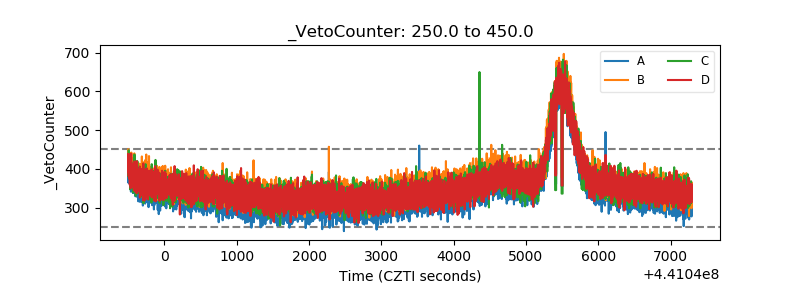

| Veto Counter |  |
