| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000006002_44575cztM0_level2.fits | modeM0/AS1A13_003T01_9000006002_44575cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,819,520 | 110,617,920 |
| Size | 483.3 MB | 105.5 MB |
| Events in quadrant A | 4,892,107 | 774,000 |
| Events in quadrant B | 3,159,848 | 809,306 |
| Events in quadrant C | 5,358,063 | 647,970 |
| Events in quadrant D | 4,861,225 | 678,804 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19900 | 2 |
| B | 0 | 13456 | 2 |
| C | 0 | 20120 | 2 |
| D | 0 | 18686 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6308 | 142 | 2.251110% |
| B | 6308 | 75 | 1.188966% |
| C | 6308 | 1060 | 16.804058% |
| D | 6307 | 303 | 4.804186% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7578 | 6308 | 15 | 15 | 0.20% | 0.24% |  |
| B | 7578 | 6308 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7578 | 6308 | 784 | 784 | 10.35% | 12.43% |  |
| D | 7577 | 6307 | 254 | 254 | 3.35% | 4.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1882488 | 11980.11 | 765 | 750 | 157.1 |
| A | 13 | 248 | 31692 | 196.99 | 765 | 750 | 157.1 |
| A | 3 | 137 | 8175 | 47.27 | 765 | 750 | 157.1 |
| B | 0 | 186 | 51948 | 345.0 | 767 | 745 | 148.4 |
| B | 5 | 172 | 48589 | 322.37 | 767 | 745 | 148.4 |
| B | 12 | 111 | 18488 | 119.55 | 767 | 745 | 148.4 |
| C | 15 | 208 | 2293562 | 14507.54 | 680 | 684 | 158.0 |
| C | 3 | 233 | 186083 | 1173.06 | 680 | 684 | 158.0 |
| C | 14 | 254 | 158662 | 999.56 | 680 | 684 | 158.0 |
| D | 13 | 174 | 818461 | 4456.71 | 732 | 711 | 183.5 |
| D | 1 | 52 | 520364 | 2832.09 | 732 | 711 | 183.5 |
| D | 2 | 249 | 355808 | 1935.27 | 732 | 711 | 183.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

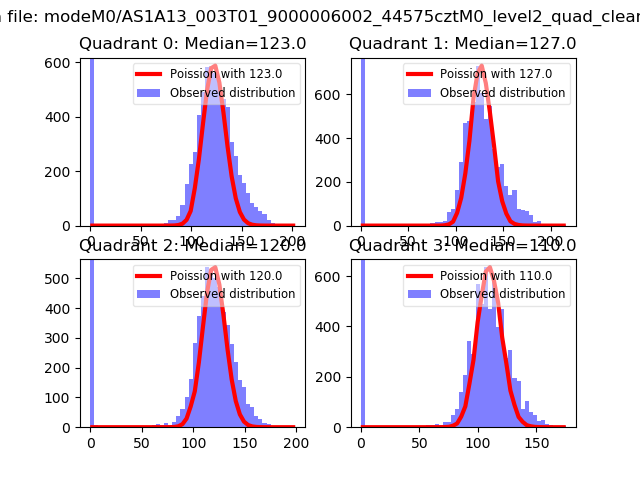

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

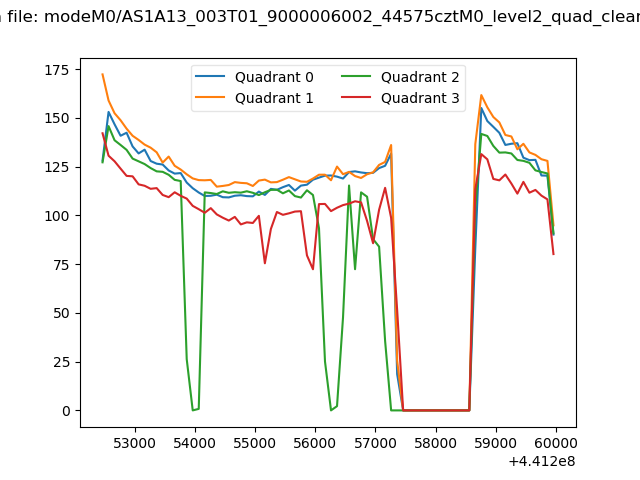

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

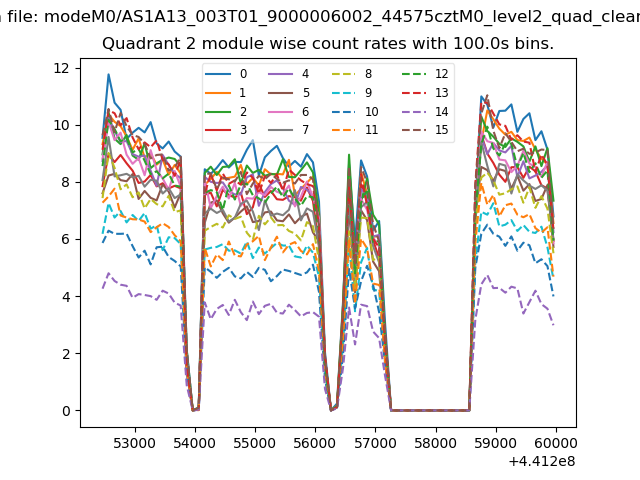

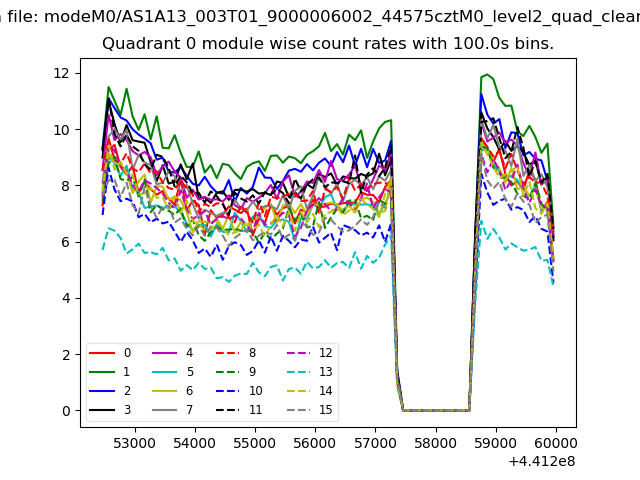

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

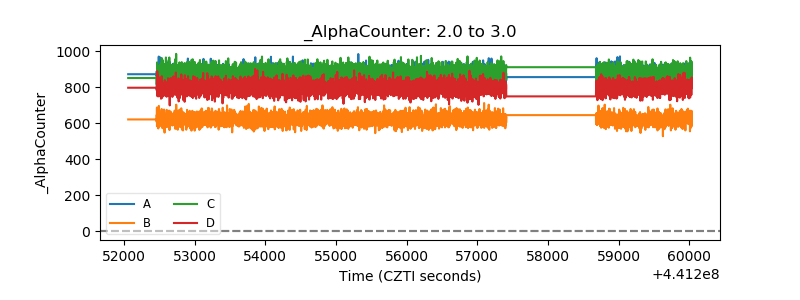

| Alpha Counter |  |

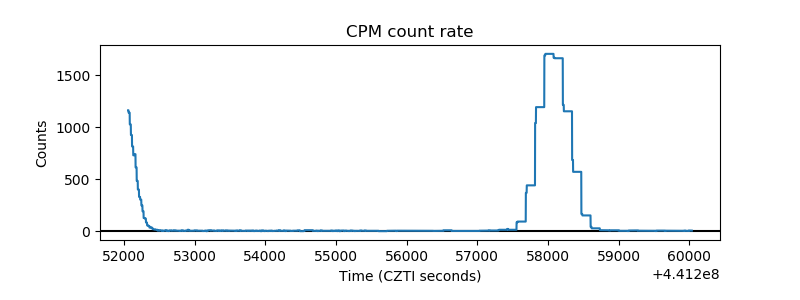

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

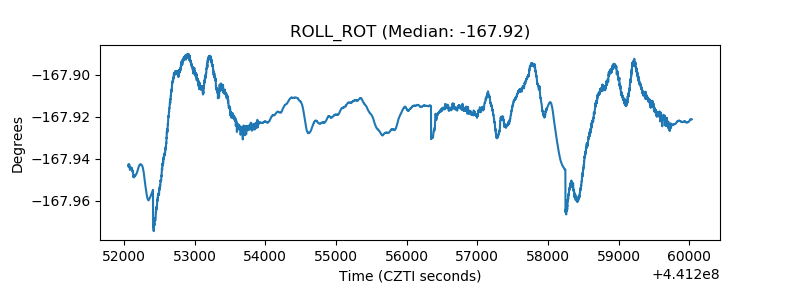

| _ROLL_ROT |  |

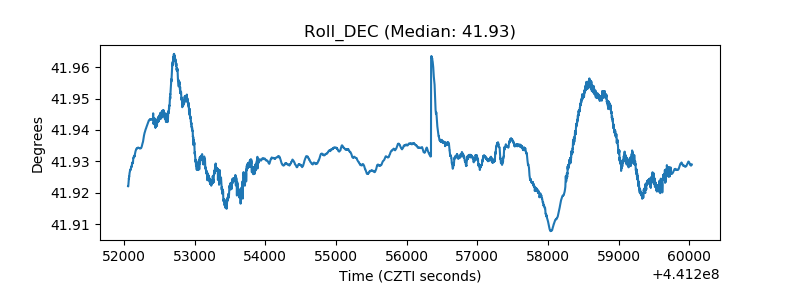

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
