| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_009T03_9000006006_44585cztM0_level2.fits | modeM0/AS1A13_009T03_9000006006_44585cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,306,560 | 118,330,560 |
| Size | 556.3 MB | 112.8 MB |
| Events in quadrant A | 5,570,256 | 816,084 |
| Events in quadrant B | 4,388,681 | 817,757 |
| Events in quadrant C | 4,767,821 | 743,625 |
| Events in quadrant D | 6,282,413 | 681,887 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22862 | 2 |
| B | 0 | 18250 | 2 |
| C | 0 | 19368 | 2 |
| D | 0 | 23667 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7514 | 144 | 1.916423% |
| B | 7514 | 278 | 3.699760% |
| C | 7515 | 504 | 6.706587% |
| D | 7515 | 735 | 9.780439% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

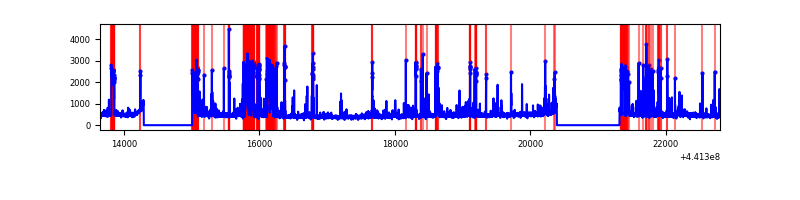

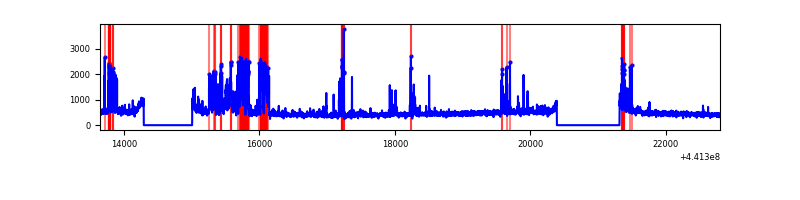

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9154 | 7514 | 12 | 12 | 0.13% | 0.16% |  |
| B | 9154 | 7514 | 128 | 128 | 1.40% | 1.70% |  |
| C | 9155 | 7517 | 428 | 428 | 4.68% | 5.69% |  |
| D | 9155 | 7517 | 705 | 705 | 7.70% | 9.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2171951 | 12116.25 | 860 | 844 | 179.2 |
| A | 13 | 248 | 31806 | 172.79 | 860 | 844 | 179.2 |
| A | 0 | 243 | 12333 | 64.12 | 860 | 844 | 179.2 |
| B | 5 | 235 | 565207 | 3329.83 | 852 | 823 | 169.5 |
| B | 5 | 172 | 218273 | 1282.94 | 852 | 823 | 169.5 |
| B | 0 | 186 | 150514 | 883.17 | 852 | 823 | 169.5 |
| C | 12 | 2 | 1120361 | 5807.57 | 812 | 817 | 192.8 |
| C | 2 | 14 | 157949 | 815.11 | 812 | 817 | 192.8 |
| C | 14 | 254 | 146072 | 753.5 | 812 | 817 | 192.8 |
| D | 13 | 249 | 2073833 | 10083.91 | 812 | 787 | 205.6 |
| D | 1 | 52 | 457130 | 2219.79 | 812 | 787 | 205.6 |
| D | 5 | 222 | 346384 | 1681.09 | 812 | 787 | 205.6 |

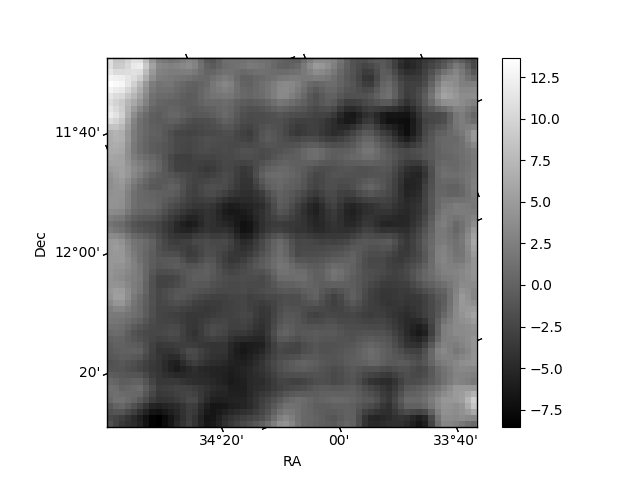

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

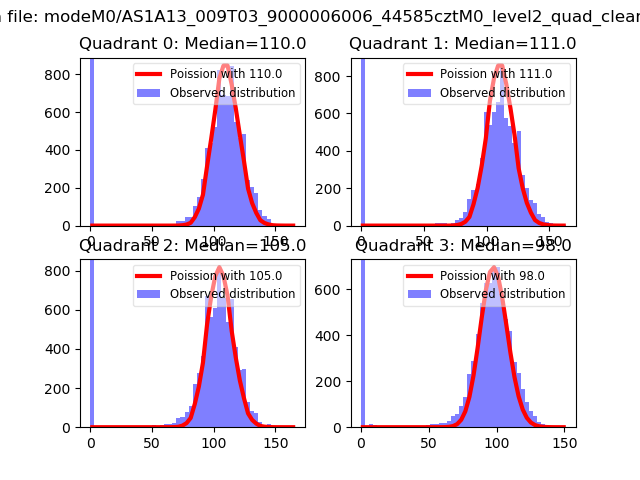

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

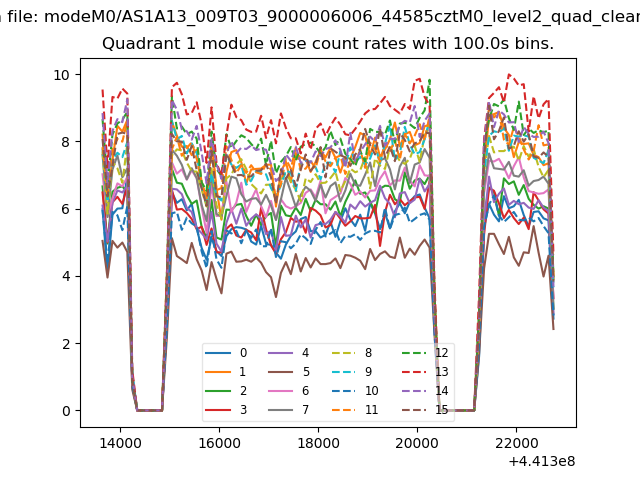

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

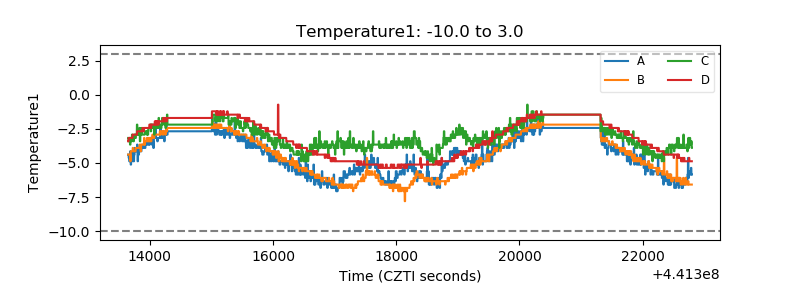

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

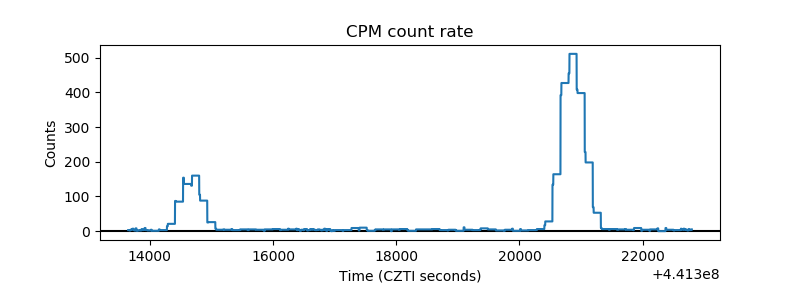

| _CPM_Rate |  |

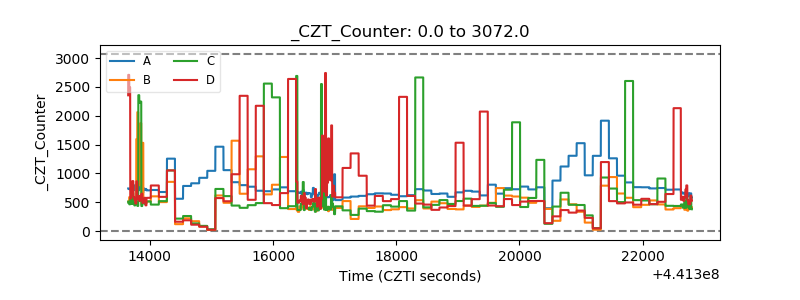

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
