| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T01_9000006008_44633cztM0_level2.fits | modeM0/AS1A13_072T01_9000006008_44633cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,836,800 | 108,149,760 |
| Size | 474.8 MB | 103.1 MB |
| Events in quadrant A | 4,766,422 | 738,536 |
| Events in quadrant B | 3,025,424 | 780,472 |
| Events in quadrant C | 3,776,993 | 718,103 |
| Events in quadrant D | 6,369,633 | 597,418 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19377 | 2 |
| B | 0 | 13354 | 2 |
| C | 0 | 15707 | 2 |
| D | 0 | 23395 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6311 | 136 | 2.154968% |
| B | 6311 | 68 | 1.077484% |
| C | 6311 | 200 | 3.169070% |
| D | 6311 | 813 | 12.882269% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

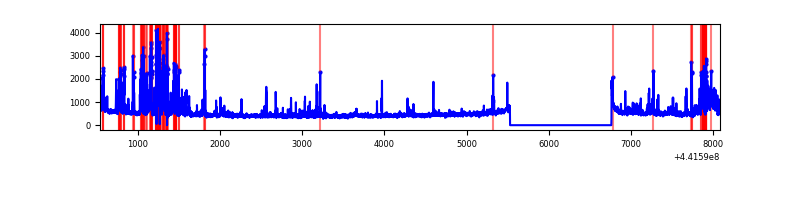

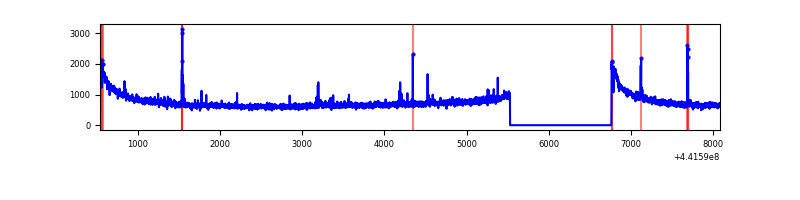

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7546 | 6312 | 17 | 17 | 0.23% | 0.27% |  |
| B | 7546 | 6312 | 24 | 24 | 0.32% | 0.38% |  |
| C | 7546 | 6312 | 138 | 138 | 1.83% | 2.19% |  |
| D | 7546 | 6312 | 696 | 696 | 9.22% | 11.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1905652 | 13001.57 | 716 | 702 | 146.5 |
| A | 10 | 248 | 44144 | 296.49 | 716 | 702 | 146.5 |
| A | 13 | 248 | 37904 | 253.91 | 716 | 702 | 146.5 |
| B | 0 | 189 | 68499 | 486.06 | 725 | 704 | 139.5 |
| B | 0 | 155 | 35901 | 252.35 | 725 | 704 | 139.5 |
| B | 5 | 172 | 31099 | 217.92 | 725 | 704 | 139.5 |
| C | 12 | 2 | 864938 | 5353.42 | 697 | 703 | 161.4 |
| C | 3 | 233 | 91461 | 562.19 | 697 | 703 | 161.4 |
| C | 12 | 250 | 60385 | 369.69 | 697 | 703 | 161.4 |
| D | 13 | 249 | 2176547 | 13302.61 | 655 | 635 | 163.6 |
| D | 13 | 174 | 775191 | 4735.31 | 655 | 635 | 163.6 |
| D | 1 | 52 | 377737 | 2305.44 | 655 | 635 | 163.6 |

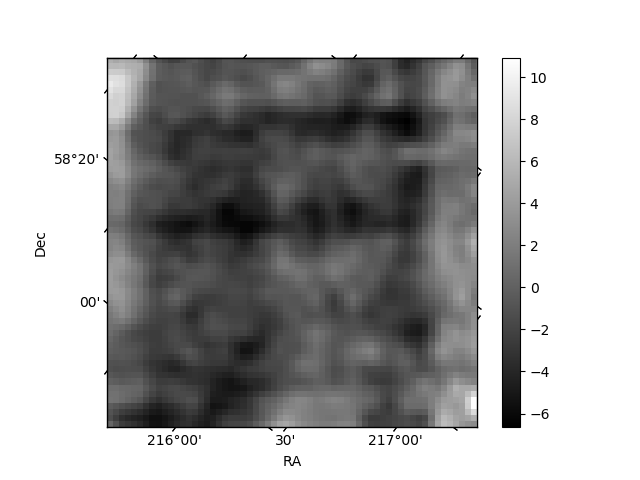

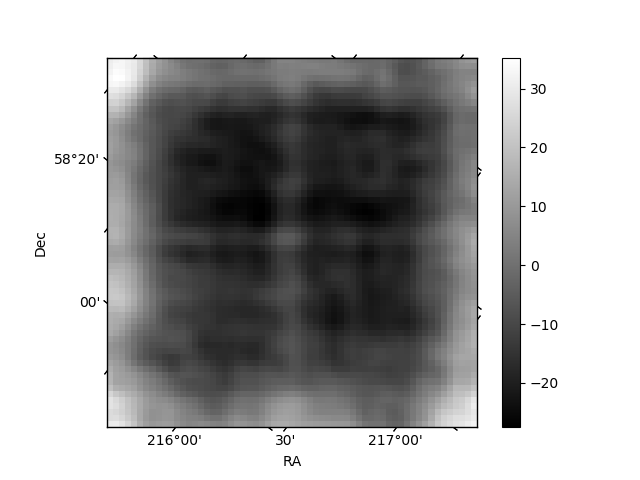

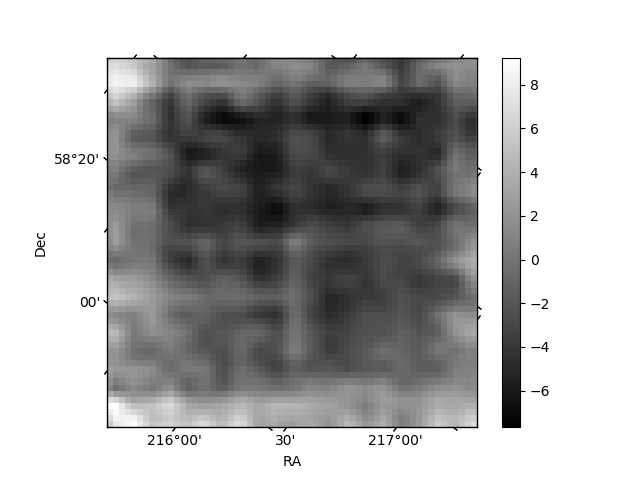

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

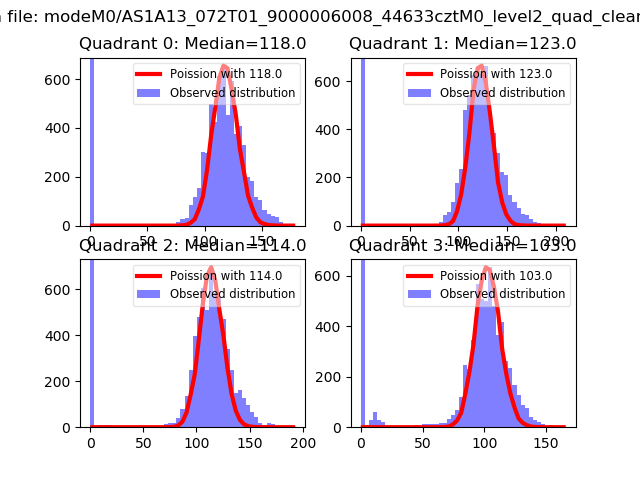

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

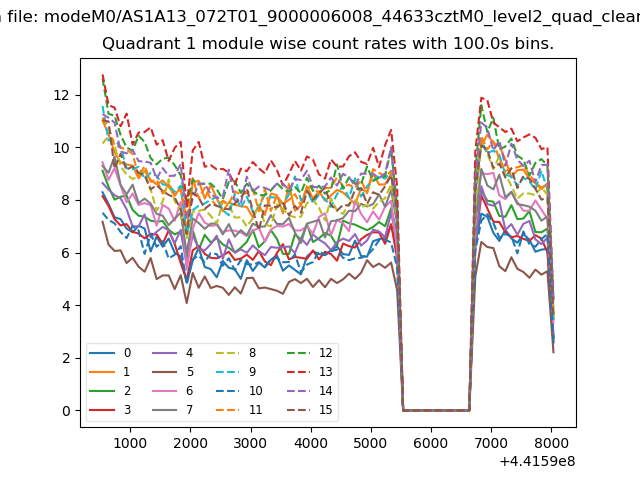

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

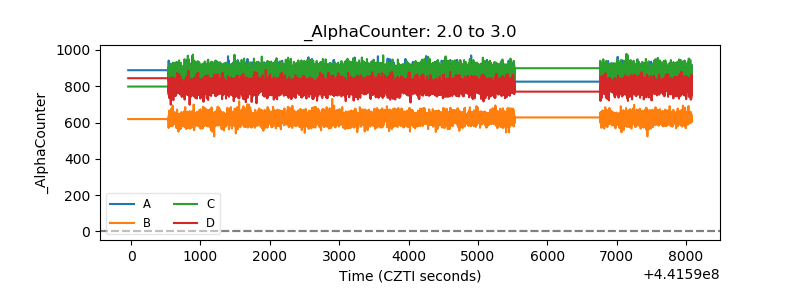

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
