| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T01_9000006008_44643cztM0_level2.fits | modeM0/AS1A13_072T01_9000006008_44643cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,528,000 | 103,703,040 |
| Size | 449.7 MB | 98.9 MB |
| Events in quadrant A | 4,997,333 | 694,921 |
| Events in quadrant B | 3,396,113 | 716,346 |
| Events in quadrant C | 3,372,563 | 677,663 |
| Events in quadrant D | 5,177,567 | 592,211 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20201 | 5 |
| B | 0 | 14863 | 1 |
| C | 0 | 14780 | 1 |
| D | 0 | 20083 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6575 | 186 | 2.828897% |
| B | 6576 | 143 | 2.174574% |
| C | 6576 | 144 | 2.189781% |
| D | 6576 | 572 | 8.698297% |

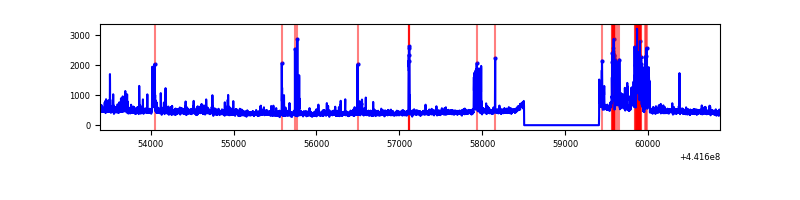

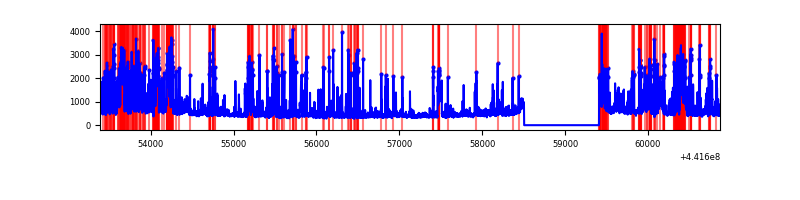

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7480 | 6576 | 74 | 74 | 0.99% | 1.13% |  |
| B | 7481 | 6577 | 54 | 54 | 0.72% | 0.82% |  |
| C | 7481 | 6577 | 95 | 95 | 1.27% | 1.44% |  |
| D | 7481 | 6577 | 420 | 420 | 5.61% | 6.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1836758 | 12363.05 | 717 | 702 | 148.5 |
| A | 13 | 248 | 219883 | 1475.85 | 717 | 702 | 148.5 |
| A | 15 | 223 | 105903 | 708.37 | 717 | 702 | 148.5 |
| B | 0 | 189 | 225057 | 1590.26 | 716 | 694 | 141.1 |
| B | 0 | 186 | 149914 | 1057.66 | 716 | 694 | 141.1 |
| B | 0 | 168 | 91848 | 646.09 | 716 | 694 | 141.1 |
| C | 12 | 2 | 378045 | 2272.14 | 704 | 709 | 166.1 |
| C | 12 | 16 | 110536 | 661.33 | 704 | 709 | 166.1 |
| C | 14 | 254 | 76362 | 455.55 | 704 | 709 | 166.1 |
| D | 1 | 52 | 1284249 | 7404.23 | 689 | 667 | 173.4 |
| D | 13 | 249 | 465387 | 2680.7 | 689 | 667 | 173.4 |
| D | 5 | 222 | 213399 | 1227.13 | 689 | 667 | 173.4 |

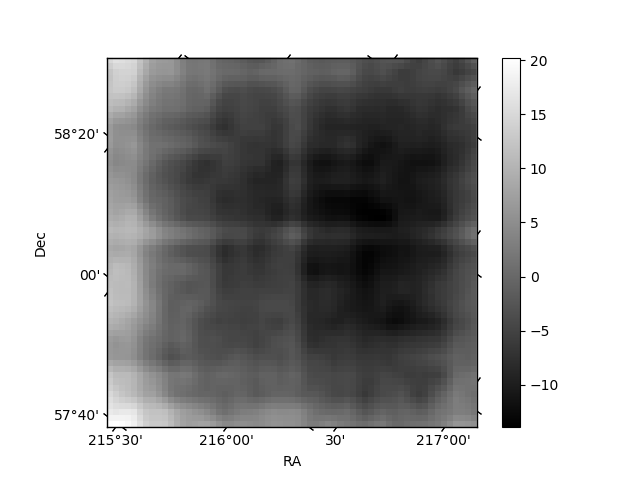

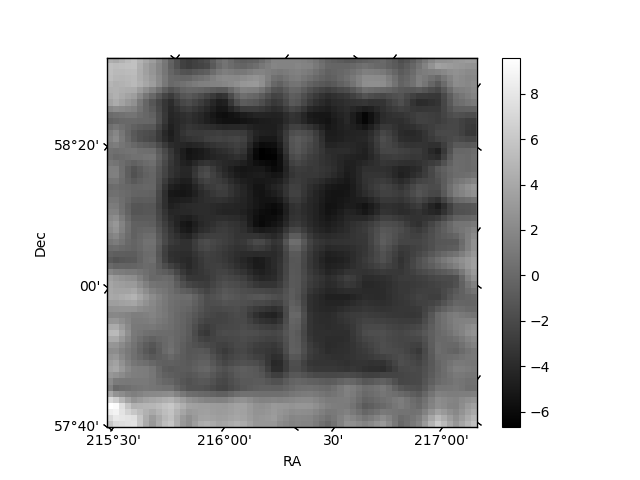

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

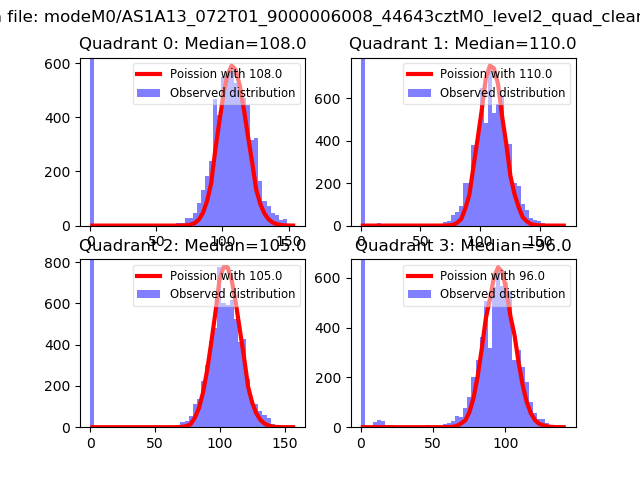

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

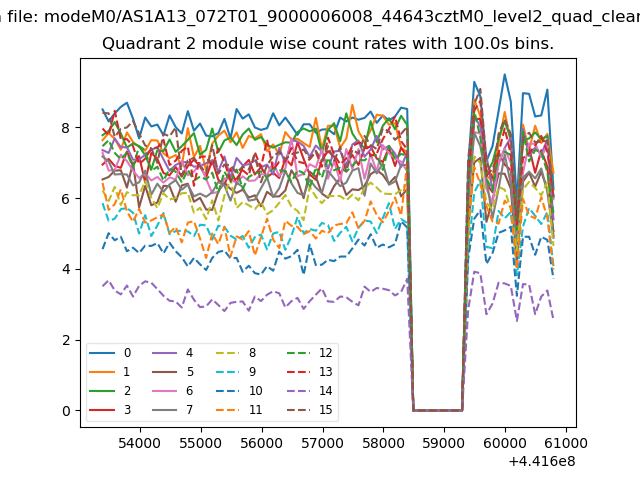

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

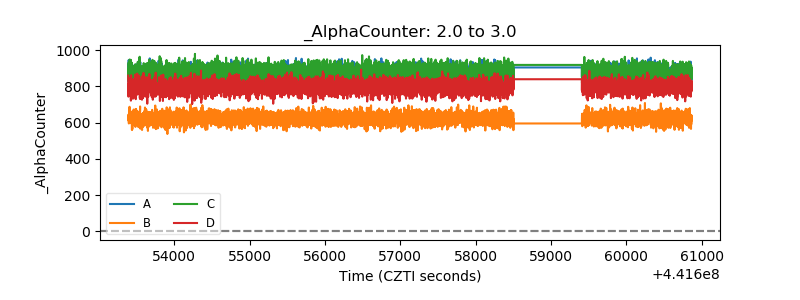

| Alpha Counter |  |
| _CPM_Rate |  |

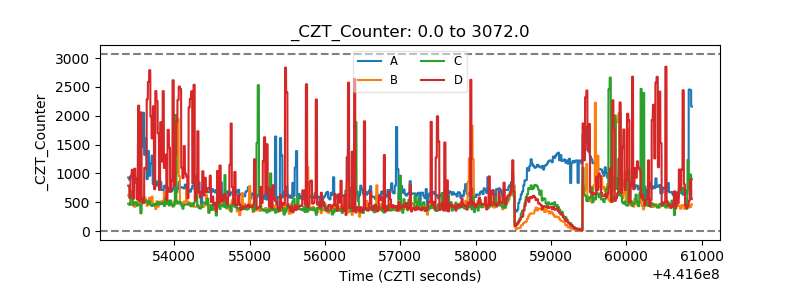

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
