| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T01_9000006008_44648cztM0_level2.fits | modeM0/AS1A13_072T01_9000006008_44648cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,730,240 | 108,046,080 |
| Size | 457.5 MB | 103.0 MB |
| Events in quadrant A | 5,103,909 | 733,360 |
| Events in quadrant B | 3,038,005 | 778,442 |
| Events in quadrant C | 3,640,576 | 727,806 |
| Events in quadrant D | 5,481,721 | 588,138 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20378 | 2 |
| B | 0 | 13499 | 2 |
| C | 0 | 15329 | 2 |
| D | 0 | 20849 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6358 | 224 | 3.523120% |
| B | 6358 | 56 | 0.880780% |
| C | 6358 | 91 | 1.431268% |
| D | 6358 | 819 | 12.881409% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

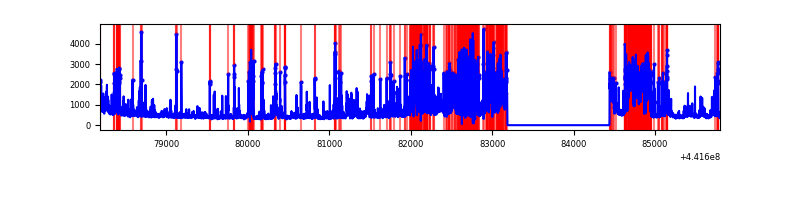

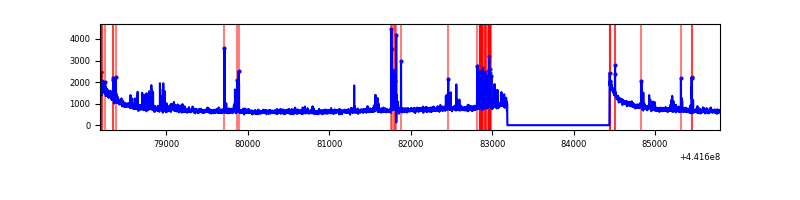

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7613 | 6359 | 67 | 67 | 0.88% | 1.05% |  |
| B | 7613 | 6359 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7613 | 6359 | 88 | 88 | 1.16% | 1.38% |  |
| D | 7613 | 6359 | 603 | 603 | 7.92% | 9.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1969612 | 13535.82 | 712 | 699 | 145.5 |
| A | 13 | 248 | 229620 | 1573.78 | 712 | 699 | 145.5 |
| A | 15 | 223 | 112376 | 767.75 | 712 | 699 | 145.5 |
| B | 5 | 172 | 61848 | 443.34 | 721 | 701 | 137.9 |
| B | 0 | 183 | 47792 | 341.43 | 721 | 701 | 137.9 |
| B | 0 | 189 | 20366 | 142.58 | 721 | 701 | 137.9 |
| C | 15 | 252 | 768995 | 4722.57 | 702 | 706 | 162.7 |
| C | 2 | 14 | 53646 | 325.41 | 702 | 706 | 162.7 |
| C | 14 | 254 | 31867 | 191.54 | 702 | 706 | 162.7 |
| D | 1 | 52 | 1910080 | 11885.21 | 647 | 627 | 160.7 |
| D | 2 | 249 | 477167 | 2966.18 | 647 | 627 | 160.7 |
| D | 13 | 249 | 275587 | 1711.46 | 647 | 627 | 160.7 |

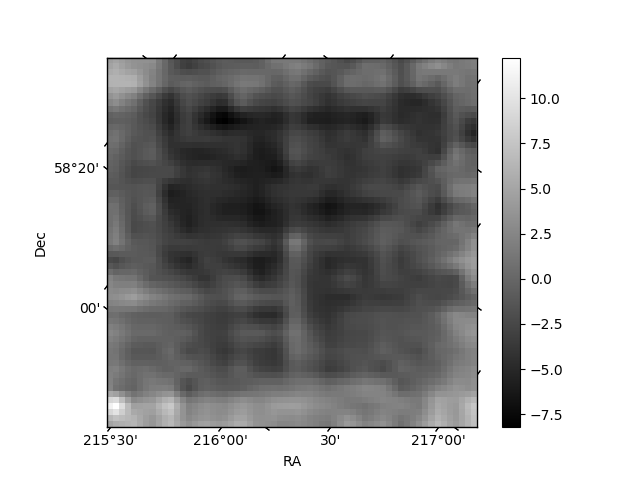

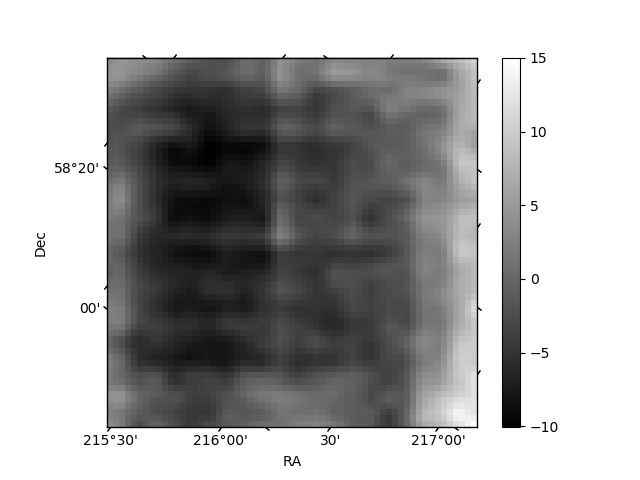

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

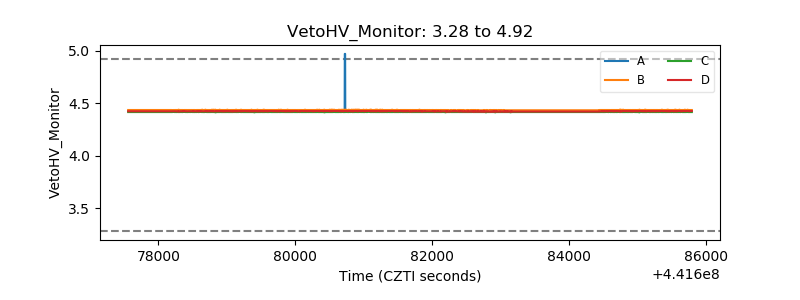

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

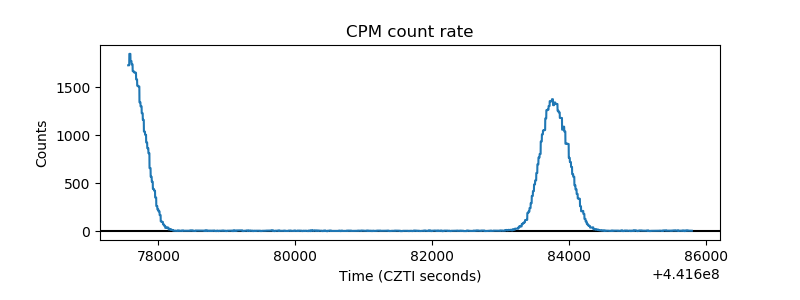

| _CPM_Rate |  |

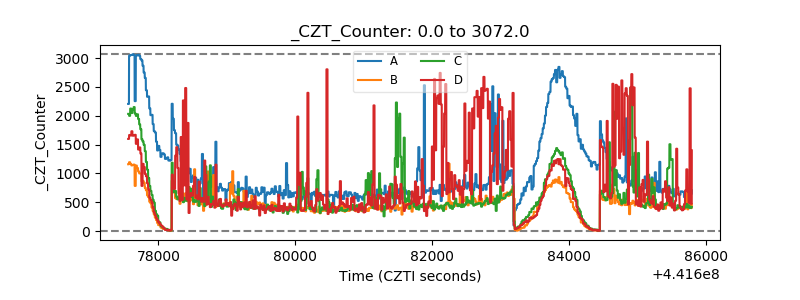

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
